Yaomatec Wholesale HD CCTV BNC Male Pin Connector Kit With Screw

Secure your video feed with Yaomatec HD CCTV BNC pin connectors. Fits RG59/RG6. Includes screws & O-rings. Shop wholesale at NEOTECH UAE!

Overview

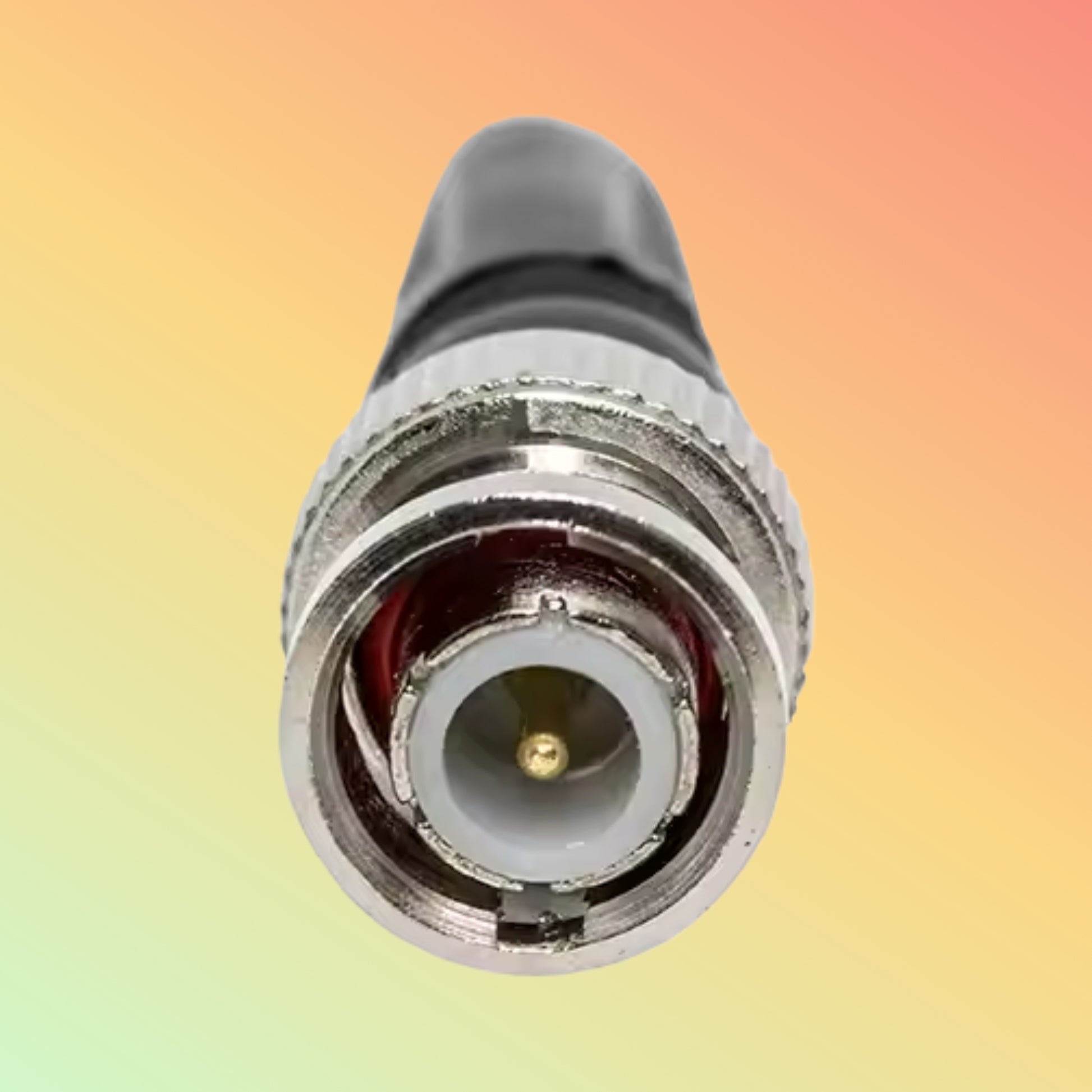

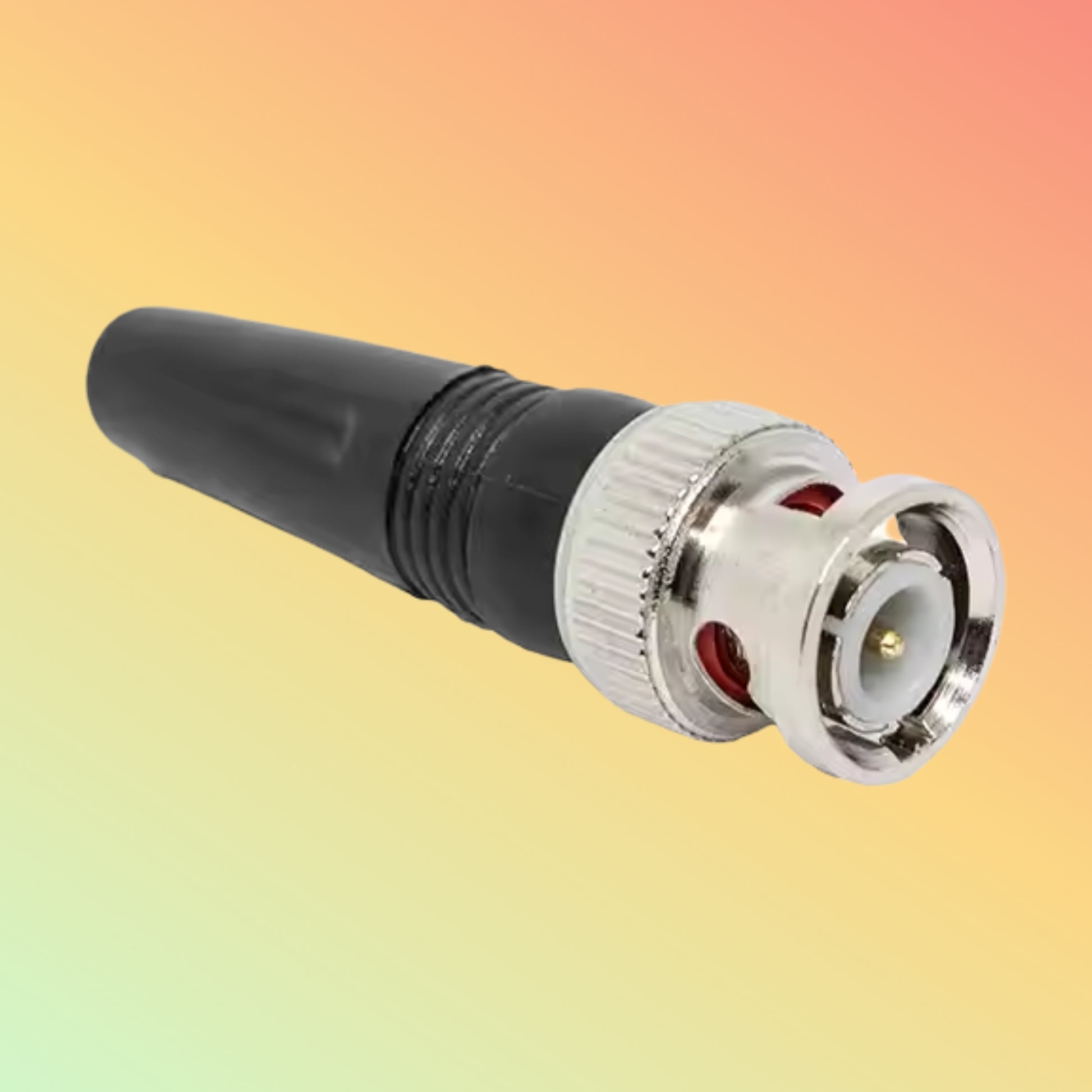

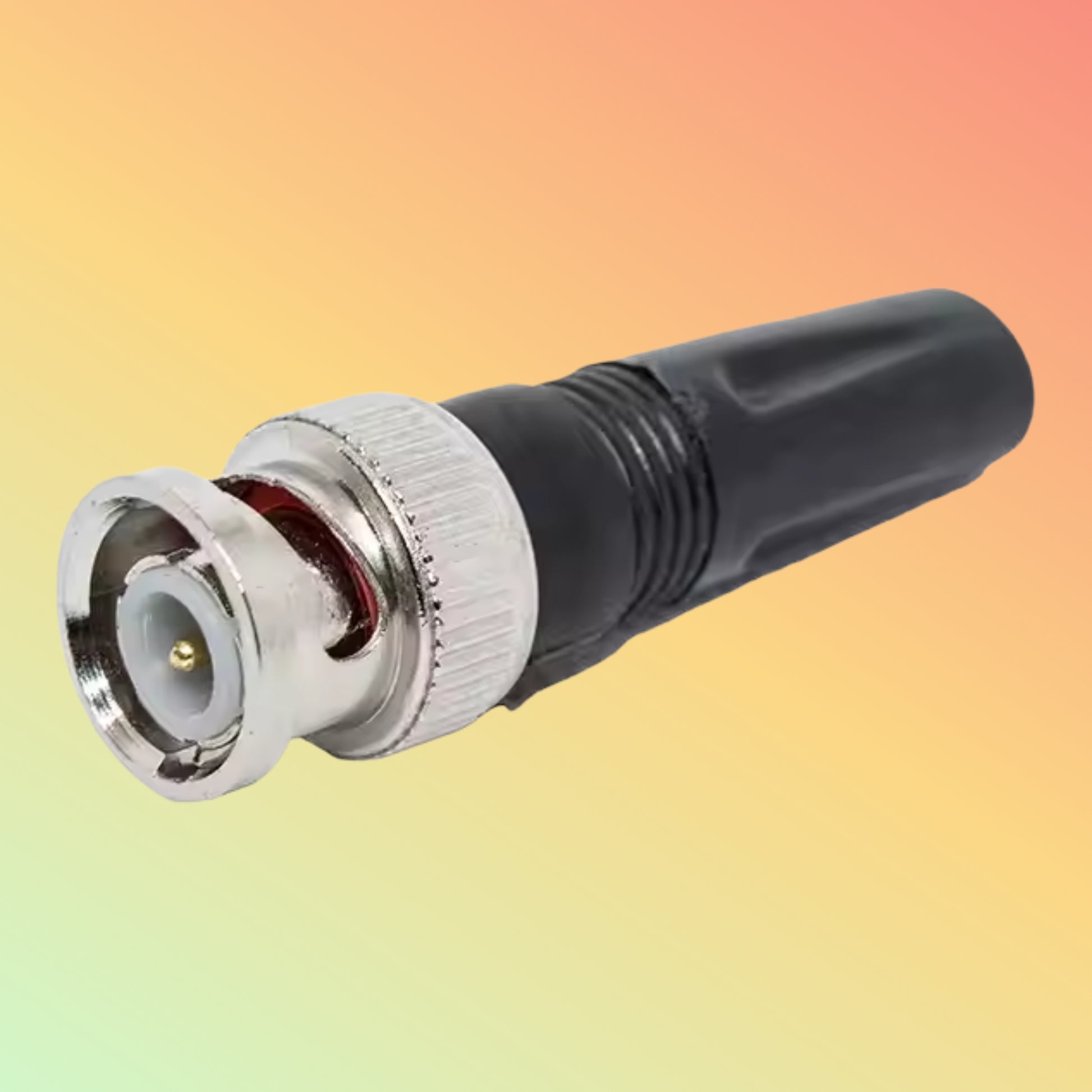

The Yaomatec HD CCTV BNC Male Pin Connector Kit delivers rock-solid, zero-loss video termination for RG59 and RG6 coax. Each kit includes precision CNC brass connectors, corrosion-resistant screws, and weather-sealed O-rings—optimizing uptime and signal integrity for security deployments.

Product Description

This all-in-one kit features BNC male pin connectors that lock securely onto your coax jacket. The included screws clamp the center pin for vibration-proof bonds, while the IP67-rated O-ring seals block moisture and dust. Perfect for broadcast-grade CCTV, HD-SDI, and analogue video systems—ideal for large-scale installations.

Key Features

• CNC-machined brass BNC male pin connectors

• Compression-style fit for RG59 & RG6 coax

• Includes stainless-steel center-pin screws

• IP67 weatherproof O-ring seal per connector

• Supports HD-SDI (1080p60), 3G-SDI, analogue CCTV

• 75 Ω impedance for zero signal reflection

• Bulk wholesale packs: 100, 500, 1 000 pcs

• Tool-free quick install with standard compression tool

Specifications

• Connector Style: BNC male, pin-screw compression

• Cable Types: RG59, RG6

• Impedance: 75 Ω

• Bandwidth: DC–3 GHz

• Materials: Brass housing; gold-plated center pin; stainless-steel screw

• Seal Rating: IP67 (mated)

• Operating Temp: –40 °C to +85 °C

• Pack Sizes: 100 / 500 / 1 000 pcs

• Unit Weight: 18 g each

Supported Applications / Industries

• CCTV security & surveillance networks

• Broadcast studios & live-stream setups

• Retail & commercial A/V installations

• Sports venues & event staging

• Industrial process monitoring

• Government & enterprise campuses

Benefits & Compatibility

• Zero-loss video for mission-critical feeds

• Rock-solid bonding prevents signal dropouts

• Weatherproof seal for indoor/outdoor use

• Universal BNC fits all SDI cameras & DVRs

• Wholesale value for large-scale rollouts

Purpose of Use

Use this kit to:

• Terminate RG59/RG6 coax runs cleanly and securely

• Ensure HD-SDI and analogue CCTV signals stay pristine

• Speed up field installs with screw-lock reliability

• Minimize callbacks by eliminating loose crimp failures

How to Use

1. Strip coax per Yaomatec dimension guide

2. Slide on connector body, seat the O-ring

3. Insert center conductor into pin and tighten screw

4. Use compression tool for final clamp

5. Mate to BNC jack and verify signal

Packaging / Weight / Dimensions

• Includes: 100/500/1 000 BNC pin connectors, screws, O-rings, quick-start guide

• Connector Size: 24 × 13 mm each

• Pack Dimensions (100 pcs): 200 × 150 × 50 mm

• Gross Weight (100 pcs): ~2 kg

• Packaging: Reinforced cardboard box

After Sales Support

From install tips to live-chat troubleshooting, our tech team is on call via email, phone, or chat. We back you with firmware updates, tool guides, and rapid RMA service.

Get in Touch

Need custom bulk pricing or on-site training? Contact our video-infra experts for fast quotes and tailored rollout plans.

Stock Availability

✅ In stock (100/500/1 000 pcs)
✔️ Ships in 1–2 business days UAE-wide
⏱ For urgent bulk orders (5 000+), please confirm stock before checkout

Disclaimer

All specs are for general guidance and subject to change without notice. Product images are illustrative. Verify final dimensions and pricing with our sales team before ordering.
