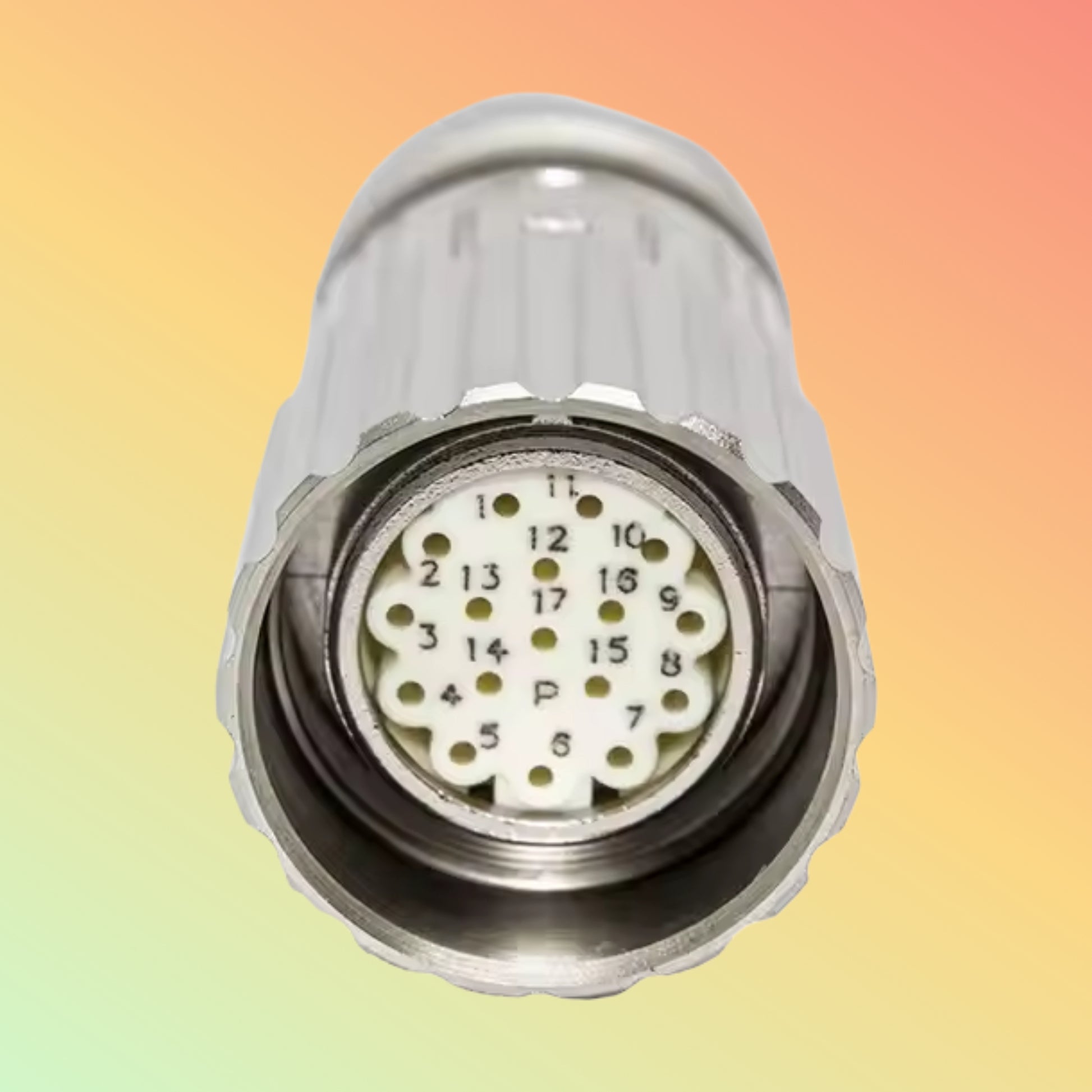

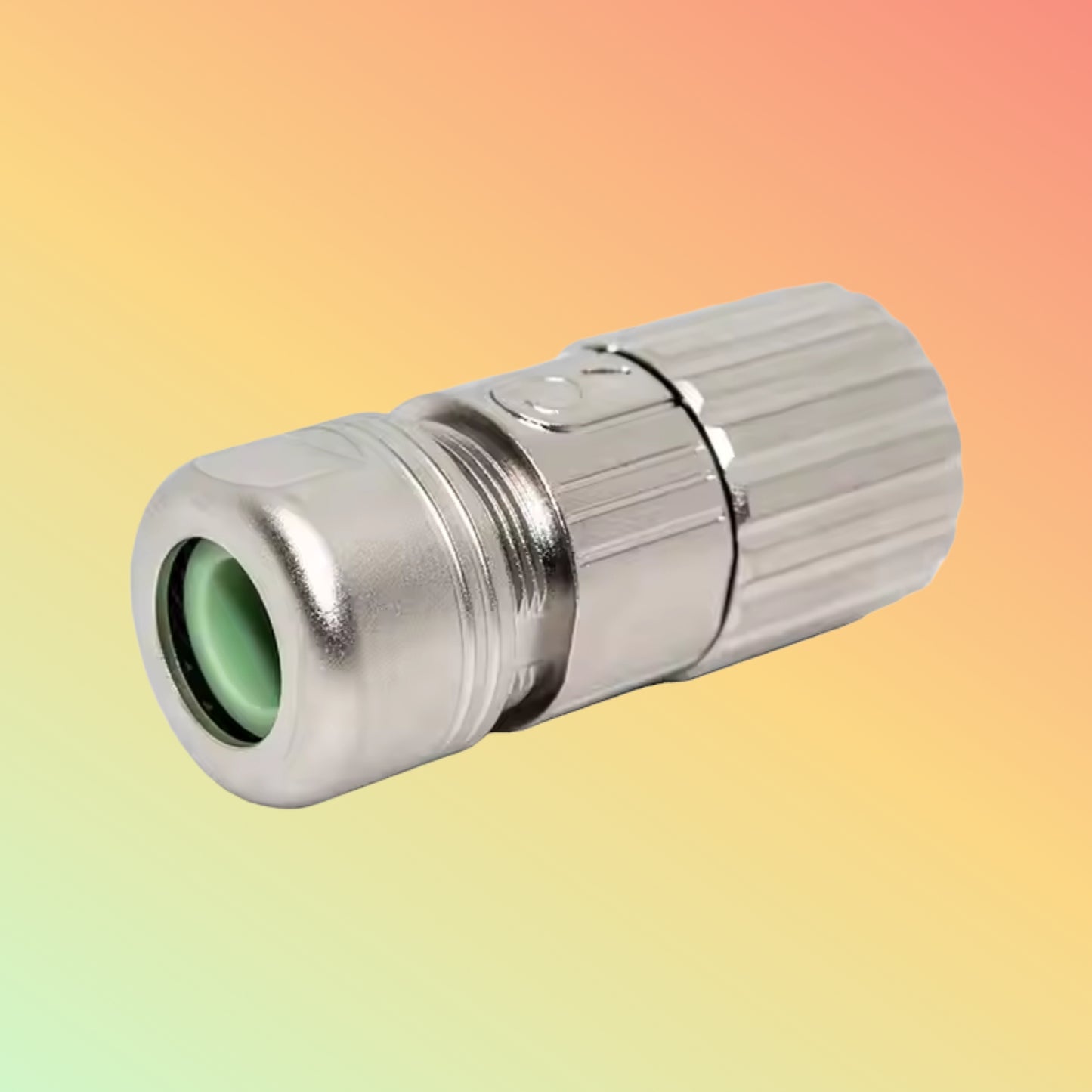

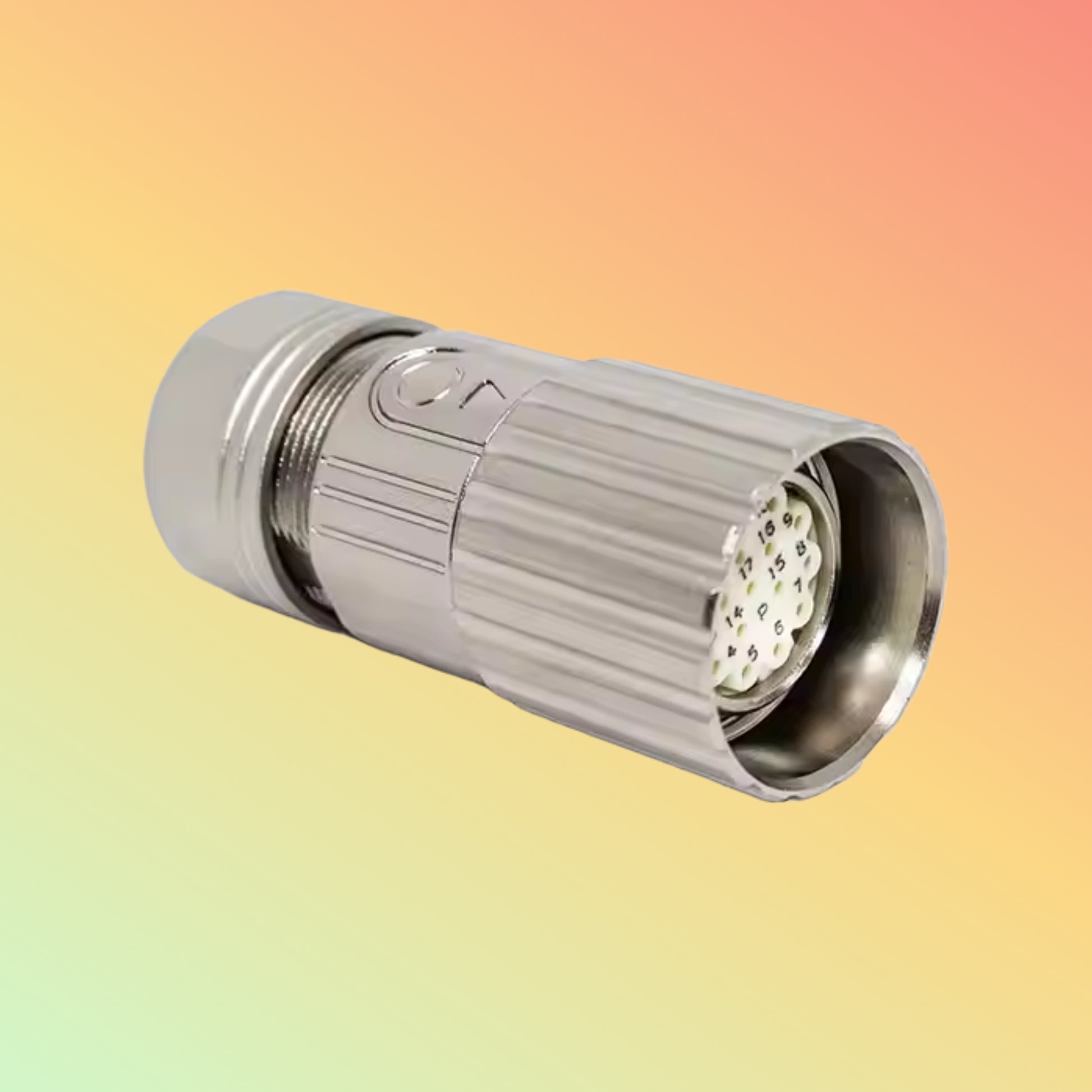

Yaomatec M23 17-Pin Female Encoder Connector for Machinery

Durable M23 17-pin female encoder connector for industrial machinery. High precision, secure fit & long life. Order now from NEOTECH UAE.

Overview

The Yaomatec M23 17-Pin Female Encoder Connector for Machinery is a high-precision, industrial-grade connection solution for encoders, motors, sensors, and control systems. Built for reliability in harsh environments, it ensures secure data and signal transmission in automation, robotics, and manufacturing equipment.

Product Description

Engineered to international industrial connector standards, the M23 17-pin female connector offers tight, vibration-resistant coupling and excellent shielding against electromagnetic interference (EMI).

With a robust metal housing, gold-plated contacts, and an IP-rated sealing design, it provides long-lasting performance even in demanding factory or outdoor applications. Its precision-pin alignment ensures accurate, loss-free signal transfer between encoders and machinery controllers.

Key Features

• 17-pin female M23 connector for encoder and sensor applications.

• High conductivity with gold-plated contacts.

• Strong IP-rated environmental sealing.

• Resistant to vibration, shock, and EMI.

• Durable metal housing for industrial environments.

• Secure locking mechanism to prevent accidental disconnection.

Specifications

• Connector Type: M23, Female

• Number of Pins: 17

• Contact Material: Gold-plated copper alloy

• Housing Material: Nickel-plated brass / aluminum alloy

• Ingress Protection: IP67 (mated)

• Operating Voltage: Up to 250V

• Current Rating: Up to 7A per contact

• Operating Temperature: -40°C to +125°C

• Cable Diameter Range: 6–12 mm

• Mounting: Screw-lock coupling

Supported Applications / Industries

• Applications: Encoder connection, sensor integration, motor feedback systems, servo drive connections

• Industries: Automation, CNC machinery, packaging equipment, robotics, printing machinery

Benefits & Compatibility

• Designed for high-speed, precision encoder systems.

• Compatible with industry-standard M23 encoder and motor connectors.

• Suitable for both fixed installations and mobile machinery.

• Provides stable, interference-free signal transmission.

Purpose of Use

Ideal for industrial automation engineers, maintenance teams, and OEMs requiring secure, high-quality encoder connections in harsh operating conditions.

How to Use

1. Match connector type to encoder/motor cable specifications.

2. Align 17 pins and secure via screw-lock coupling.

3. Test for proper signal continuity before operation.

Packaging / Weight / Dimensions

• Package Includes: 1x M23 17-pin female connector, assembly instructions

• Weight: Approx. 80g

• Dimensions: Standard M23 form factor

Warranty & FAQs

• Warranty: 1-year NEOTECH warranty

• FAQs:

  • Q: Can it be used outdoors? Yes, with IP67 sealing it’s weather-resistant.

  • Q: Is it compatible with all encoder brands? Yes, if they use the M23 17-pin standard.

Performance, Quality, Durability & Reliability

Manufactured with precision machining and premium materials, ensuring consistent performance in high-vibration, high-speed industrial setups.

Best Price Guarantee

NEOTECH offers competitive UAE pricing on genuine Yaomatec connectors with technical support.

Shop Today & Receive Your Delivery Across the UAE

Same-day dispatch for orders placed before 2 PM.

Request for Customer Reviews and Testimonials

We invite engineers and technicians to share installation feedback and performance results.

After Sales Support

NEOTECH provides technical consultation, connector assembly tips, and bulk supply for industrial projects.

Get in Touch

📧 Email: support@neotech.com

Stock Availability

Available now for immediate UAE shipment.

Disclaimer

Specifications may change without notice to improve performance.
