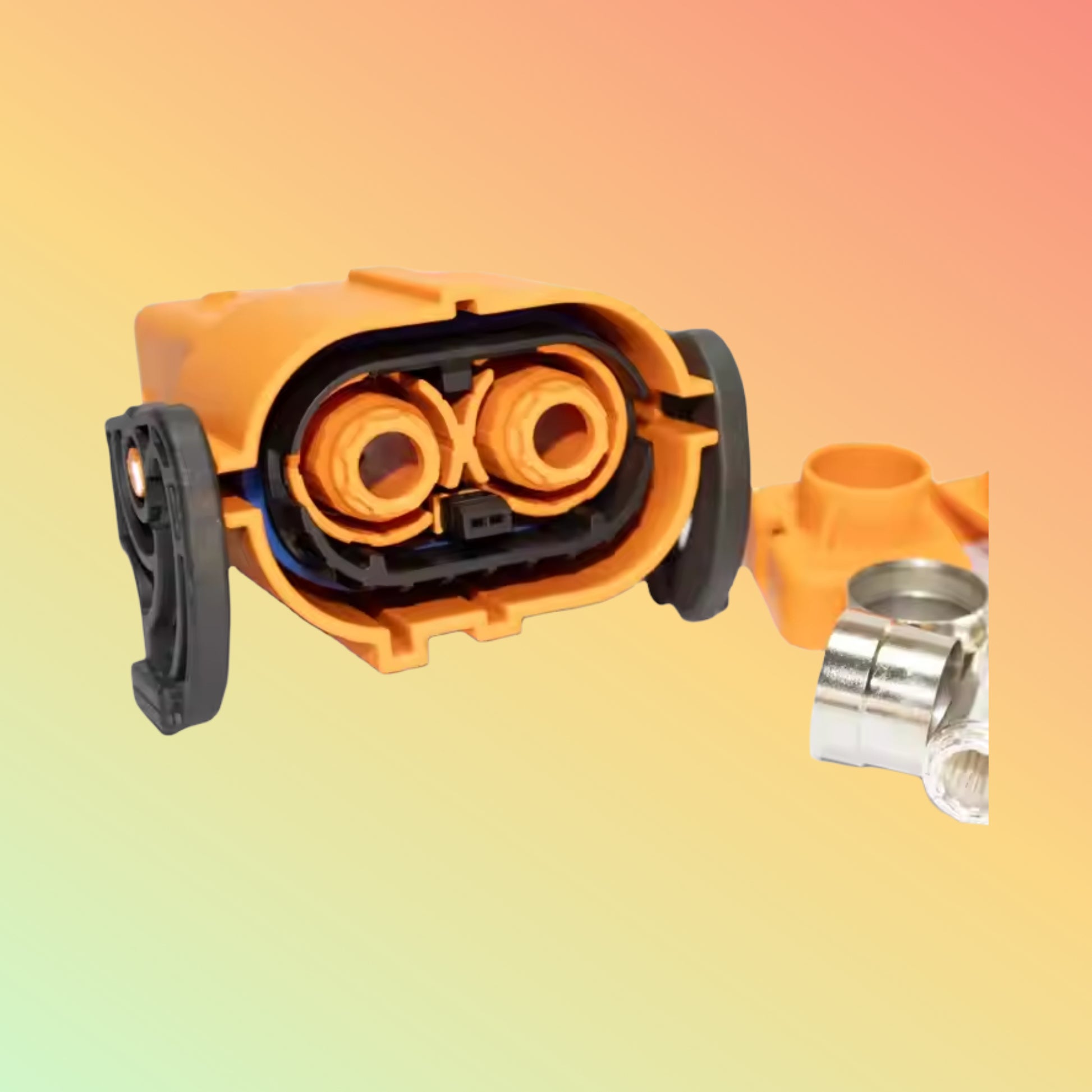

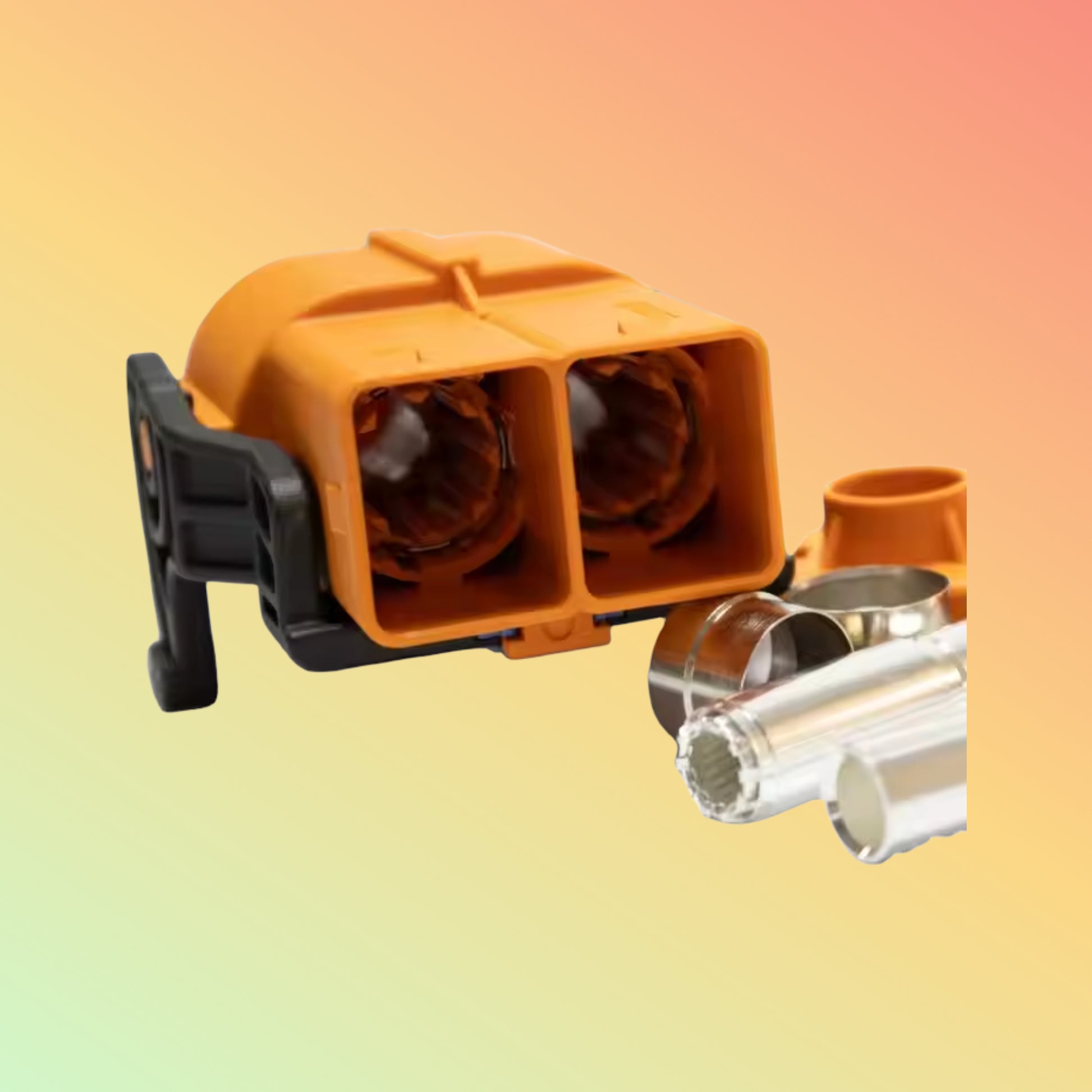

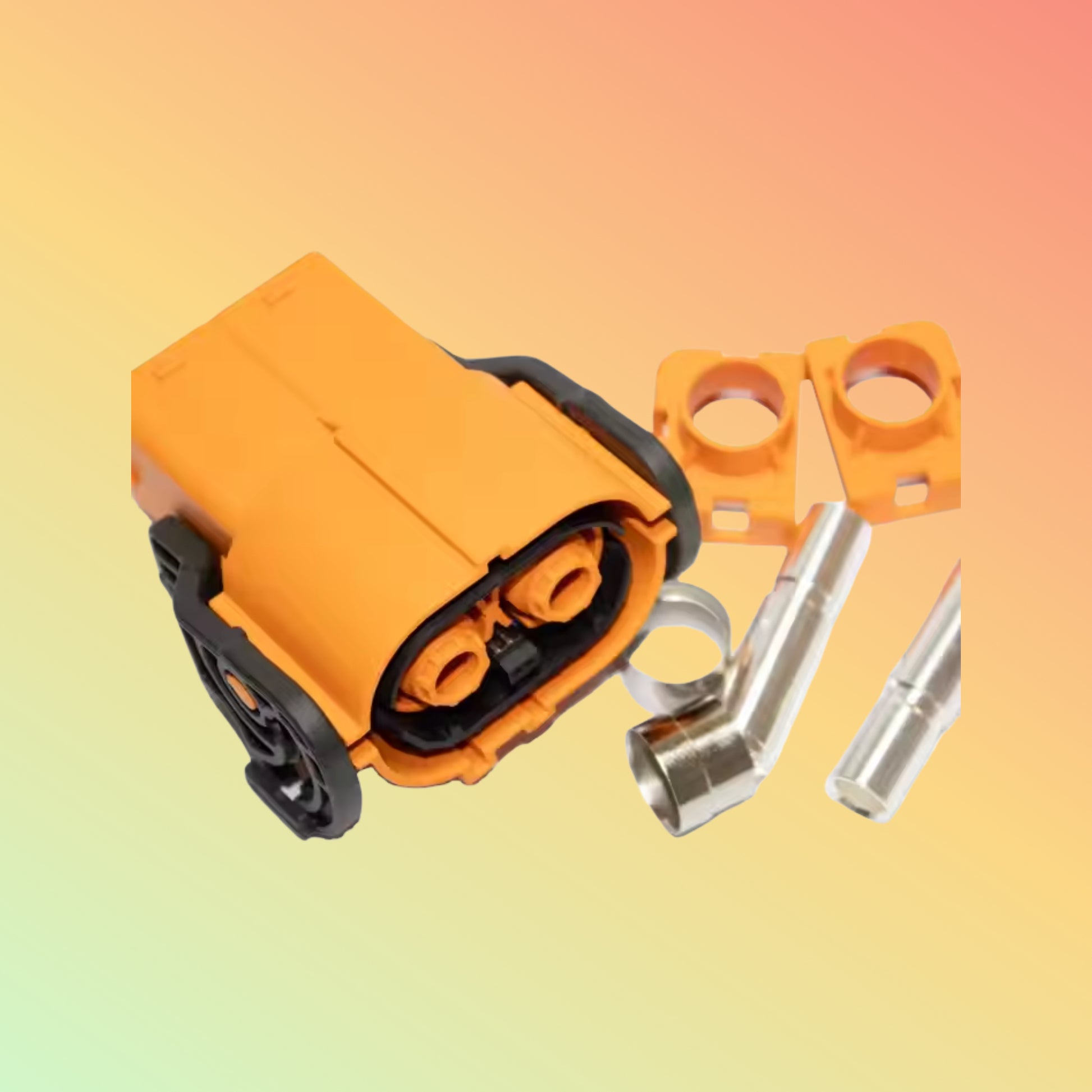

Yaomatec 150A HVIL 2-Pin 8mm High Voltage Plastic Straight Plug

150A HVIL 2-pin 8mm high voltage straight plug. Safe, durable, and easy to connect. Fast UAE delivery from NEOTECH.

Overview

The Yaomatec 150A HVIL 2-Pin 8mm High Voltage Plastic Straight Plug is engineered for high-current, high-voltage applications that demand secure, reliable, and safe electrical connections. Designed with HVIL (High Voltage Interlock Loop) safety technology, it ensures circuit protection and operational integrity for electric vehicles, energy storage systems, and industrial power applications.

Product Description

This 150A-rated connector features 2-pin 8mm terminals housed in a high-strength, flame-retardant plastic body. Its straight plug design allows easy inline installation, while HVIL ensures that circuits are safely disconnected before servicing. The ergonomic grip and locking mechanism provide a secure fit and quick connection/disconnection without compromising safety.

Key Features

• Current Rating: 150A for high-power systems

• Pins: 2-pin 8mm terminal configuration

• Material: Flame-retardant, high-strength plastic

• Design: Straight plug for inline connections

• Safety: HVIL (High Voltage Interlock Loop) integration

• Durability: Vibration-resistant and waterproof sealing

• Compatibility: Works with matching HVIL receptacles

• Ease of Use: Quick lock/unlock mechanism

Specifications

• Rated Current: 150A

• Rated Voltage: 1000V DC

• Pin Size: 8mm diameter

• Contact Resistance: ≤ 0.5 mΩ

• Insulation Resistance: ≥ 5000 MΩ

• Ingress Protection: IP67 when mated

• Operating Temperature: -40°C to +125°C

• Material: Flame-retardant thermoplastic housing, copper alloy contacts

• Color: Orange (high-voltage standard)

Supported OS / Application / Industries

(Not OS-related – technical compatibility listed instead)

• Applications: EV battery packs, energy storage systems, DC charging equipment, high-voltage inverters, industrial machinery

• Industries: Electric vehicle manufacturing, renewable energy, industrial automation, heavy equipment

Benefits & Compatibility

The Yaomatec 150A HVIL 2-Pin plug ensures maximum electrical efficiency, safety compliance, and durability under extreme working conditions, making it ideal for mission-critical high-voltage applications.

Purpose of Use

Designed for safe, high-power transmission between battery systems, charging stations, and high-voltage components while preventing accidental live connections.

How to Use

1. Align plug with matching receptacle.

2. Insert until the lock clicks into place.

3. Verify HVIL signal before energizing the circuit.

Packaging / Weight / Dimensions

• Package Includes: 1 × 150A HVIL 2-Pin Straight Plug, installation guide

• Weight: ~250 g

• Dimensions: Dependent on model specifications (contact for details)

Warranty & FAQs

• Warranty: 1-year manufacturer warranty

• FAQs:

  • Can it be used outdoors? Yes, IP67-rated when mated.

  • Is it EV-compliant? Yes, follows industry HV safety standards.

  • Does it include the mating connector? Sold separately.

Performance, Quality, Durability & Reliability

Built to withstand vibration, moisture, and thermal cycling, the connector ensures stable current delivery for high-demand environments.

Best Price Guarantee

NEOTECH provides competitive UAE pricing on Yaomatec high-voltage connectors with technical support.

Shop Today & Receive Your Delivery Across the UAE

Order now for fast UAE-wide shipping and ensure safe high-voltage connectivity in your projects.

Request for Customer Reviews and Testimonials

We welcome real-world installation feedback to feature in our HV connector gallery.

After Sales Support

NEOTECH offers technical assistance, installation guidance, and spare connector parts for long-term reliability.

Get in Touch

For bulk orders, EV manufacturing supply, or OEM integration, contact NEOTECH’s sales team.

Stock Availability

In stock and ready for dispatch across the UAE.

Disclaimer

Product specifications may vary slightly due to manufacturer updates.
