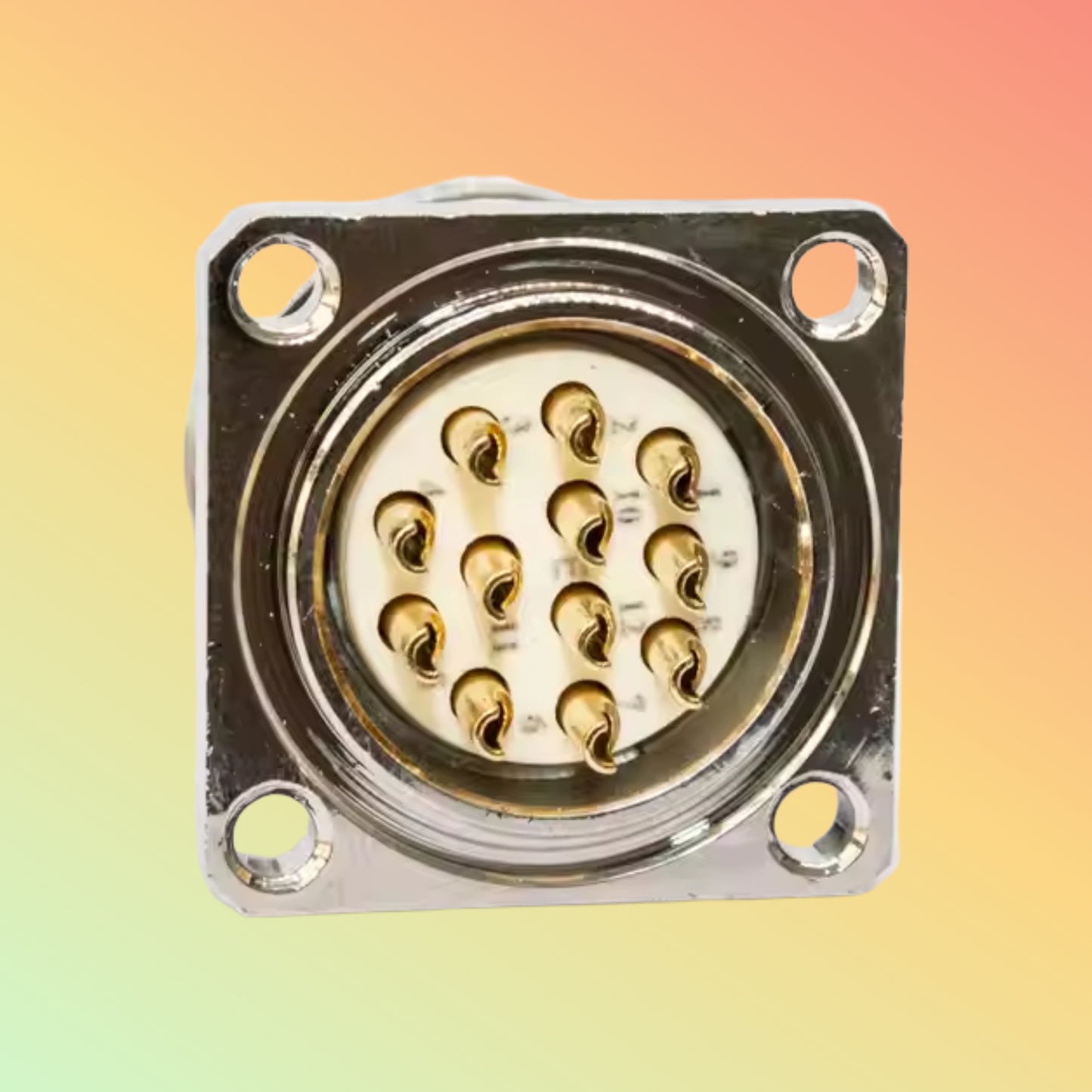

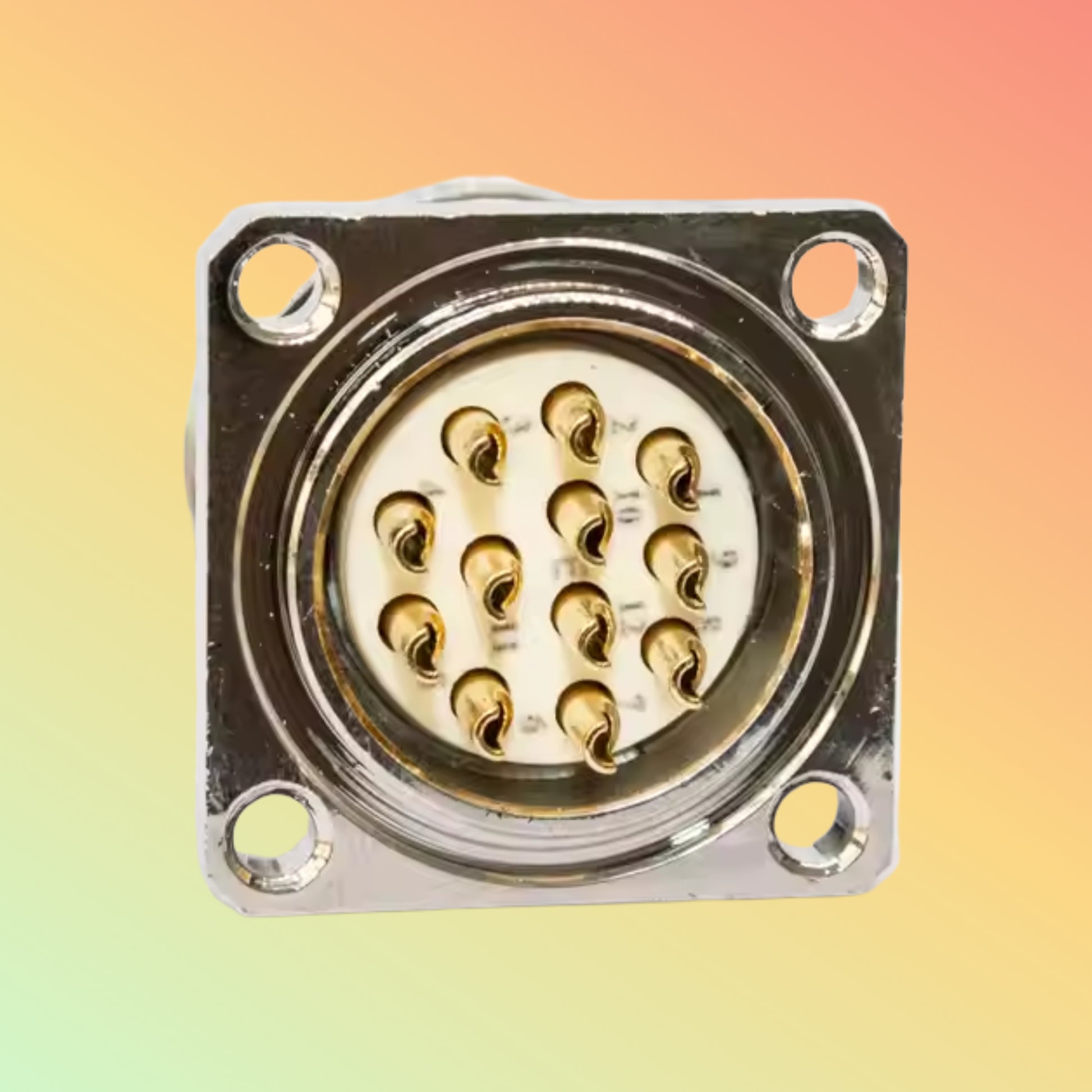

Yaomatec M23 17-Pin Female Panel Socket with 6-Pin Straight Plug

Versatile Yaomatec M23 17-pin panel socket paired with a 6-pin straight plug. IP67 crimp-style solution. Order wholesale at NEOTECH UAE!

Overview

This Yaomatec M23 17-Pin Female Panel Socket bundled with a 6-Pin Straight Plug delivers flexible mixed-signal and power connections. Its robust, IP67-rated design ensures reliable performance in control panels, robotics, and fieldbus installations.

Product Description

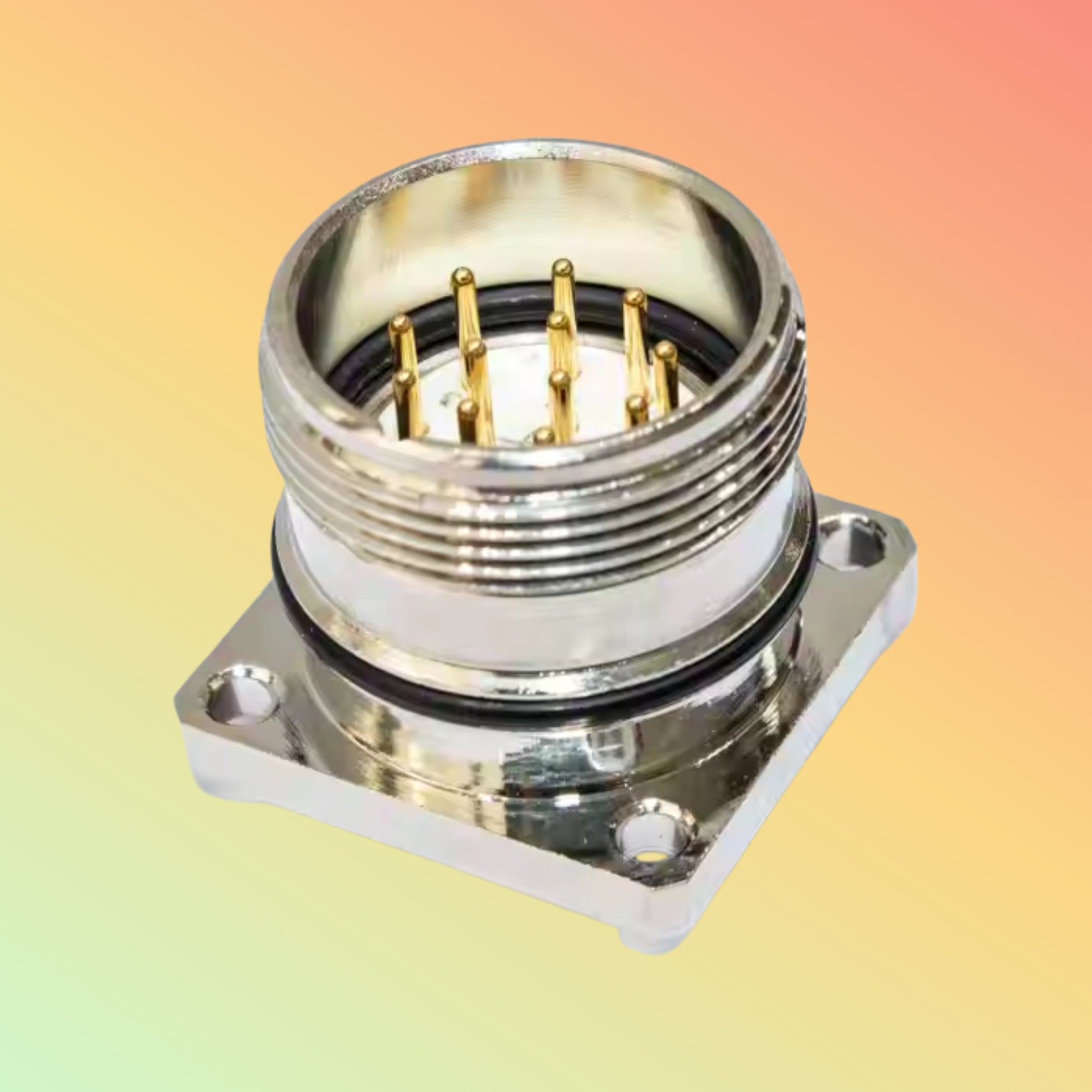

The kit includes a panel-mount 17-pin receptacle and matching 6-pin straight plug. Both feature nickel-plated brass shells, EPDM seals, and gold-plated crimp contacts—no soldering needed. The hybrid socket accommodates data, power, and shielding in one footprint, while the plug lets you reconfigure lines easily.

Key Features

• 17-pin female panel socket + 6-pin straight plug

• IP67-rated when mated—dustproof & waterproof

• Nickel-plated brass housing for corrosion resistance

• Gold-plated, crimp-style contacts—tool-free insertion

• EPDM O-ring and coupling nut for vibration-proof seal

• Socket mounts in Ø23 mm panel cut-out

• Wide temp range: –40 °C to +85 °C

• UL, CE & RoHS certified

Specifications

• Socket Contacts: 17 gold-plated, crimp-style (2 A each)

• Plug Contacts: 6 gold-plated, crimp-style (10 A each)

• Voltage Rating: 250 V AC/DC (socket), 630 V AC/DC (plug power pins)

• Housing: Nickel-plated brass

• Sealing: IP67 mated

• Temp Range: –40 °C to +85 °C

• Mounting: Panel cut-out Ø23 mm + M23 coupling nut

• Coupling: Screw-lock

Supported Applications / Industries

• Factory automation & PLC I/O

• Robotics & motion control

• Conveyor & material-handling systems

• Renewable-energy inverters

• Outdoor instrumentation & sensors

Benefits & Compatibility

• Hybrid flexibility for signal, power & shield

• Rugged sealing for wash-down and outdoor use

• Crimp-style simplicity speeds up field installs

• Standard M23 ensures cross-vendor cable compatibility

• Vibration-resistant coupling maintains uptime

Purpose of Use

Use this kit to:

• Simplify panel-mounted mixed-signal wiring

• Field-replace connectors without soldering

• Maintain sealed connections in harsh environments

• Rapidly reconfigure signal vs. power lines

How to Use

1. Crimp wires to gold-plated contacts with the M23 crimp tool

2. Snap contacts into socket or plug until locked

3. Mount socket into panel cut-out and tighten gasket nut

4. Mate plug to socket and hand-tighten coupling nut

5. Verify IP67 seal and electrical continuity

Packaging / Weight / Dimensions

• Includes: 17-pin socket, 6-pin plug, EPDM gaskets, coupling nuts, quick-start guide

• Socket Body: Ø23 mm × 55 mm (L)

• Plug Body: Ø23 mm × 45 mm (L)

• Weight: ~60 g total

• Packaging: Recyclable blister pack
