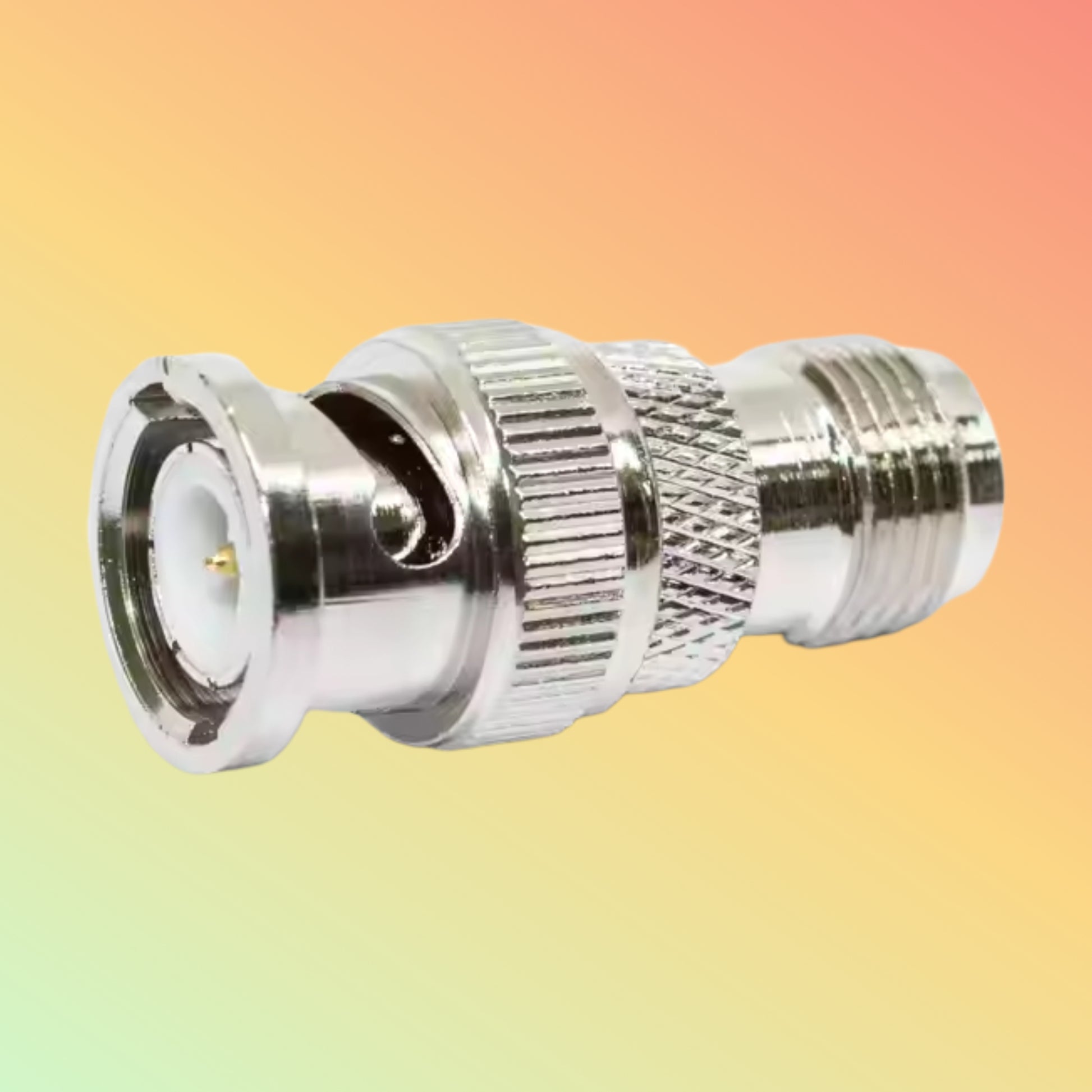

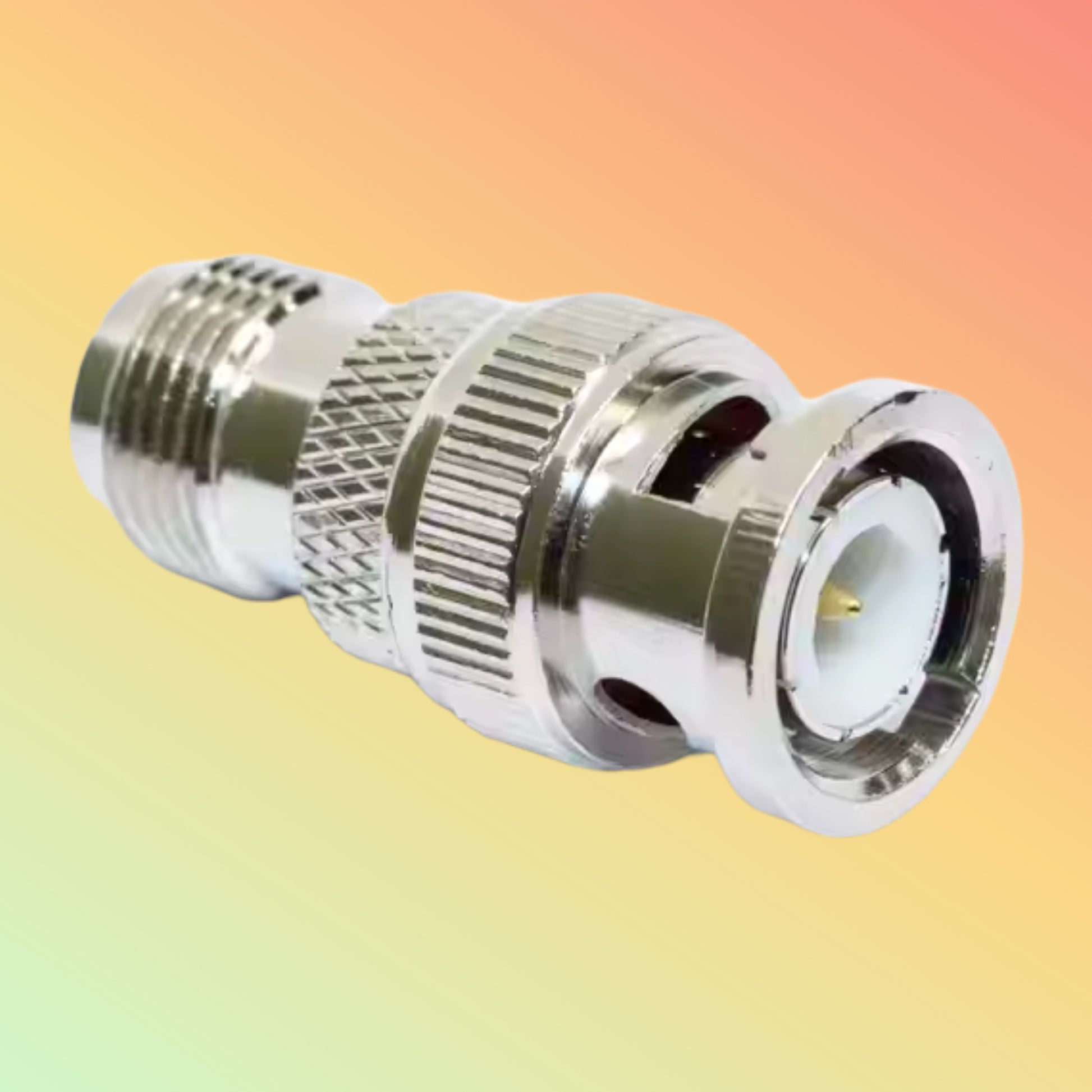

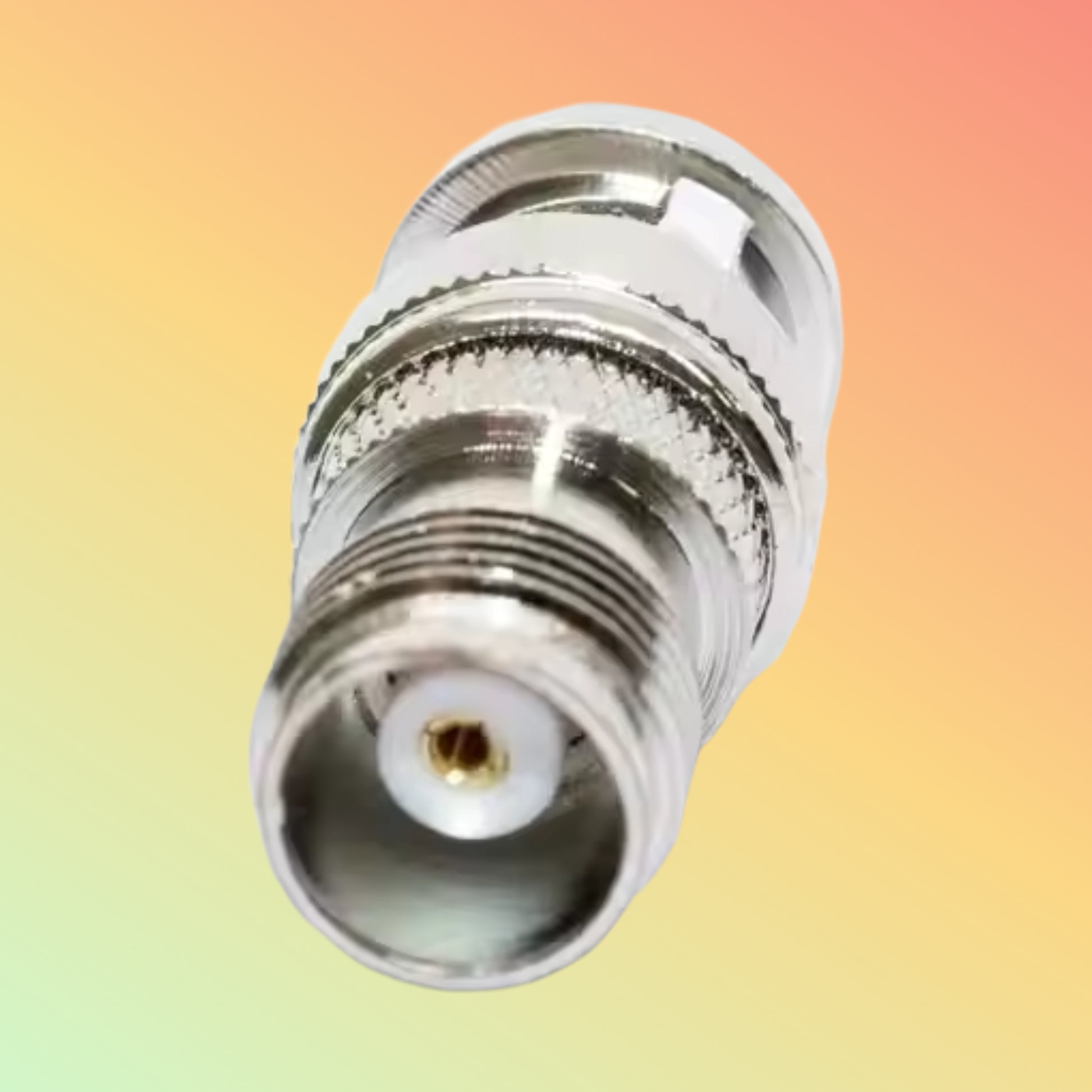

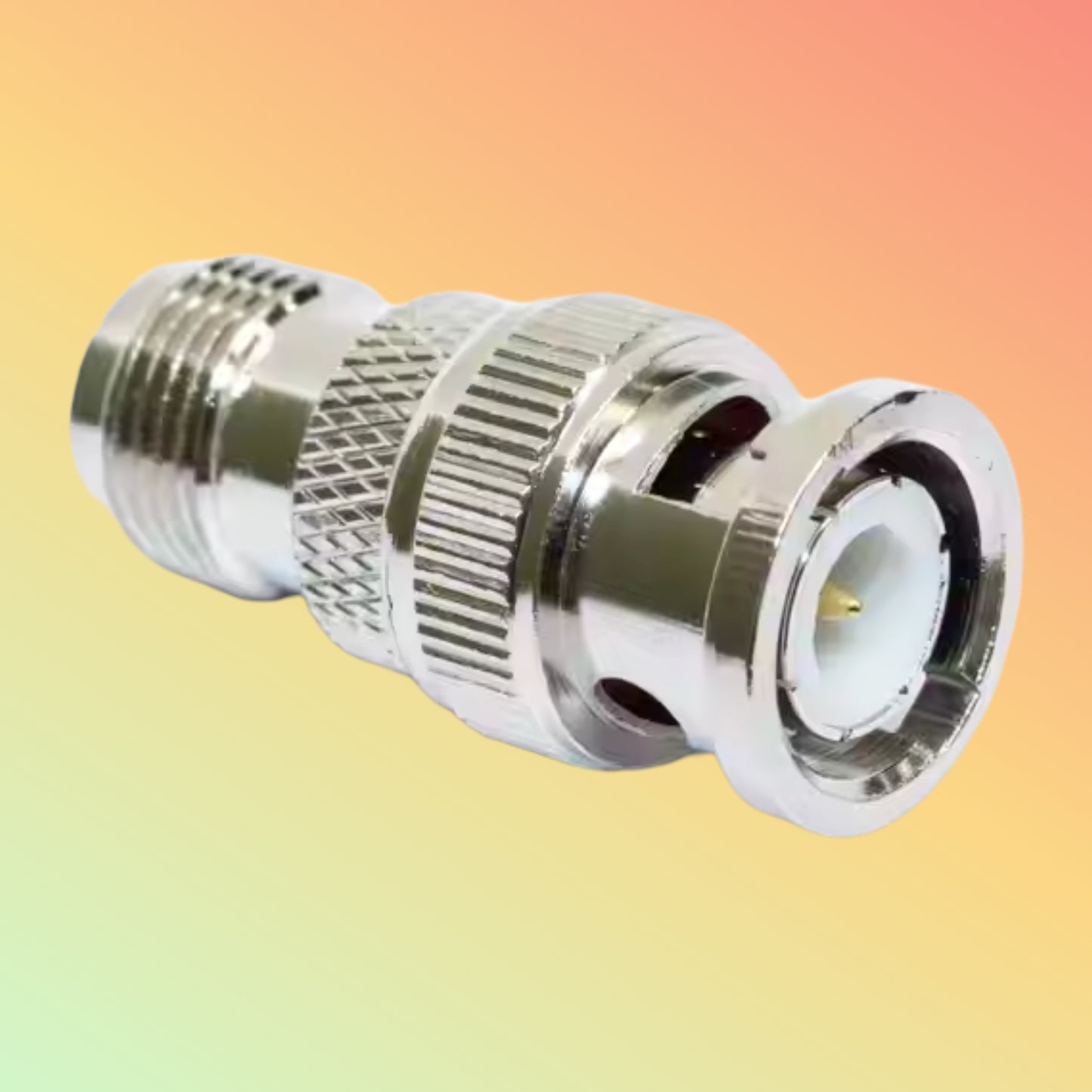

Yaomatec Rf Coaxial Connector Bnc Male to Tnc Female Adapter Radio Shack

Convert BNC plugs to TNC jacks with Yaomatec RF adapter. Precision machined, weatherproof, 50 Ω. Shop wholesale at NEOTECH UAE!

Overview

The Yaomatec RF Coaxial Adapter seamlessly converts a standard BNC male plug into a TNC female jack. Its precision-machined brass body and gold-plated contacts ensure low-loss 50 Ω signal integrity for CCTV, RF test benches, ham radio, and wireless infrastructure.

Product Description

This compact adapter features a threaded TNC interface on one end and a quick-connect BNC on the other. Machined from CNC brass with corrosion-resistant plating, it delivers reliable performance up to 4 GHz. Ideal for patch panels, spectrum analyzers, and CCTV systems that require mixed-connector compatibility—no signal compromise, no bulky couplers.

Key Features

• BNC male → TNC female conversion

• Precision CNC brass housing

• Gold-plated center pin and dielectric

• 50 Ω impedance for minimal VSWR

• Supports DC–4 GHz frequency range

• Durable, corrosion-resistant plating

• Hand-tight TNC coupling nut

• Weatherproof O-ring seal

• Compact 30 mm length

Specifications

• Type: RF Adapter, BNC M → TNC F

• Impedance: 50 Ω

• Frequency Range: DC–4 GHz

• Materials: Brass body; gold-plated contacts; PTFE dielectric

• Connector Dimensions: 30 mm × 14 mm

• Temperature Range: –40 °C to +85 °C

• VSWR: ≤1.2:1 up to 2 GHz; ≤1.3:1 up to 4 GHz

Supported Applications / Industries

• CCTV surveillance networks

• RF test & measurement labs

• Ham and commercial radio systems

• Wireless LAN and cellular test setups

• Broadcast and video transmission

Benefits & Compatibility

• Seamless integration between BNC and TNC systems

• Low insertion loss preserves signal fidelity

• Rugged design for field and bench use

• Weatherproof seal for outdoor enclosures

• Universal fit with NEOTECH patch panels and analyzers

Purpose of Use

Use this adapter to:

• Bridge BNC-terminated cables to TNC jacks

• Interface legacy CCTV gear with modern RF test gear

• Simplify mixed-connector installations in labs or broadcast vans

• Eliminate bulky couplers for neat rack-mount setups

How to Use

1. Hand-tighten BNC plug onto adapter’s BNC male end

2. Rotate TNC coupling nut onto female jack until snug

3. Verify coupling-nut O-ring seat for outdoor use

4. Test continuity and SWR if required, then deploy

Packaging / Weight / Dimensions

• Contents: BNC→TNC adapter, protective cap, quick-start card

• Dimensions: 30 mm × 14 mm

• Weight: 12 g

• Packaging: Recyclable polybag or bulk blister pack

After Sales Support

From connector selection to RF troubleshooting, our tech team is on call via email, phone, or live chat—ensuring your signal chain stays pristine.

Get in Touch

Need custom RF assemblies or bulk quotes? Contact our RF specialists for fast responses and tailored solutions.

Stock Availability

✅ In stock (single pcs & bulk packs)
✔️ Ships in 1–2 business days UAE-wide
⏱ Bulk orders (100+ units): confirm stock before checkout

Disclaimer

All specifications are for general reference and may change without notice. Product images are illustrative. Verify final specs and pricing with our sales team before ordering.
