Overview

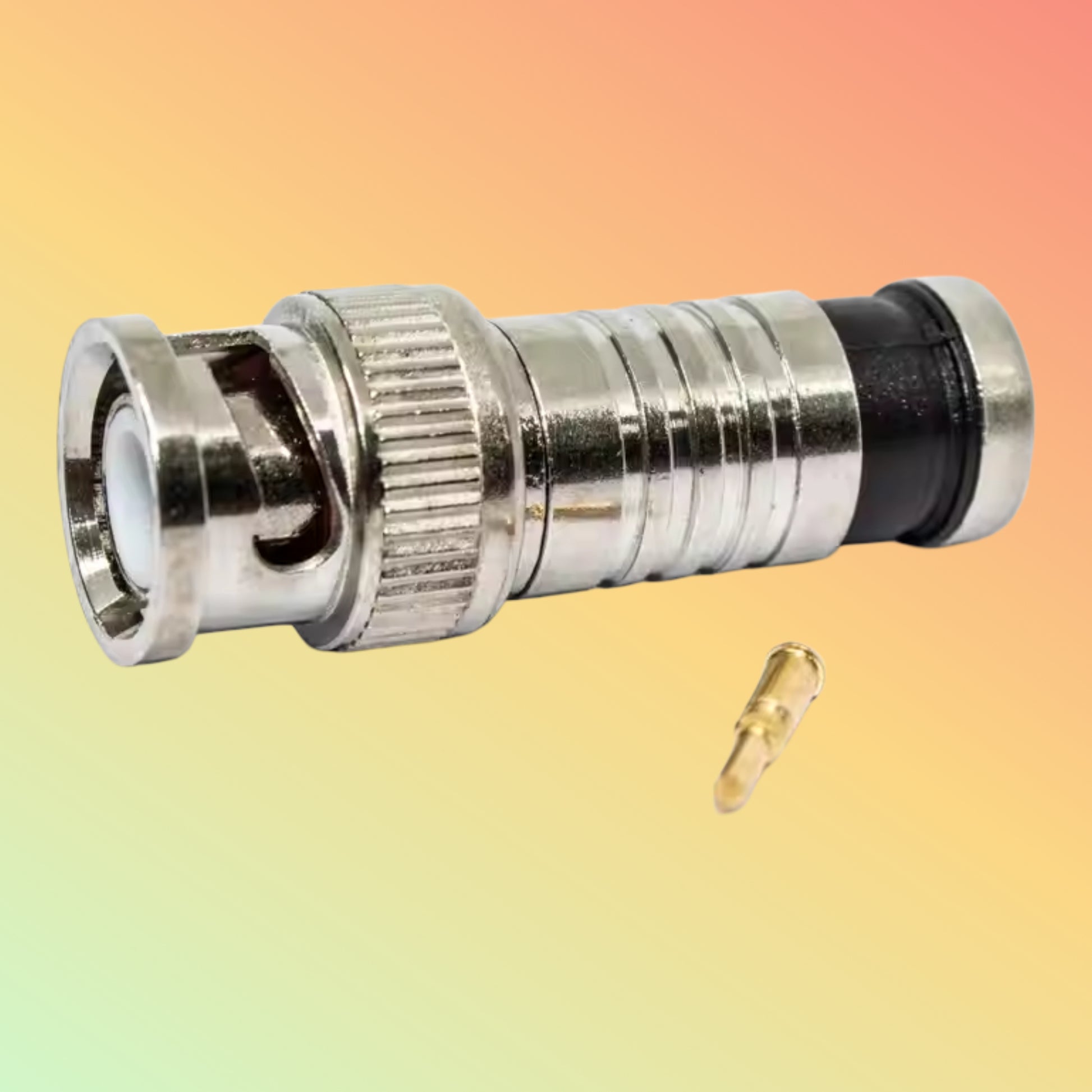

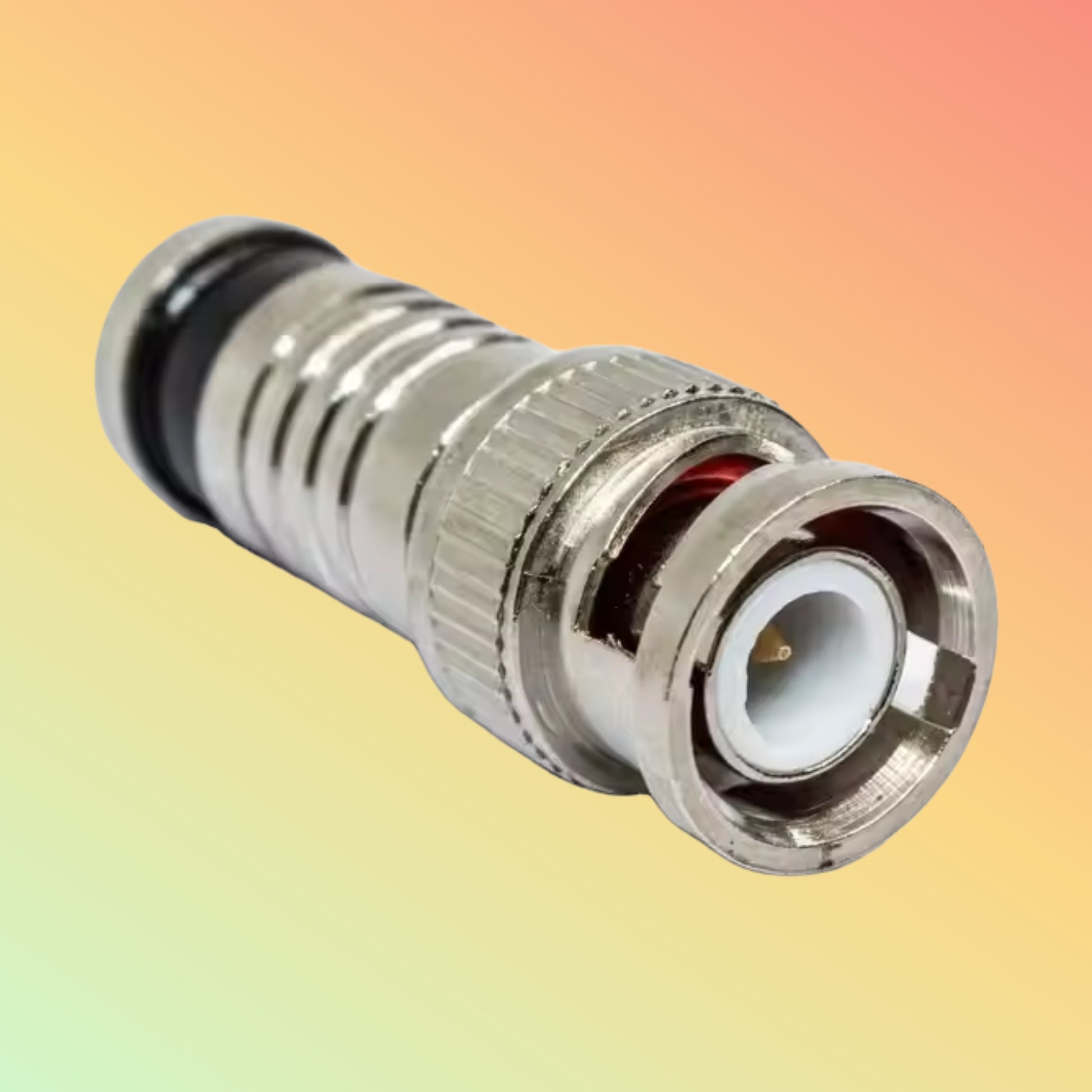

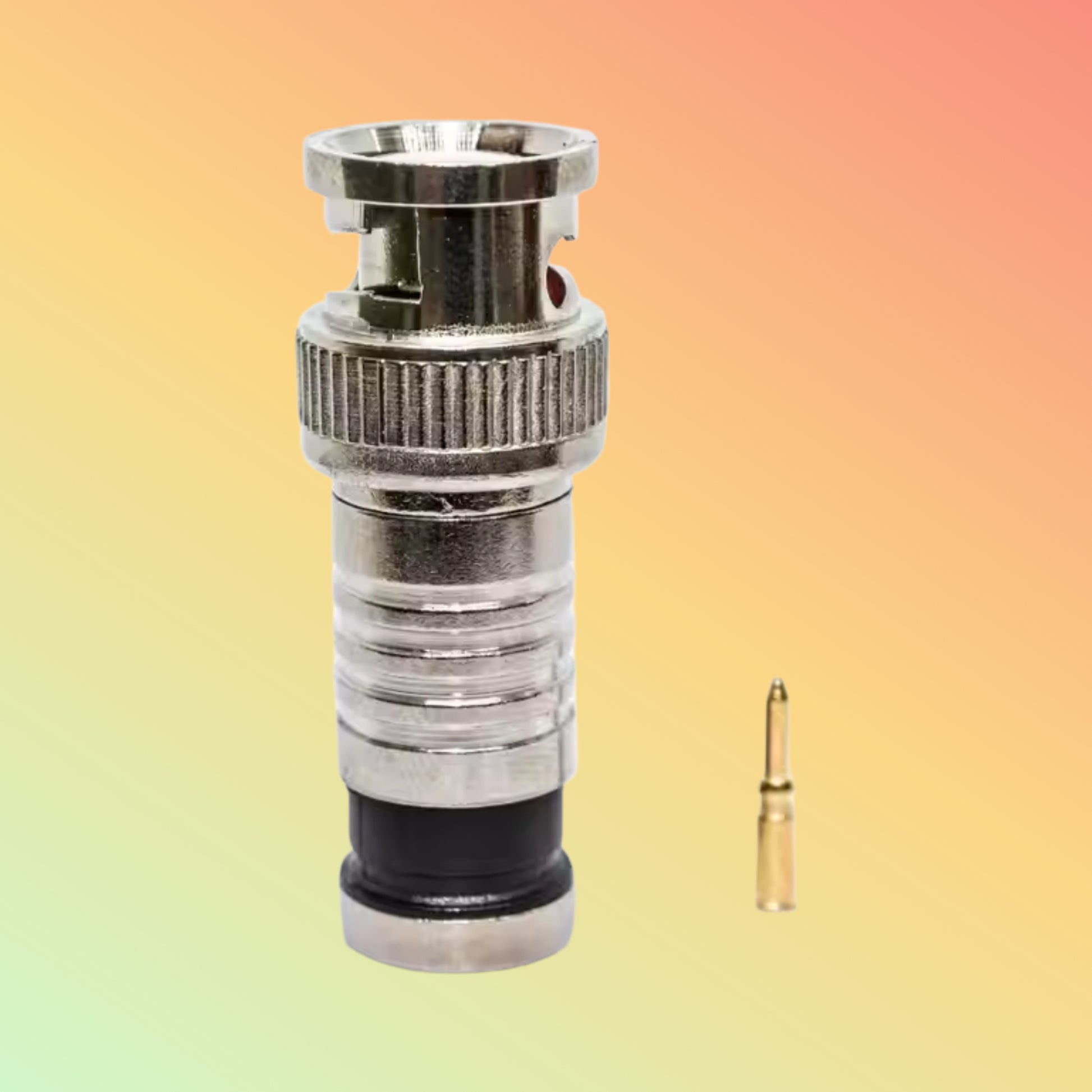

The Yaomatec SDI HD CCTV BNC Compression Male Connector delivers broadcast-grade signal integrity over RG59 or RG6 coax. Its precision-machined brass body and gold-plated pin guarantee stable 3G-SDI performance for CCTV, DVRs, and live-stream setups.
Product Description
This connector uses a one-step compression fit for vibration-proof, weather-resistant terminations. Compatible with RG59 and RG6 cables, it supports HD-SDI (1080p60), 3G-SDI (1080p120), and analog video. The IP67-sealed O-ring ensures reliable outdoor installs, while bulk-pack options drive down per-unit cost.
Key Features
-
CNC-machined brass body with gold-plated contact
-
Compression-style fit for RG59/RG6 coax
-
Supports HD-SDI, 3G-SDI, and analog CCTV signals
-
IP67 weatherproof when mated
-
Easy-use with standard compression tools
-
Up to 3 GHz bandwidth for clean video delivery
-
75 Ω impedance match for zero reflection
-
Bulk pack sizes: 100, 500, 1 000 pieces
Specifications
-
Connector Type: BNC Male, compression
-
Cable Compatibility: RG59, RG6
-
Impedance: 75 Ω
-
Bandwidth: DC–3 GHz
-
Materials: Brass housing, gold-plated pin
-
Seal Rating: IP67 (mated)
-
Operating Temp: –40 °C to +85 °C
-
Pack Options: 100 / 500 / 1 000 pcs
-
Weight: 15 g per unit
Supported Applications / Industries
-
Broadcast studios & live production
-
CCTV security & surveillance
-
Event A/V staging & rental
-
Sports arenas & venues
-
Industrial process monitoring
-
Enterprise campus video networks
Benefits & Compatibility
-
Zero-loss HD video for critical surveillance feeds
-
One-step compression streamlines large installs
-
Universal BNC interface fits all SDI cameras & recorders
-
Weatherproof seal ideal for indoor/outdoor use
-
Cost-effective bulk packaging for rollouts
Purpose of Use
Use Yaomatec BNC connectors to:
-
Terminate RG59/RG6 runs in control rooms
-
Deliver stable HD-SDI links for CCTV networks
-
Simplify field installs with a single compression tool
-
Reduce maintenance by eliminating loose crimps
How to Use
-
Strip coax per manufacturer’s dimension guide
-
Slide connector body onto cable jacket
-
Crimp with a compatible compression tool until it clicks
-
Inspect O-ring seal, then mate to BNC jack
-
Verify video signal on DVR or monitor
Packaging / Weight / Dimensions
-
Includes: Compression connectors, spare O-rings, quick-start guide
-
Connector Size: 24 × 13 mm
-
Unit Weight: 15 g
-
Pack Dimensions (100 pcs): 200 × 150 × 50 mm
After Sales Support
From best-practice tips to live-support troubleshooting, our technical team is available via email, phone, or live chat—ensuring your CCTV network never skips a frame.
Get in Touch
Need custom termination training or bulk quotes? Contact our video-infrastructure experts for tailored solutions and rapid response times.
Stock Availability
✅ In stock (100 / 500 / 1 000 pcs)
✔️ Ships in 1–2 business days across the UAE
⏱ For urgent bulk orders (5 000+ pcs), please confirm stock before checkout
Disclaimer
All specifications are for general guidance and may change without notice. Product images are illustrative. Verify final dimensions and pricing with our sales team before ordering.
