Automate round bottle labeling—plastic or glass—with Yaomatec’s high-speed, precise applicator. Wholesale-ready. Order now at NEOTECH UAE!
Overview

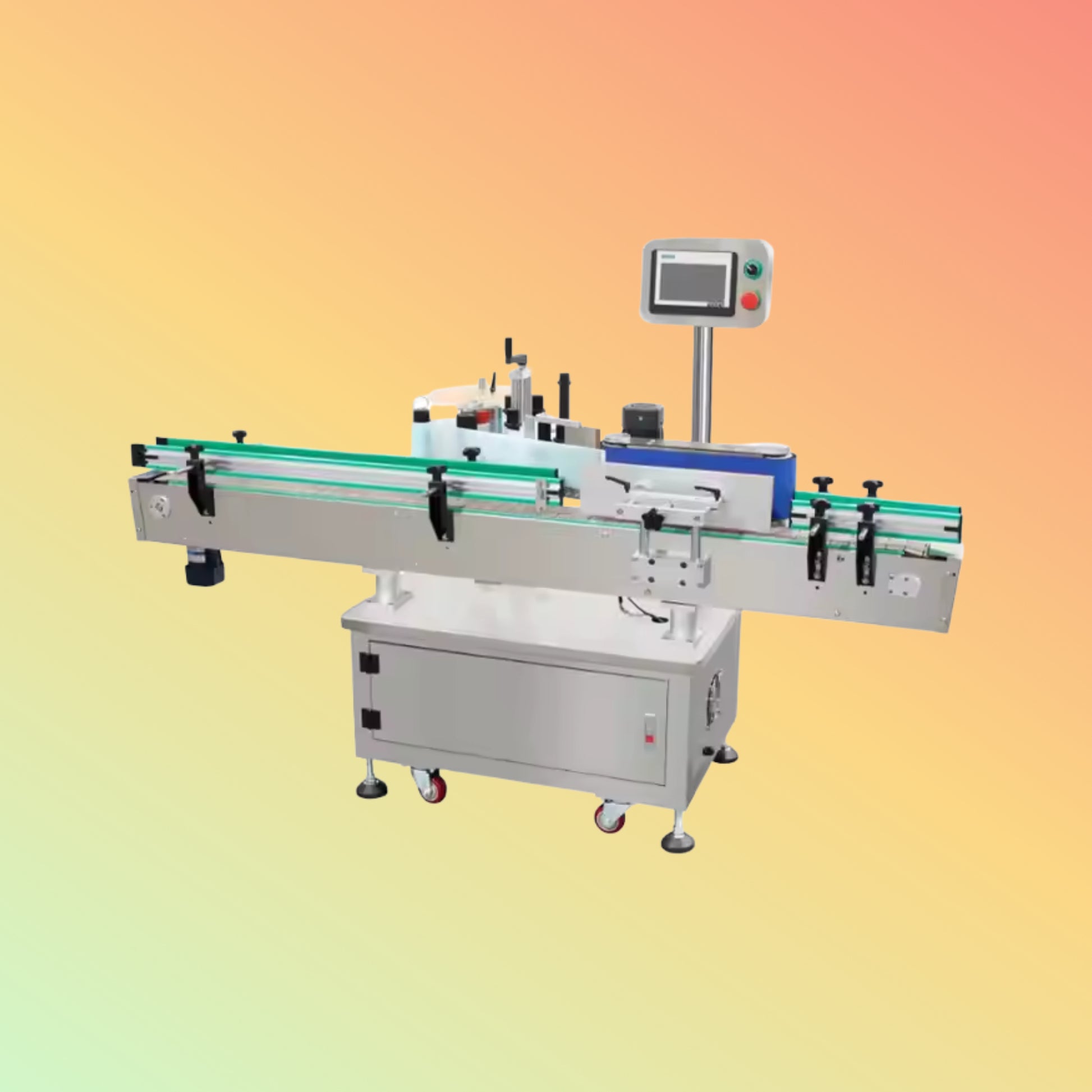

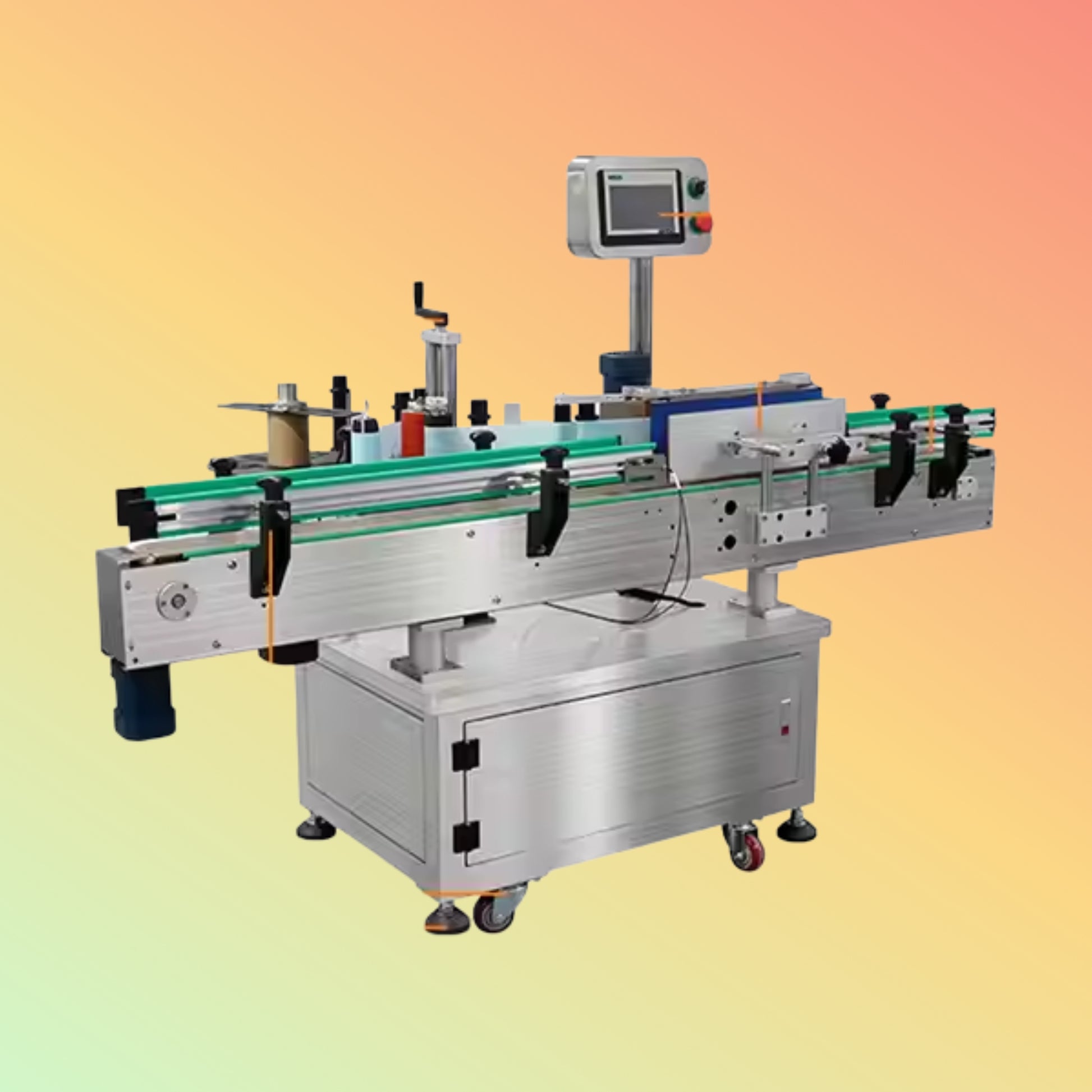

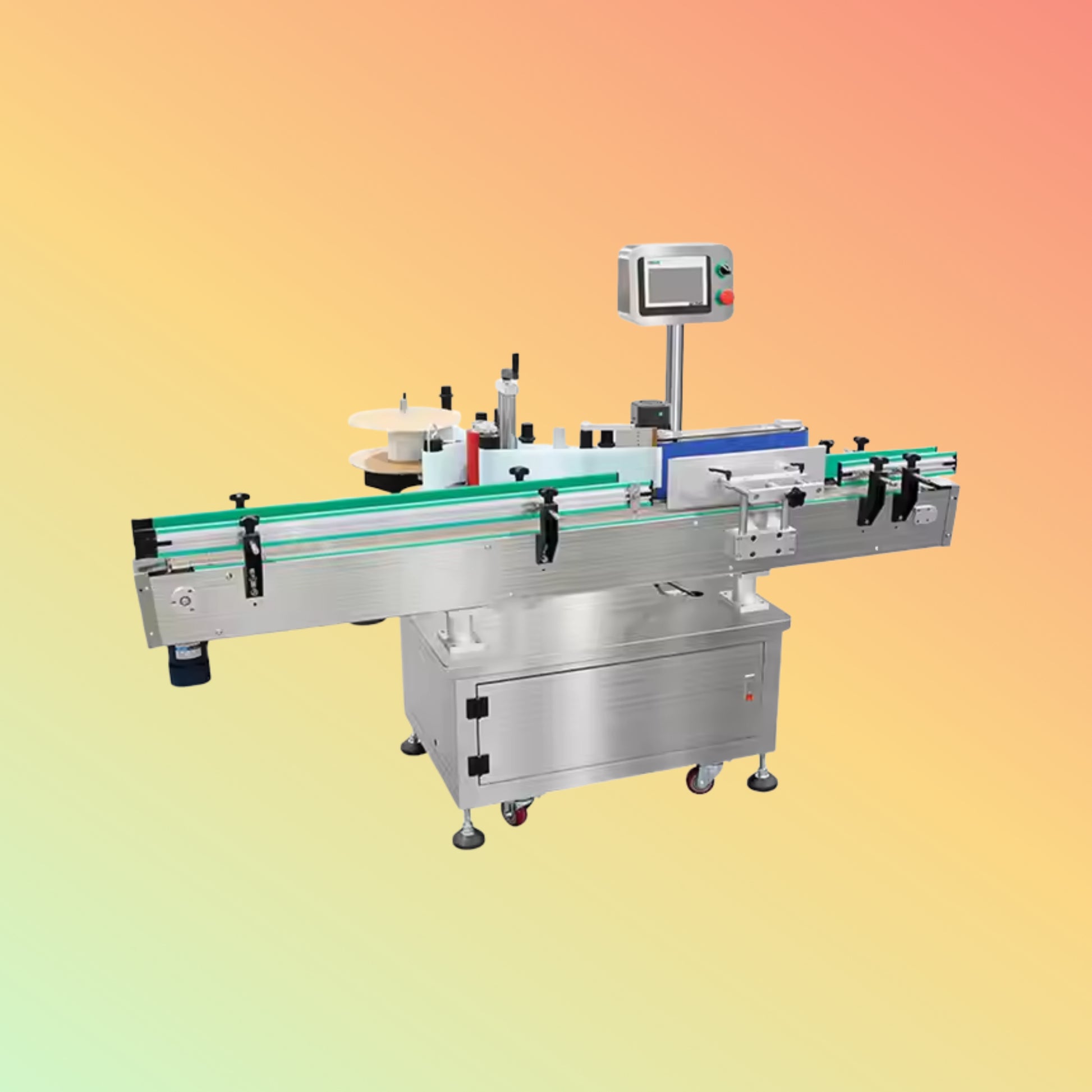

The Yaomatec Round Bottle Labeling Machine streamlines high-volume labeling on cylindrical containers—whether PET, HDPE, or glass. Its precision stepper-motor drive and adjustable guides deliver flawless label placement at speeds up to 120 bottles per minute, boosting throughput for production lines.
Product Description
This semi-automatic applicator features a touchscreen PLC interface for recipe recall, ultra-precise label length detection, and servo-controlled label feed. Its stainless-steel frame and quick-change mandrels handle diameters from 20 mm–120 mm, while dual sensor heads ensure front/back and wrap-around coverage. Ideal for water, beverage, cosmetic, and pharma bottling lines seeking repeatable, low-maintenance labeling.
Key Features
-
Up to 120 BPM labeling speed
-
Handles 20–120 mm bottle diameters
-
Touchscreen PLC with 50 recipe memory
-
Servo-driven label feed for ±0.5 mm accuracy
-
Dual-label sensor heads (front/back wrap)
-
Quick-change mandrel design
-
Stainless-steel IP65-rated frame
-
Adjustable conveyor guide rails
-
Built-in fault alarms and jam auto-reverse
-
Compatible with matte, glossy, clear films
Specifications
-
Speed: 0–120 bottles/min
-
Bottle Diameter: Ø20–120 mm
-
Label Width: 10–200 mm
-
Label Roll: Ø300 mm max, 76 mm core
-
Conveyor Height: 800 ± 50 mm
-
Power: 220 VAC, 50/60 Hz, 1.5 kW
-
Frame: SUS 304 stainless steel
-
Overall Size: 1800×800×1500 mm (L×W×H)
-
Weight: ~250 kg
Supported Applications / Industries
-
Beverage (water, juice, dairy)
-
Cosmetics & personal care
-
Pharmaceuticals & nutraceuticals
-
Chemicals & household products
-
Food jars & condiment bottles
Benefits & Compatibility
-
High throughput reduces labor costs
-
Precision placement minimizes waste
-
Flexible setup for multiple SKUs
-
Durable build withstands wash-down lines
-
Integrates with NEOTECH conveyors & capping machines
Purpose of Use
Use this machine to:
-
Automate front/back wrap labeling on round bottles
-
Switch quickly between product runs
-
Ensure consistent brand presentation
-
Reduce downtime with tool-free adjustments
How to Use
-
Adjust conveyor rails to bottle width
-
Load label roll and set sensor heights
-
Select recipe on PLC touchscreen
-
Start conveyor—machine auto-applies labels
-
Monitor jam alarms and clear with auto-reverse
Packaging / Weight / Dimensions
-
Contents: Labeling unit, mandrel set (4 sizes), power cable, user manual
-
Machine Footprint: 1800×800 mm
-
Crate Size: 2000×1000×1600 mm
-
Gross Weight: ~300 kg
Warranty & FAQs
Warranty: 1 year on all parts & labor
FAQs
-
Q: Can it handle tall glass bottles?
A: Yes—adjust mandrel height for up to 300 mm tall containers.
-
Q: Is changeover tool-free?
A: All mandrels and guides swap without tools.
-
Q: Does it integrate with vision systems?
A: Yes—optional camera module and PLC I/O are available.
Performance, Quality, Durability & Reliability
Engineered for 24/7 production, the Yaomatec unit uses sealed bearings and food-grade belts to resist wear. Its IP65 frame and CE/UL certifications guarantee safety and longevity in harsh wash-down or dusty environments.
Best Price Guarantee
NEOTECH offers factory-direct pricing on Yaomatec equipment. Found a lower UAE quote? We’ll match it.
Shop Today & Receive Your Delivery Across the UAE
Order now for fast dispatch—Dubai, Abu Dhabi, Sharjah, and beyond. Installation and training options available.
Request for Customer Reviews and Testimonials
Running a Yaomatec line? Share your success story and be featured in our case studies.
After Sales Support
From remote diagnostics to on-site service, our engineering team provides 24/7 support, spare-parts kits, and preventive maintenance plans.
Get in Touch
📧 Email: support@neotech.ae
💬 Live Chat: 9 AM–6 PM GST
Stock Availability
🟢 In Stock
✔️ Ships in 5–7 Business Days
🔄 Bulk orders (3+ units): lead time 4–6 weeks
Disclaimer
All specifications subject to change. Illustrations are for reference. Verify final details and pricing with our sales team before ordering.
