Overview
The BYX HF RFID Inlay & Label Sticker combines a slim PET inlay with a pressure-sensitive adhesive layer, enabling rapid deployment of high-frequency RFID tagging. Optimized for 13.56 MHz ISO 14443 A/B applications, it adheres to paper, plastic, and metal surfaces for secure, contactless identification.
Product Description

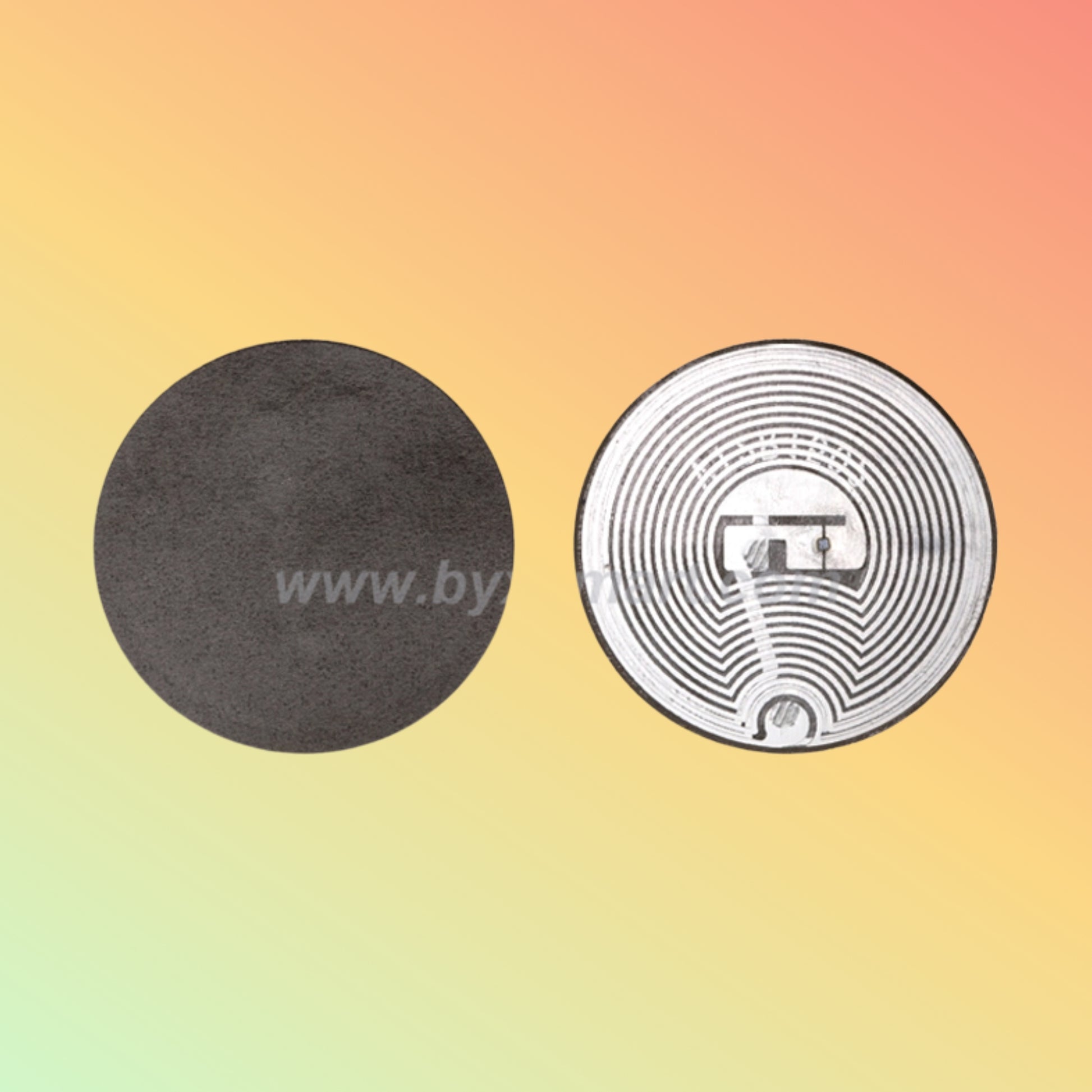

Each sticker hosts an HF antenna etched on a flexible PET substrate and the BYX-embedded RFID chip. The 0.3 mm thickness lies flat without adding bulk. The industrial adhesive bonds instantly yet peels cleanly if rework is needed. Tags perform reliably in libraries, asset tracking, event badges, and inventory labels—offering consistent reads on handheld and fixed readers.
Key Features
-
Frequency: 13.56 MHz, ISO 14443 A/B & NFC-Forum Type 2
-
Chip: 1 KB user EEPROM, read/write
-
Form Factor: 30 × 15 × 0.3 mm inlay; 35 × 20 mm finished sticker
-
Antenna: Copper or aluminum etched coil for robust read range
-
Read Range: Up to 50 mm (depending on reader)
-
Substrate: Flexible PET with overlay protection
-
Adhesive: Library-grade, archival-safe, acid-free
-
Durability: Resists moisture, UV, abrasion
-

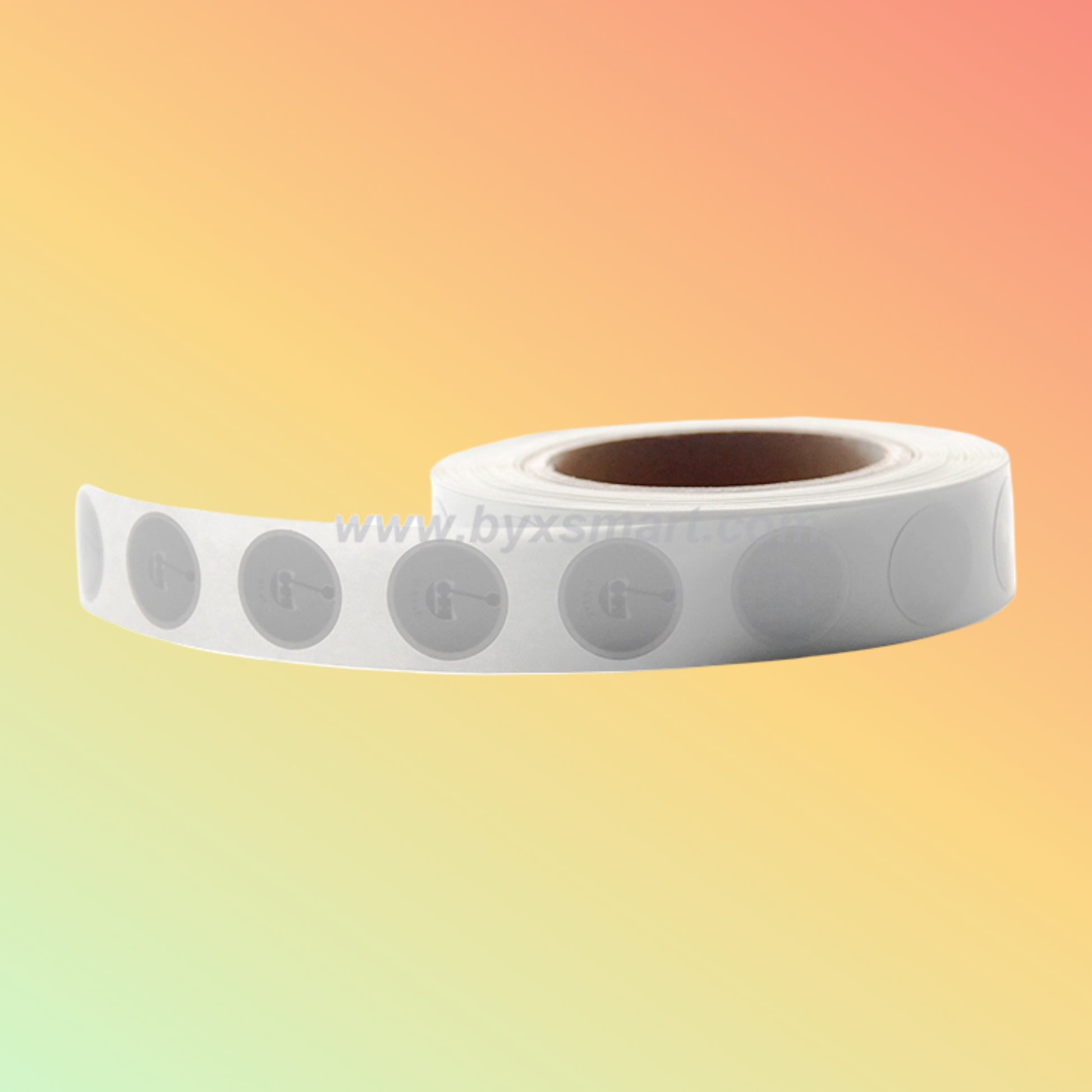

Pack Options: 100, 500, 1 000 stickers per roll
-
Encoding: Standard ISO 18000-3 commands
Specifications
| Parameter |
Detail |
| Frequency |
13.56 MHz |
| Protocol |
ISO 14443 A/B, NFC Type 2 |
| Memory |
1 KB user EEPROM |
| Inlay Dimensions |
30 × 15 × 0.3 mm |
| Sticker Size |
35 × 20 mm |
| Read Range |
≤ 50 mm |
| Operating Temp |
–20 °C to +70 °C |
| Storage Temp |
–40 °C to +85 °C |
| Substrate |
PET with protective laminate |
| Adhesive Type |
Acid-free, archival safe |
| Read/Write Cycles |
≥ 100 000 |
| Compliance |
RoHS, REACH |
Supported OS / Application / Industries
-
Libraries & Archives: Book labels, media tagging
-
Retail & Logistics: Price tags, parcel labels
-
Events & Ticketing: Badge & wristband stickers
-
Asset Management: Equipment & document tracking
-
Healthcare: Patient file labeling, supply chain control
Benefits & Compatibility
-
Ultra-thin design fits tight spaces and doesn’t alter aesthetics
-
Strong adhesive bonds to diverse materials yet leaves no residue
-
Global operation across 13.56 MHz HF bands
-
Seamless integration with all ISO 14443-compliant readers
-
High reliability: consistent reads in dense tag environments
Purpose of Use
Ideal for affixing to documents, labels, or products that require secure, contactless identification. Use in libraries for bulk check-in/out, on retail shelves for automated inventory, or on equipment for maintenance logs.
How to Use
-
Clean surface area to remove dust/oil.
-
Peel backing liner to expose adhesive.
-
Apply sticker, press firmly for 5 s.
-
Encode tag’s UID and data via your RFID encoder.
-
Scan with any ISO 14443 reader—authentication completes instantly.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty
1-year against manufacturing defects.
FAQs
-
Q: Will it stick to glossy paper?
A: Yes—adhesive bonds well to coated and matte surfaces.
-
Q: Can I reprogram tags?
A: Yes—full read/write EEPROM access via ISO 14443 commands.
-
Q: Does it work on metal?
A: Performance may degrade; use on-metal variants if needed.
Performance, Quality, Durability & Reliability
Tested for peel strength, abrasion, and environmental exposure. The inlay maintains > 95 % read reliability after 1 000 flex and wash cycles (lab tests).
