Ultra‐small Impinj Monza M730 inlay tag for harsh environments. High sensitivity. Bulk packs. Order at NEOTECH UAE—fast delivery.
Overview
The BYX Smart Impinj Monza M730 Mini Inlay Tag is a compact, high-performance UHF RFID inlay optimized for small-item and apparel tagging. Leveraging Impinj’s Monza M730 chip, it delivers industry-leading read sensitivity, fast inventory rates, and durable performance even on challenging materials.
Product Description

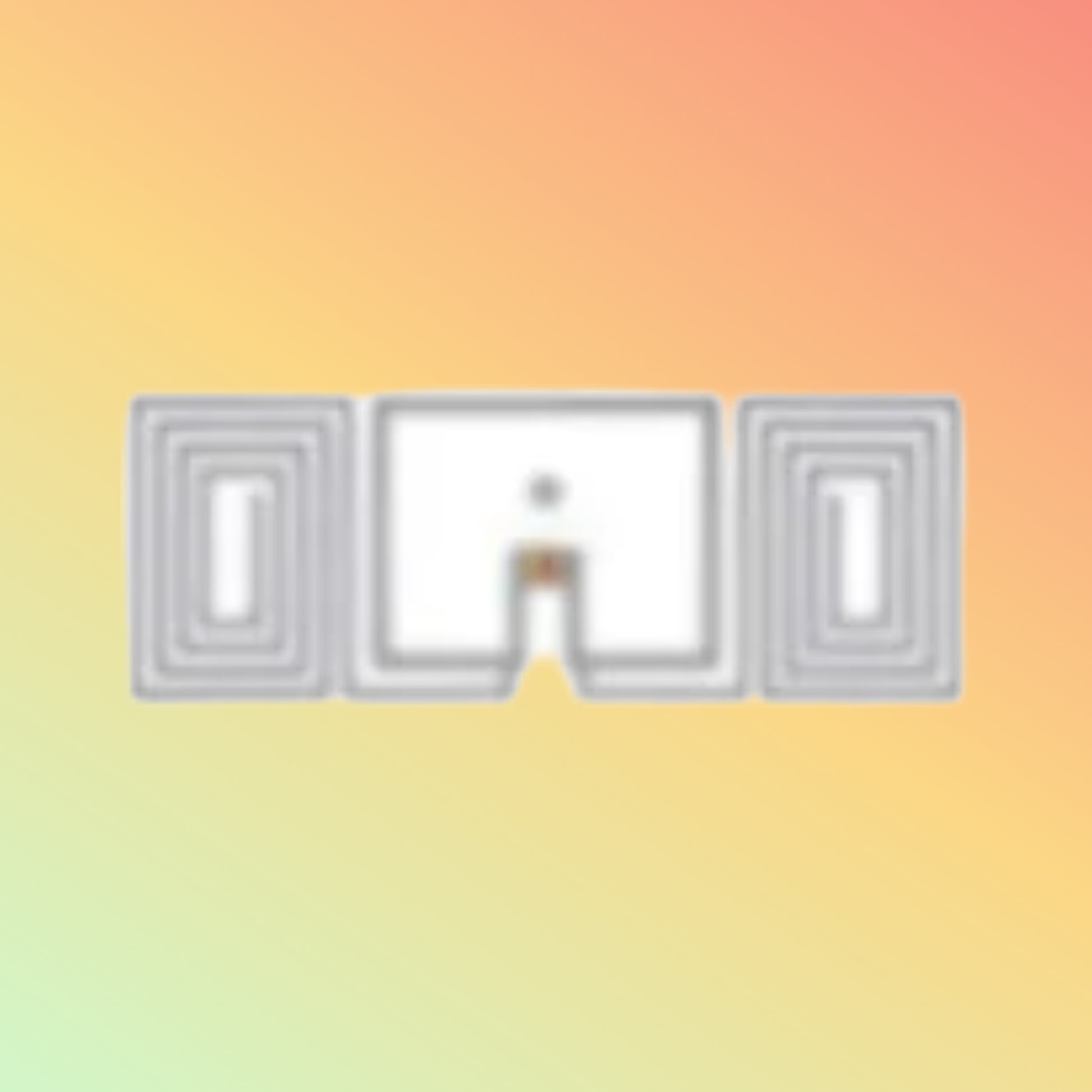

This ultra-thin mini inlay (16 × 6 mm) embeds the Monza M730 IC’s advanced features—autotune antenna matching, autotune backscatter, and fast reads in dense tag populations. Its PET substrate and copper antenna print ensure reliable operation outdoors and through industrial wash cycles. Ideal for hang tags, lipsticks, jewelry, and electronics, the Monza M730 mini tag maximizes readability while minimizing footprint.
Key Features
-
Chip: Impinj Monza M730 with 128-bit EPC & 32-bit TID
-
Size: 16 × 6 mm inlay; 20 × 10 mm finished label
-
Read Sensitivity: –23 dBm typical for long read range
-
Autotune™ antenna matching for consistent performance
-
QuickRead™ for < 1 ms inventory cycles
-
FastID™ to speed tag singulation in dense environments
-
Substrate: PET with copper antenna
-
Backscatter tuning for robust reads on metal & liquids
-
Encodable: user-friendly ISO 18000-63 interface
-
Pack Sizes: 1 000, 5 000, 10 000 per reel
Specifications
| Parameter |
Detail |
| Chip |
Monza M730 (EPC C1G2, ISO 18000-63) |
| EPC Memory |
128 bits |
| User Memory |
32 bits |
| TID |
32 bits, factory-locked |
| Inlay Size |
16 × 6 mm |
| Label Size |
20 × 10 mm (with margins) |
| Read Sensitivity |
–23 dBm (typical) |
| Operating Frequency |
860–960 MHz (global UHF band) |
| Substrate |
PET |
| Mounting |
Pressure-sensitive adhesive backing |
| Operating Temp |
–20 °C to +70 °C |
| Storage Temp |
–40 °C to +85 °C |
| RoHS / REACH |
Compliant |
Supported Applications / Industries
-
Apparel & Retail: Hang tags, price labels
-
Pharmaceutical & Cosmetics: Small-format product tags
-
Electronics: Component and PCB tracking
-
Libraries & Archives: Document tagging
-
Logistics: Parcel and item-level tracking
Benefits & Compatibility
-
Miniature footprint fits tight packaging and labels
-
Superior sensitivity ensures long-range reads even through liquids or metals
-
Fast inventory speeds throughput in high-density tag clusters
-
Global operation across 860–960 MHz UHF bands
-
Seamless integration with all EPC C1G2-compliant readers
Purpose of Use
Use the Monza M730 mini inlay to item-level tag small or irregularly shaped products, improving stock accuracy, anti-counterfeit measures, and automated check-out without altering packaging design.
How to Use
-
Print barcode or logo on the label side via thermal or digital printing.
-
Peel liner to expose adhesive.
-
Affix to clean, dry surface of product or packaging.
-
Inventory with any UHF reader—tags respond instantly.
-
Manage EPC and user memory via standard encoding tools.
Packaging / Weight / Dimensions
-

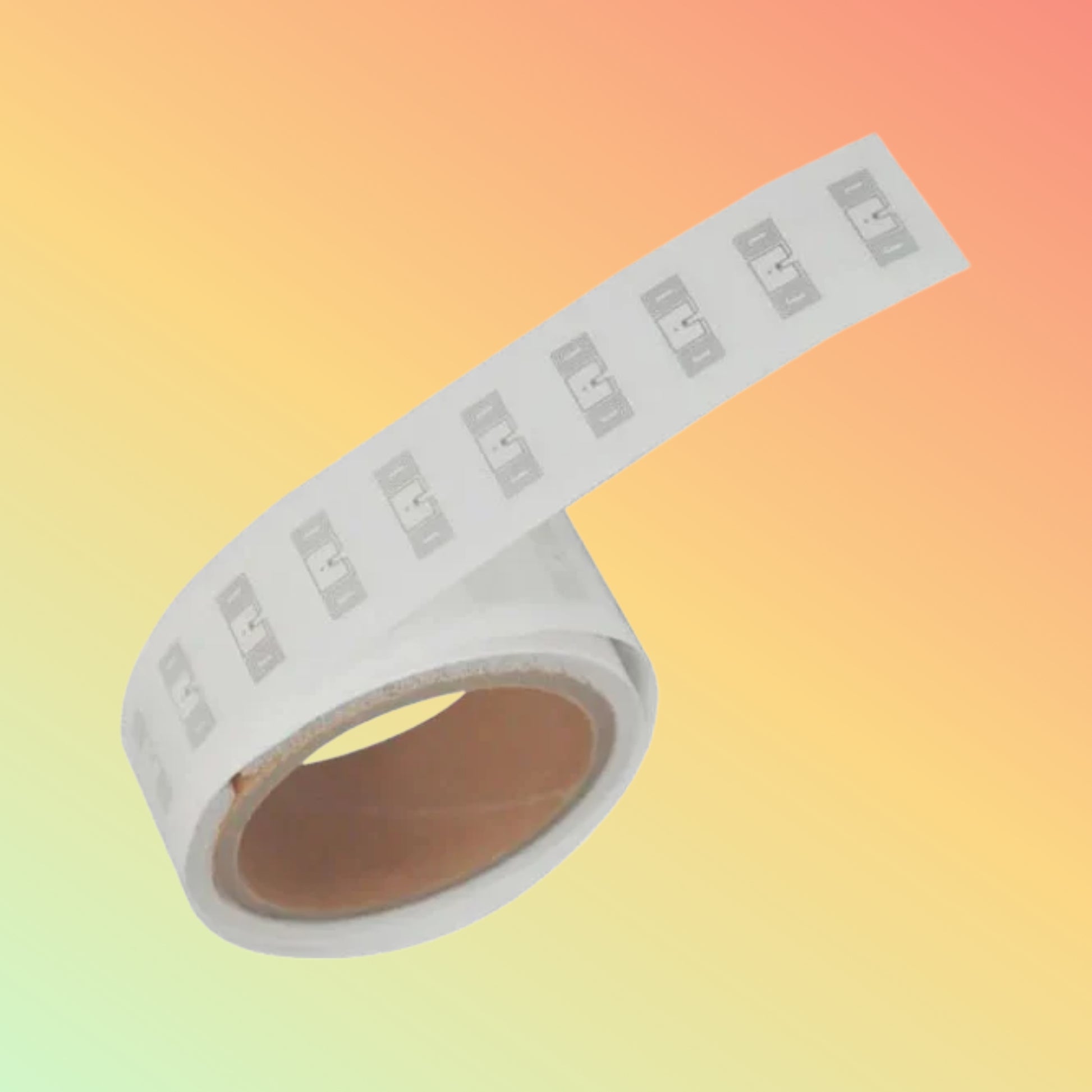

Reels: 1 000 tags per 330 mm reel; 5 000 & 10 000 options available
-
Reel Core: 76 mm standard
-
Tag Weight: ~0.02 g per tag
Warranty & FAQs
Warranty
1 year against manufacturing defects.
FAQs
Q: Will it read on metal surfaces?
A: Yes—autotune backscatter enhances metal performance.
Q: How small can the antenna get?
A: Monza M730 supports inlays down to 10 × 6 mm with tuned design.
Q: Can I encode EPC and user memory separately?
A: Yes—ISO 18000-63 commands allow independent writes.
Performance, Quality, Durability & Reliability
Tested to GS1 Gen2 compliance suites. PET substrate with copper antenna endures industrial wash and abrasion. Monza M730’s FastID and Autotune features maintain > 99% read rates in dense tag environments.
Best Price Guarantee
NEOTECH UAE offers the most competitive rates on Impinj M730 mini inlays. Found a lower price? We’ll match it and upgrade your shipping free.
Shop Today & Receive Your Delivery Across the UAE
Order now for express delivery to Dubai, Abu Dhabi, Sharjah, and all Emirates. Bulk reels ship within 2–4 business days.
Request for Customer Reviews and Testimonials
Used Monza M730 mini tags on your products? Share your insights to help others choose the right inlay!
Submit your review ➝
After Sales Support
Our UAE-based RFID specialists are available via email or live chat for antenna tuning, encoding support, and performance optimization.
Get in Touch
Need help selecting the right inlay or on-metal tag? Contact our RFID experts for tailored recommendations and fast replies.
📩 support@neotech.ae
Stock Availability
Inventory updates daily. For urgent reel shipments or custom inlay sizes, confirm availability before checkout. Lead time for > 50 000 tags: 7–10 business days.
Disclaimer
All specifications and pricing subject to change without notice. Product images are illustrative. Verify final details with our sales team before ordering.
