Overview

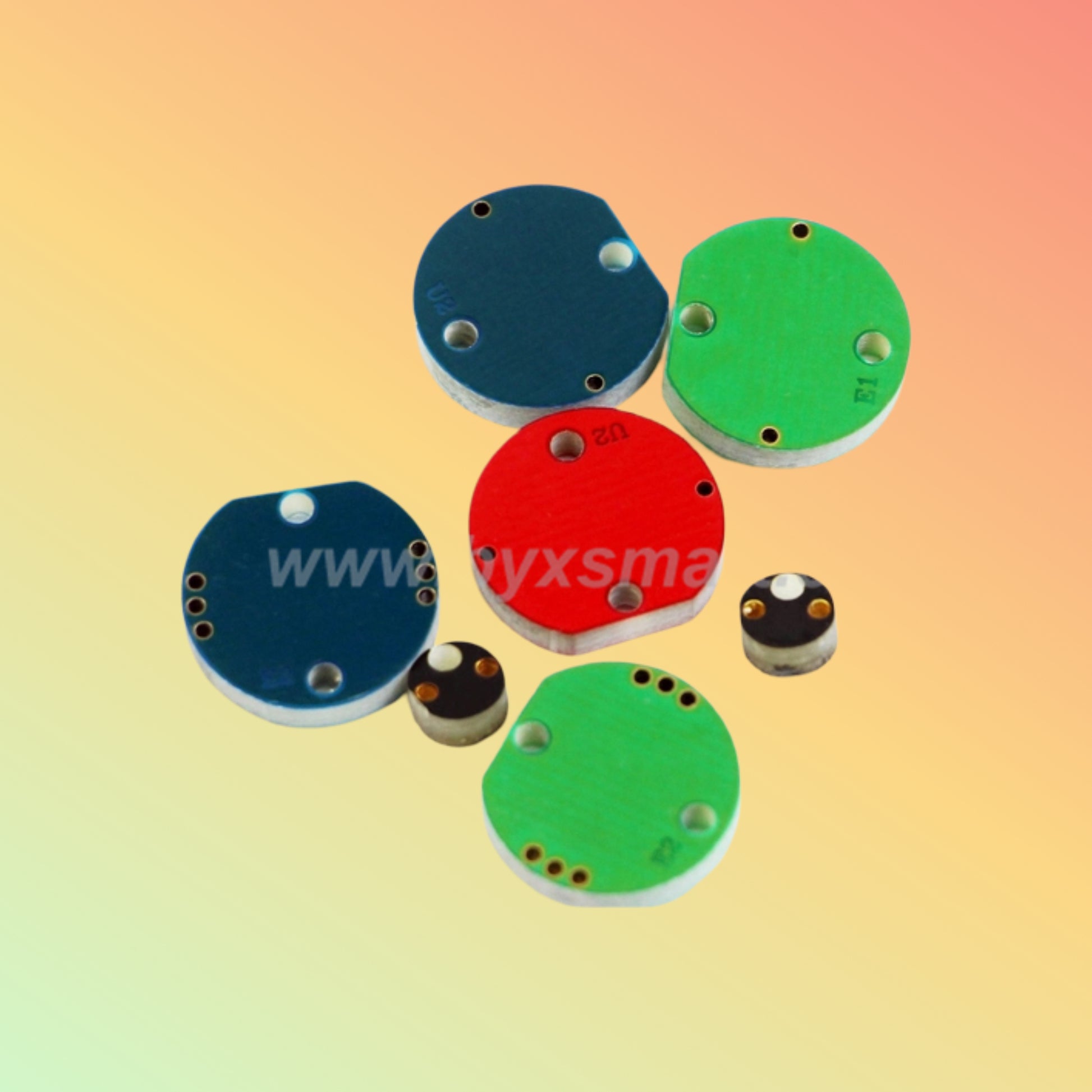

The BYX Smart Customized-Size RFID PCB Asset Tag is a precision-machined, tailor-cut printed-circuit-board tag designed for exact-fit applications. Ideal for appliances, industrial equipment, and machinery, it embeds your choice of HF or UHF RFID chip into a robust PCB form factor that can be customized to any footprint.
Product Description
Each tag comprises a thin FR-4 PCB substrate etched with your specified antenna geometry and solder-mounted RFID IC (HF: ISO 15693/ISO 14443; UHF: EPC Gen2). The rigid board delivers optimal read performance on metal or non-metal surfaces without adhesives. Custom shapes—from 10×10 mm to 100×50 mm—enable seamless integration into product housings, control panels, or circuit assemblies.
Key Features
-
Custom Dimensions: any PCB outline from 10×10 mm up to 100×50 mm
-
Frequency Options: HF (13.56 MHz) or UHF (860–960 MHz)
-
Chip Support: NTAG213, ICODE SLIX2 (HF); Monza R6-P, M730 (UHF)
-
Rigid PCB: FR-4 substrate for mechanical stability
-
On-Metal Performance: optimized antenna tuning per size
-
Solder Pads: gold-plated pads for reflow or hand soldering
-
Environmental: –40 °C to +85 °C; conformal coating option
-
Data Capacity: 1 KB EEPROM (HF) or 128‐bit EPC + user memory (UHF)
-
Lifecycle: ≥ 100 000 read/write cycles
-
RoHS & REACH compliant
Specifications
| Parameter |
Detail |
| Substrate |
FR-4 PCB, 0.8 mm thickness (customizable) |
| Frequency |
HF 13.56 MHz or UHF 860–960 MHz |
| Protocols |
ISO 15693/14443-A (HF); EPC C1G2 (UHF) |
| Memory |
HF: 1 KB EEPROM; UHF: 128-bit EPC + user mem |
| Dimensions |
Customizable between 10×10 mm and 100×50 mm |
| Read Range |
HF ≤ 30 mm; UHF ≤ 5 m (reader dependent) |
| Operating Temp |
–40 °C to +85 °C |
| Coating |
Optional conformal PCB coating for moisture |
| Mounting |
PCB screw holes, snap-fit slots, or adhesives |
| Compliance |
RoHS, REACH, IPC-610 Class 2 |
Supported Applications / Industries
-
Industrial Equipment: motor, pump, and valve tagging
-
Electronics Manufacturing: inline PCB integration
-
Tool Cribs & Maintenance: fixed-mount asset IDs
-
Healthcare Devices: equipment and tray tracking
-
Automotive & Aerospace: component-level traceability
Benefits & Compatibility
-
Exact-Fit: eliminate bulky tags with custom PCB outlines
-
High Reliability: soldered construction resists vibration
-
On-Metal Ready: engineered for consistent reads on steel
-
OEM Integration: embed tags into your product PCBs
-
Flexible Encoding: supports your choice of HF or UHF read/write
Purpose of Use
Deploy these customized PCB tags where precision and durability matter—mount directly to metal or plastic assemblies without additional fixtures.
How to Use
-
Specify required dimensions and chip type in your order.
-
Mount tag via screw holes or snap into your enclosure.
-
Encode unique identifiers using your RFID encoder or inline reader.
-
Scan with handheld or fixed readers; data reads instantly.
Packaging / Weight / Dimensions
-
Pack Options: 50, 100, 500 tags per box
-
Box Size (100 pcs): depends on dimensions; approx. 300×200×40 mm
-
Weight (100 pcs): ~500 g (varies by size)
Warranty & FAQs
Warranty
1-year NEOTECH coverage on manufacturing defects.
FAQs
-
Q: What minimum size can you produce?
A: 10×10 mm is our minimum standard; smaller sizes on request.
-
Q: Can you add mounting holes?
A: Yes—include hole positions in your dimension specs.
-
Q: Do these need adhesives?
A: No—mount via screws or snap-fits; adhesive optional.
Performance, Quality, Durability & Reliability
All tags meet IPC-610 Class 2 PCB quality standards, undergo thermal cycle and vibration testing, and retain full read sensitivity after conformal coating and harsh-environment exposure.
Best Price Guarantee
NEOTECH UAE ensures the lowest price on custom RFID PCB tags. Find a better offer? We’ll match it and upgrade your delivery free.
Shop Today & Receive Your Delivery Across the UAE
Submit your custom size requirements now for a rapid quote. Standard lead time is 5–7 business days, express options available.
Request for Customer Reviews and Testimonials
Integrated our PCB tags into your products? Share your insights to guide fellow engineers!
Submit your review ➝
After Sales Support
Our UAE-based RFID integration team offers email and live-chat assistance for tag design, antenna tuning, and encoding workflows.
Get in Touch
Need a custom RFID PCB tag design? Contact our engineering specialists for tailored guidance and rapid responses.
📩 support@neotech.ae
Stock Availability
Custom tags are made-to-order. Confirm project timelines with our sales team for urgent deployments.
Disclaimer
Custom dimensions and features are subject to design review. Final specs, pricing, and lead times confirmed upon drawing approval.
