Overview

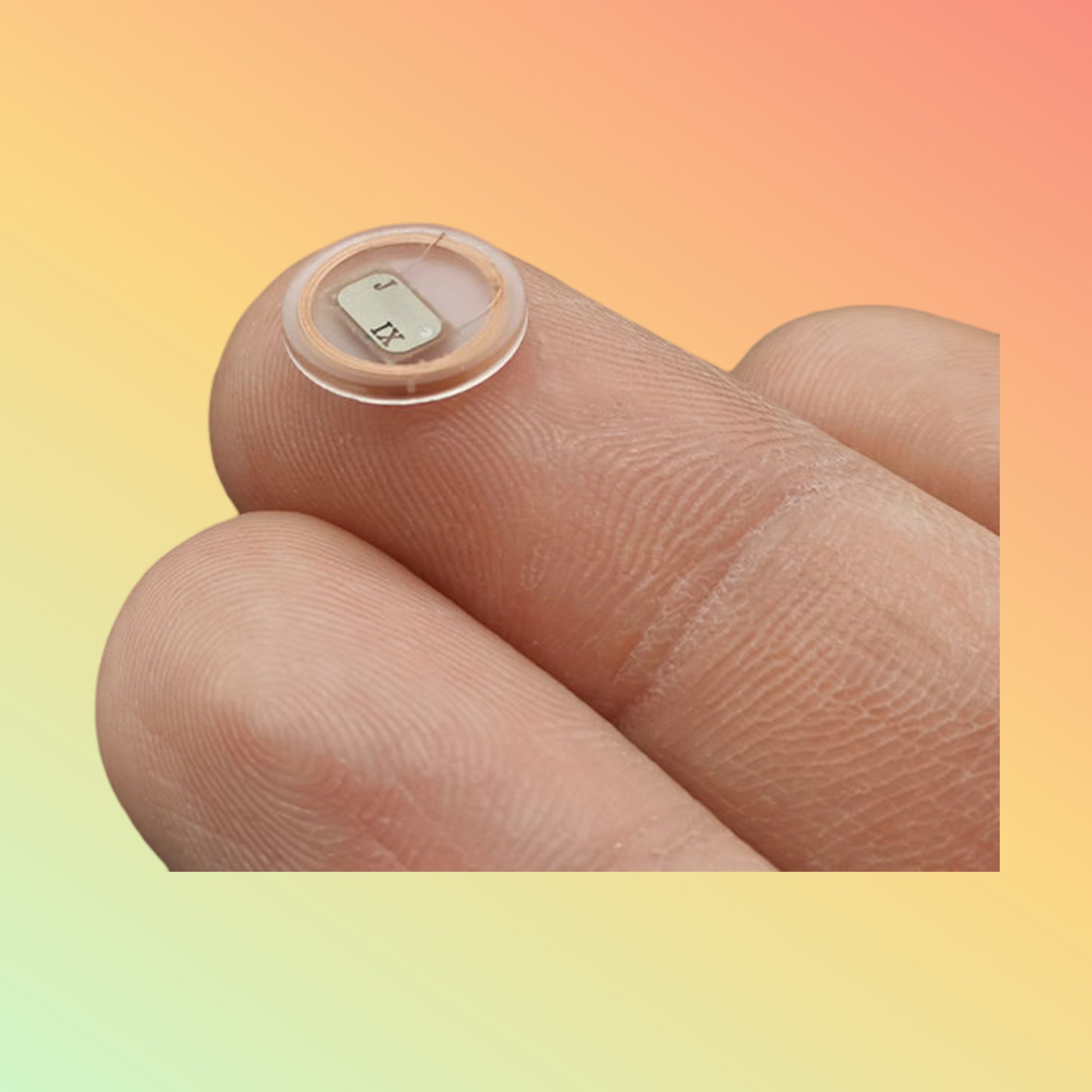

The BYX 10 mm Mini Coin RFID Tag is an ultra-compact inlay designed for tagging small or irregular assets. Available in 13.56 MHz HF (ISO 15693) or EPC Gen2 UHF, its low-profile coin form factor fits where labels or larger tags won’t—ideal for electronic components, surgical instruments, and jewelry.
Product Description
Encased in a rugged polymer shell just 10 mm in diameter and 2 mm thick, this mini tag houses a high-sensitivity antenna and your choice of RFID chip. A pressure-sensitive adhesive or optional epoxy mounting ensures secure attachment to metal, plastic, or glass. Despite its size, it delivers reliable reads in both HF proximity (< 3 cm) and UHF long-range (≤ 3 m) variants, enabling comprehensive, item-level tracking.
Key Features
-
Form Factor: Ø 10 mm × 2 mm, coin-style tag
-
Dual Options: HF ISO 15693 or UHF EPC Gen2
-
Read Range: HF ≤ 3 cm; UHF ≤ 3 m (reader dependent)
-
Housing: IP67 waterproof, UV-stable polymer
-
Mounting: Adhesive back or screw hole variant
-
Memory: HF 1 kbit EEPROM; UHF 128-bit EPC + 32-bit TID
-
Temperature: –20 °C to +70 °C operating
-
Durability: Resistant to chemicals, abrasion, washdown
-
Lifecycle: ≥ 100 000 read/write cycles
Specifications
| Parameter |
Detail |
| Frequency |
HF 13.56 MHz (ISO 15693) or UHF 860–960 MHz (EPC C1G2) |
| Memory |
HF: 1 kbit; UHF: 128-bit EPC + 32-bit TID |
| Dimensions |
Ø 10 mm; thickness 2 mm |
| Encapsulation |
IP67-rated polymer |
| Mount Options |
Pressure-sensitive adhesive / M2 screw hole |
| Operating Temp |
–20 °C to +70 °C |
| Storage Temp |
–40 °C to +85 °C |
| Read Range |
HF ≤ 30 mm; UHF ≤ 3 m |
| Compliance |
RoHS, REACH |
Supported Applications / Industries
-
Electronics: Component tagging, anti-counterfeit
-
Medical: Surgical tool tracking
-
Jewelry: High-value piece identification
-
Aerospace: Small part traceability
-
Libraries & Archive: Manuscript tagging
Benefits & Compatibility
-
Tiny footprint for space-constrained items
-
On-metal performance without tuners
-
Versatile read modes: proximity HF or long-range UHF
-
Robust sealing for washdown and solvents
-
Seamless integration with NEOTECH HF/UHF readers
Purpose of Use
Use the 10 mm coin tag to enable item-level tracking where larger tags won’t fit. Perfect for precision-manufactured parts, jewelry, or medical instruments requiring secure, discreet identification.
How to Use
-
Clean the mounting surface.
-
Peel liner or position screw-variant over M2 hole.
-
Press firmly or secure with screw.
-
Encode via your HF or UHF encoder.
-
Scan with compatible handheld or portal readers.
Packaging / Weight / Dimensions
-
Pack Sizes: 100, 500, 1 000 tags per roll
-
Roll Core: 76 mm diameter
-
Net Weight (500 pcs): ~150 g
-
Box Size: 120 × 80 × 40 mm
Warranty & FAQs
Warranty: 1 year manufacturer coverage.
FAQs
-
Q: Will it stick to curved metal?
A: Yes—adhesive conforms down to 5 mm radius or use screw model.
-
Q: Can HF and UHF read simultaneously?
A: Not simultaneously; choose HF or UHF variant per order.
-
Q: Is it washable?
A: Yes—IP67-rated for immersion and washdown.
Performance, Quality, Durability & Reliability
Undergoes 1 000 temperature cycles, 72 h salt-spray, and 1 000 abrasion tests. Retains full read sensitivity (±1 dB) after rigorous environmental exposure.
