Secure high-value assets with the EM4423 dual-frequency on-metal RFC tag. UHF & HF in one, rugged design. Order now at NEOTECH UAE—fast UAE shipping.
Overview

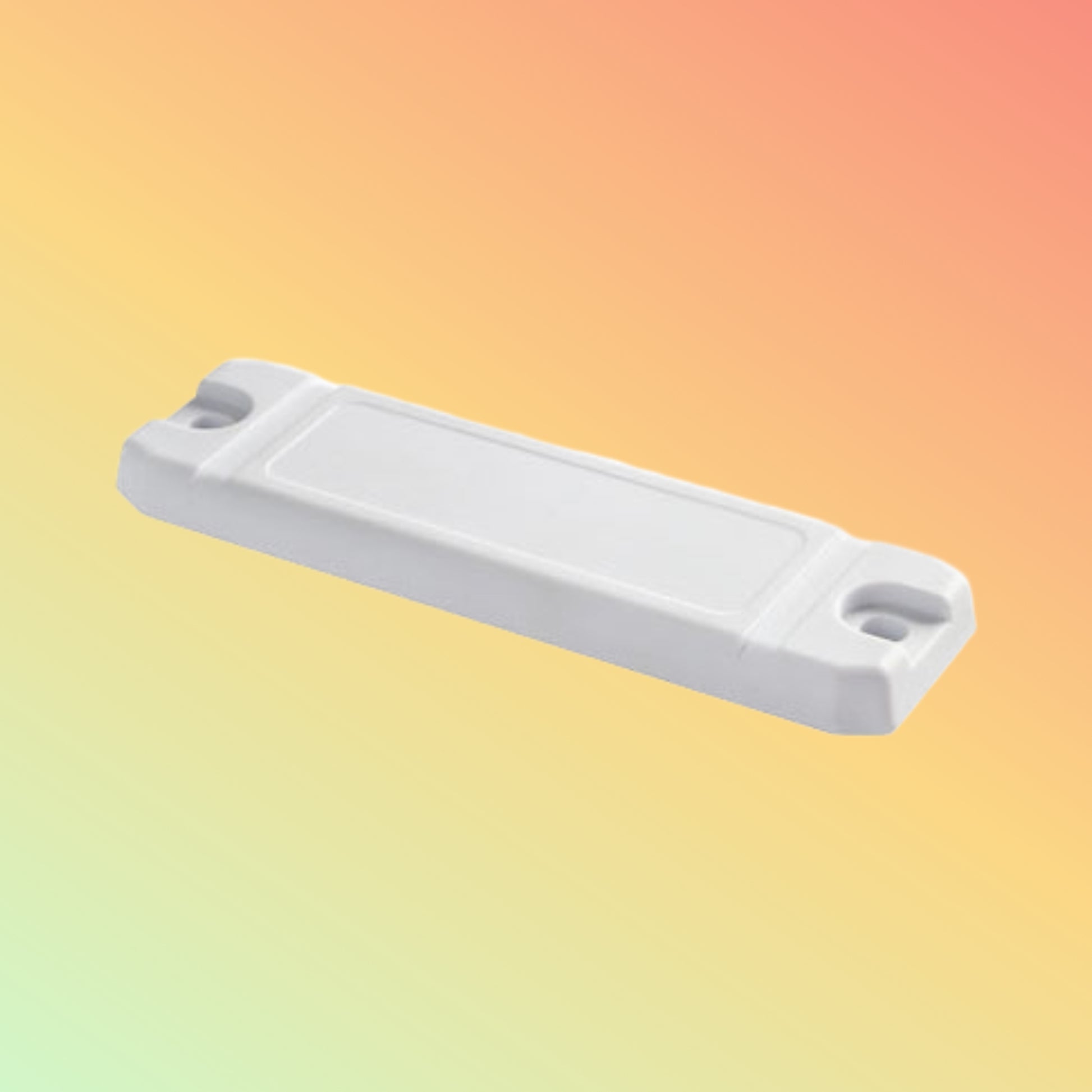

The BYX EM4423 Dual-Frequency On-Metal Tag combines UHF EPC Gen2 and HF 13.56 MHz in a single, compact package. Engineered for reliable reads on metal surfaces, it offers versatile tagging for industrial, IT, and asset-tracking applications.
Product Description
This hybrid tag embeds the Impinj Monza R6-P UHF chip and an NXP ICODE SLIX2 HF IC. Housed in a corrosion-resistant polymer shell, it bonds directly to metal without performance loss. Its slim, low-profile design fits tight spaces and endures harsh conditions—ideal for tool cribs, server racks, and heavy equipment.
Key Features
-
Dual-frequency: UHF (860–960 MHz) + HF (13.56 MHz)
-
EPC Gen2 & ISO 18000-6C support; ISO 15693 HF mode
-
Read range: up to 5 m (UHF) & 50 mm (HF)
-
On-metal optimized antenna for consistent performance
-
Durable polymer housing: IP68, –40 °C to +85 °C
-
Low-profile: 50 × 20 × 3 mm tag body
-
Strong adhesive backing for metal, plastic, and painted surfaces
-
Factory-programmed unique IDs; re-writable user memory
-
RoHS and REACH compliant; UL94 V-0 flame rating
Specifications
| Parameter |
Detail |
| UHF Protocol |
EPC C1G2 / ISO 18000-6C |
| HF Protocol |
ISO 15693; NFC Type 5 |
| Memory |
128-bit EPC; 256 bit user memory |
| Dimensions |
50 × 20 × 3 mm |
| Material |
Polymer encapsulation |
| Read Range |
UHF ≤ 5 m; HF ≤ 50 mm |
| Temperature Range |
–40 °C to +85 °C |
| Protection Rating |
IP68 dust/water resistant |
| Storage Conditions |
–40 °C to +85 °C, 95 % RH |
Supported Applications / Industries
-
Industrial Automation: Tool and machine tagging
-
IT Asset Management: Server and rack tracking
-
Logistics & Supply Chain: Pallet and container monitoring
-
Maintenance: Equipment history on heavy machinery
-
Healthcare: Sterilization trays and beds
Benefits & Compatibility
-
Two-frequency support streamlines inventory across HF and UHF readers.
-
On-metal optimization ensures reliable reads even on steel surfaces.
-
Compact form factor fits in tight mounting areas.
-
Wide operating range handles temperature extremes and moisture.
-
Seamless integration with all EPC Gen2 and ISO 15693 systems.
Purpose of Use
Use EM4423 tags to unify HF and UHF tracking in one workflow. Ideal for environments where both short-range HF and long-range UHF reads are needed on metal assets.
How to Use
-
Clean metal surface of dust and grease.
-
Peel backing liner to expose the adhesive.
-
Press tag firmly onto the metal.
-
Encode UID and user data via UHF or HF encoder.
-
Scan with any compatible UHF or HF reader.
Packaging / Weight / Dimensions
-
Pack Sizes: 100, 500, 1 000 tags per roll
-
Roll Core: 76 mm standard
-
Net Weight (500 pcs): ~200 g
Warranty & FAQs
Warranty
2 years against manufacturing defects.
FAQs
-
Q: Can I mount on painted steel?
A: Yes—adhesive bonds to smooth painted or powder-coated surfaces.
-
Q: How do I encode both frequencies?
A: Use standard EPC C1G2 and ISO 15693 encoders; CLIU2 supports both.
-
Q: Does housing resist chemicals?
A: Yes—resistant to oils, solvents, and mild acids.
Performance, Quality, Durability & Reliability
Tested for UV exposure, salt-spray, and 1 000 abrasion cycles. Maintains ±1 dB read sensitivity after extreme environmental tests.
