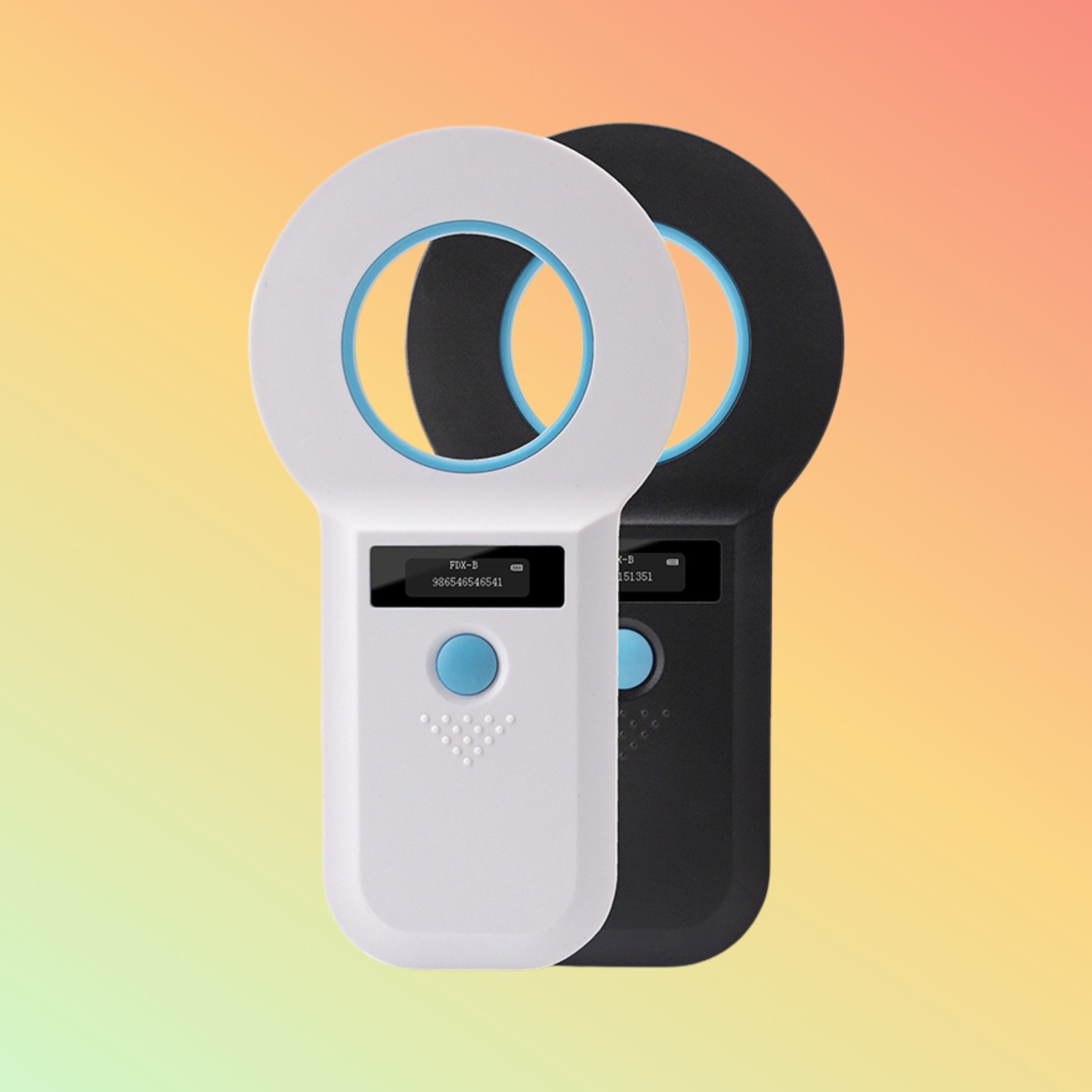

BYX Smart 134.2KHz RFID Animal Reader

Identify pets fast with the BYX 134.2 kHz RFID Animal Reader. Handheld, weatherproof, plug-and-play. Shop NEOTECH UAE for reliable animal ID.

Overview

The BYX Smart 134.2 kHz RFID Animal Reader is a rugged, ergonomic handheld scanner designed for fast, accurate reading of ISO 11784/11785 microchip implants in pets and livestock. Its high-sensitivity antenna and simple interface make it ideal for veterinarians, animal shelters, and farm managers across the UAE.

Product Description

Built around a powerful 32-bit processor and long-range LF antenna, this reader reliably detects 134.2 kHz FDX-B and HDX transponders up to 10 cm away—even through thick fur or blankets. The backlit LCD displays tag ID and battery status at a glance. A single-button scan and USB-C charging ensure seamless operation in field or clinic environments.

Key Features

• Frequency: 134.2 kHz (ISO 11784/11785)

• Transponder Support: FDX-B & HDX microchips

• Read Range: Up to 10 cm through tissue/fur

• Display: Backlit 2.4″ LCD with ID and status icons

• Interface: One-button scan for quick reads

• Connectivity: USB-C for charging and PC data export

• Battery: Rechargeable Li-ion pack (up to 8 h runtime)

• Housing: IP54-rated for dust and splash protection

• Weight: 180 g—lightweight for extended use

• Indicator: Audible beep & vibration on successful read

Specifications

• Processor: 32-bit ARM Cortex-M core

• Antenna: Integrated LF coil

• Display: 240 × 320 pixel color LCD, backlit

• Battery Capacity: 2 200 mAh, charges in 3 h

• Dimensions: 140 × 60 × 30 mm

• Weight: 180 g (with battery)

• Operating Temp: 0 °C to 50 °C

• Storage Temp: –20 °C to 60 °C

• Ingress Protection: IP54

• Data Logging: Up to 10 000 tag reads (with timestamps)

• PC Software: Windows/Mac CSV export

Supported Applications / Industries

• Veterinary Clinics: Pet microchip identification

• Animal Shelters: Lost & found reunification

• Livestock Farming: Cattle, sheep, goat tagging

• Wildlife Conservation: Field tracking of tagged species

• Pet Microchip Registries: Batch scanning and logging

Benefits & Compatibility

• Rapid Scanning: Single-press reads in < 0.5 s

• High Sensitivity: Reads through fur, blankets, and pens

• Durable Design: Withstands daily clinic or farm use

• Data Management: Export reads to NEOTECH’s Animal ID software for record-keeping

• Universal Support: Works with all ISO-compliant 134.2 kHz tags

Purpose of Use

Use the BYX Animal Reader to verify microchip IDs during veterinary exams, shelter intake, or herd management. It ensures fast, hygienic, and accurate identification without animal distress.

How to Use

1. Power On: Press the power button until the LCD lights up.

2. Scan: Hold the reader over the animal’s implant site and press the scan button.

3. Read: Listen for the beep; view the microchip ID on the screen.

4. Log: Store up to 10 000 reads or export via USB-C cable.

5. Recharge: Plug into any USB-C charger when battery low.

Packaging / Weight / Dimensions

• In the Box:

  • BYX 134.2 kHz Animal Reader

  • Rechargeable Li-ion battery

  • USB-C charging cable

  • Wrist strap & protective pouch

  • Quick-start guide

• Net Weight: 180 g

• Package Size: 180 × 100 × 50 mm

Warranty & FAQs

Warranty
2-year NEOTECH warranty on hardware and manufacturing defects.

FAQs
Q: Does it support both FDX-B and HDX?
A: Yes, it auto-detects and reads both standards.
Q: How long does the battery last?
A: Up to 8 hours of continuous scanning.
Q: Can I update firmware?
A: Yes, via our Windows/Mac utility over USB-C.

Performance, Quality, Durability & Reliability

Rigorous drop tests, temperature cycling, and IP54 sealing guarantee reliable performance in clinics and out in the field. The ARM-based firmware ensures rapid tag processing and minimal false reads.

Best Price Guarantee

NEOTECH UAE offers the most competitive pricing on BYX Animal Readers. Spot a lower rate? We’ll match it and waive express shipping fees.

Shop Today & Receive Your Delivery Across the UAE

Order the BYX 134.2 kHz Animal Reader now for fast delivery to Dubai, Abu Dhabi, Sharjah, and all Emirates. Bulk orders ship within 2–4 business days.

Request for Customer Reviews and Testimonials

Used the BYX reader in your practice or farm? We want your feedback!
Submit your review ➝

After Sales Support

Our UAE-based technical team is available via email or live chat for troubleshooting, firmware updates, and best-practice guidance post-purchase.

Get in Touch

Need advice on RFID animal identification? Contact our veterinary tech specialists for expert recommendations and quick replies.
📩 support@neotech.ae

Stock Availability

Inventory updates daily. For urgent clinic or farm deployments, confirm stock before checkout. Large orders may require 5–7 business days lead time.

Disclaimer

All information is for general guidance and may change without notice. Product images are illustrative. Confirm final specifications and pricing with our sales team before ordering.
