Durable BYX clamshell prox card—125 kHz EM & 13.56 MHz HF options, ISO format. Ideal for access & attendance. Shop NEOTECH UAE today.
Overview

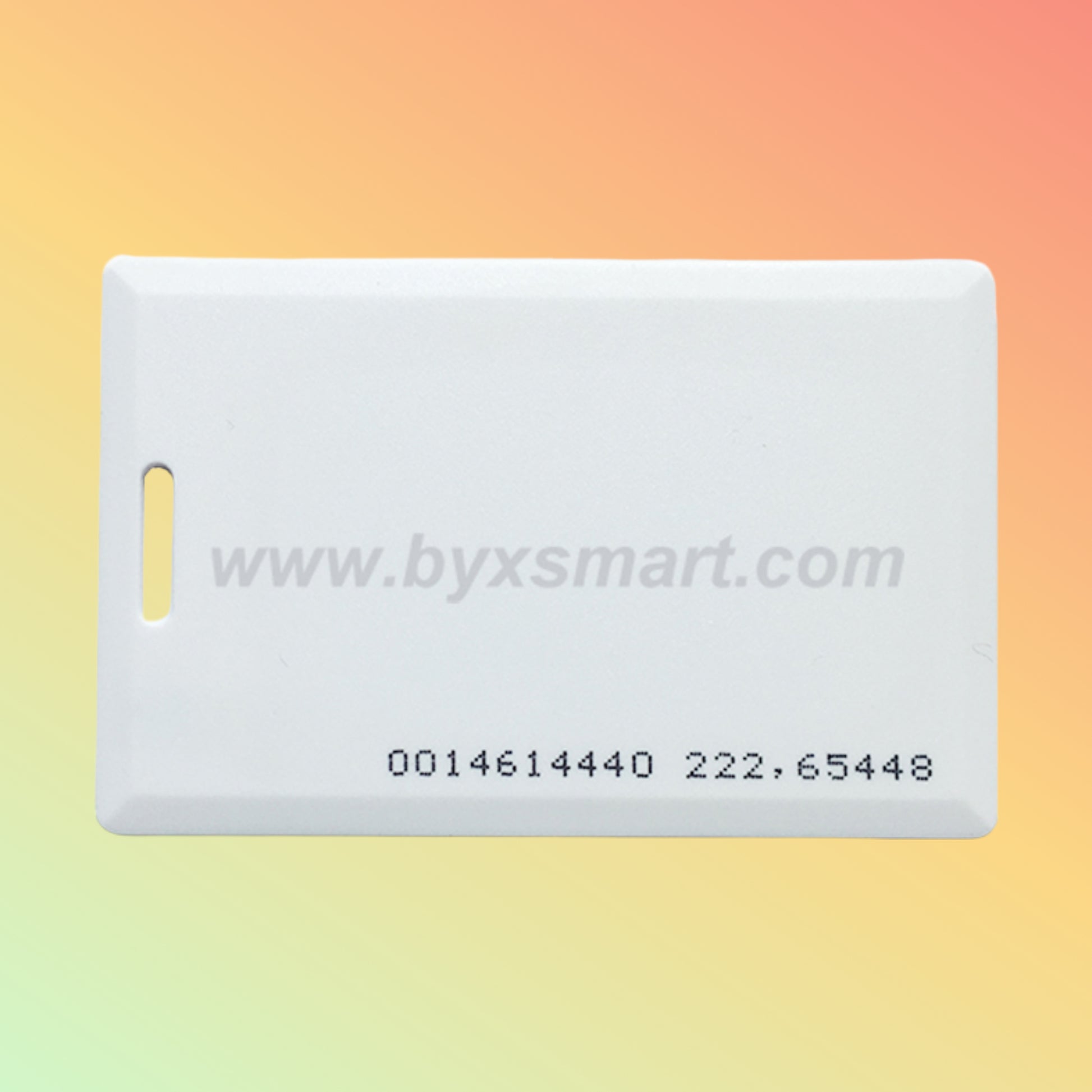

The BYX Smart Clamshell Proximity Card combines rugged clamshell construction with proven proximity RFID technology. Available in 125 kHz EM and 13.56 MHz HF variants, it fits standard ISO 7810 dimensions and withstands daily wear—perfect for access control, time & attendance, and loyalty systems.
Product Description
Molded from durable ABS plastic, the clamshell card seals the PCB in two snap-together halves. The 125 kHz EM4100/4200 option and the 13.56 MHz NTAG213 HF option share identical form factors. A retractable ribbon slot allows on-the-fly wear. The bright white surface accepts full-color thermal transfer printing or laser engraving for IDs and barcodes.
Key Features
-
Dual Variants: 125 kHz EM or 13.56 MHz HF (NTAG213)
-
Form Factor: ISO 7810 (85.6 × 54 × 2.3 mm) clamshell badge
-
Durability: ABS shell resists impact, chemicals, UV
-
Read Range: EM ≤ 75 mm; HF ≤ 50 mm (device dependent)
-
Wear Options: Built-in clip slot or drillable mount holes
-
Printing: Compatible with PVC printers & badge retransfer
-
Memory: HF: 144 bytes user; EM: fixed unique ID
-
Lifecycle: ≥ 100 000 badge insert/remove cycles
-
Custom Colors: white, black, or pantone spot on request
-
Bulk Packs: 50, 100, 250, 500 units
Specifications
| Parameter |
Detail |
| Frequency |
125 kHz (EM) or 13.56 MHz (NTAG213 NFC-A) |
| Protocol |
EM4100/4200 or ISO 14443-A (Type 2) |
| Dimensions |
85.6 × 54 × 2.3 mm |
| Material |
ABS plastic shell |
| Read Range |
EM ≤ 75 mm; HF ≤ 50 mm |
| Operating Temp |
–20 °C to +60 °C |
| Storage Temp |
–40 °C to +85 °C |
| Compliance |
RoHS, REACH |
| Printing Methods |
Thermal transfer, retransfer, laser engraving |
Supported Applications / Industries
-
Access Control: office buildings, gated communities
-
Time & Attendance: workforce tracking & payroll integration
-
Membership: gyms, clubs, loyalty programs
-
Education: student ID & library access
-
Healthcare: staff badges & patient tracking
Benefits & Compatibility
-
Rugged Shell: protects PCB and antenna from impact
-
Easy Wear: clip or lanyard slot for secure attachment
-
Single Format: one card for multiple readers (EM or HF)
-
Wide Reader Support: works with all standard prox readers
-
Custom Branding: print logos, barcodes, and variable data
Purpose of Use
Issue these clamshell cards for environments where durability and reliable reads matter—whether for daily entry, event check-in, or membership access.
How to Use
-
Encode card UID or data via your RFID encoder.
-
Print user photo, name, and barcode on shell.
-
Attach to clip, lanyard, or retractable reel.
-
Present to reader; LED or beep confirms access.
Packaging / Weight / Dimensions
-
In the Box: Specified quantity of clamshell cards in protective sleeves
-
Box Size (100 pcs): 220 × 130 × 60 mm
-
Total Weight (100 pcs): ~600 g
Warranty & FAQs
Warranty
1 year NEOTECH warranty against shell and chip defects.
FAQs
-
Q: Can I drill mounting holes?
A: Yes—pre-molded knockouts align at top edge.
-
Q: Does printing affect reads?
A: No—the antenna area is recessed and kept free of ink.
-
Q: Are both EM and HF available in one card?
A: For dual-tech, see our Dual-Frequency Silicone Wristbands.
Performance, Quality, Durability & Reliability
Validated to 100 000 read/write cycles and 5 000 shell-open latches. ABS resists cracking and yellowing under UV exposure.
Best Price Guarantee
NEOTECH UAE matches any lower UAE price on clamshell prox cards and upgrades your shipping free.
Shop Today & Receive Your Delivery Across the UAE
Order now for express delivery to Dubai, Abu Dhabi, Sharjah, and all Emirates. Bulk packs ship within 2–4 business days.
Request for Customer Reviews and Testimonials
Using BYX clamshell cards in your facility? Share your feedback to help others choose the right solution!
Submit your review ➝
After Sales Support
Our UAE-based support team is available via email or live chat for encoding setup, printing guidance, and troubleshooting.
Get in Touch
Need help selecting the right proximity card? Contact our RFID specialists for tailored advice and fast replies.
📩 support@neotech.ae
Stock Availability
Inventory updates daily. For urgent or custom-printed orders, confirm stock before checkout. Lead time for > 500 cards: 5–7 business days.
Disclaimer
Specifications and pricing may change without notice. Product images are illustrative. Verify final details and printing requirements with our sales team before ordering.
