Overview

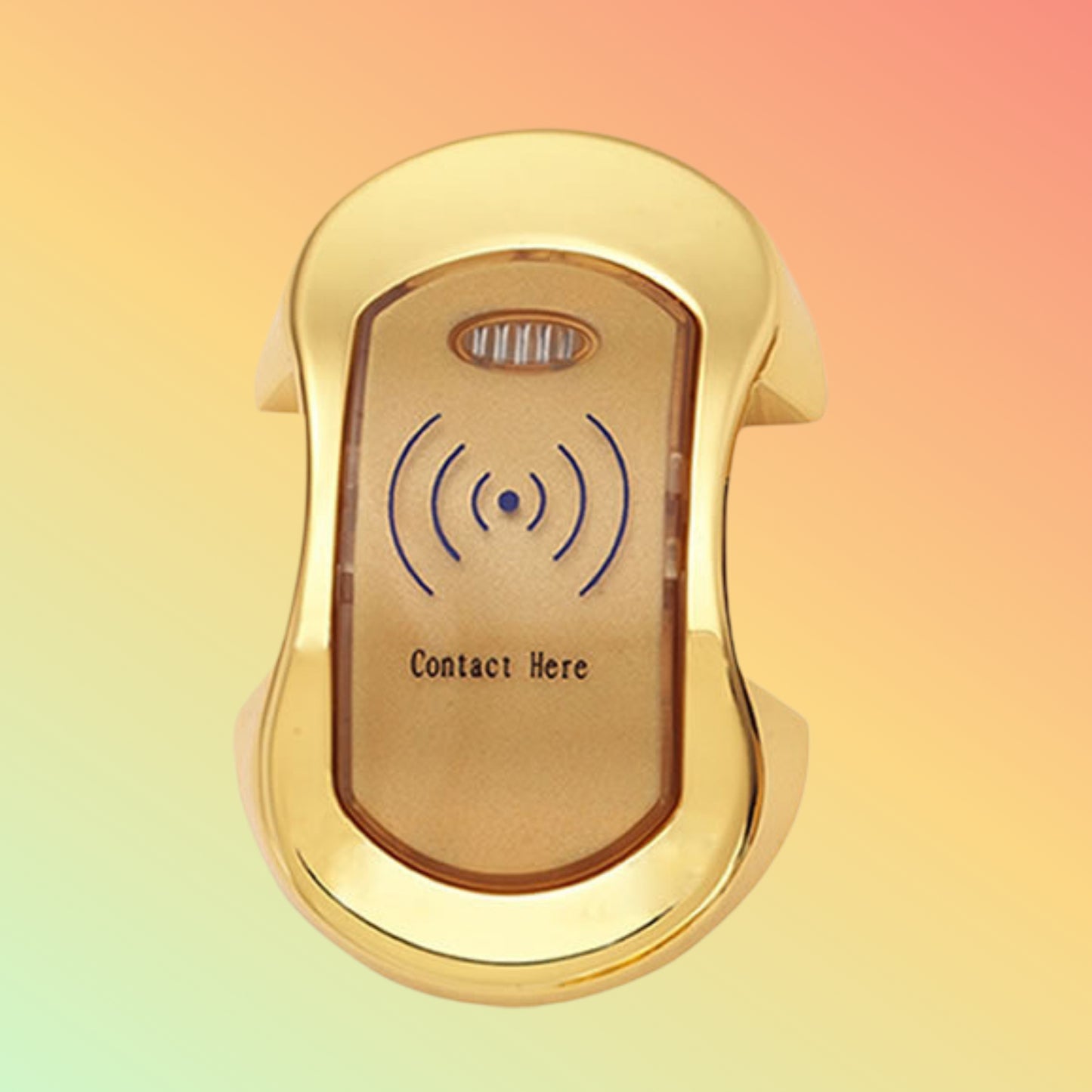

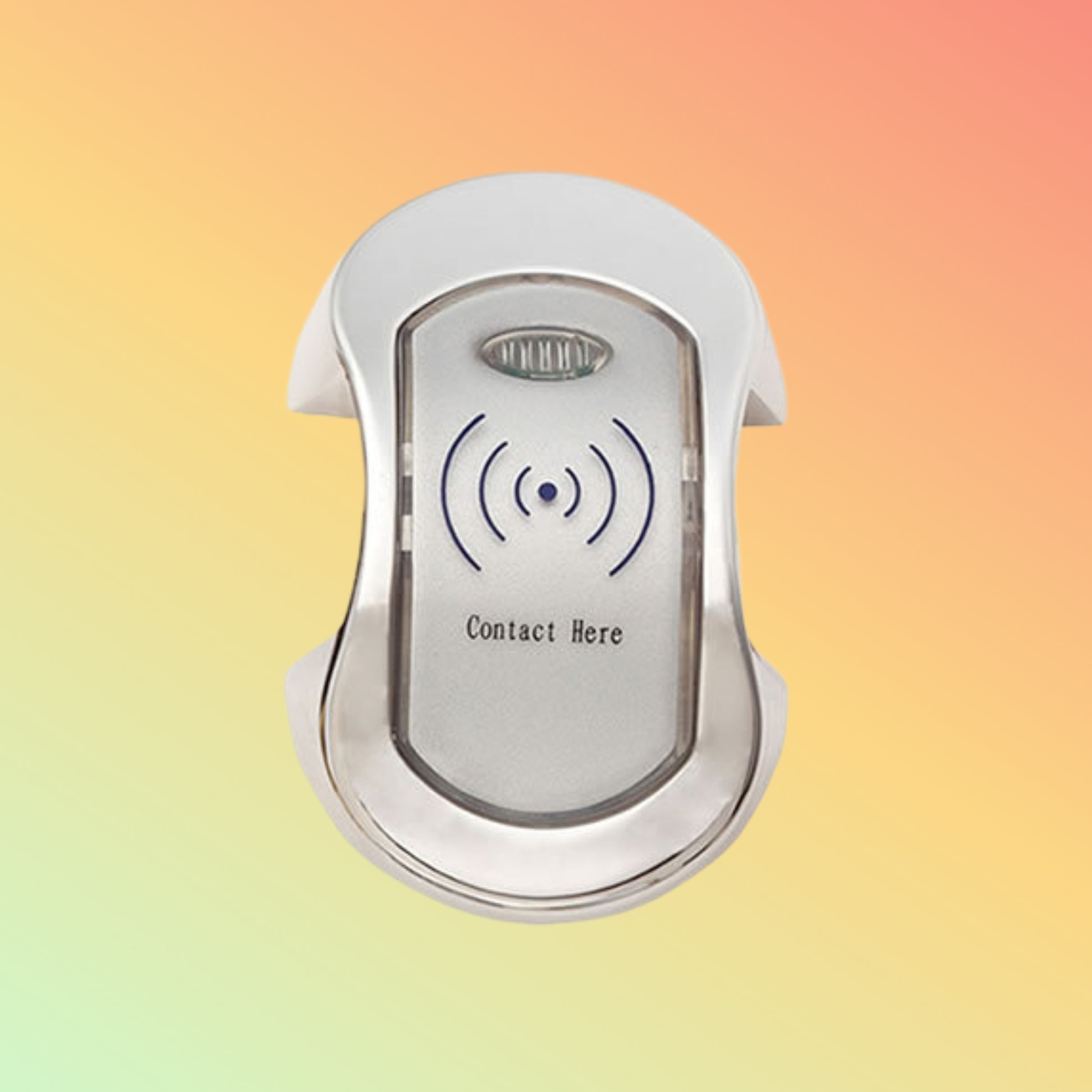

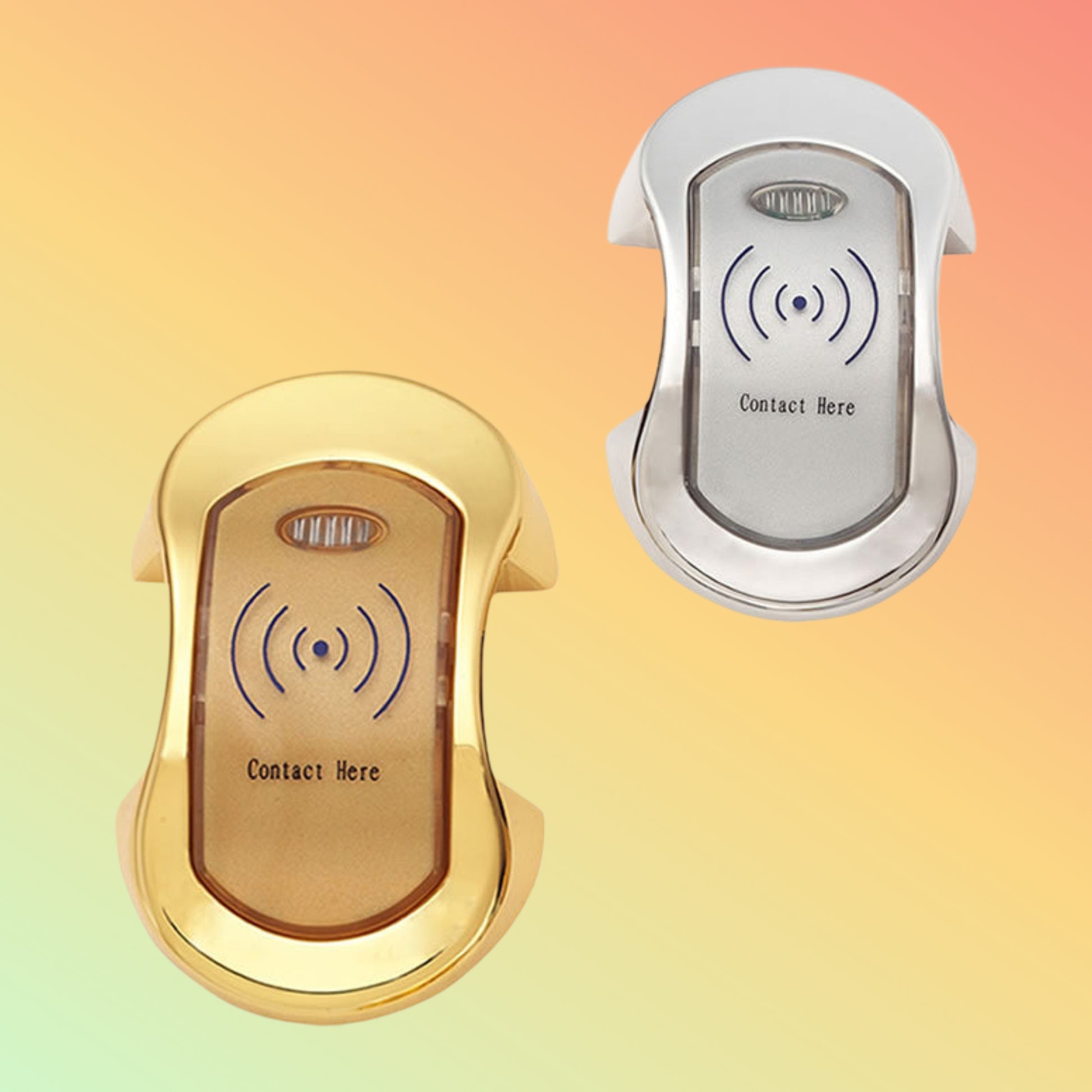

The BYX Smart Cabinet Lock is an all-in-one electronic locking solution for lockers, cabinets, and enclosures. It supports 125 kHz prox cards, 13.56 MHz NFC, PIN codes, and Bluetooth via mobile app. Built-in audit logs, tamper sensors, and remote management make it ideal for gyms, offices, labs, and retail fixtures.
Product Description
This compact lock module replaces mechanical cam locks. It features a 4-digit keypad, RFID/NFC reader window, and BLE radio in a stainless-steel housing. Powered by four AA batteries or optional USB-C supply, it drives a 6 kg·cm motor to latch/unlatch doors. An integrated microcontroller logs every access event (2 000+ entries) with timestamps. Users may unlock via card, code, or smartphone app; administrators manage permissions remotely and view usage analytics.
Key Features
-
Multi-Auth: 125 kHz prox, 13.56 MHz NFC, PIN, BLE app
-
Audit Trail: 2 000+ timestamped events stored onboard
-
Power: 4×AA batteries (1 year typical) or USB-C backup
-
Motorized Latch: 6 kg·cm torque for secure closure
-
Tamper Alert: built-in sensor triggers alarm on forced entry
-
Remote Management: BLE-based smartphone app for admin
-
Mounting: retrofit into standard cam-lock cutouts
-
Weatherproof: IP54-rated for indoor/outdoor use
-
LED Feedback: multi-color status and low-battery indicator
-
Dimensions: 75×30×20 mm lock body
Specifications
| Parameter |
Detail |
| Authentication |
125 kHz EM, 13.56 MHz ISO 14443 NFC, PIN |
| BLE |
Bluetooth 5.0 LE for admin app |
| Battery Life |
~12 months (4×AA), low-battery alert |
| Latch Torque |
6 kg·cm |
| Event Log Capacity |
2 000 entries |
| Tamper Detection |
Magnetic sensor + alarm output |
| Protection Rating |
IP54 |
| Operating Temp |
–10 °C to +50 °C |
| Dimensions (L×W×H) |
75 × 30 × 20 mm |
| Weight |
120 g |
Supported Applications / Industries
-
Fitness & Leisure: gym lockers, pool changing rooms
-
Office Environments: personal storage, supply cabinets
-
Healthcare & Labs: controlled-access medicine cabinets
-
Retail & Hospitality: display cases, minibar lockers
-
Education: student lockers, equipment rooms
Benefits & Compatibility
-
Versatile Access: choose card, code, or smartphone
-
Enhanced Security: audit trail and tamper detection
-
Easy Retrofit: fits existing cam-lock cutouts (16 mm)
-
Remote Admin: update permissions without door removal
-
Low Maintenance: long battery life with alerts
Purpose of Use
Install the BYX Smart Cabinet Lock on any cam-lock door to transform it into a fully managed, multi-access point with real-time usage monitoring and minimal infrastructure changes.
How to Use
-
Mount lock body into 16 mm diameter cam-lock slot.
-
Power with AA batteries or USB-C cable.
-
Enroll user cards, codes, or pair admin via BLE app.
-
Operate: user taps card, enters PIN, or unlocks via app.
-
Monitor access logs in the smartphone dashboard.
Packaging / Weight / Dimensions
-
In the Box:
-
BYX Smart Cabinet Lock module
-
Motorized latch cam & mounting hardware
-
4×AA battery holder (batteries not included)
-
Quick-start guide
-
Box Size: 120×80×40 mm
-
Total Weight: 200 g
Warranty & FAQs
Warranty
1 year NEOTECH warranty on electronics and mechanism.
FAQs
-
Q: What if batteries die?
A: USB-C port allows emergency power supply.
-
Q: Can I integrate with access control systems?
A: Yes—supports Wiegand-style output via optional module.
-
Q: How do I retrieve logs?
A: Download via BLE app or export CSV from admin portal.
Performance, Quality, Durability & Reliability
Tested for 100 000 actuation cycles, IP54 seal against dust/splashes, and tamper-sensor accuracy < 0.1 s. AES-128 BLE communication ensures secure pairing.
