Overview

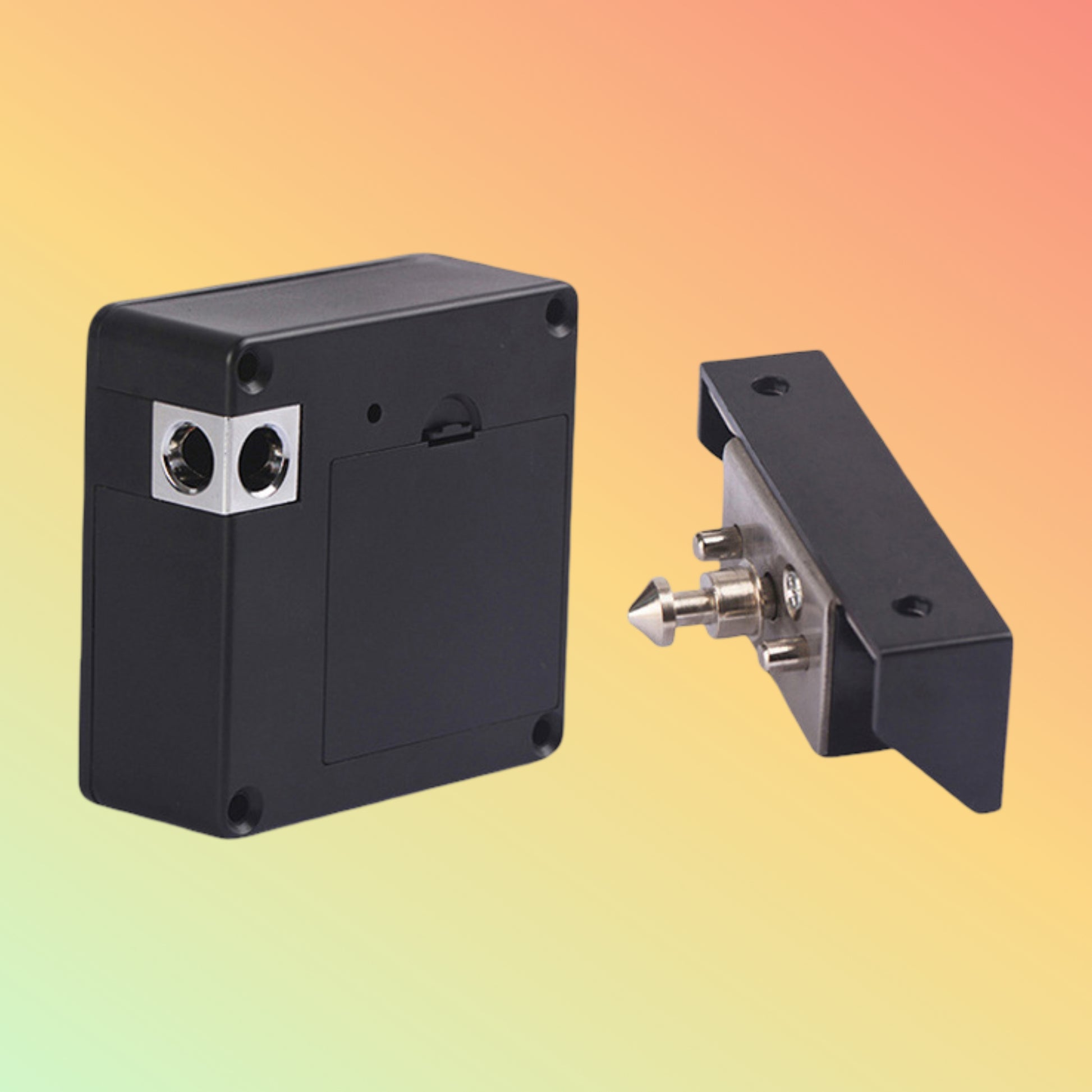

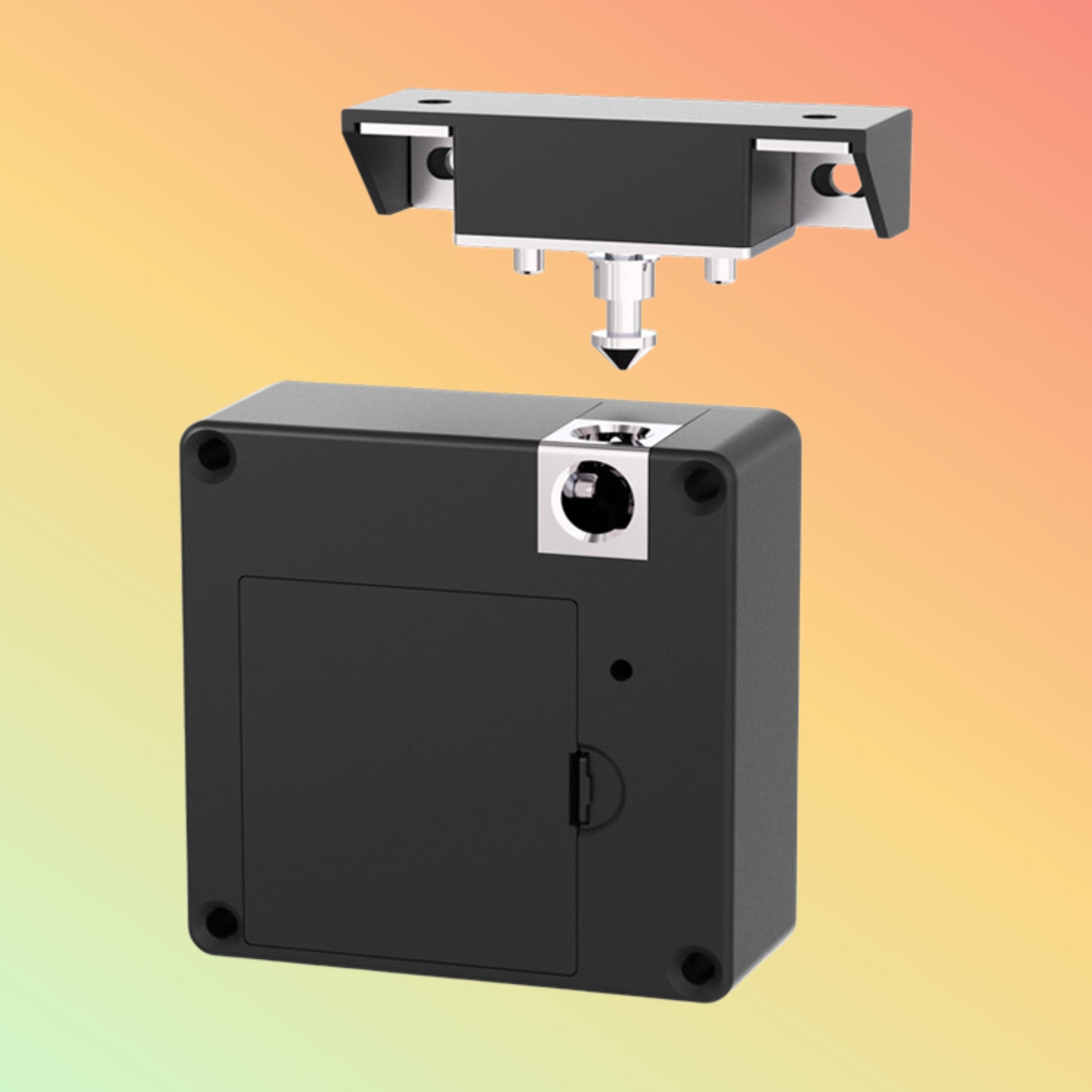

The BYX Smart NFC Cabinet & Drawer Lock brings keyless, contactless security to furniture, lockers, and cabinets. Its compact design and NFC-based authentication eliminate lost keys while providing robust tamper alerts and audit trails.
Product Description
This battery-powered lock mounts inside drawers or cabinet doors (12–25 mm thickness). Users simply tap any standard 13.56 MHz NFC card or smartphone to unlock. On-board memory stores up to 1 000 user credentials and logs the last 2 000 operations. The IP54-rated housing withstands splashes and dust. No wiring or hardwiring required—perfect for retrofitting existing furniture.
Key Features
NFC authentication: 13.56 MHz NTAG213 (144 B user memory)
Keyless entry via cards, tags, or smartphones
Audit log: last 2 000 open/close events
Credential capacity: up to 1 000 users
Battery-powered: 4× AA cells, ~12 months runtime
Tamper alarm: front‐panel anti-pry sensor
Mounts in 12–25 mm door/drawer thickness
IP54-rated splash & dust protection
Easy install: screw-in body, no wiring
Specifications
Parameter
Details
Authentication
NFC ISO 14443A (NTAG213)
Memory
144 B user, 2 000 event log
User Capacity
1 000 credentials
Mounting
12–25 mm door/drawer thickness
Locking Bolt
6 mm stainless-steel retractable
Power
4× AA alkaline batteries (~12 months)
Protection
IP54 rated
Temp Range
–10 °C to +50 °C
Dimensions
85×55×28 mm (L×W×H)
Weight
130 g (excl. batteries)
Supported Applications / Industries
Office filing cabinet security
Laboratory & medical storage
Locker room & equipment lockers
Retail display cases
Hotel minibars & amenity cabinets
Benefits & Compatibility
No lost keys: use NFC cards or phones
Audit trail improves accountability
Battery-powered—no electrician needed
Compact & hidden inside furniture
Integrates with NEOTECH access panels for centralized management
Purpose of Use
Deploy the BYX NFC lock to:
Secure sensitive documents and valuables
Control access to restricted drawers or cabinets
Monitor usage via audit logs
Retrofit existing furniture without modification
How to Use
Drill a 12–25 mm hole per template.
Insert lock body and tighten mounting nut.
Load 4× AA batteries and program a master NFC tag.
Tap user cards/phones to enroll credentials.
Tap to unlock; bolt retracts smoothly.
Packaging / Weight / Dimensions
Includes: Lock module, mounting nut, programming tag, user guide
Packaged Size: 120×80×40 mm
Packaged Weight: ~200 g
After Sales Support
NEOTECH offers firmware updates, battery-replacement guides, and 24/7 technical support via email, phone, or live chat.
Get in Touch
Need bulk pricing or integration help? Contact our access-control specialists: 📧 support@neotech.ae 📞 +971-XXX-XXXX 💬 Live Chat 9 AM–6 PM GST
Stock Availability
🟢 In Stock ✔️ Ships in 1–2 Business Days UAE-wide ⏱ Bulk orders (100+): lead time 7–10 business days
Disclaimer
Specifications may change without notice. Product images are illustrative. Verify final details and pricing with our sales team before ordering.
