Overview

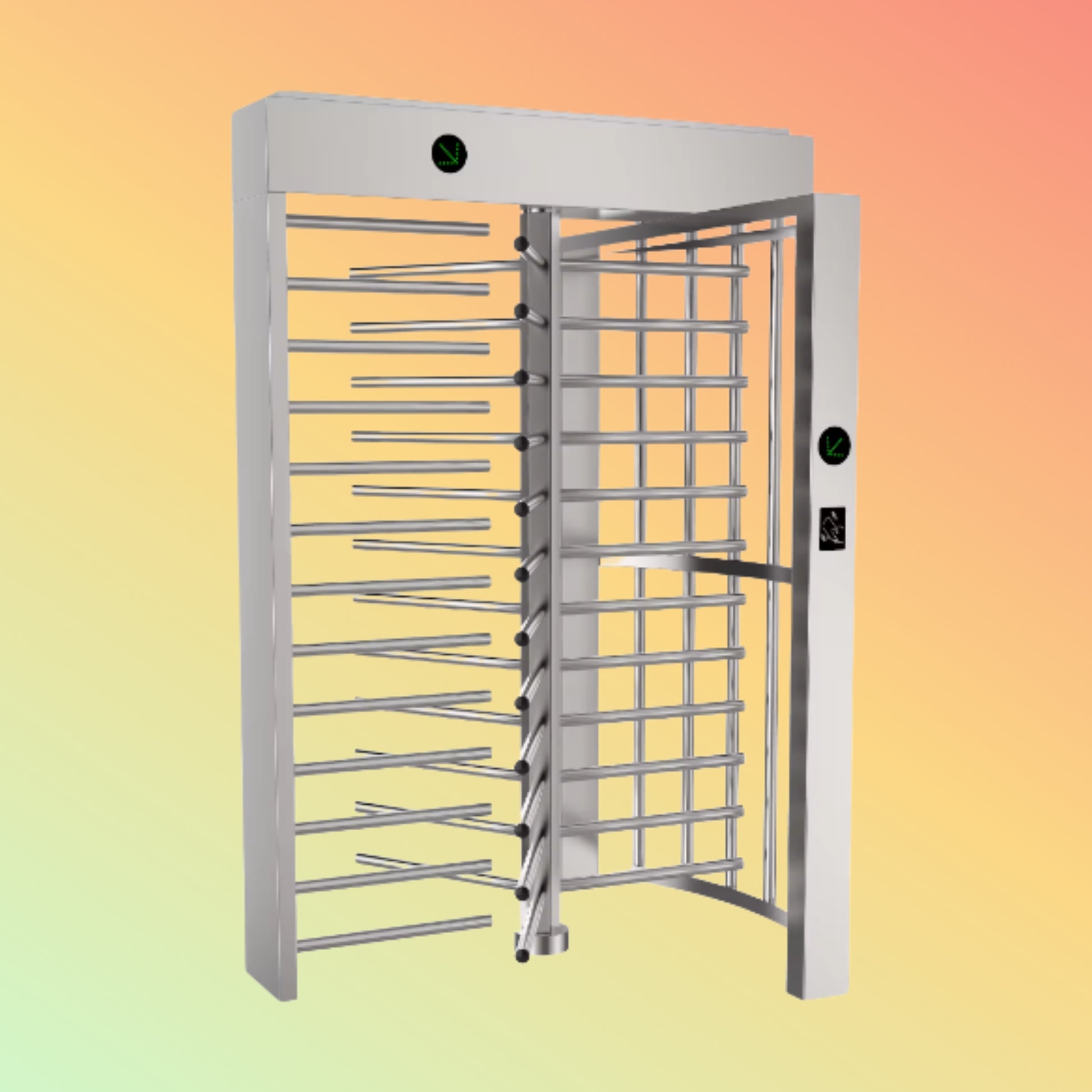

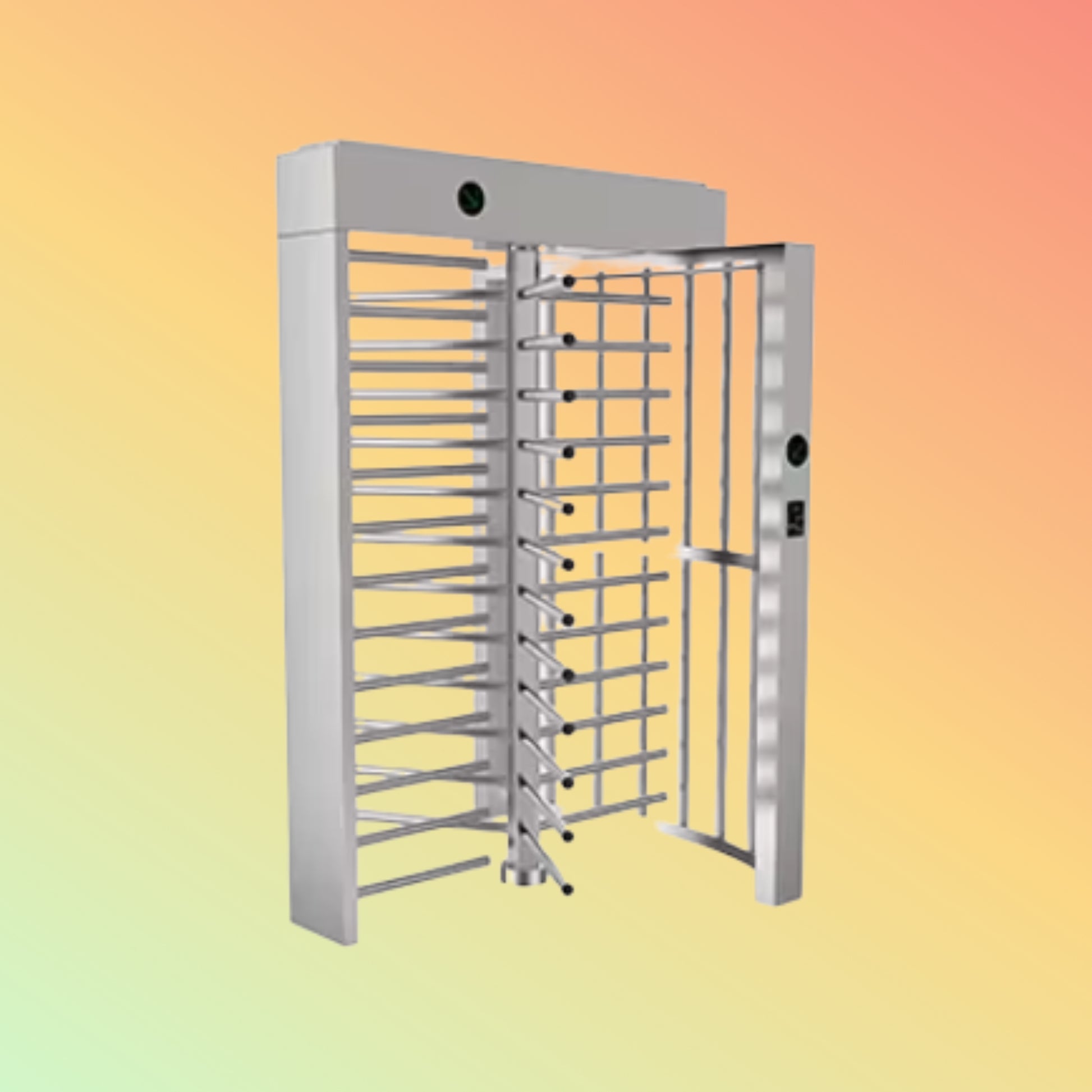

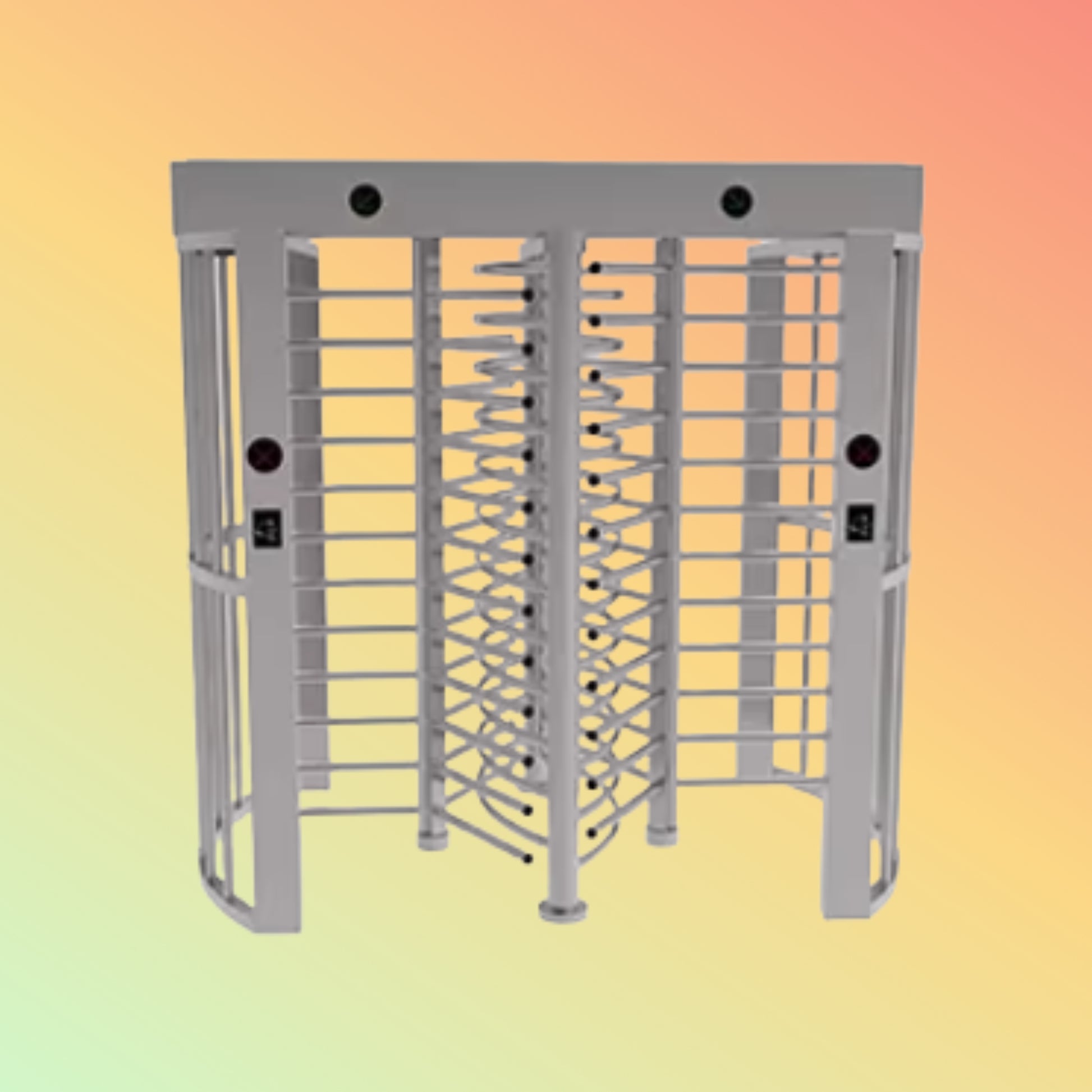

The BYX Smart Full-Height Turnstile Gate provides perimeter security and regulated pedestrian flow for high-traffic venues. Engineered from heavy-gauge stainless steel, it integrates seamlessly with RFID, QR code, or biometric readers—ensuring only authorized users pass through while preventing tailgating and unauthorized entry.
Product Description
This full-height tripod turnstile features three weighted arms that rotate smoothly under motorized control. Its modular head unit accommodates any access reader (RFID, QR, fingerprint). The vandal-resistant design, complete with anti-pinch sensors and emergency-mode unlocking, guarantees both safety and uptime. Ideal for stadiums, transit hubs, corporate campuses, and industrial facilities.
Key Features
-
Full-height security: 2.2 m stainless-steel tripod barrier
-
Multi-reader integration: RFID, QR, biometric, keypad
-
Anti-tailgate: built-in sensors detect and alarm multiple entries
-
Motorized drive: smooth, silent operation with adjustable speed
-
Emergency release: failsafe arm drop on power loss or alarm
-
Weatherproof: IP54 rating for outdoor / indoor use
-
LED status indicators: clear red/green guidance lights
-
Anti-pinch protection: safety sensors prevent injuries
-
Access control interface: Wiegand, RS-485, TCP/IP ready
-
Modular design: easy on-site maintenance and expansion
Specifications
| Parameter |
Detail |
| Height |
2 200 mm |
| Arm Length |
600 mm |
| Material |
304 stainless steel |
| Drive Motor |
DC brushless, 24 V |
| Throughput |
Up to 30 persons/min (bidirectional) |
| Readers Interface |
Wiegand 26/34, RS-485, TCP/IP |
| Power Input |
AC 110–240 V → 24 V DC, 50/60 Hz |
| Power Consumption |
≤ 30 W |
| Protection Rating |
IP54 dust/water resistant |
| Ambient Temp |
–20 °C to +60 °C |
| Weight |
85 kg |
| Dimensions (W×D×H) |
1 200 × 1 100 × 2 200 mm |
Supported Integration / Application / Industries
-
Access Systems: Corporate, government, and data centers
-
Transit & Transport: Metro, bus stations, airports
-
Education & Healthcare: Campus and hospital entrances
-
Stadiums & Arenas: Event control and crowd management
-
Manufacturing & Warehousing: Facility perimeter security
Benefits & Compatibility
-
High deterrence: Full-height design prevents climb-over
-
Seamless ACL integration: Works with any NEOTECH or third-party reader
-
Scalable: Link multiple gates via TCP/IP or RS-485 bus
-
Safe & compliant: Anti-pinch and emergency-mode features meet regulations
-
Low TCO: Modular parts reduce service time and cost
Purpose of Use
Control and monitor pedestrian flow at critical entry points. Use for secure, unattended entry in high-security environments while maintaining efficient throughput.
How to Use
-
Install on flat concrete slab; anchor via provided bolts.
-
Connect to access control panel via Wiegand or TCP/IP.
-
Mount your choice of reader on the turnstile head.
-
Configure directional modes and alarm outputs.
-
Operate: authorized scan unlocks arm; unauthorized triggers alarm.
Packaging / Weight / Dimensions
-
In the Box: Turnstile unit, control box, mounting kit, quick-start guide
-
Crate Size: 1 250 × 1 150 × 2 250 mm
-
Total Shipping Weight: ~130 kg
Warranty & FAQs
Warranty
24-month NEOTECH warranty on parts and labor.
FAQs
-
Q: Can it operate offline?
A: Yes—stores up to 50 000 user profiles and logs locally.
-
Q: What if power fails?
A: Falls into free-pass emergency mode or locks down per config.
-
Q: How many readers can I attach?
A: Up to two readers (in + out) on one head module.
Performance, Quality, Durability & Reliability
Tested for 5 million cycles lifecycle. The IP54 rating and corrosion-resistant finish withstand harsh weather. Brushless motor ensures maintenance-free operation.
