Overview

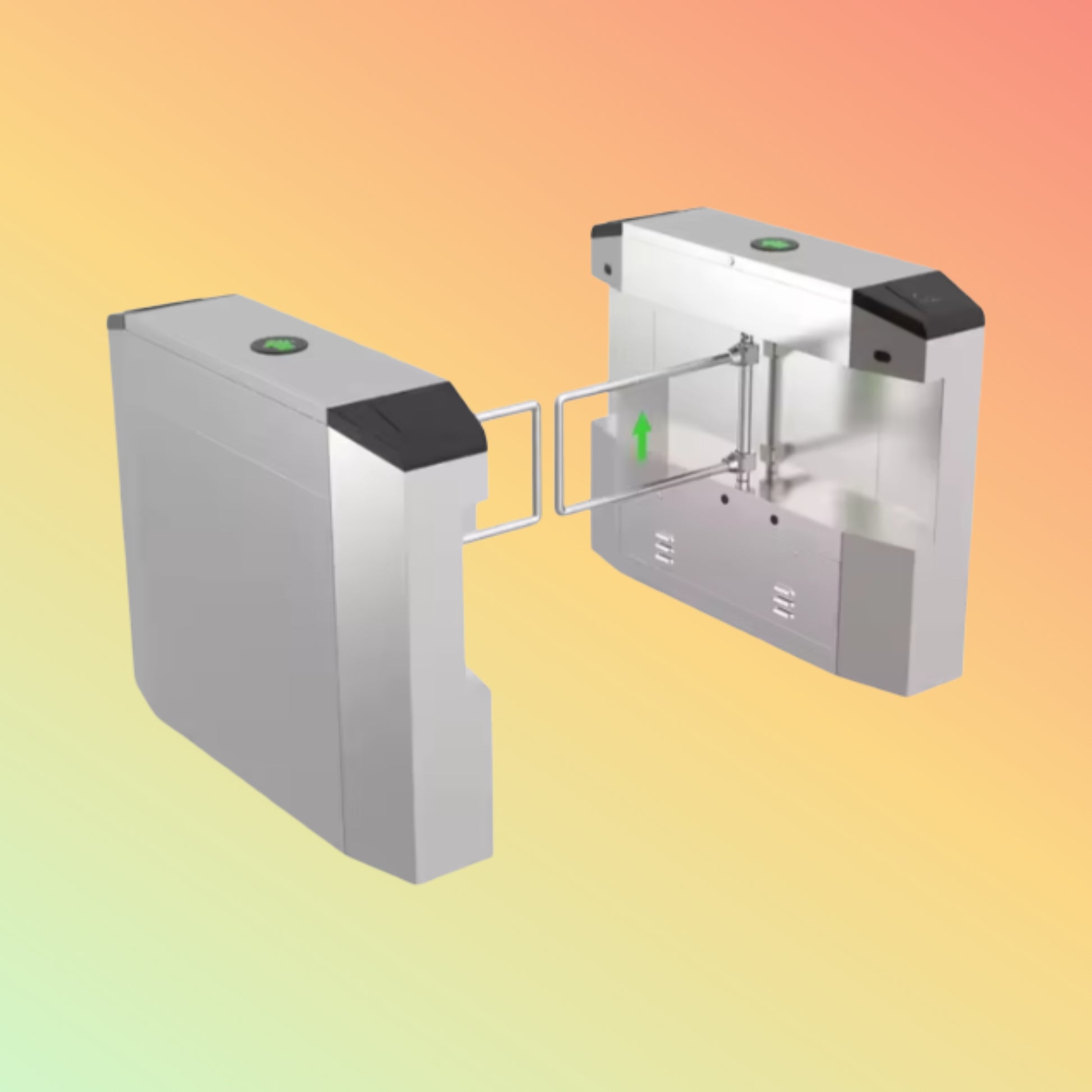

The BYX Smart RFID Swing Barrier Gate offers hands-free pedestrian control. It pairs rugged mechanics with RFID read-and-go convenience. Ideal for offices, gyms, and transit hubs, it moves users smoothly through secured points.
Product Description
Built on a stainless-steel frame, the BYX gate features a brushless motor for silent swing action. An integrated RFID reader scans cards or fobs in under 0.2 seconds. Entry and exit lanes are configurable. LED status indicators guide users. The system links to your access controller via Wiegand or TCP/IP.
Key Features
-
Built-in 13.56 MHz RFID reader (MIFARE & NFC)
-
Silent brushless swing arm motor
-
Fast read time: < 0.2 s per tag
-
Bi-directional swing for entry/exit
-
LED indicators for access status
-
Anti-tailgating sensor for security
-
Fail-safe mode opens on power loss
-
Wiegand 26/34 & TCP/IP connectivity
-
Weather-proof design for indoor/outdoor use
-
Compact footprint for tight spaces
Specifications
-
Passage Width: 600 mm
-
Throughput: Up to 30 persons/min
-
RFID Frequency: 13.56 MHz, ISO 14443A/B
-
Read Range: 0–50 mm
-
Material: 304 stainless steel
-
Power Supply: AC 100–240 V, 50/60 Hz
-
Power Consumption: 40 W (standby)
-
Operating Temp.: –20 °C to +60 °C
-
Ingress Rating: IP54
-
Control Interface: Wiegand, TCP/IP, dry contact
Supported OS / Application / Industries
OS & Software: Integrates with Windows and Linux controllers via SDK.
Applications: Employee access, visitor control, time-attendance.
Industries: Corporate, hospitality, healthcare, transit, education.
Benefits & Compatibility
-
Speeds up entry with read-and-go RFID tech
-
Fits existing NEOTECH Access Management Platform
-
Reduces maintenance with brushless motor
-
Scales to multi-lane installs via TCP/IP
-
Operates reliably in dusty or wet areas
-
Works with NEOTECH RFID/NFC Cards and Smart Rings
Purpose of Use
Manage pedestrian flow at secure points. Use for staff doors, lobby turnstiles, or paid entry in leisure venues. It cuts queue times and boosts security without bulky gates.
How to Use
-
Mount gate on flat surface.
-
Wire power and network cables.
-
Configure reader settings via web UI.
-
Enroll RFID credentials in your access system.
-
Users tap and pass; gate swings automatically.
Packaging / Weight / Dimensions
-
Packaging: Plywood crate with foam inserts
-
Included: Gate unit, swing arm, control box, mounting kit, manual
-
Dimensions: 1400 × 120 × 980 mm
-
Weight: 85 kg
Warranty & FAQs
Warranty: 2-year limited hardware warranty.
FAQs:
-
Q: What if power fails?
A: Gate auto-opens for safe exit.
-
Q: Can it read mobile NFC?
A: Yes—supports smartphone passes.
-
Q: How loud is operation?
A: Below 45 dB; ideal for quiet spaces.
-
Q: Is remote monitoring possible?
A: Via TCP/IP and SNMP alerts.
Performance, Quality, Durability & Reliability
Tested for 5 million cycles. The IP54-rated housing guards electronics. Anti-collision sensor stops swing on obstruction. Brushless motor offers years of maintenance-free service.
