Control pedestrian flow with BYX Smart Tripod Turnstile. Fast, bi-directional, RFID/face-scan ready. Order NEOTECH UAE today!
Overview

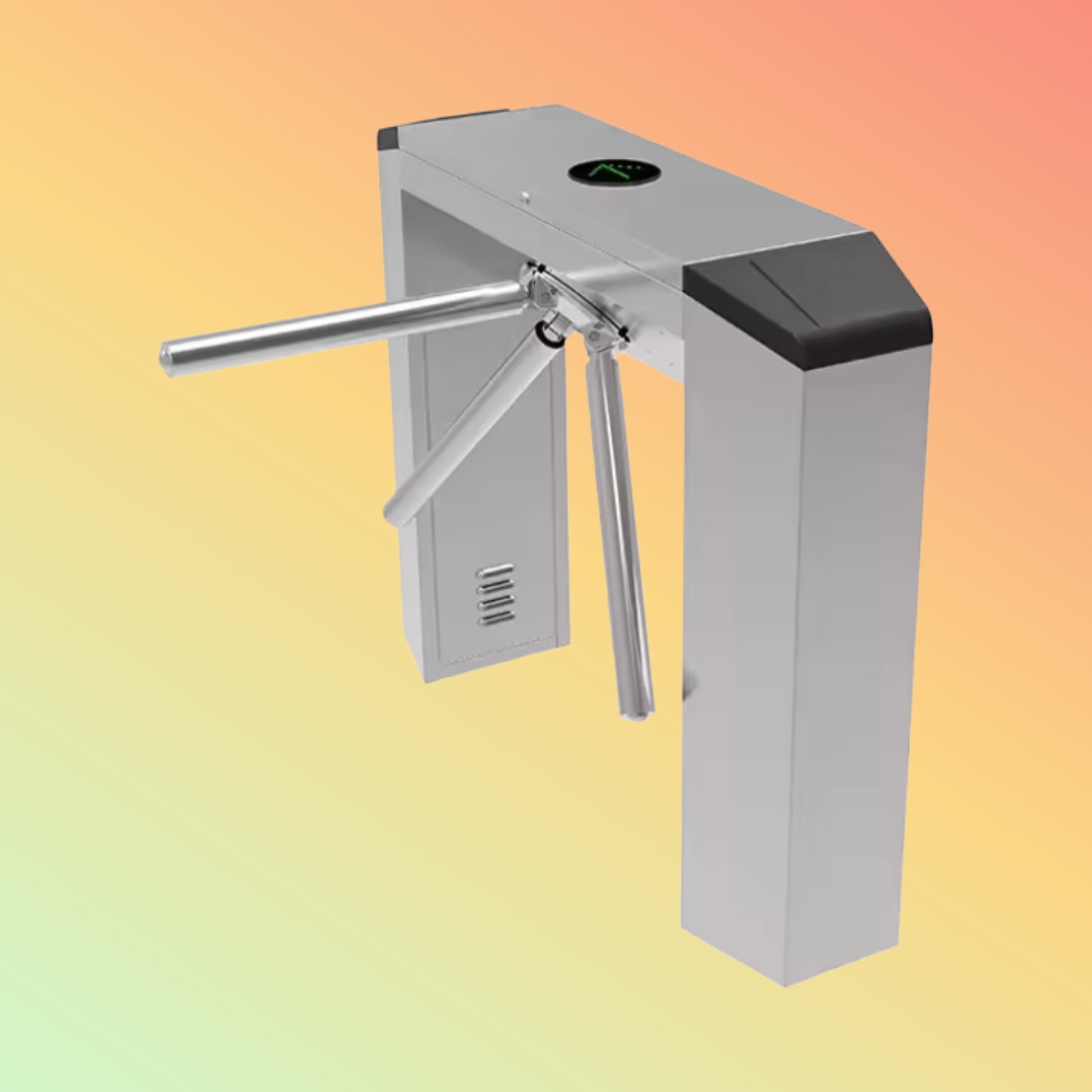

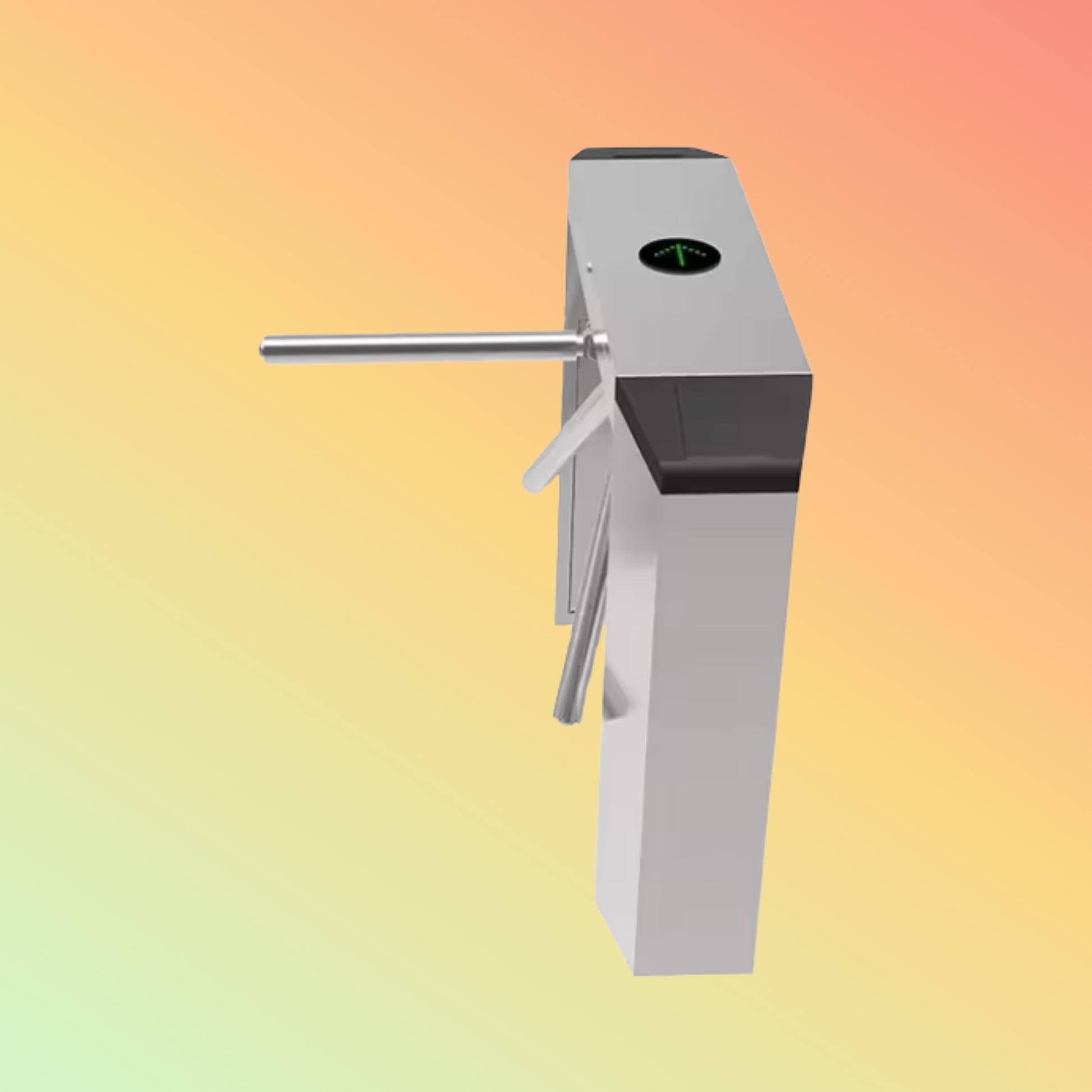

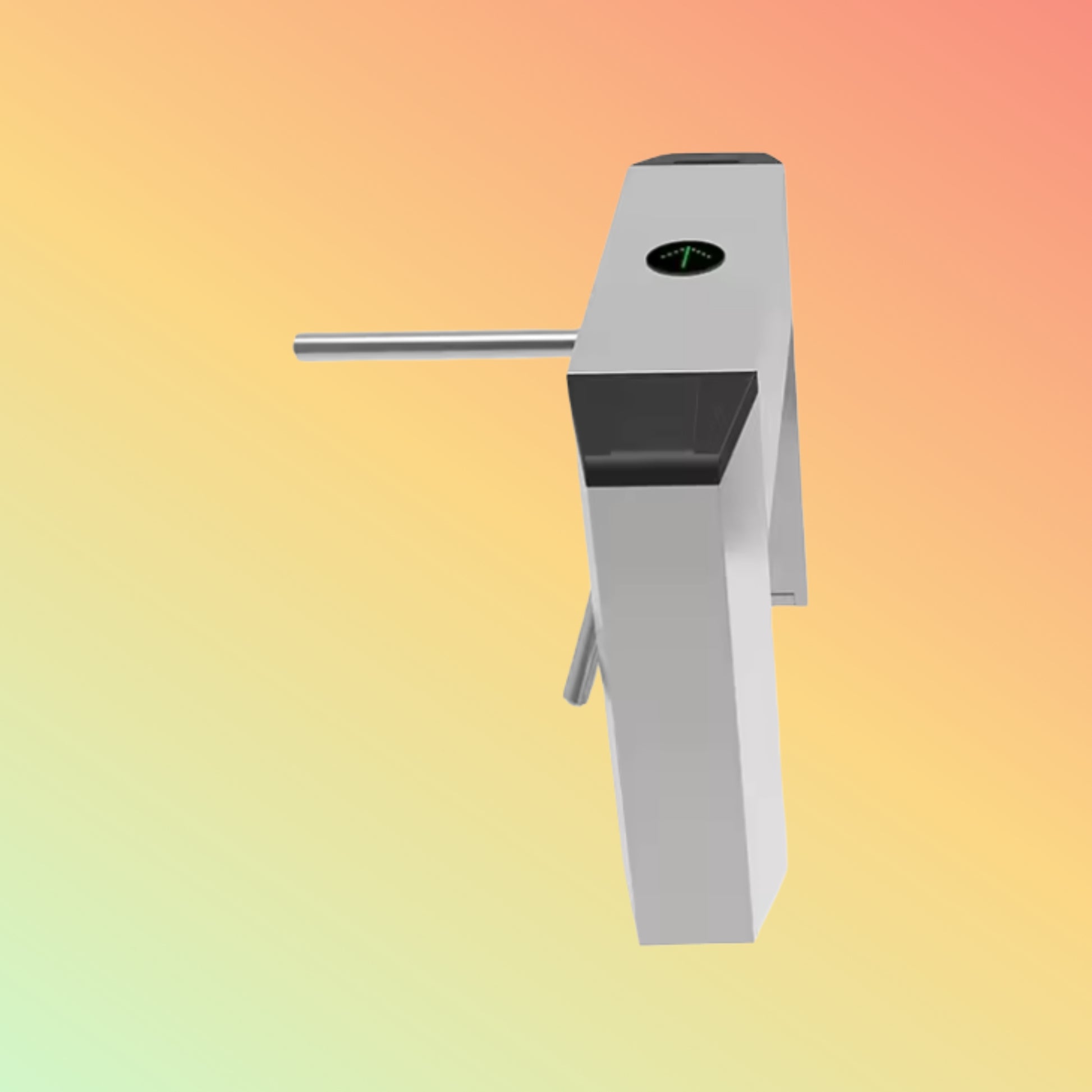

The BYX Smart Tripod Turnstile provides cost-effective, compact access control where space and budget matter. Its tri-arm barrier and precision motor deliver smooth, reliable one-person-per-pass operation. Ideal for corporate lobbies, gyms, schools, and transit stations.
Product Description
Featuring a rugged, brushed-steel cabinet and ABS tripod arms, this unit cycles in 0.5 s, supports traffic up to 30 pax/min, and integrates easily with RFID, fingerprint, or face-recognition readers. Built-in anti-tailgate and alarm functions ensure security without sacrificing throughput. Its slim 280 mm footprint fits tight entryways.
Key Features
-
Bi-directional tripod arms – one-person-per-pass
-
Fast cycle: 0.5 s open/close
-
Anti-tailgate & anti-pinch sensors
-
Stainless steel & ABS housing (IP54)
-
Dry-contact & Wiegand interfaces
-
Integrated LED status indicators & voice prompts
-
Emergency-fail-unlock on power loss
-
Throughput: up to 30 persons/min
-
Optional RFID/fingerprint/face modules
Specifications
-
Passage Width: 500 mm
-
Cycle Time: 0.5 s open/close
-
Power Supply: AC 220 V ± 10%, 50/60 Hz
-
Motor: 24 V DC, 40 W
-
Material: SUS304 stainless steel & ABS arms
-
Protection: IP54 rated
-
Control I/O: Dry contact, Wiegand 26/34 bit
-
Operating Temp: –20 °C to +60 °C
-
Dimensions: 240×280×980 mm (L×W×H)
-
Weight: 45 kg
Supported Applications / Industries
-
Corporate & government lobbies
-
Fitness centers & leisure clubs
-
Educational campuses & libraries
-
Subway & bus station access
-
Retail & service entrance control
Benefits & Compatibility
-
Space-saving footprint in narrow hallways
-
Quick installation with standard wall/floor anchors
-
Modular reader mounts for future upgrades
-
Seamless integration via TCP/IP or RS485
-
Low maintenance with brushless motor
Purpose of Use
Deploy the BYX tripod turnstile to:
-
Enforce one-entry-per-badge policies
-
Integrate multi-factor authentication (card + biometrics)
-
Automate after-hours lockdown and emergency egress
-
Monitor footfall and control access analytics
How to Use
-
Anchor to finished floor or recessed mounting
-
Wire power, network, and reader modules per diagram
-
Configure I/O parameters in your access-control panel
-
Calibrate sensors and set opening direction
-
Test cycle and safety responses before commissioning
Packaging / Weight / Dimensions
-
Includes: Turnstile cabinet, tripod arms, control board, power adapter, installation guide
-
Crate Size: 1 200×350×1 050 mm
-
Gross Weight: ~55 kg
Warranty & FAQs
Warranty: 1 year on electronics & motor
FAQs
-
Q: What if power fails?
A: Arms automatically unlock for safe exit.
-
Q: Can it handle reverse flow?
A: Supports bi-directional mode with programmable controls.
-
Q: Is it vandal-resistant?
A: Yes—SUS304 housing and impact-resistant ABS arms.
Performance, Quality & Reliability
Tested for over 3 million cycles, its corrosion-resistant drives and sealed bearings ensure low downtime and long service life—even in high-traffic settings.
Best Price Guarantee
NEOTECH offers factory-direct pricing on BYX turnstiles. Found a lower UAE quote? We’ll match it.
Shop Today & Receive Your Delivery Across the UAE
Order now and get fast shipping across Dubai, Abu Dhabi, Sharjah, and beyond. Installation and calibration services available.
Request for Customer Reviews & Testimonials
Installed BYX turnstiles in your facility? Share your success story for a chance to be featured and earn rewards.
After Sales Support
Our 24/7 support team provides remote diagnostics, firmware updates, and on-site maintenance options. Reach us via email, phone, or live chat.
Get in Touch
📧 Email: support@neotech.ae
📞 Phone: +971-XXX-XXXX
💬 Live Chat: 9 AM–6 PM GST
Stock Availability
🟢 In Stock
✔️ Ships in 5–7 Business Days
🔄 Bulk orders (5+ units): lead time 4–6 weeks
Disclaimer
Specifications subject to change without notice. Illustrations are representative. Verify final details and pricing with our sales team before ordering.
