Overview

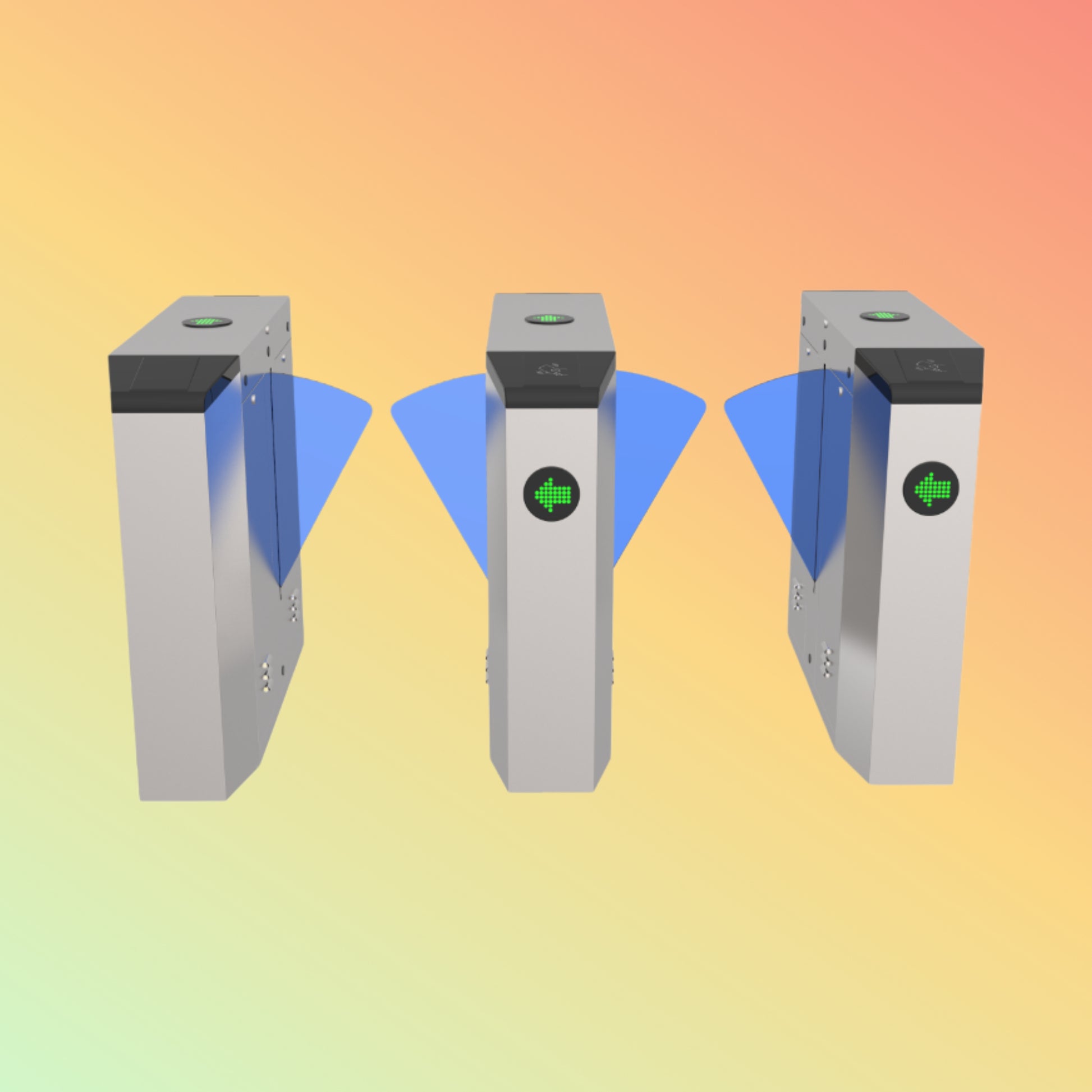

The BYX Smart Flap Barrier Gate provides elegant, high-speed pedestrian access control with motorized acrylic wings. Engineered for offices, transit stations, and secure facilities, it balances rapid throughput with collision-proof safety features and seamless integration into your security ecosystem.
Product Description
This turnstile mechanism uses silent brushless motors to open and close the two acrylic flaps in under 0.3 seconds. A full-height stainless steel housing conceals cabling, while integrated sensors prevent unauthorized tailgating and detect obstacles. Modular RFID, fingerprint, or face-recognition readers mount directly to the cabinet for turnkey biometric or card-based access.
Key Features
-
Fast-action brushless DC motors (0.3 s cycle)
-
Tempered acrylic flaps with soft-close damping
-
Anti-tailgate and anti-crush sensors
-
Stainless steel IP54-rated cabinet
-
Built-in LED status indicators and voice prompts
-
Optional RFID, fingerprint, or face-scan modules
-
Dry-contact and Wiegand interfaces
-
Emergency-fail-open on power loss
-
Smooth throughput up to 35 persons/min
Specifications
-
Passage Width: 550 mm
-
Cycle Time: 0.3 s open/close
-
Power Supply: AC 220 V ± 10%, 50/60 Hz
-
Motor: 24 V brushless DC, 40 W
-
Housing: SUS304 stainless steel, IP54
-
Flap Material: 10 mm acrylic
-
Control I/O: Dry contact, Wiegand 26/34 bit
-
Operating Temp: –20 °C to +60 °C
-
Dimensions: 1 200 × 280 × 980 mm (L×W×H)
-
Weight: 65 kg
Supported OS / Application / Industries
-
Integrates with Windows‐ or Linux‐based access control software
-
Ideal for corporate lobbies, transportation hubs, gyms, government buildings, and data centers
Benefits & Compatibility
-
High throughput meets peak-hour demands
-
Collision detection prevents injuries and damage
-
Modular reader mounts support future upgrades
-
Compact footprint fits tight entryways
-
Seamless network integration via TCP/IP or RS485
Purpose of Use
Deploy the BYX flap barrier to:
-
Control staff and visitor entry in secure zones
-
Enforce one-person-per-badge policies
-
Integrate multi-factor authentication (card + face/fingerprint)
-
Automate emergency evacuation modes
How to Use
-
Mount in floor recess or on finished floor with anchor bolts
-
Wire power, network, and reader modules according to diagram
-
Configure I/O and user groups in access‐control software
-
Calibrate sensor sensitivity and flap timing
-
Test passage and safety responses before go-live
Packaging / Weight / Dimensions
-
Includes: Barrier cabinet, flap arms, control board, power adapter, installation manual
-
Crate Size: 1 350 × 400 × 1 050 mm
-
Gross Weight: ~80 kg
Warranty & FAQs
Warranty: 1 year on motors and electronics
FAQs
-
Q: What happens on power failure?
A: Flaps auto-unlock to allow free exit.
-
Q: Can it integrate with turn-off alarms?
A: Yes—dry contact outputs support fire-alarm interlock.
-
Q: Do flaps retract for wheelchair access?
A: Optional wide-lane models are available.
Performance, Quality & Reliability
Tested for over 5 million cycles, the BYX flap barrier’s corrosion-resistant drives and marine-grade seals ensure continuous operation in indoor and semi-outdoor environments.
