Overview
The BYX 13.56 MHz Wiegand 26/34 RFID Reader bridges high-performance HF RFID scanning with legacy Wiegand 26/34 output. Engineered for door controllers and access panels, it offers reliable card reads and easy integration across any security system in the UAE.
Product Description

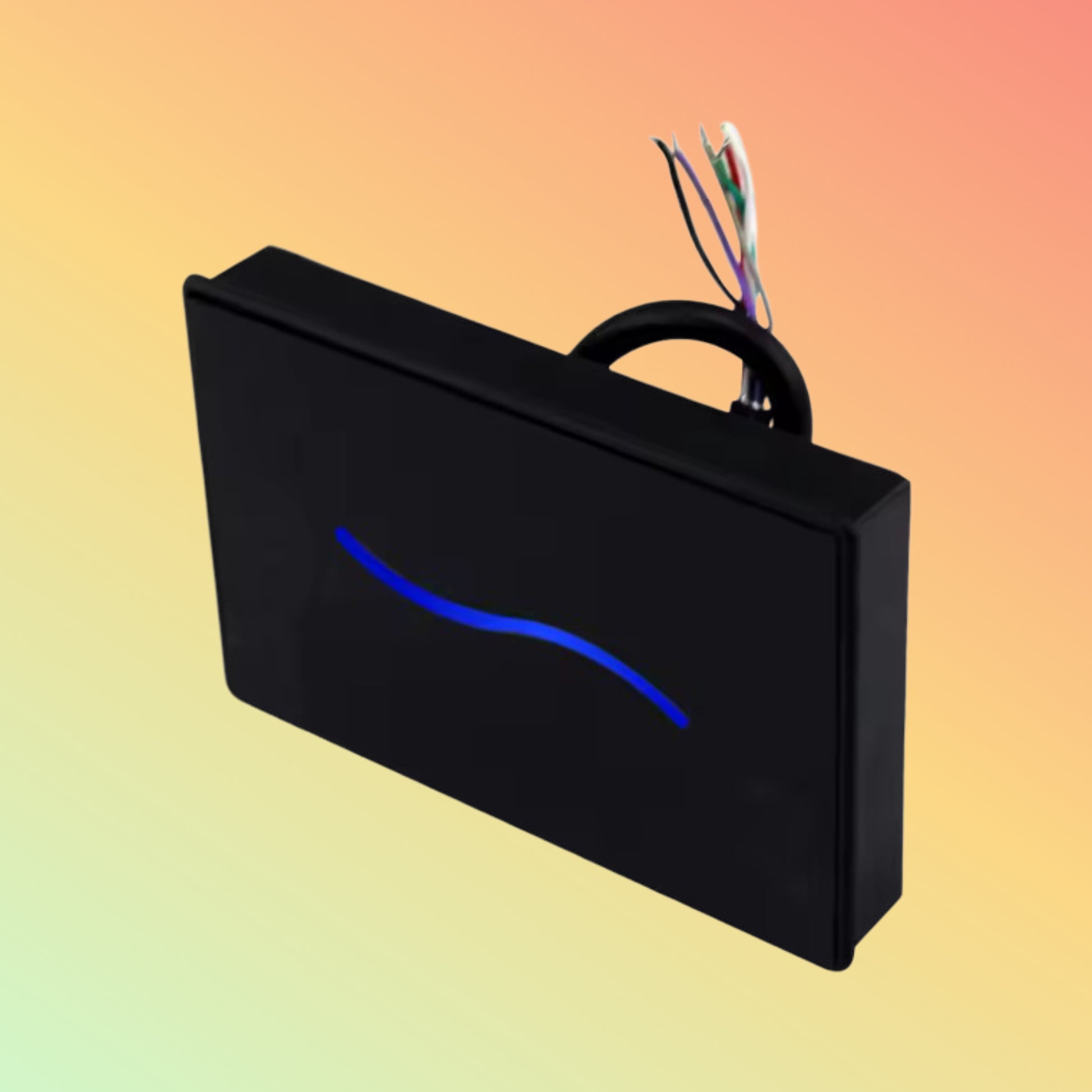

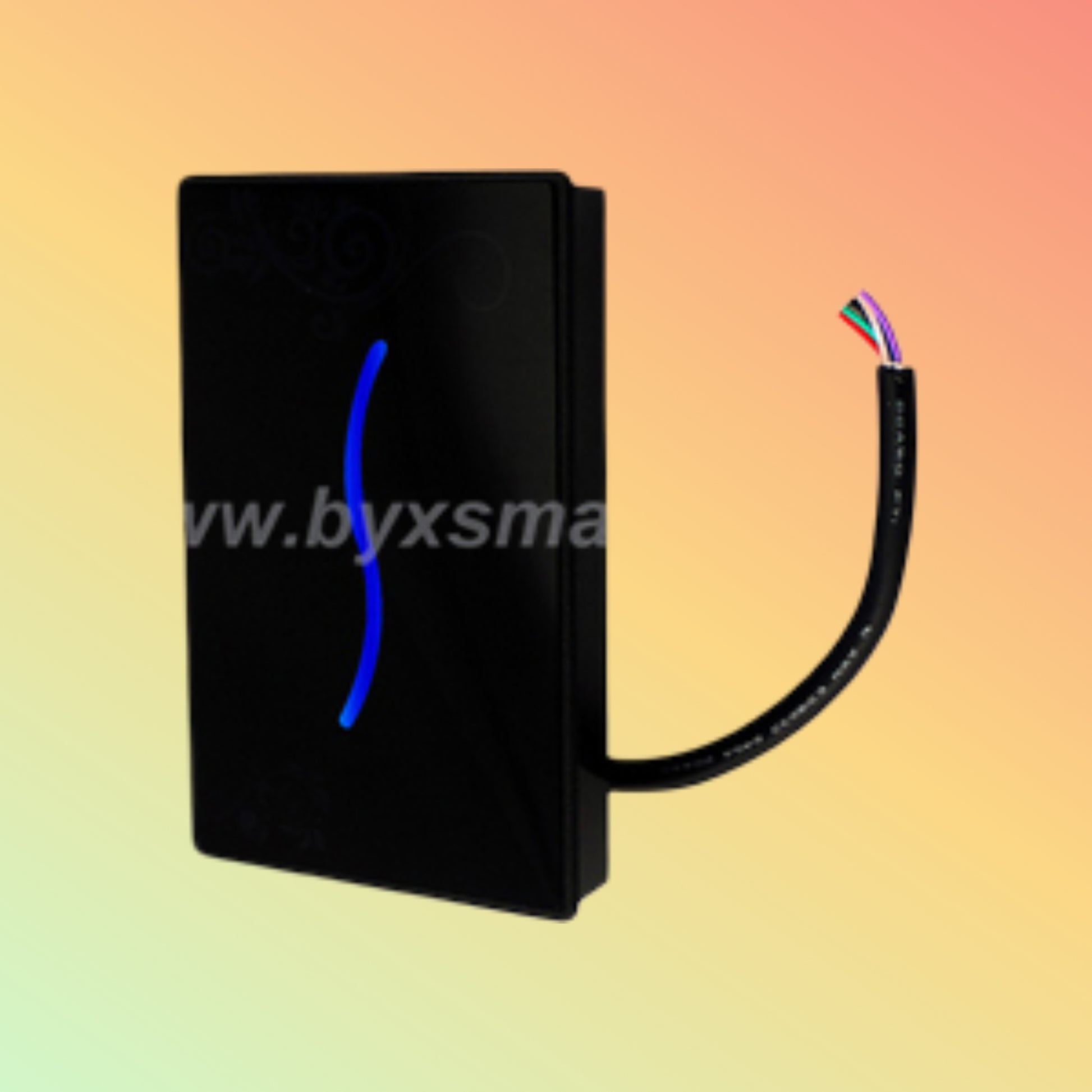

This desktop-mount or panel-cut reader houses a precision antenna and decoder for MIFARE®, NTAG®, and DESFire® cards. It converts 13.56 MHz tag data into standard Wiegand 26 or 34 bit streams. With a rugged ABS housing, tamper switch, and visible LED/bargraph feedback, BYX Reader delivers fast, error-free reads even in harsh environments.
Key Features
-
HF RFID support: ISO 14443-A/B (MIFARE®, NTAG®, DESFire®)
-
Wiegand output: switchable 26-bit or 34-bit format
-
Read range: up to 50 mm (depending on card)
-
Housing: IK08-rated ABS for indoor/outdoor use
-
Feedback: dual LED + audible buzzer + bargraph
-
Tamper detection: built-in anti-tamper switch
-
Interfaces: 12–24 V DC; OSDP ready (future firmware)
-
Mount options: surface or flush panel cut
-
Operating temp: –20 °C to +60 °C
-
Dimensions: 105 × 45 × 20 mm
Specifications
| Feature |
Detail |
| RFID Frequency |
13.56 MHz (HF) |
| Supported Protocols |
ISO 14443-A/B, MIFARE®, NTAG®, DESFire® |
| Output Formats |
Wiegand 26 bit; Wiegand 34 bit |
| Power Supply |
12–24 V DC, 100 mA |
| Read Range |
≤ 50 mm (card dependent) |
| Indicators |
Dual LED, buzzer, bargraph |
| Tamper Switch |
Internal anti-tamper |
| Protection Rating |
IK08 impact; IP54 dust/splash |
| Mounting |
Surface or panel-cut |
| Dimensions (L×W×H) |
105 × 45 × 20 mm |
| Operating Temp |
–20 °C to +60 °C |
Supported OS / Application / Industries
Operating Systems
Interfaces seamlessly via Wiegand to any Windows, Linux, or embedded ACS controllers.
Applications
Industries
-
Corporate offices
-
Educational campuses
-
Industrial facilities
-
Residential complexes
-
Hospitality venues
Benefits & Compatibility
-
Legacy support: works with existing Wiegand door panels
-
High reliability: rapid reads under 0.3 s
-
Future-proof: OSDP firmware upgrade path
-
Easy install: two-wire Wiegand interface
-
Robust build: IK08 & IP54 safe in outdoor lobbies
Purpose of Use
Deploy the BYX Wiegand Reader wherever you need to modernize access points without overhauling control boards—perfect for retrofit projects and mixed-technology deployments.
How to Use
-
Mount reader in desired location or panel cut.
-
Wire 12–24 V DC and Wiegand DATA0/DATA1 to controller.
-
Select output format (26/34 bit) via dip switch.
-
Present HF card or fob within read zone.
-
Monitor LED/bargraph and buzzer for read confirmation.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty
1 year NEOTECH warranty on parts and labor.
FAQs
Q: Can it read mobile NFC wallets?
A: Yes—supports standard NFC cards on smartphones.
Q: How do I switch to 34-bit Wiegand?
A: Flip the dip switch as shown in the guide.
Q: Is it OSDP compliant?
A: OSDP support coming via free firmware update.
Performance, Quality, Durability & Reliability
Tested for 100 000 read cycles, the BYX Reader endures impact, dust, and moisture. Its high-sensitivity HF coil ensures consistent reads—even at angles—while tamper detection protects against unauthorized removal.
