Overview
The BYX 5.5 dBi UHF RFID Antenna delivers extended read range and uniform coverage for fixed readers. Engineered for EPC Gen2 systems, its wide beam pattern and durable enclosure excel in portals, conveyors, and outdoor yards.
Product Description

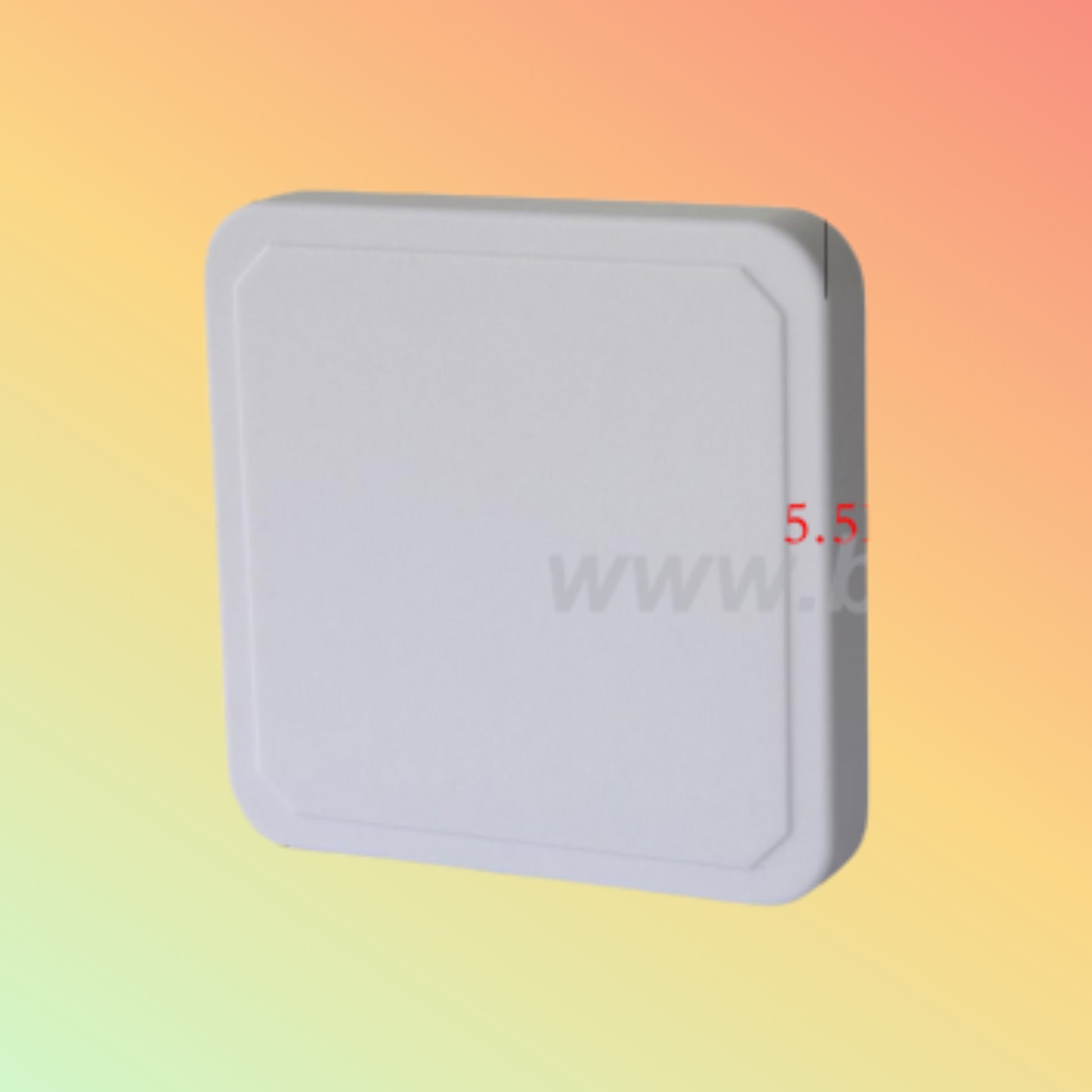

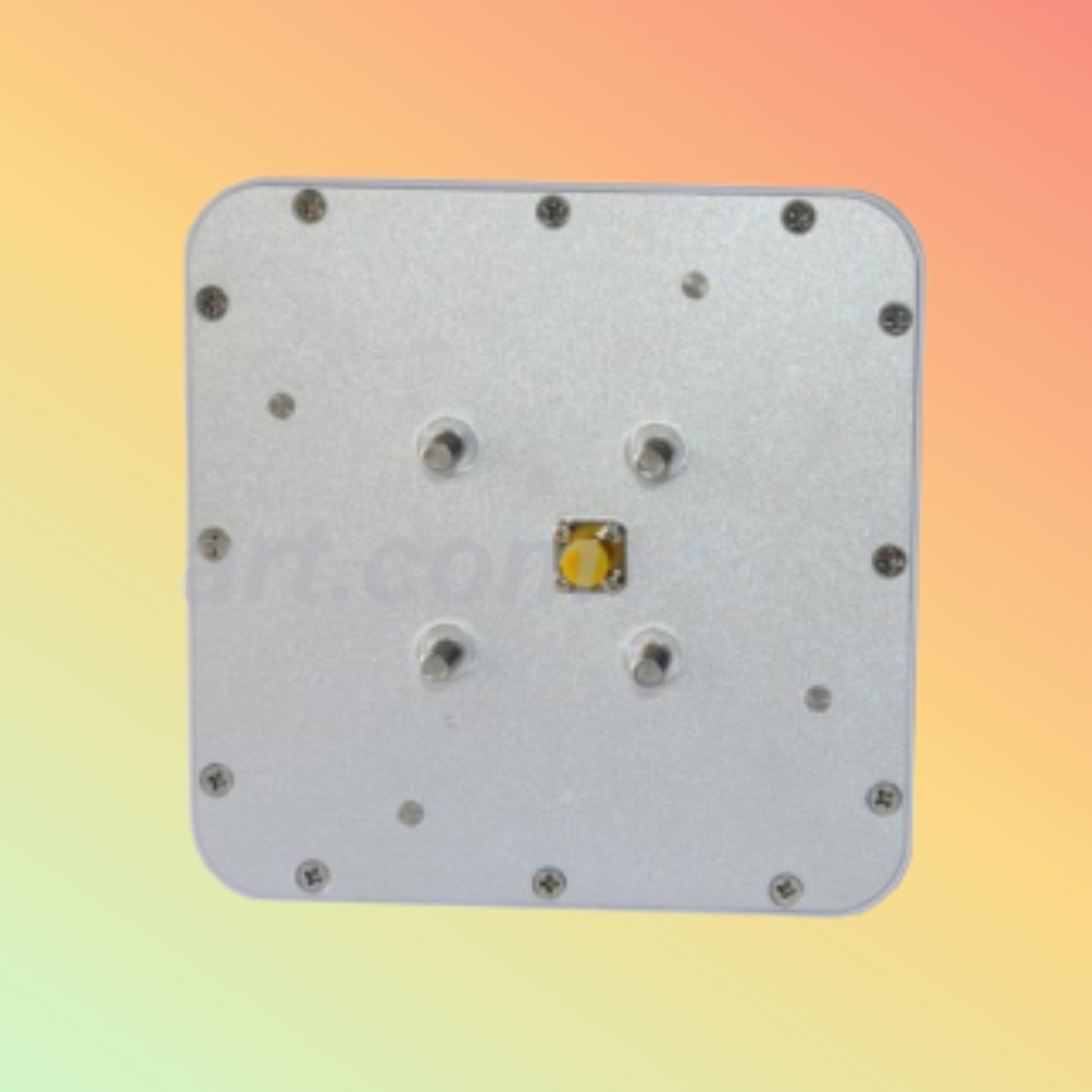

This circular-polarized antenna features a high-gain 5.5 dBi patch element tuned for 860–960 MHz. The IP65-rated ABS housing mounts easily via the integrated bracket. Standard SMA connector and 1 m low-loss coax cable simplify installation. Its wide 60° beam covers lanes and entrances, while the rugged design resists dust, moisture, and UV.
Key Features
-
Gain: 5.5 dBi for long-range reads
-
Polarization: Circular to read tags at any orientation
-
Frequency: 860–960 MHz UHF band
-
Beamwidth: 60° conical pattern
-
Connector: SMA female with 1 m RG-58 cable
-
Housing: IP65 UV-stable ABS enclosure
-
Mounting: Adjustable stainless-steel bracket
-
VSWR: < 1.5:1 across band
-
Weight: 450 g including cable & bracket
Specifications
| Parameter |
Detail |
| Frequency Range |
860–960 MHz |
| Gain |
5.5 dBi |
| Polarization |
Circular |
| Beamwidth |
60° (azimuth & elevation) |
| Connector |
SMA-F (1 m RG-58 cable) |
| VSWR |
< 1.5:1 |
| Power Rating |
10 W CW |
| Operating Temp |
–30 °C to +70 °C |
| Enclosure Rating |
IP65 |
| Dimensions |
Ø 170 × 35 mm |
| Weight |
450 g |
Supported Applications / Industries
-
Portals & Gates: toll, parking, warehouse entrances
-
Conveyor Systems: item-level tracking on production lines
-
Yard Management: asset & pallet monitoring outdoors
-
Retail & Logistics: dock door RFID portals
-
Access Control: long-range identity verification
Benefits & Compatibility
-
Extended Range: reads tags up to 8 m line-of-sight
-
Omni-orientation: circular polarization for consistent reads
-
Rugged Build: IP65 housing for indoor/outdoor use
-
Easy Integration: SMA connector & mounting bracket
-
Universal Fit: works with any EPC Gen2 reader
Purpose of Use
Deploy the BYX 5.5 dBi antenna wherever you need reliable, long-range reads—ideal for fixed portals, dock entrances, and industrial conveyors.
How to Use
-
Mount antenna using the adjustable bracket at the desired location.
-
Connect the SMA cable to your UHF reader’s RF port.
-
Aim beam toward tag path (entrance, conveyor lane).
-
Tune reader power and sensitivity per environment.
-
Test coverage and adjust orientation for optimal reads.
Packaging / Weight / Dimensions
-
Includes: Antenna with 1 m SMA cable, mounting bracket, hardware
-
Package Size: 200 × 200 × 60 mm
-
Total Weight: 550 g
Warranty & FAQs
Warranty
1-year NEOTECH warranty on parts.
FAQs
-
Q: What’s the max read distance?
A: Up to 8 m in free-space with a 30 dBm reader.
-
Q: Can I use longer cable?
A: Yes—up to 5 m of low-loss coax; compensate for cable loss.
-
Q: Is it UV-stable?
A: Yes—ABS housing resists sun exposure.
Performance, Quality, Durability & Reliability
Tested in anechoic chambers for uniform gain and VSWR. The IP65 enclosure resists dust ingress and water jets, ensuring years of trouble-free operation.
