Fast, plug-and-play BYX Smart RFID Wiegand reader. 125 kHz & 13.56 MHz, IP65. Order at NEOTECH UAE—wholesale pricing available!
Overview

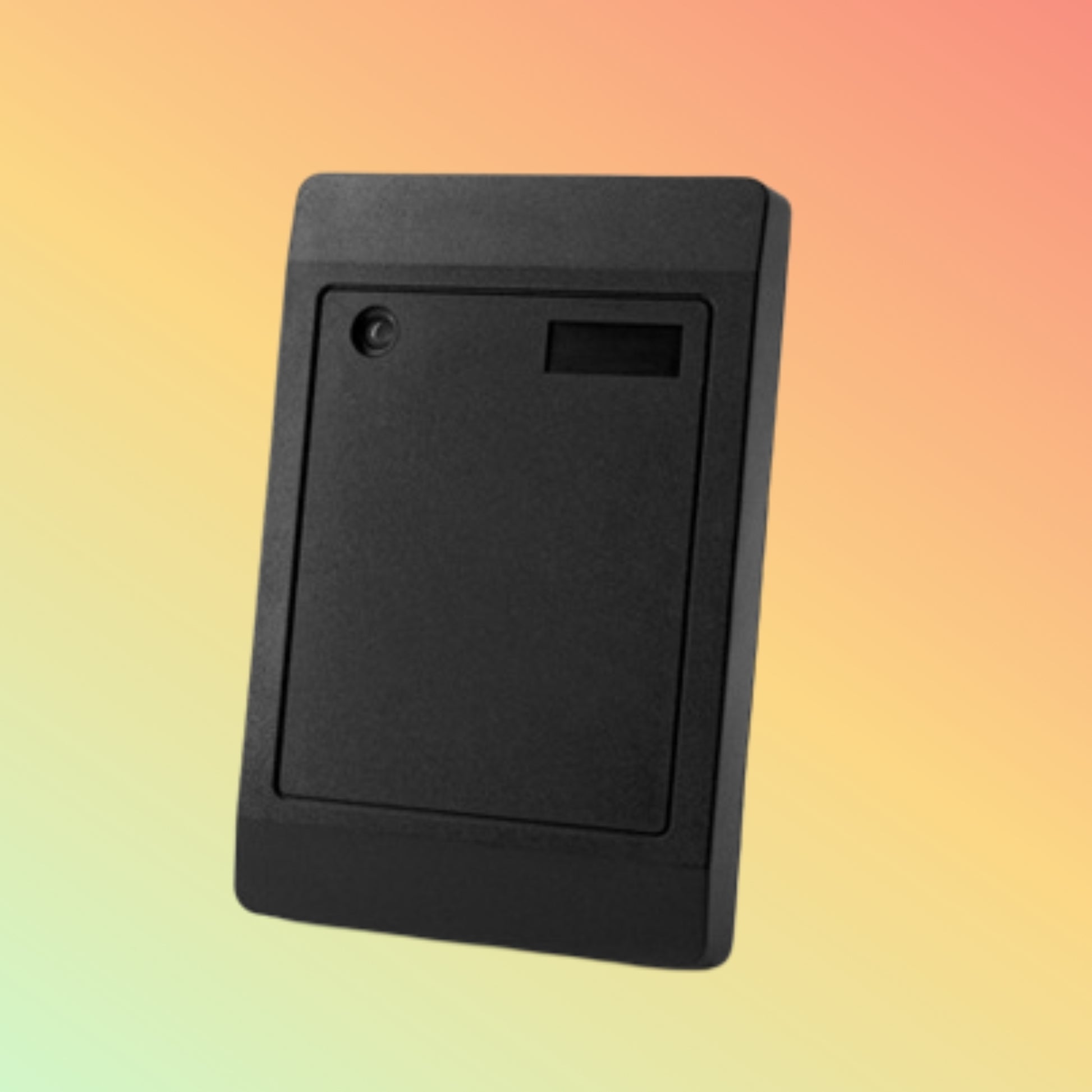

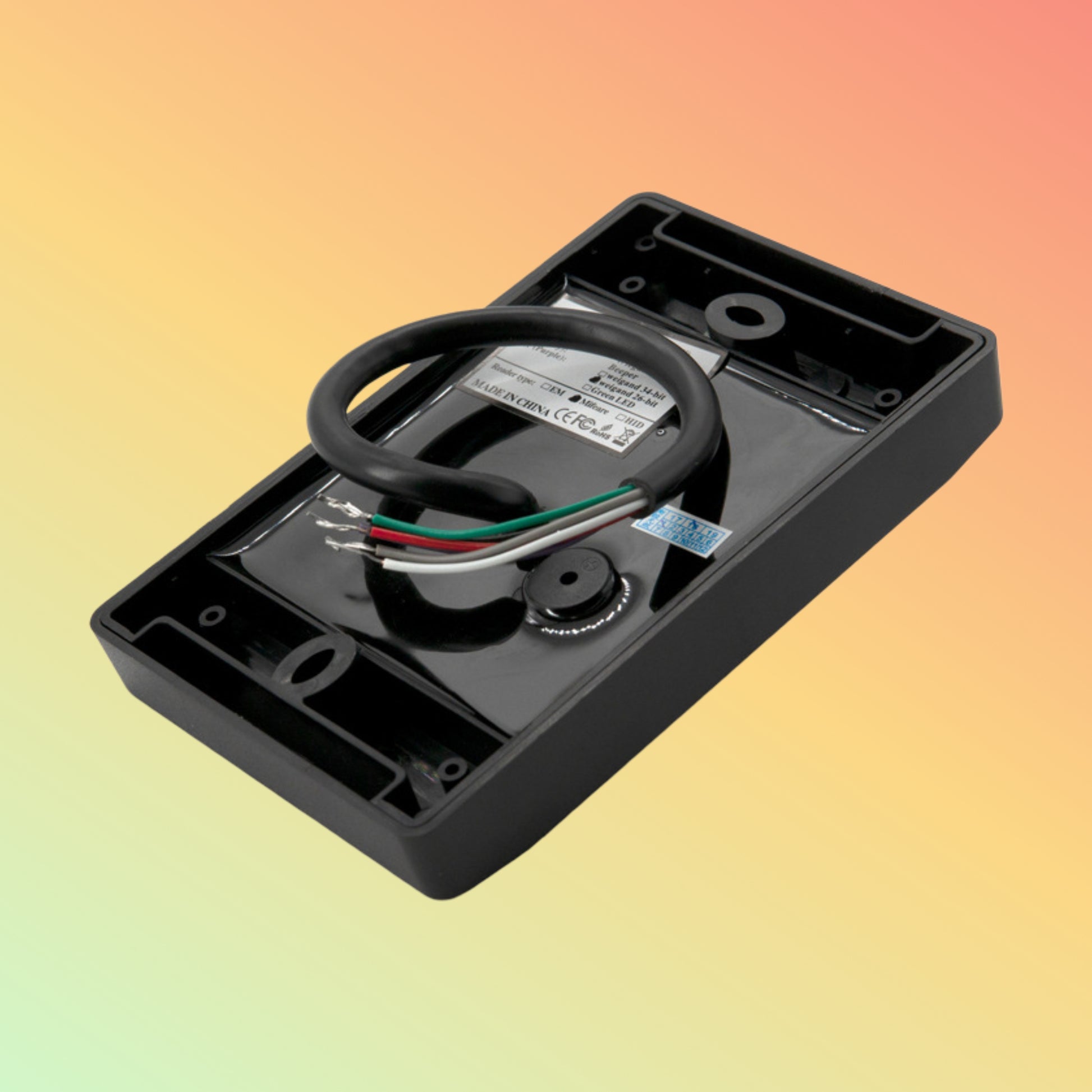

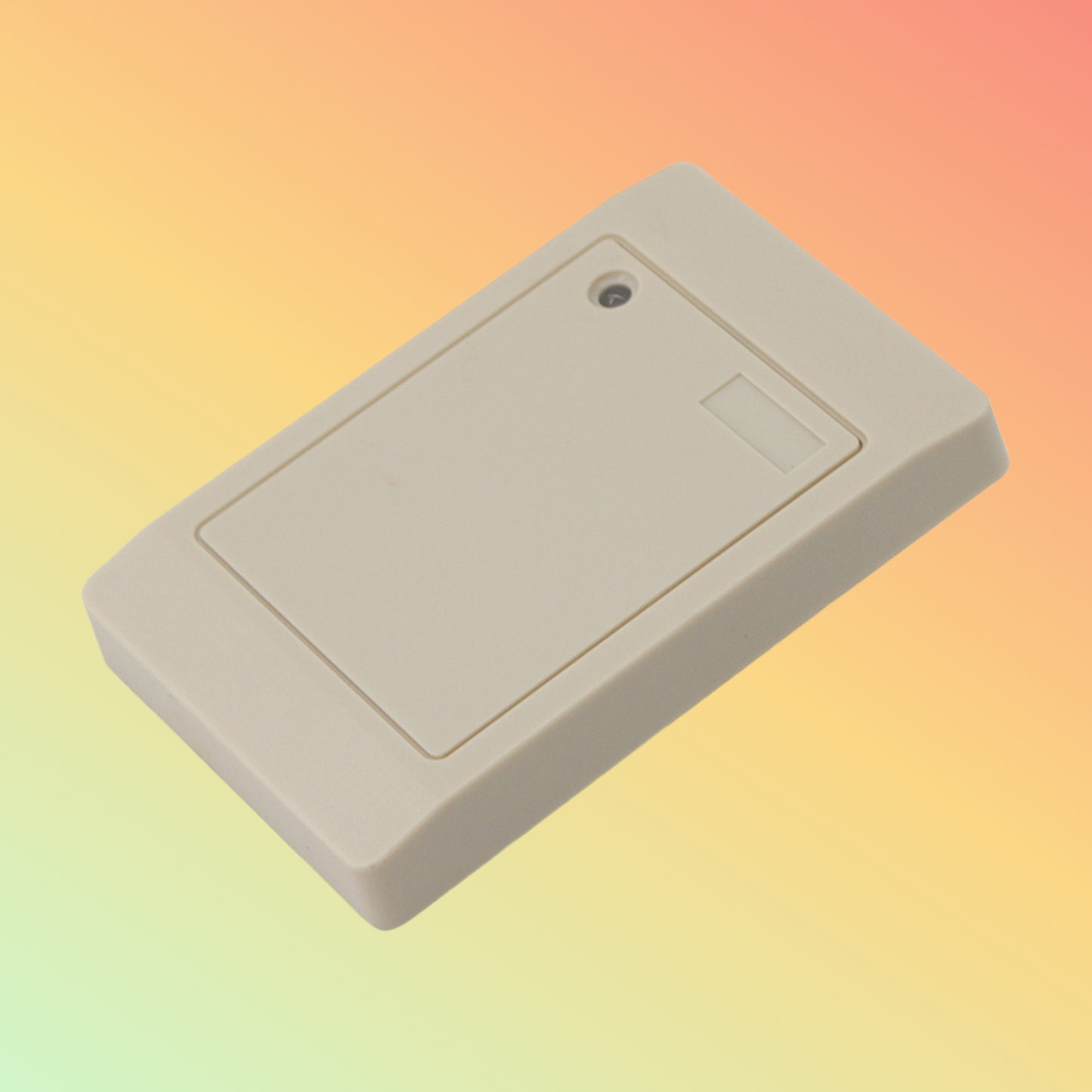

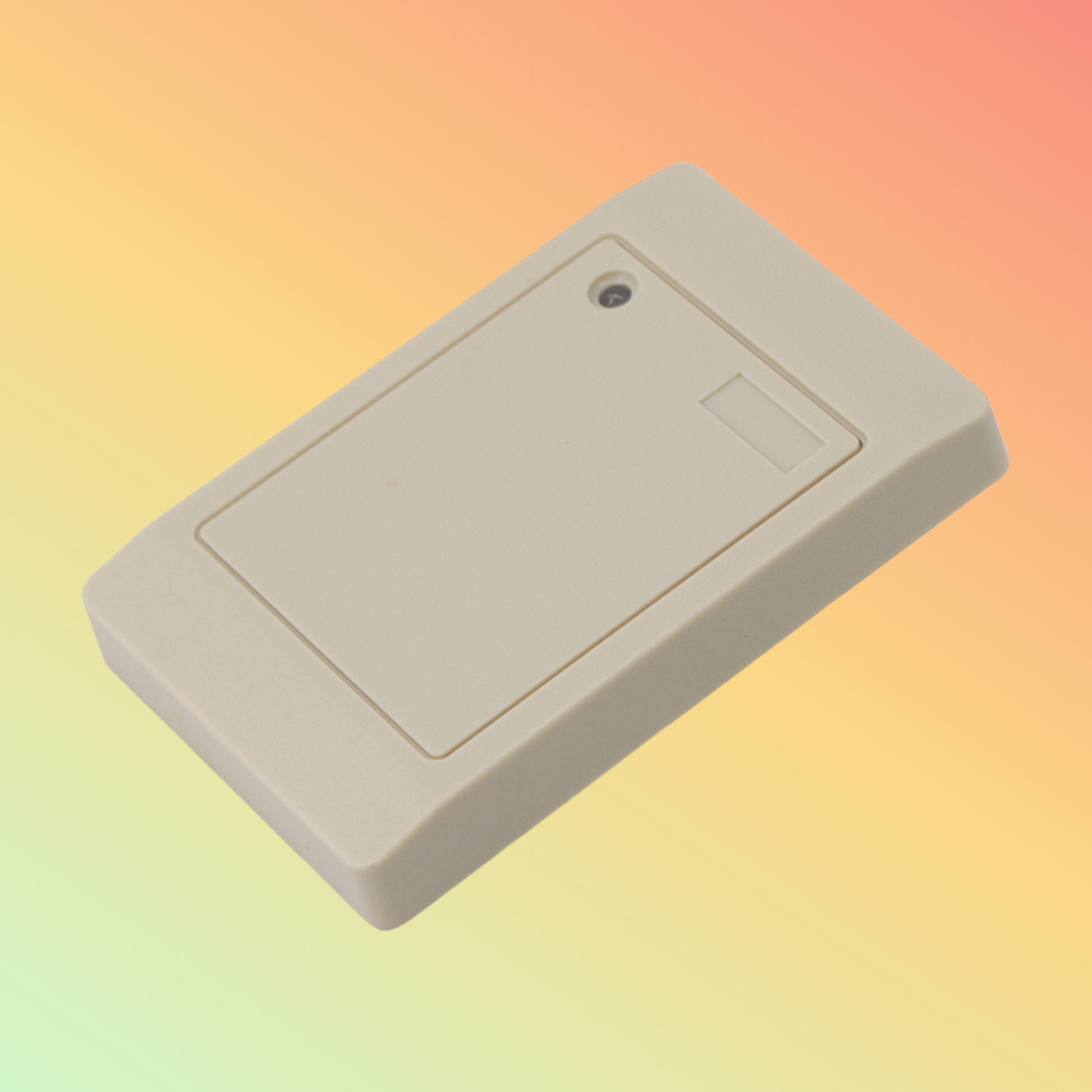

The BYX Smart RFID Wiegand Reader delivers reliable card and fob authentication over standard Wiegand interfaces. Engineered for indoor and outdoor use, its dual-frequency support and rugged IP65 housing make it ideal for commercial buildings, gated communities, and industrial sites.
Product Description
This reader supports both 125 kHz EM and 13.56 MHz MIFARE/DESFire protocols, reading cards or keyfobs up to 10 cm away. Its weatherproof polycarbonate housing and tamper-resistant mounting ensure continuous operation in all conditions. With Wiegand 26/34 output, it integrates seamlessly into any access-control panel or controller.
Key Features
-
Dual-frequency: 125 kHz EM & 13.56 MHz MIFARE/DESFire
-
Wiegand 26/34 bit output
-
IP65 dust- and water-resistant housing
-
Reads up to 10 cm (reader-dependent)
-
LED & buzzer for status feedback
-
Surface- or flush-mount installation
-
Operating voltage: 12 VDC ± 10%
-
Low-power standby (< 50 mA)
-
Tamper detection output
Specifications
-
Frequency: 125 kHz & 13.56 MHz
-
Read Range: 2–10 cm (card type dependent)
-
Output: Wiegand 26/34 bit
-
Housing: UV-resistant polycarbonate, IP65
-
LED Indicators: Red, green, amber
-
Buzzer: 1 kHz tone
-
Power Supply: 12 VDC ± 10%
-
Current Draw: < 50 mA standby; < 120 mA operating
-
Operating Temp: –20 °C to +65 °C
-
Dimensions: 100 × 40 × 18 mm
-
Weight: 120 g
Supported Systems / Applications / Industries
-
Integrates with NEOTECH and third-party Wiegand panels
-
Perfect for office buildings, parking gates, turnstiles, and elevators
-
Used in corporate, residential, education, healthcare, and industrial facilities
Benefits & Compatibility
-
Universal integration via Wiegand interface
-
Multi-credential support for phased upgrades
-
Rugged design for outdoor and harsh environments
-
Low maintenance with no moving parts
-
Seamless pairing with NEOTECH controllers and software
Purpose of Use
Deploy this reader to:
-
Authenticate staff, visitors, and vehicles
-
Control doors, gates, and turnstiles
-
Enforce multi-factor access workflows
-
Log entry/exit events in security systems
How to Use
-
Mount reader at desired entry point (surface or flush).
-
Wire 12 VDC, ground, and Wiegand data lines to controller.
-
Program cards/keyfobs in your access-control panel.
-
Present credential—reader outputs Wiegand code.
-
Monitor LED/buzzer feedback for access grant or deny.
Packaging / Weight / Dimensions
-
Includes: RFID reader, back-box bracket, mounting screws, user manual
-
Reader Size: 100 × 40 × 18 mm
-
Packaged Weight: 180 g
-
Box Dimensions: 120 × 60 × 30 mm
Warranty & FAQs
Warranty: 2 years on parts & labor
FAQs
-
Q: Does it support 13.56 MHz DESFire?
A: Yes—fully compatible with MIFARE Classic, DESFire, and Ultralight.
-
Q: Can I mount outdoors?
A: Yes—IP65 housing protects from rain and dust.
Performance, Quality & Reliability
Constructed with automotive-grade PCB coatings and conformal seals, the reader withstands UV exposure and extreme temperatures. Over 1 million read-cycle lifespan ensures long-term reliability.
Best Price Guarantee
NEOTECH offers factory-direct pricing on BYX access readers. Found a lower UAE quote? We’ll match it.
Shop Today & Receive Your Delivery Across the UAE
Order now for rapid dispatch—Dubai, Abu Dhabi, Sharjah, and beyond. Volume discounts and on-site installation services available.
Request for Customer Reviews & Testimonials
Using BYX readers in your access system? Share your success story and be featured in our case studies and social channels.
After Sales Support
NEOTECH’s support team provides remote diagnostics, firmware updates, and on-site service. Contact us via email, phone, or live chat for prompt assistance.
Get in Touch
📧 Email: support@neotech.ae
📞 Phone: +971-XXX-XXXX
💬 Live Chat: 9 AM–6 PM GST
Stock Availability
🟢 In Stock
✔️ Ships in 1–2 Business Days
🔄 Bulk orders (10+ units): 7–10 business days lead time
Disclaimer
Specifications subject to change without notice. Illustrations are representative. Confirm final details and pricing with our sales team before ordering.
