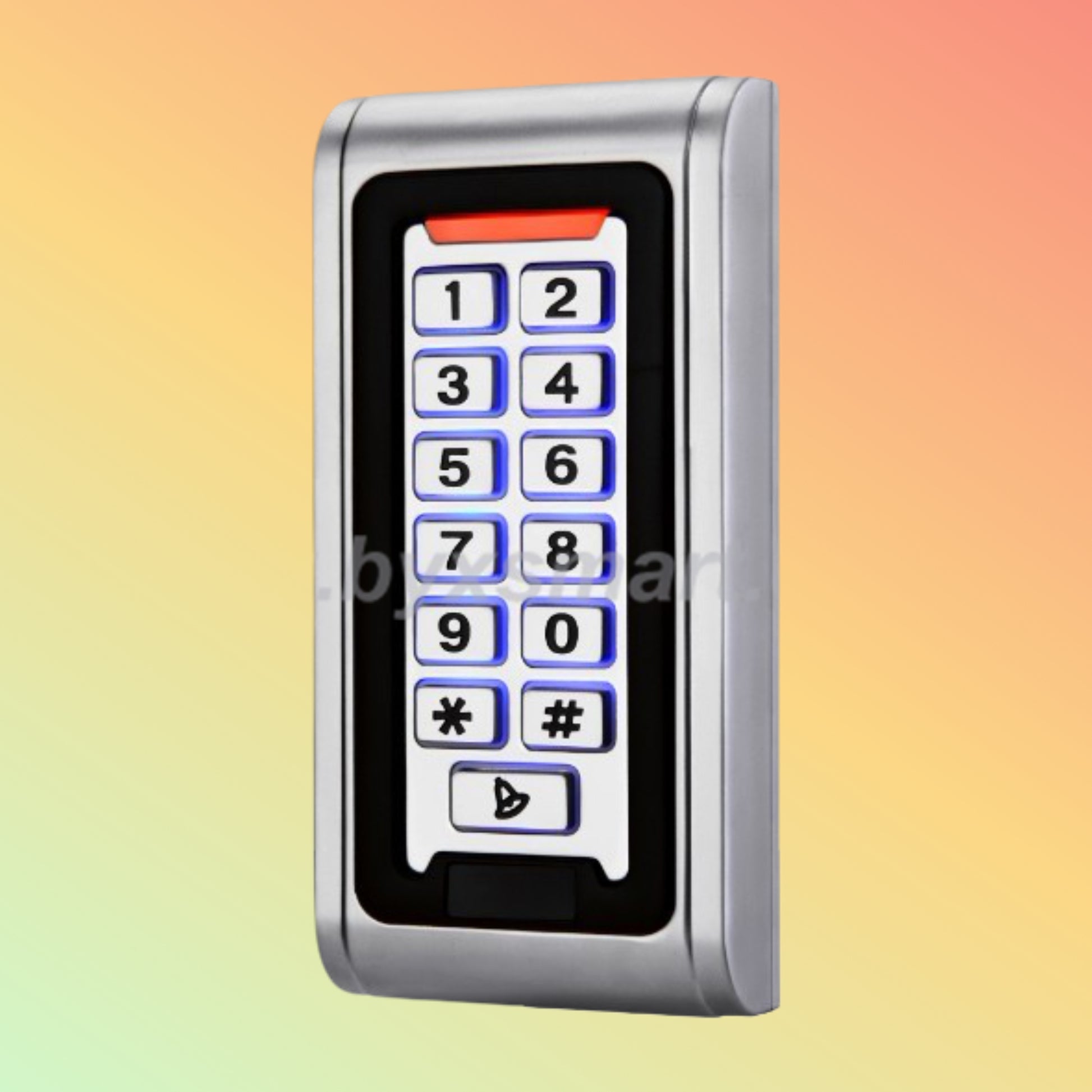

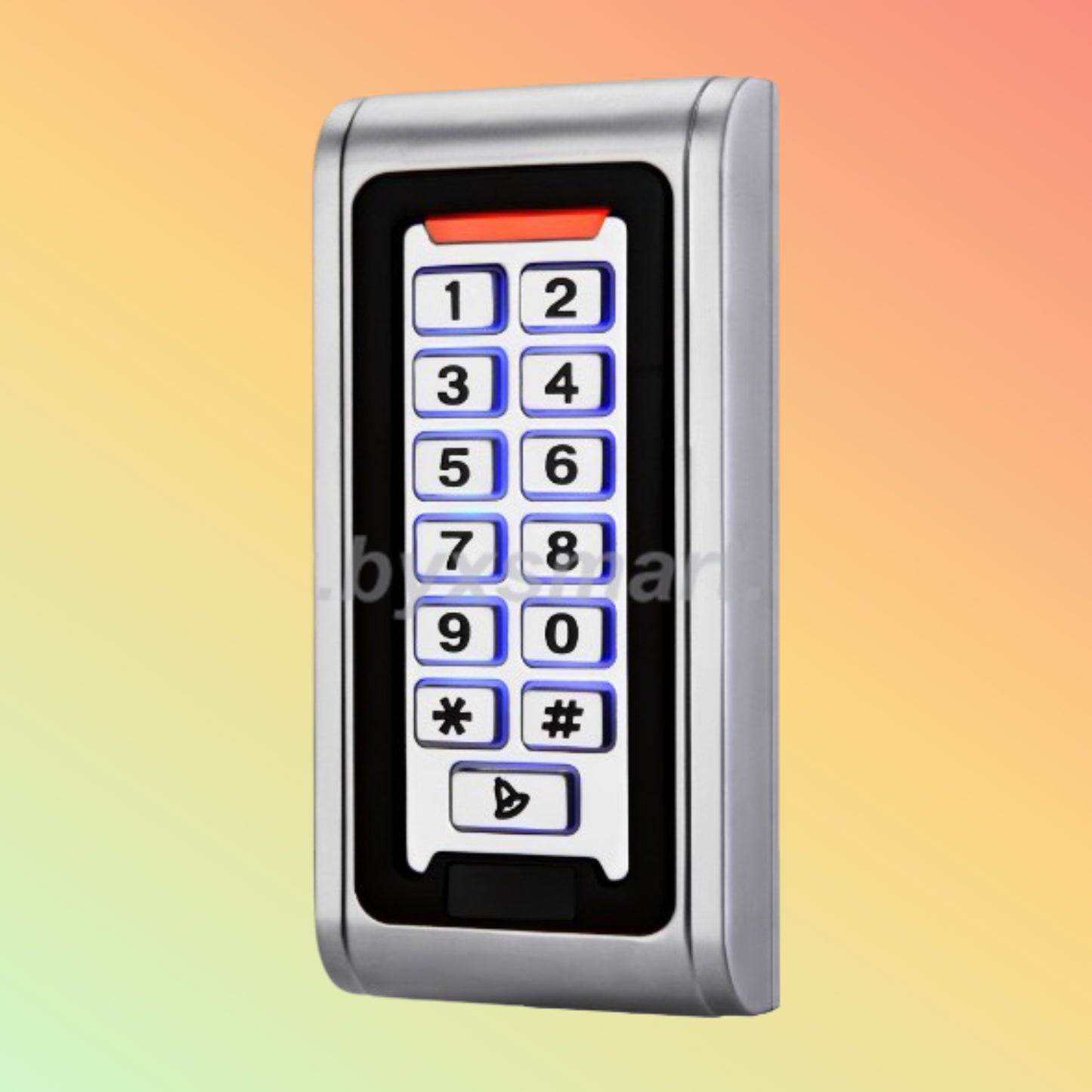

BYX Smart Waterproof RFID Keypad Access Control

BYX smart waterproof RFID keypad for secure outdoor access control. IP67 rated, anti-vandal, and easy to install. Shop now at NEOTECH UAE.

Overview

The BYX Smart Waterproof RFID Keypad offers durable, secure, and flexible access control for residential, commercial, and industrial environments.
Featuring RFID and PIN dual access modes, it provides fast, contactless entry with high resistance to weather, water, and vandalism.

Product Description

Built for outdoor performance, the BYX access control unit features a rugged metal body, IP67 waterproof rating, and tamper-resistant keypad.
It supports up to 2000 users, programmable for RFID, PIN, or combo modes, making it ideal for gates, doors, garages, warehouses, and smart buildings.
Easy to install and integrate, it works as a standalone unit or with an existing access system.

Key Features

• Dual-access via RFID card or keypad (PIN)

• Waterproof IP67 design for outdoor use

• Supports up to 2000 user credentials

• Anti-vandal stainless steel construction

• Fast response time (<0.1s)

• Backlit keypad for low-light operation

• Wiegand input/output for system expansion

Specifications

• Material: Zinc alloy housing (anti-vandal)

• User Capacity: 2000 users (RFID/PIN/Combo)

• RFID Type: EM 125kHz (optional 13.56MHz MIFARE)

• Working Voltage: 12V DC

• Current: <100mA (standby), <300mA (active)

• Waterproof Rating: IP67

• Keypad: Backlit numeric touch keys

• Relay Output: 1x NO/NC relay (max 3A)

• Wiegand: 26/34 input & output

• Working Temperature: -25°C to +60°C

• Dimensions: ~120 × 78 × 22 mm

Supported OS / Application / Industries

• OS: Controller firmware (no PC required for standalone use)

• Applications:

  • Main doors

  • Apartment entrances

  • Office access

  • Garage gates

  • Warehouses

• Industries:

  • Real estate

  • Commercial buildings

  • Retail

  • Logistics

  • Smart home setups

Benefits & Compatibility

• Combines RFID and keypad security in one sleek unit

• Works with standard 125kHz EM cards or compatible fobs

• Low-power consumption with strong reliability

• Easily integrates with maglocks, electric strikes, or gate motors

• Supports Wiegand protocol for connection to third-party controllers

Purpose of Use

Ideal for locations that require reliable outdoor access control with dual verification, including homes, offices, garages, and warehouses.

How to Use

1. Program RFID cards and PIN codes using admin master card

2. Mount the device near entry point using included screws

3. Swipe RFID or enter PIN for access

4. Optional: Connect to electric lock or external controller

Packaging / Weight / Dimensions

• Dimensions: 120 × 78 × 22 mm

• Weight: ~420 g

• Package Includes:

  • BYX Access Control Unit

  • Mounting screws and anchor plugs

  • User manual

  • Waterproof seal

  • Optional RFID cards/fobs (on request)

Warranty & FAQs

• Warranty: 1-year NEOTECH warranty

• FAQs:

  • Can I use both card and PIN for access? – Yes, supports card-only, PIN-only, or card+PIN modes

  • Is it suitable for outdoor gates? – Yes, it's IP67 waterproof and vandal-proof

  • Does it require a PC? – No, it's a fully standalone unit

Performance, Quality, Durability & Reliability

Engineered for harsh outdoor conditions, the BYX access unit ensures consistent operation, even in rain, dust, or extreme heat, with zero failure entry logic.

Best Price Guarantee

NEOTECH offers the best price in the UAE for BYX RFID keypad systems – with bulk and contractor discounts available.

Shop Today & Receive Your Delivery Across the UAE

Ships quickly to Dubai, Abu Dhabi, Sharjah, Ajman, and all Emirates. Ready for immediate integration.

Request for Customer Reviews and Testimonials

Have you installed the BYX Smart Access Controller? Drop a review and share your install photo with the NEOTECH community!

After Sales Support

We provide setup guidance, wiring diagrams, compatibility checks, and lock integration support.

Get in Touch

Need help choosing the right access system or want to place a bulk order? Contact NEOTECH’s expert support team now.

Stock Availability

✅ In Stock – Ships within 48 hours
📦 Bulk stock available for developers and system integrators

Disclaimer

Product design may vary slightly by batch. Always use weatherproof seal for outdoor installation.
