Swipe to secure: BYX Smart Mini Magnetic Stripe Card Reader offers rapid, reliable access control. Order now from NEOTECH—UAE-wide delivery!
Overview

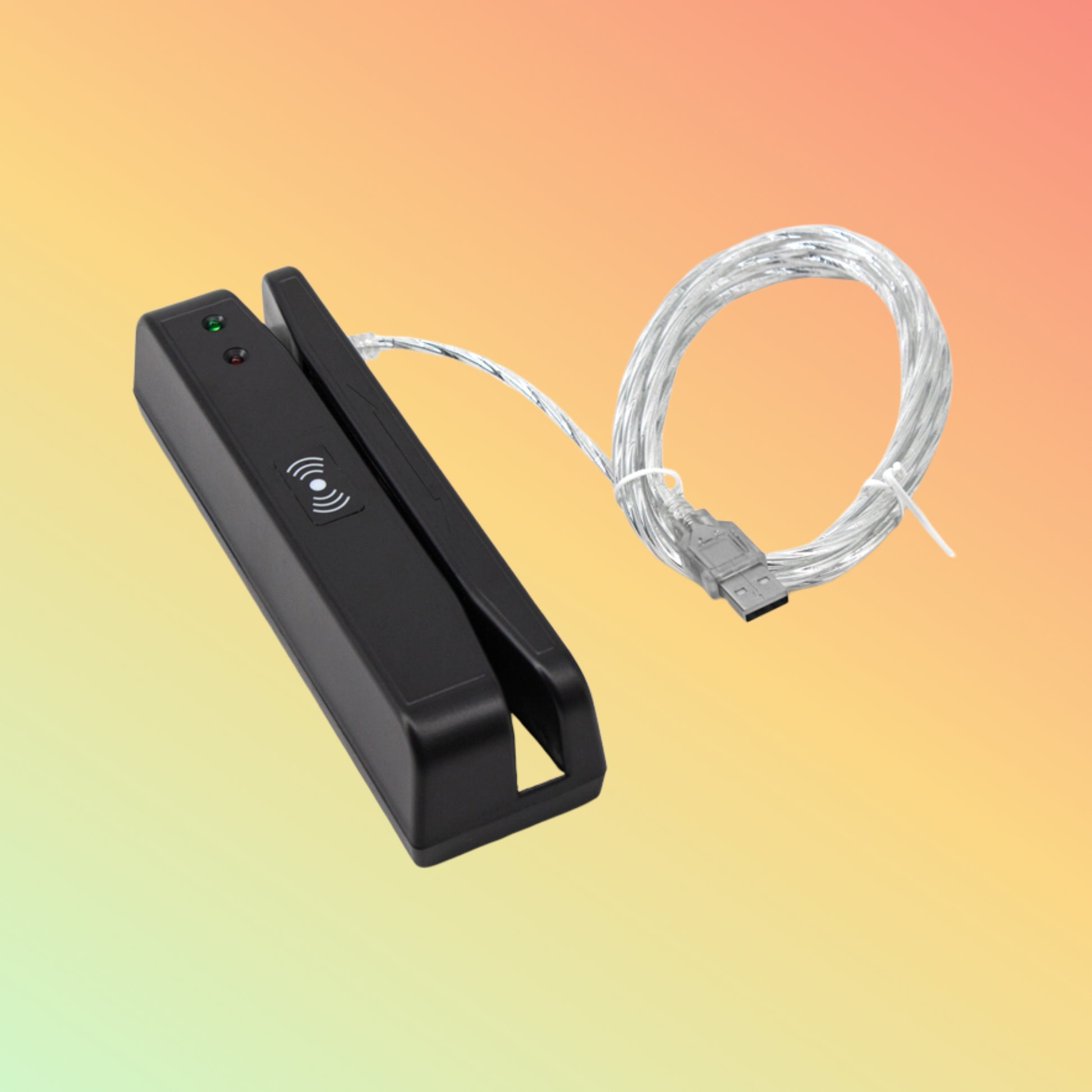

The BYX Smart Mini Magnetic Stripe Card Reader delivers fast, swipe-style authentication in a compact housing. It integrates seamlessly with Wiegand and OSDP controllers, making it ideal for offices, retail, hospitality, and more.
Product Description
This reader accepts standard ISO 7811 magnetic stripe cards. Its slim profile fits narrow mullions or wall-mount panels. Built from ABS plastic, it resists daily wear. It communicates over Wiegand 26/34 or OSDP for modern access systems. With instant swipe recognition and error rejection, you get secure entry every time.
Key Features
-
Reads 1-track and 2-track mag-stripe cards
-
Swipe speed tolerance: 5–150 cm/s
-
Wiegand 26/34 and OSDP output
-
Built-in LED and buzzer feedback
-
Compact ABS enclosure
-
IP54 splash resistance
-
Anti-tamper alarm connector
-
Low power draw (< 120 mA)
-
Surface or mullion mountable
-
Fast error-reject swipe detection
Specifications
-
Card Standard: ISO 7811 tracks 1 & 2
-
Output Protocols: Wiegand 26/34, OSDP
-
Voltage: DC 12 V ± 10%
-
Current: < 120 mA
-
Swipe Speed: 5–150 cm/s
-
Indicators: RGB LED, buzzer
-
Operating Temp: -10 °C to +50 °C
-
Humidity: 20–85% RH (non-condensing)
-
Material: ABS plastic
-
Protection: IP54
Supported OS / Application / Industries
Benefits & Compatibility
-
Instant swipe recognition cuts entry queues
-
Error-reject logic prevents jammed cards
-
Works with NEOTECH controllers like the NC-5000 Access Panel
-
Compatible with legacy and modern systems
-
Sleek design for aesthetic installations
Purpose of Use
Use this reader wherever magnetic stripe cards remain in service. It’s perfect for businesses transitioning to RFID or maintaining hybrid fleets. Deploy at turnstiles, reception desks, and kiosks.
How to Use
-
Mount the reader on your mullion or wall.
-
Wire to your Wiegand or OSDP controller.
-
Power up and configure swipe parameters in your access software.
-
Swipe cards to enroll and test.
-
Go live—authorized cards unlock doors.
Packaging / Weight / Dimensions
-
Included: Reader, mounting screws, user guide
-
Weight: 95 g
-
Dimensions: 100 × 35 × 15 mm
-
Box Size: 120 × 60 × 25 mm
Warranty & FAQs
Warranty: 1-Year NEOTECH warranty
FAQs:
-
Q: Does it support 3-track cards?
A: No, it’s optimized for tracks 1 & 2.
-
Q: Can I mount it outdoors?
A: IP54 resists splashes; avoid direct rain.
-
Q: Does it work with OSDP secure channel?
A: Yes, supports OSDP v2 encryption.
Performance, Quality, Durability & Reliability
Engineered for 200,000+ swipes, this reader delivers consistent performance. Its anti-tamper switch and splash-resistant design protect against vandalism and environmental damage.
Best Price Guarantee
NEOTECH offers direct pricing with no hidden fees. Combine with our BYX Smart Mini Wiegand Reader in hybrid deployments for bulk savings.
Shop Today & Receive Your Delivery Across the UAE
Order by 2 PM GST for same-day dispatch.
Delivery: 1–3 business days to Dubai, Abu Dhabi, Sharjah, and beyond.
Request for Customer Reviews and Testimonials
Have you installed this reader? Share your feedback and help peers choose the right access control solution.
After Sales Support
From setup to troubleshooting, our tech team is on call via email, phone, or live chat. We’ve got your back post-purchase.
Get in Touch
Questions about the BYX Smart Magnetic Stripe Card Reader?
Contact our access control experts for rapid, personalized advice.
Stock Availability
Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.
Disclaimer
All details are for general information and may change without notice. Images are illustrative. Verify specs and pricing with our sales team before ordering.
