NEO Digital

BYX Smart Three-track Magnetiic Stripe Reader

BYX Smart Three-track Magnetiic Stripe Reader

Regular price Dhs. 0.00 AED
Regular price Sale price Dhs. 0.00 AED
Sale Sold out
Taxes included. Shipping calculated at checkout.

BYX smart magnetic stripe reader with 3-track support and USB interface. Plug & play, durable, and POS-ready. Buy now at NEOTECH UAE.


Overview

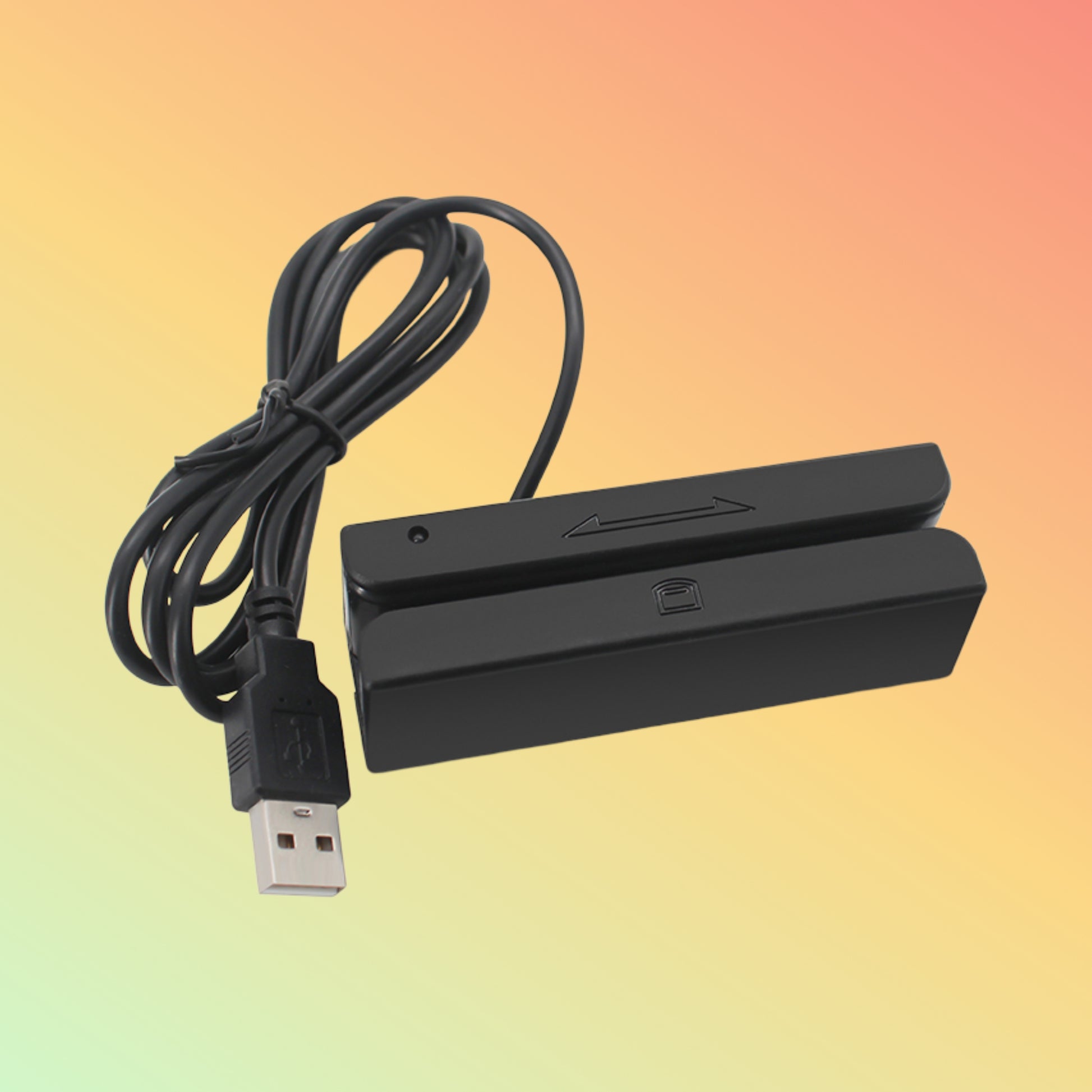

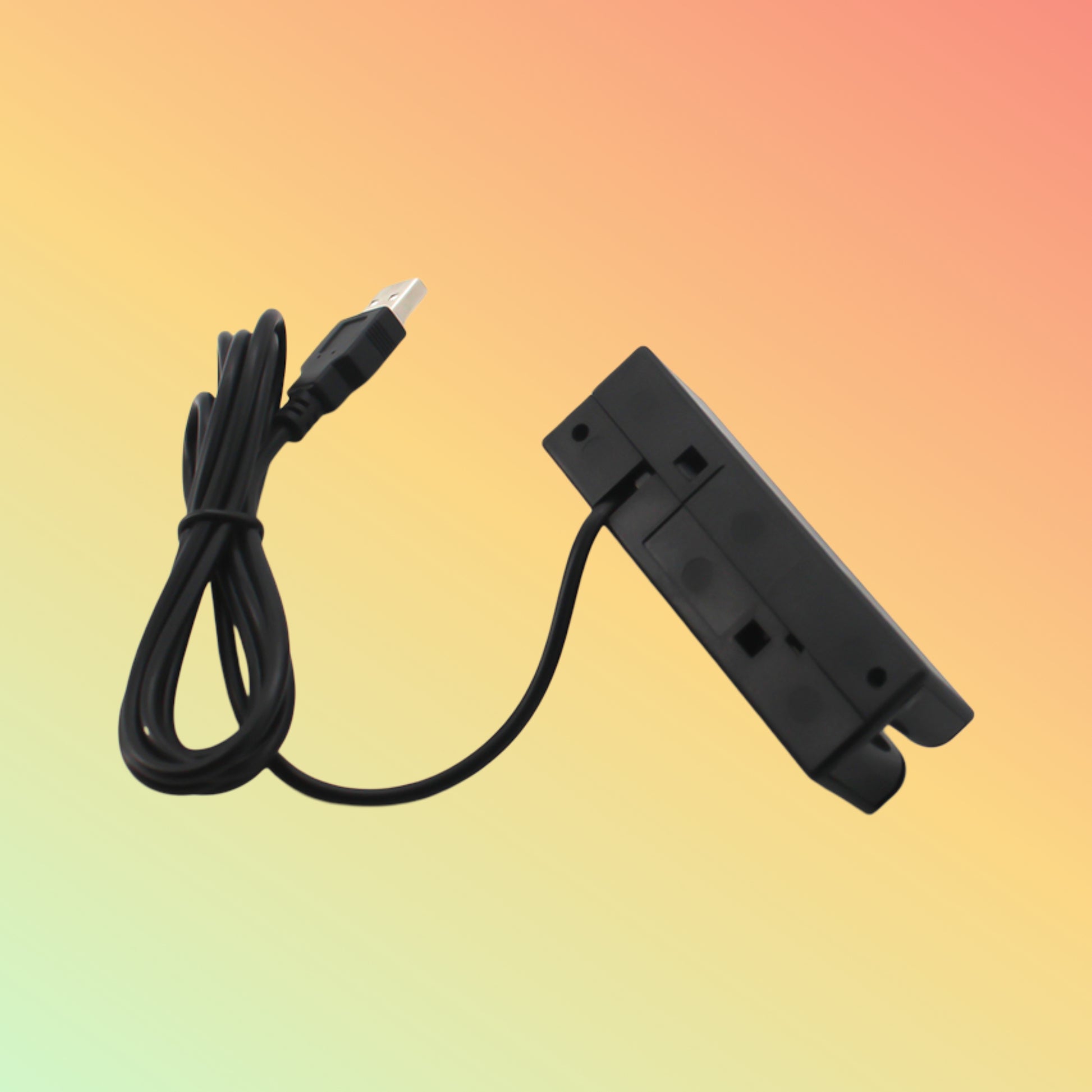

The BYX Smart Three-Track Magnetic Stripe Reader is a compact, plug-and-play card reader designed to read Track 1, Track 2, and Track 3 magnetic stripes on ID cards, membership cards, and bank cards.
Compatible with Windows, Linux, and Android, it offers fast data transmission, error-free reads, and reliable integration with POS, banking, and access systems.


Product Description

Designed with a USB interface and high-sensitivity magnetic head, the BYX three-track reader delivers accurate swipes every time.
It supports bidirectional card swiping, long service life, and is built with a durable ABS enclosure for high-traffic environments like retail stores, hotels, banks, and office entry systems.


Key Features

  • Supports Track 1, Track 2, and Track 3 reading

  • Plug-and-play via USB (no driver required for most OS)

  • Compatible with ISO7811 / AAMVA magnetic stripe standards

  • Bidirectional card swipe

  • Reads high and low coercivity (300~4000 Oe) cards

  • LED & buzzer feedback for swipe status

  • Up to 1,000,000 swipes lifetime


Specifications

  • Standard: ISO 7811 / AAMVA

  • Track Support: 1, 2, 3 (simultaneous read)

  • Swipe Speed: 10–120 cm/sec

  • Read Direction: Bidirectional

  • Card Type: Magnetic stripe (300~4000 Oe)

  • Interface: USB HID / USB Keyboard Emulation

  • Indicator: LED + Buzzer

  • Operating Voltage: 5V (USB powered)

  • Dimensions: Approx. 90 × 27 × 28 mm

  • Material: ABS plastic housing

  • Operating Temp: -10°C to +55°C


Supported OS / Application / Industries

  • Operating Systems:

    • Windows 7/8/10/11

    • macOS (HID)

    • Linux (kernel 2.4+)

    • Android (via OTG)

  • Applications:

    • Point-of-sale systems (POS)

    • ID verification (hotels, libraries, clubs)

    • Time & attendance systems

    • Access control

    • Loyalty and membership programs

  • Industries:

    • Retail

    • Hospitality

    • Banking & Finance

    • Government

    • Education


Benefits & Compatibility

  • Reads all 3 tracks of magnetic data in one pass

  • Compatible with most POS and banking systems

  • Long-lasting design with high-precision magnetic head

  • No software installation needed (plug-and-play)

  • Works with Excel, Word, or custom apps via keyboard emulation


Purpose of Use

Perfect for businesses that need to scan credit cards, employee badges, loyalty cards, or any other magstripe-based access medium efficiently and securely.


How to Use

  1. Connect via USB to computer, terminal, or POS system

  2. Open a text editor or application

  3. Swipe card — data appears instantly

  4. Use with cashier, security, or ID software for access/logging


Packaging / Weight / Dimensions

  • Dimensions: 90 × 27 × 28 mm

  • Weight: ~80g

  • Packaging Includes:

    • BYX 3-Track Magnetic Stripe Reader

    • USB Cable

    • Quick Start Guide


Warranty & FAQs

  • Warranty: 1 year from NEOTECH

  • FAQs:

    • Can I use it with Android POS terminals? – Yes, with USB-OTG

    • Does it require drivers? – No, it functions as a USB keyboard

    • Can it read damaged cards? – It has high sensitivity, but unreadable cards may fail


Performance, Quality, Durability & Reliability

Built for daily high-volume use, the BYX reader is tested for over 1 million swipes, ensuring long lifespan, low error rate, and instant data response.


Best Price Guarantee

NEOTECH offers the best pricing across the UAE for smart magnetic stripe readers — with discounts for resellers, integrators, and bulk orders.


Shop Today & Receive Your Delivery Across the UAE

Same-day or next-day delivery available in Dubai, Sharjah, Abu Dhabi, Ajman, and beyond.
📦 Export support available for GCC clients.


Request for Customer Reviews and Testimonials

Have you deployed the BYX 3-track reader in your POS or security system? Drop your review and get featured on our website!


After Sales Support

  • Setup guidance for POS or attendance software

  • Android OTG and HID mode support

  • Keyboard emulation or ASCII mode configuration


Get in Touch

Need help choosing between magnetic stripe and RFID readers? Contact NEOTECH’s access control specialists today.


Stock Availability

✅ In stock – Ships within 24 hours
📦 Bulk ready for retail, office, or hotel installations


Disclaimer

This device reads magnetic stripe cards only. For RFID or chip card support, please see our Smart Card Readers Collection or inquire about hybrid models.
