Overview

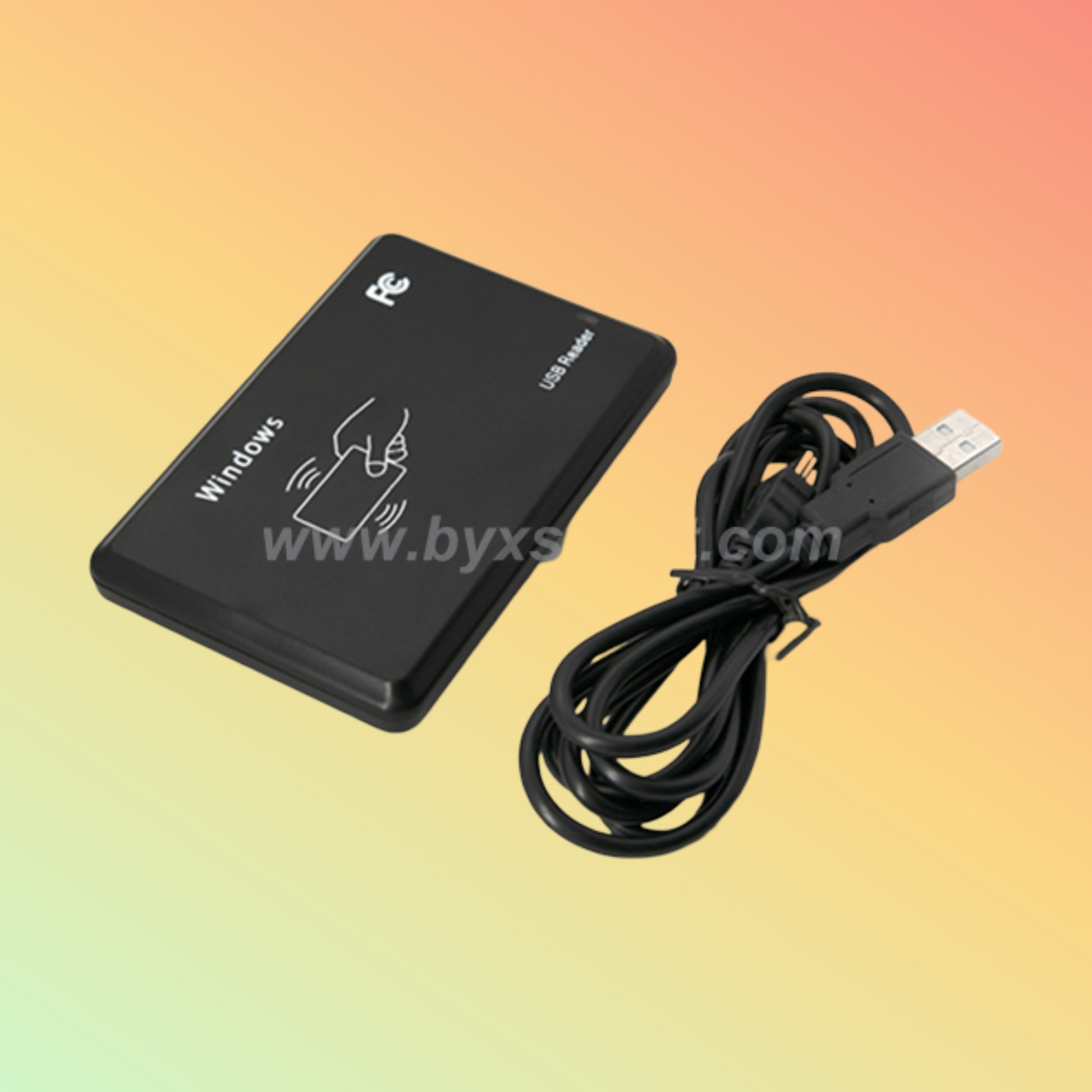

The BYX USB LF/HF RFID Reader is a dual-frequency, plug-and-play device for swift card and tag reading. Its compact USB-A design works on Windows, macOS, and Linux. Perfect for access control, attendance systems, and asset tracking.
Product Description
This reader handles low-frequency (125 kHz) and high-frequency (13.56 MHz) tags in one unit. Simply plug into any USB port—no driver download needed. The sturdy ABS housing and durable cable ensure long-term reliability. Integrate it with your software via standard keyboard-wedge or USB-HID mode.
Key Features
-
Dual-frequency support: LF 125 kHz & HF 13.56 MHz
-
USB-HID & keyboard-wedge modes
-
No external power or batteries
-
Reads EM4100, MIFARE®, and more
-
Instant read time (< 0.1 s)
-
Compatible with Windows, macOS, Linux
-
Rugged ABS enclosure with braided cable
-
LED & buzzer feedback on read
-
Plug-and-play driverless operation
-
Ideal for desktop and kiosk use
Specifications
-
Frequencies: 125 kHz LF, 13.56 MHz HF
-
Interfaces: USB-A HID & keyboard-wedge
-
Read Range: LF up to 5 cm; HF up to 6 cm
-
Voltage: USB 5 V DC
-
Current: < 100 mA
-
Indicators: Bi-color LED; buzzer
-
Cable: 1.2 m braided USB
-
Material: ABS plastic
-
Dimensions: 90 × 50 × 20 mm
-
Weight: 85 g
Supported OS / Application / Industries
Benefits & Compatibility
-
Plug-in and read cards instantly
-
No special drivers—works out of the box
-
Compatible with NEOTECH solutions like the BYX Smart Mini Wiegand Reader
-
Supports common LF tags (EM4100) and HF cards (MIFARE Classic)
-
Compact form factor fits tight desk or kiosk spaces
Purpose of Use
Ideal for desktop check-in, asset audits, or membership validation. Use it anywhere you need reliable, bidirectional LF/HF read capability without extra power adapters.
How to Use
-
Insert the reader’s USB-A plug into your computer.
-
Wait for the LED to pulse green (ready).
-
Present LF or HF tag to the reader face.
-
Watch for beep and LED confirmation.
-
Data appears as keystrokes in your application.
Packaging / Weight / Dimensions
-
Box Contents: Reader, quick-start guide
-
Cable Length: 1.2 m braided USB
-
Device Size: 90 × 50 × 20 mm
-
Net Weight: 85 g
-
Box Size: 120 × 70 × 30 mm
Warranty & FAQs
Warranty: 1-Year NEOTECH hardware warranty
FAQs:
-
Q: Does it need drivers?
A: No, it uses standard USB-HID.
-
Q: Can it read DESFire cards?
A: It reads ISO 14443A; some DESFire models work.
-
Q: Is it USB 3.0 compatible?
A: Yes, backward-compatible with USB 2.0/3.0.
Performance, Quality, Durability & Reliability
Tested for over 200,000 read cycles, the braided cable and impact-resistant housing ensure lasting performance. The high-speed CPU reads tags in under 0.1 s for efficient workflows.
