Overview

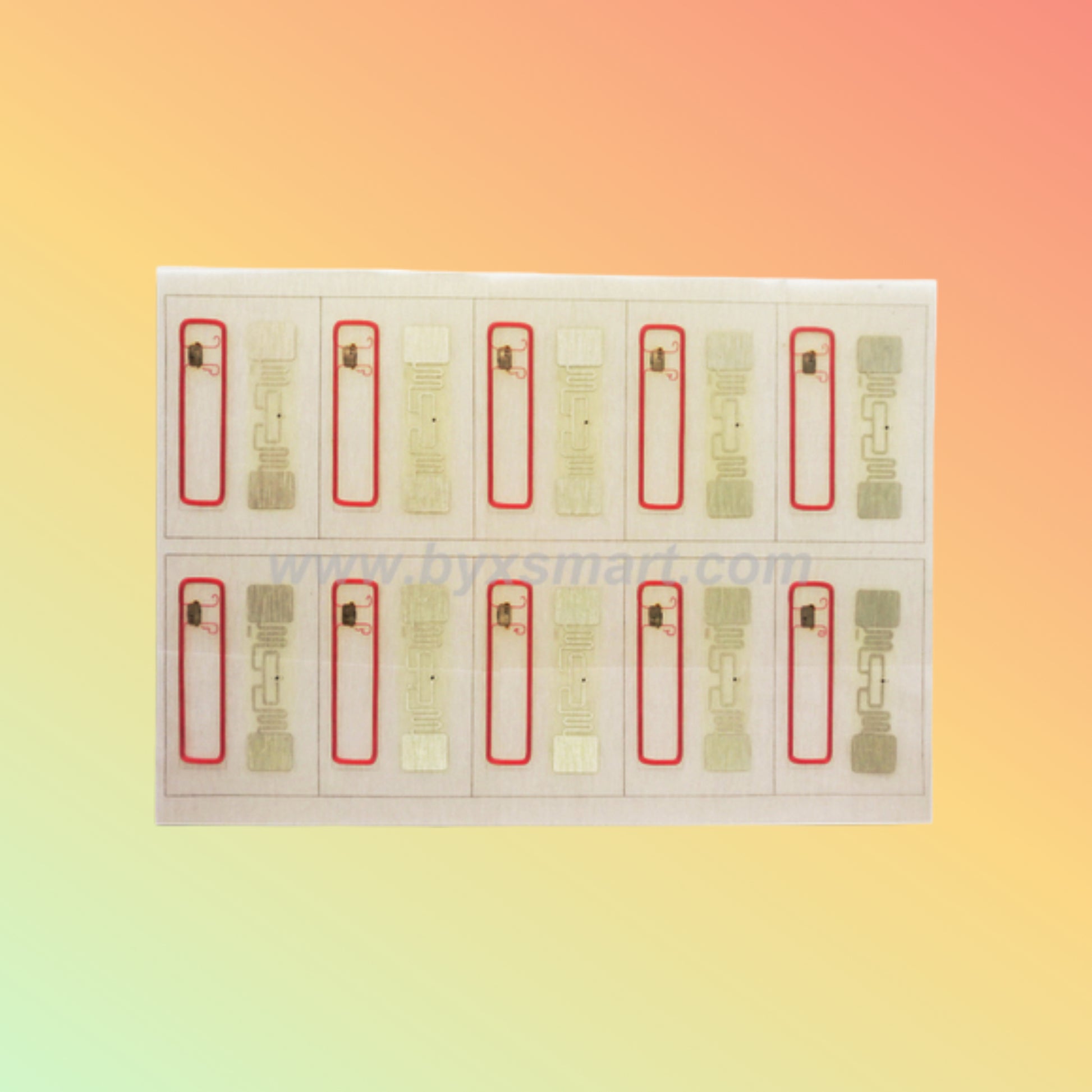

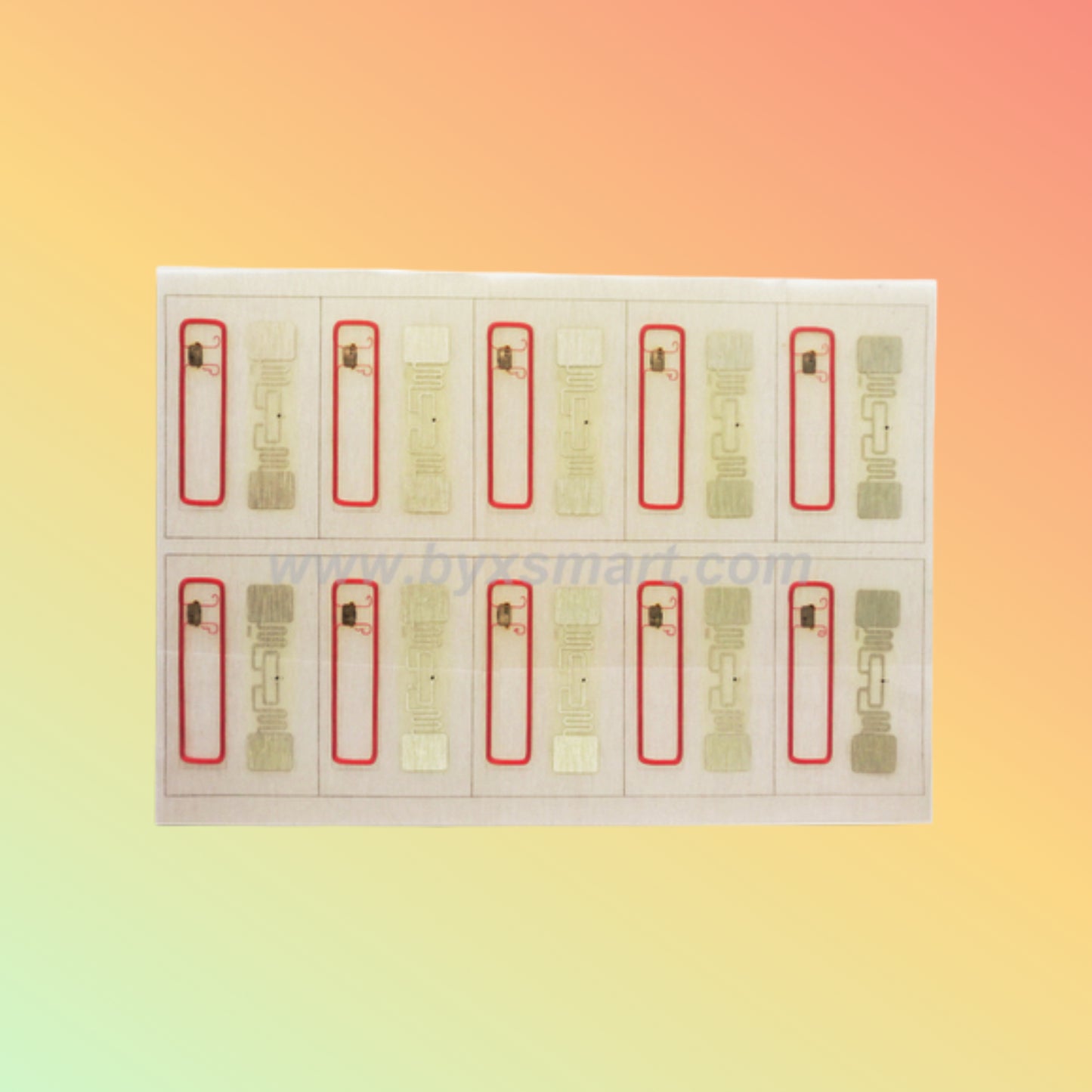

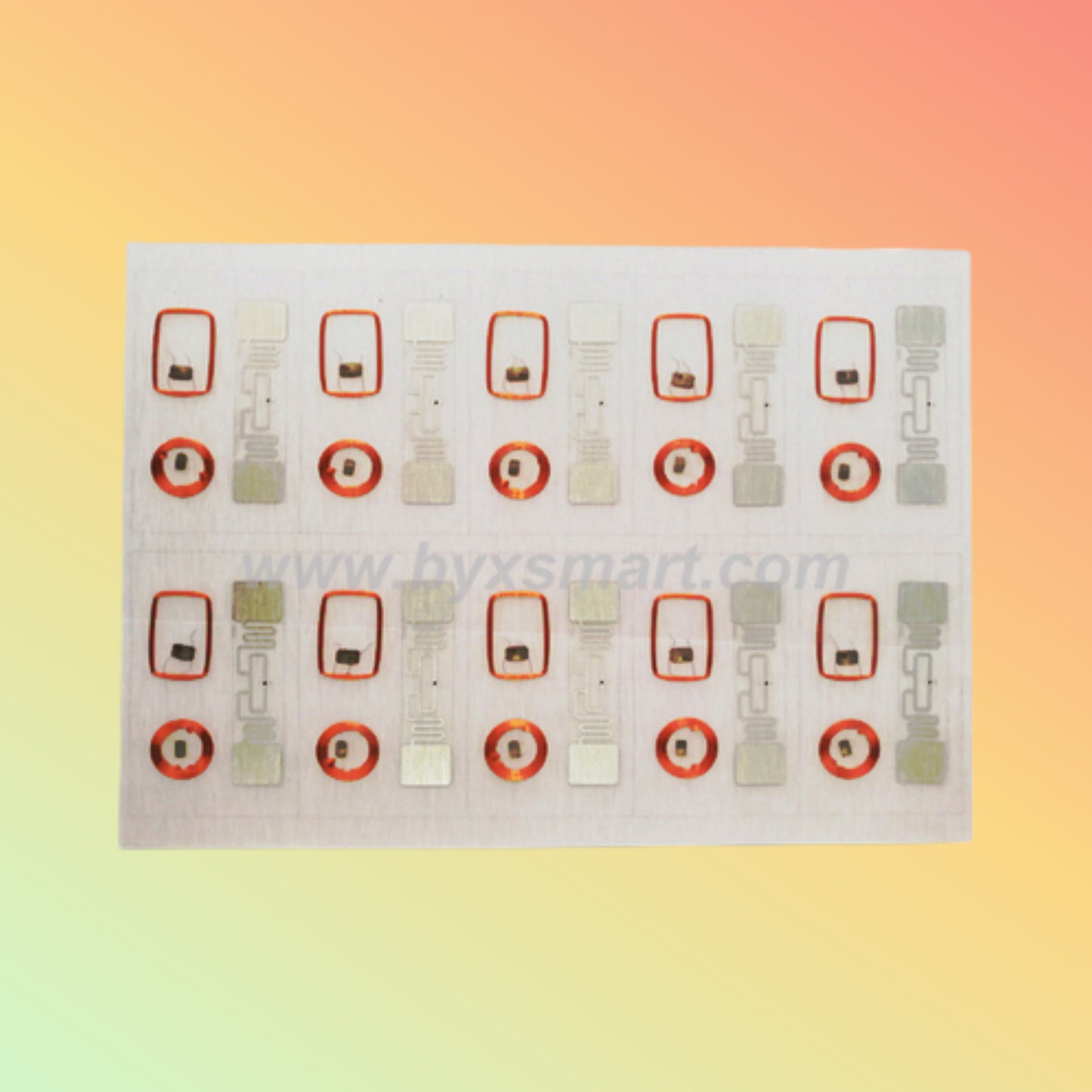

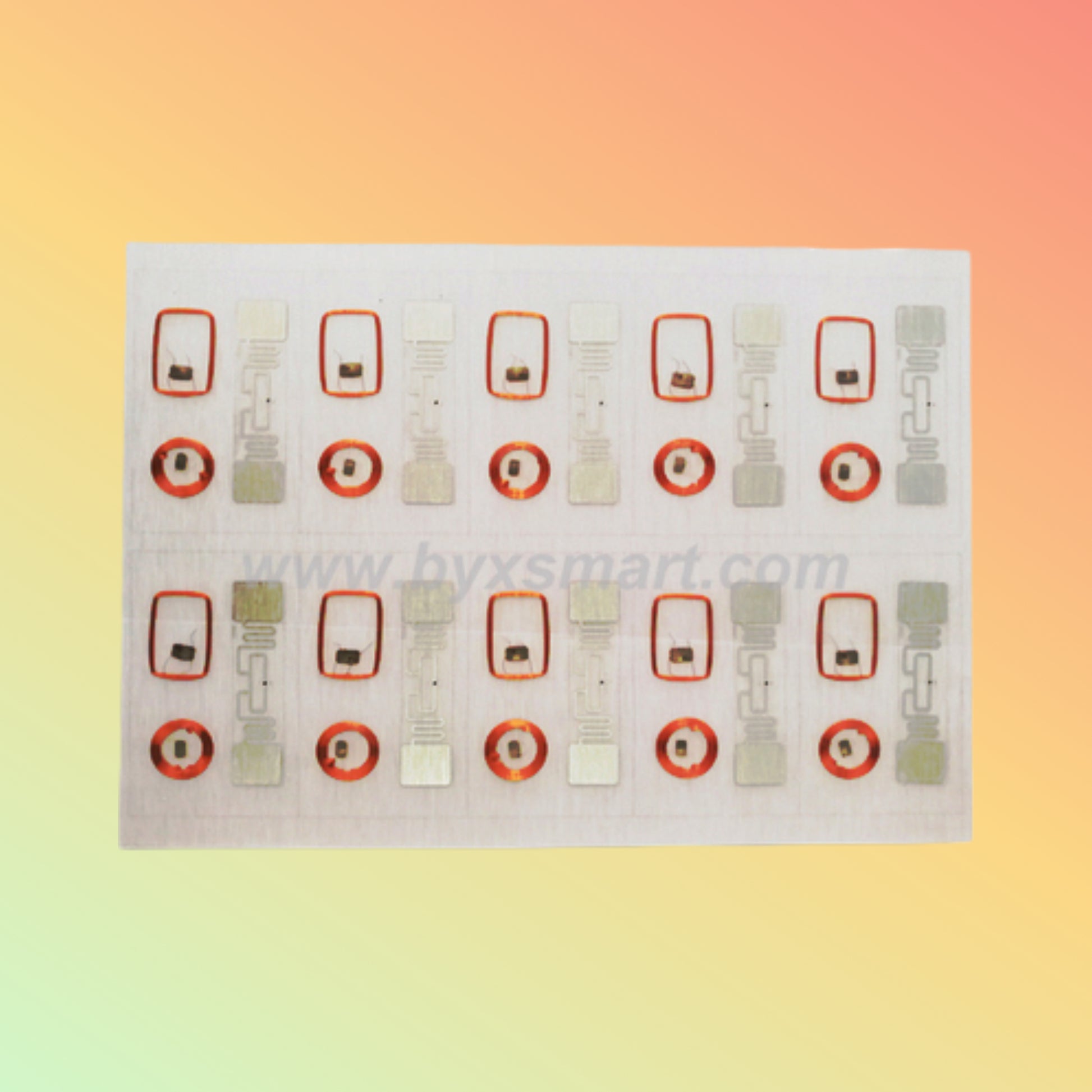

The BYX Smart Dual-Frequency PVC Inlay Prelam Sheet protects and finishes bare RFID inlays in a single heat-seal process. It encapsulates both 13.56 MHz HF and 860–960 MHz UHF chips under a printable PVC overlay. Create durable, moisture-proof labels or cards ready for encoding and printing.
Product Description
Each prelam sheet pairs two PVC polymer layers with a clear adhesive core. Place your dual-frequency inlay between the films, then run through a thermal laminator or hot-press. The result is a rugged lamination that resists water, chemicals, and abrasion—perfect for long-life asset tags, ID cards, and industrial labels.
Key Features
-
Hot-seal PVC lamination for HF & UHF inlays
-
Dual-frequency support: ISO 15693 (HF) & EPC Gen2 (UHF)
-
Printable clear surface for dye-sublimation or thermal transfer
-
Waterproof, chemical-resistant, UV-stable PVC films
-
No bubbles or wrinkles when sealed properly
-
0.5 mm total thickness for card-style rigidity
-
Suitable for temperatures up to 120 °C during lamination
-
Pack of 100 sheets per box (100 × 150 mm each)
-
Peel-away liner for easy handling
-
Compatible with standard PVC card printers
Specifications
| Parameter |
Detail |
| Sheet Size |
100 × 150 mm |
| Thickness |
0.5 mm (0.25 mm per layer) |
| Material |
PVC polymer, clear adhesive core |
| Lamination Temp |
100–120 °C |
| Operating Temp |
–20 °C to +60 °C |
| Chemical Resistance |
Acids, alcohol, detergents |
| Inlay Support |
ISO 15693 HF & EPC Gen2 UHF chips |
| Print Compatibility |
Dye-sublimation, thermal transfer |
| Pack Quantity |
100 sheets |
Supported Applications / Industries
-
ID & Access Cards: Dual-tech credentials
-
Asset Tags: Rugged industrial labeling
-
Event Badges: NFC & long-range scanning
-
Retail Labels: Price tags with inventory tracking
-
Library Cards: Combo self-checkout & stock audit
Benefits & Compatibility
-
Two-in-one protection for HF & UHF functionality
-
Print-ready surface for logos, barcodes, and text
-
Long-lasting lamination defends against wear
-
Universal fit for standard card printers and laminators
-
Cost-effective by converting bare inlays on demand
Purpose of Use
Use these prelam sheets to transform bare dual-frequency inlays into finished, printable labels or cards. Ideal for small batches, pilots, or customized runs without dye-sublimation card stock investments.
How to Use
-
Place inlay centered on one PVC layer.
-
Cover with second layer, adhesive sides in.
-
Heat-press at 100–120 °C for 20–30 s or run through laminator.
-
Trim to final shape once cooled.
-
Print on PVC printer then encode HF & UHF as needed.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty
1-year manufacturing defect coverage.
FAQs
Q: Can I use a home laminator?
A: Yes—ensure it reaches 100 °C.
Q: Will lamination affect read range?
A: No—properly tuned antennas retain full HF/UHF performance.
Q: Are sheets printable?
A: Yes via PVC card or badge printers.
Performance, Quality, Durability & Reliability
Sheets undergo peel, abrasion, and UV-ageing tests. They retain adhesion and clarity after 1 000 hours of weather exposure and preserve signal strength within 5 cm of HF readers and 3 m of UHF antennas.
