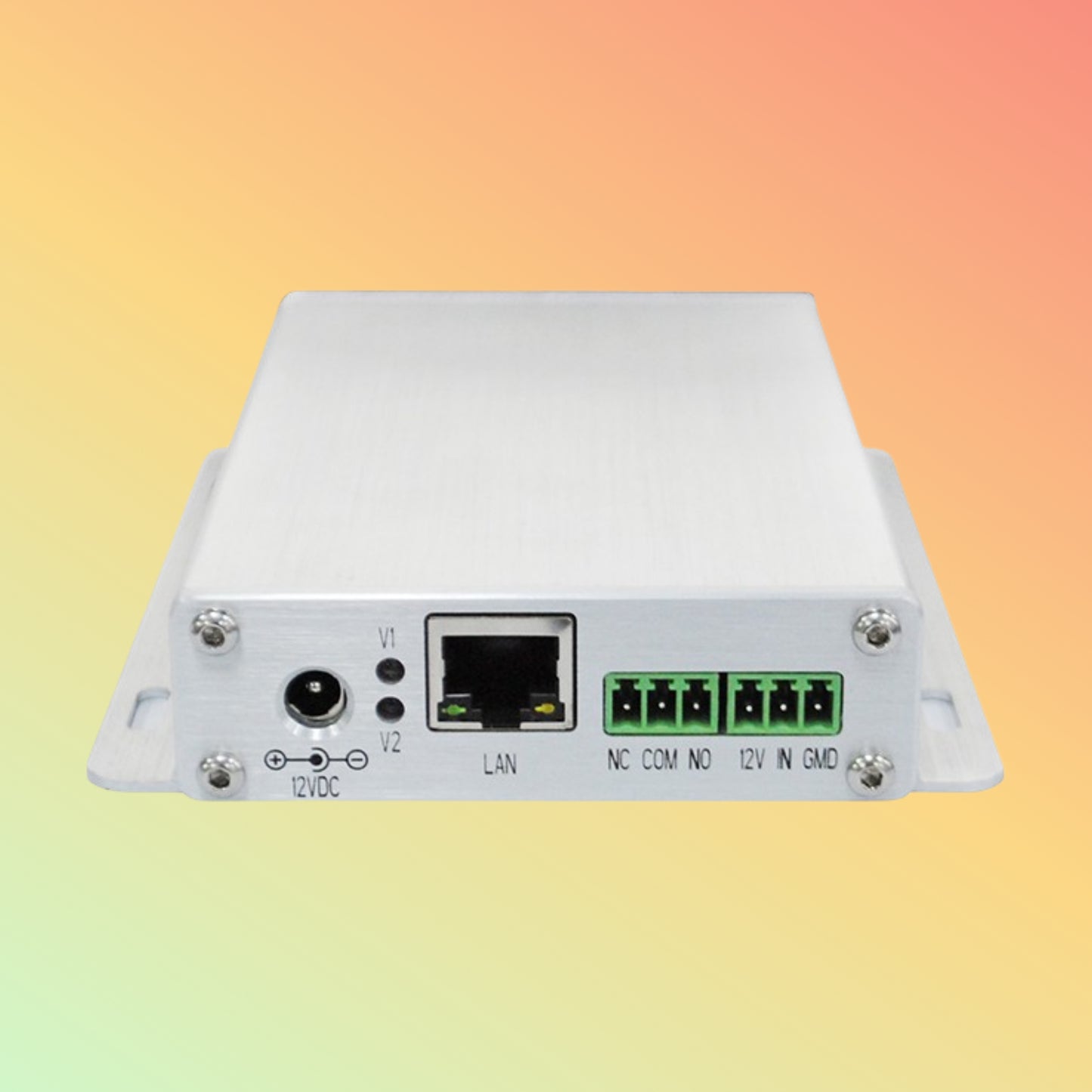

rfid High-frequency single-port mid-power reader

Reliable high-frequency single-port RFID reader. Mid-power range for balance of coverage and interference control. Buy now for UAE deployment.

---

Overview

The NEOTECH High-Frequency Single-Port Mid-Power RFID Reader delivers focused, stable tag reads with a balanced power profile. Engineered for environments needing precise HF (13.56 MHz) tag detection without excessive spillover, it fits counters, kiosks, access points, and smart fixtures where controlled read zones matter.

---

Product Description

This reader operates on 13.56 MHz and uses a single RF port tuned for mid-level output—enough power for consistent reads over standard distances while minimizing cross-talk and stray reads in dense setups. It supports ISO14443/ISO15693/NFC tags and provides clean, real-time data with anti-collision handling. Integration is simple via Ethernet, USB, or serial interfaces; configuration and filtering happen through a lightweight web or API interface.

Its compact footprint and moderate power make it ideal for applications that require both accuracy and containment of read fields—like membership desks, secure access points, loyalty kiosks, and point-of-sale stations that share space with other RF devices.

---

Key Features

• High-frequency operation at 13.56 MHz (HF/NFC)

• Single RF port with mid-power tuning for controlled read zone

• Supports ISO14443 A/B and ISO15693 tags (MIFARE, NTAG, DESFire)

• Real-time tag detection with anti-collision logic

• Clean data output: duplicate suppression and timestamps

• Flexible host interfaces: Ethernet, USB, serial (configurable)

• Lightweight configuration via API or web UI

• LED/status indicators for read and health feedback

• Plug-and-play with minimal driver needs (HID or serial modes)

• Compact industrial-friendly housing

---

Specifications

• Frequency: 13.56 MHz (High Frequency)

• Standards: ISO14443 A/B, ISO15693, NFC Forum compliant

• RF Ports: Single mid-power antenna output

• Tag Types: MIFARE Classic/Plus, DESFire EV1/EV2, NTAG, other HF smart cards

• Interface Options: Ethernet (TCP/IP), USB, RS232/TTL serial

• Read Range: Optimized mid-range (typically 2–5 cm depending on card and environment)

• Data Output: Structured stream (JSON/XML), HID/keyboard wedge, serial

• Power: USB or DC input (model dependent)

• Feedback: Multi-color LED, optional buzzer

• Operating Temp: 0°C to 50°C

• Dimensions: ~11 x 7 x 2 cm

• Weight: ~120g

• Security: Supports authenticated tag reads and optional encrypted sector handling

---

Supported OS / Application / Industries

Supported Platforms

• Windows, macOS, Linux (via HID/serial or API integration)

• Embedded systems and kiosks

• Loyalty, access, and identity platforms

Applications

• Secure member or guest check-in

• Loyalty program taps and redemptions

• Access control at single-door points

• POS and transaction validation

• Event registration and badge verification

Industries

• Hospitality & Entertainment

• Retail & Loyalty

• Corporate & Facility Access

• Events & Exhibitions

• Healthcare (non-critical verification)

• Educational institutions

---

Benefits & Compatibility

• Controlled read zone reduces unintended tag pickups.

• Mid-power output balances reliable reading with minimal interference in multi-reader environments.

• Compact and cost-efficient compared to high-power multi-channel systems.

• Integrates seamlessly with NEOTECH’s HF NFC RFID Card Reader for credential issuance and the Inductive IC RFID Card Reader for hybrid workflows.

• Clean API integration makes backend connection fast.

• Suitable for shared spaces where adjacent readers exist; field containment avoids cross-trigger issues.

---

Purpose of Use

Use where precise, reliable HF tag reads are required without overshooting into neighboring zones: front-desk authentication, loyalty kiosks, single-point access control, session validation, and smart terminal interactions.

---

How to Use

1. Mount or place the reader at the intended interaction point.

2. Connect to the host system via Ethernet, USB, or serial.

3. Configure read parameters and filtering through the web interface or API.

4. Present HF RFID/NFC card or tag within the mid-range field.

5. Confirm read via LED or host application; process data instantly.

6. Adjust power or zone logic remotely if deployment context shifts.

---

Packaging / Weight / Dimensions

• 1 x Single-Port HF RFID Mid-Power Reader

• 1 x Connection Cable (USB/Ethernet adapter if applicable)

• 1 x Quick Start Guide

• Optional: Mounting bracket or adhesive kit

• Weight: ~120g

• Package Size: 14 x 9 x 4 cm

---

Warranty & FAQs

Warranty
12-month NEOTECH limited warranty covering material defects and functional issues under normal operating conditions.

FAQs
Q: Why choose mid-power instead of high-power?
A: Mid-power provides reliable local reads while limiting spillover into adjacent zones—critical in dense or shared installations.
Q: What cards work with it?
A: ISO14443 A/B and ISO15693 cards including MIFARE, NTAG, and DESFire families.
Q: Can it be integrated without custom software?
A: Yes. It supports standard HID/serial modes and exposes REST-style data streams via API for easy integration.

---

Performance, Quality, Durability & Reliability

Designed for stable deployment in mixed RF environments. Anti-collision and real-time filtering prevent duplicate or false triggers. The enclosure is built for continuous commercial use; internal calibration maintains consistent mid-power output over time. NEOTECH validates each unit for read reliability and interface stability before shipment.

---

Best Price Guarantee

NEOTECH guarantees competitive pricing in the UAE. If you find a comparable high-frequency single-port mid-power RFID reader at a lower price, we’ll match or beat it. Volume and integration package customers receive additional discounts.

---

Shop Today & Receive Your Delivery Across the UAE

Order now for fast fulfillment to Dubai, Abu Dhabi, Sharjah, and nationwide. NEOTECH offers express processing and deployment support for integration points and phased rollouts.

---

Request for Customer Reviews and Testimonials

Deploying this reader in your system? Share your experience. Your feedback helps others understand how controlled HF read zones improve accuracy and reduce interference.

---

After Sales Support

From integration help to field tuning, NEOTECH’s technical team is available via email, phone, or live chat. Support includes configuration assistance, firmware updates, and troubleshooting.

---

Get in Touch

Need advice on optimal placement, API integration, or read zone tuning? Contact NEOTECH RFID specialists for quick, tailored support.

---

Stock Availability

Inventory updates daily. For mission-critical deployments, confirm current availability before ordering. Custom firmware or batch-configured units may take 7–14 business days to fulfill.

---

Disclaimer

All content is for general guidance and may change without notice. Illustrations are representative. Confirm technical specs, integration needs, and pricing with NEOTECH sales before purchase.
