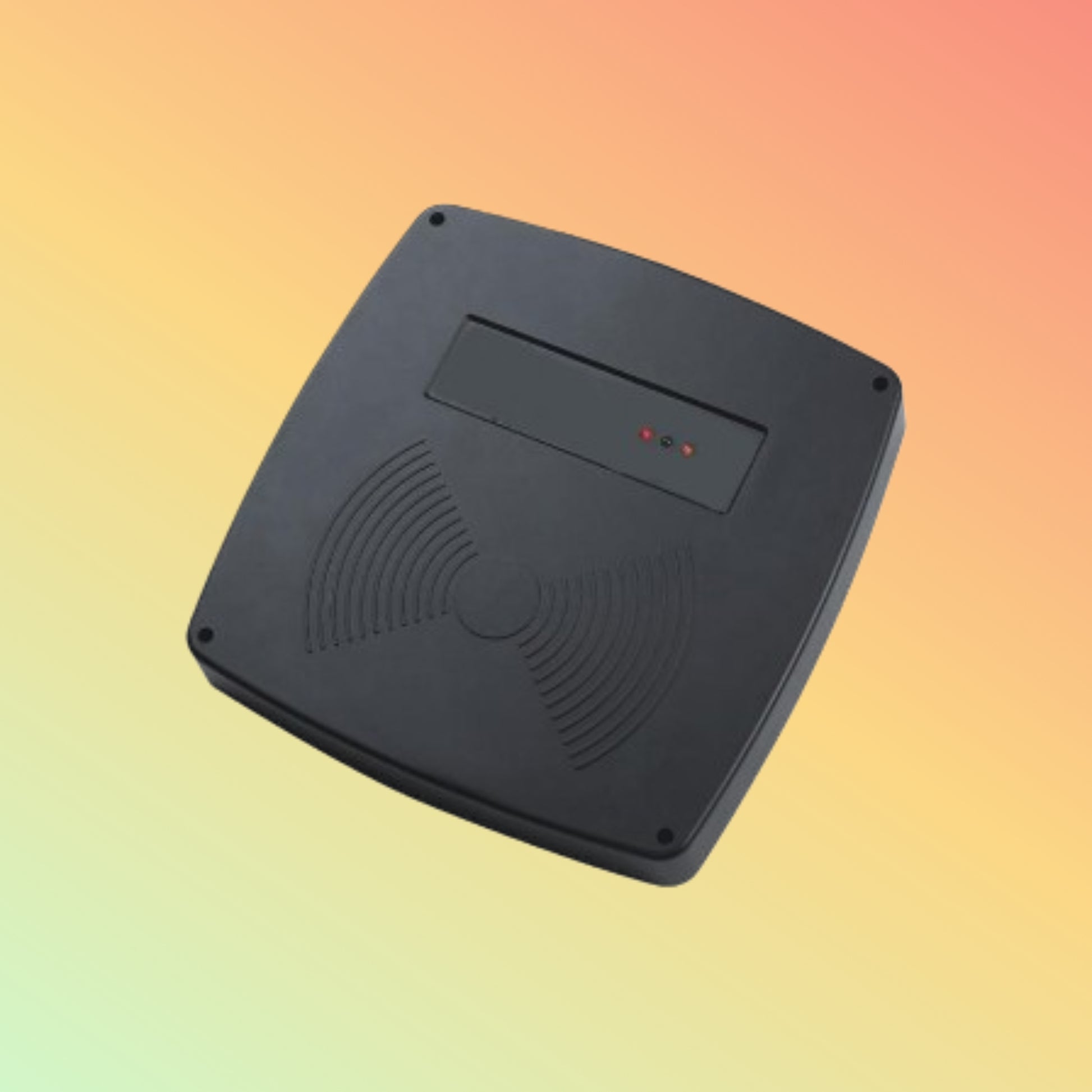

rfid 134.2KHz long-distance reader

Read low-frequency 134.2KHz tags at extended range. Rugged long-distance RFID reader for animal, access, and asset ID—fast setup, high accuracy.

Overview

The 134.2KHz Long-Distance RFID Reader extends the reach of standard low-frequency systems. Engineered to detect ISO11784/11785 tags beyond typical short-range limits, it supports animal ID, access credentials, and asset tracking where extended read distance and reliability matter.

Product Description

This reader amplifies low-frequency tag detection with an optimized antenna and signal processing to deliver longer read range while maintaining stable, accurate identification. It supports standard 134.2KHz transponders (FDX-B, HDX) and can be used in fixed or handheld mounts. Built for field and gate environments, it processes incoming tag signals with minimal delay, provides clear feedback, and integrates into desktop or cloud systems via USB/Bluetooth/serial interfaces (model dependent). Ideal for livestock monitoring at checkpoints, broad-area access control, shelter intake zones, and industrial asset sweeps where speed and distance are critical.

Key Features

• Enhanced long-distance read capability for 134.2KHz LF tags

• ISO11784/11785 compatibility (FDX-B, HDX)

• Stable detection over extended range with noise filtering

• Multiple interface options: USB, Bluetooth, serial (depend on variant)

• Visual/audio confirmation of reads

• Adjustable sensitivity or gain for tuning coverage

• Onboard logging (offline buffer) with later sync

• Rugged housing for outdoor and gate use

• Easy integration into existing animal or access systems

• Low power draw with efficient RF front end

Specifications

• Frequency: 134.2 KHz (Low Frequency animal/access ID band)

• Standards: ISO11784 / ISO11785 (FDX-B, HDX)

• Read Range: Extended—typically up to 50–80 cm or more depending on tag type, orientation, and environment (longer than standard handheld LF readers)

• Interfaces: USB (data/power), Bluetooth (optional), RS232/TTL or other serial outputs (model-dependent)

• Data Buffer: Internal memory for batch logging when offline

• Feedback: LEDs, beeper, optional display for ID preview

• Power: Rechargeable battery or external supply (depending on form factor)

• Adjustability: Gain/sensitivity tuning for distance control

• Form Factor: Fixed mount or ergonomic handheld versions

• Durability: Weather-resistant housing suitable for field deployment

• Operating Temp: Designed for wide range field use

Supported OS / Application / Industries

• System Compatibility: Works with Windows, Linux, mobile/cloud via bridge software or direct connection

• Applications: Extended-range animal identification, access control validation, portable asset tag sweeps, gate checkpoint verification, shelter and intake scanning, wildlife monitoring

• Industries: Agriculture & Livestock, Veterinary Services, Animal Welfare, Security & Access, Conservation, Facilities Management, Zoos & Parks

Benefits & Compatibility

• Captures LF tag IDs from farther away, reducing handling time

• Maintains compatibility with global ISO-compliant tags

• Tunable sensitivity adapts to crowded or sparse environments

• Offline buffering ensures no data loss in remote areas

• Rugged design survives harsh outdoor and gate locations

• Dual-mode connectivity fits centralized and mobile workflows

• Speeds throughput in high-volume scanning operations

Purpose of Use

• Herd and herd-entry gate identification with less intrusion

• Pet and animal reunification without close contact

• ID validation at access points or shelter intake

• Asset verification where tags are in situ and need longer read distance

• Monitoring animals or tagged items passing through wider portals

• Entry logging for controlled zones with minimal pauses

How to Use

1. Mount or hold the reader in the target zone.

2. Power it on and connect to the host system (USB/Bluetooth/serial).

3. Adjust sensitivity if needed for desired coverage.

4. Approach or allow tagged subjects to pass; reader picks up LF tag ID at extended range.

5. Confirm via audio/visual feedback; log or stream the ID to backend.

6. Sync buffered reads if operating offline.

Packaging / Weight / Dimensions

• Packaging: Protective shipment box with cables, mounting kit (for fixed variants), quick-start guide

• Weight: Varies by model; handheld units balanced for comfort, fixed units designed for stable mounting

• Dimensions: Compact footprint for doorway or gate installation; handheld variants sized for grip

• Accessories: Mount brackets, charging adapter or cable, protective covers

Warranty & FAQs

• Warranty: 1-year limited warranty on electronics and read performance

FAQs

• How is this different from standard LF readers?
  It uses optimized antennas and sensitivity tuning to read 134.2KHz tags at longer distances.

• Which tags will it read?
  ISO11784/11785 FDX-B and HDX low-frequency transponders.

• Can it work offline?
  Yes. Internal logging stores reads until synced.

• Is it weatherproof?
  Designed for field and gate use; housing resists dust and moisture.

Performance, Quality, Durability & Reliability

Built for continuous use, the reader balances extended range with stable detection. Signal conditioning reduces false reads from interference. Durable construction and quality RF components ensure consistent performance in variable outdoor conditions, with fail-safe logging and easy diagnostics.

Best Price Guarantee

NEOTECH offers transparent pricing and volume discounts for farm, shelter, and facility deployments. We commit to competitive long-distance LF reader rates across the UAE.

Shop Today & Receive Your Delivery Across the UAE

Fast dispatch to Dubai, Abu Dhabi, Sharjah, Ajman, and all emirates. Standard orders ship within 1–2 business days. Custom or bulk rollouts can be prioritized based on need.

Request for Customer Reviews and Testimonials

Using the 134.2KHz Long-Distance Reader? Share your success story. Submit a review to help peers and unlock loyalty incentives on future orders.

After Sales Support

Our team supports installation, range tuning, system integration, and troubleshooting. Reach out via email, phone, or live chat for configuration help and optimization.

Get in Touch

Need help selecting the right model, designing gate layouts, or integrating data? Contact NEOTECH’s RFID experts for quick, tailored support.

Stock Availability

Inventory updates daily. For large-scale or seasonal programs, confirm availability before ordering. Specialized or customized units may require 10–15 business days lead time.

Disclaimer

Specifications may change without notice. Images are illustrative. Confirm tag compatibility, environmental fit, and pricing with NEOTECH sales before purchase.
