Overview

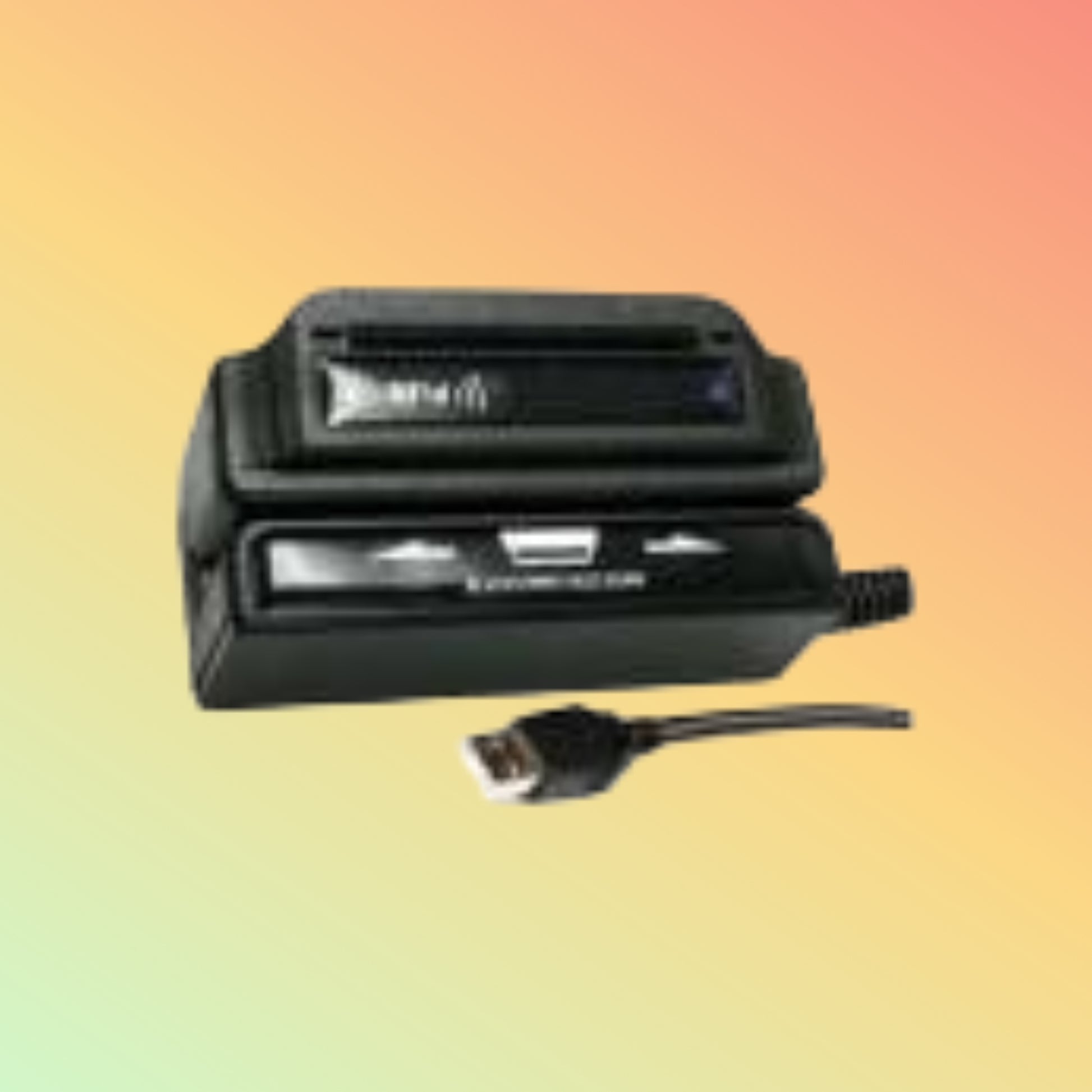

The NEOTECH Magnetic Stripe & 125kHz RFID Combo Reader merges legacy magstripe support with proximity RFID access in a single, compact unit. It is built for secure entry, membership validation, and multi-system credentialing. Ideal for facilities that need hybrid card workflows without added complexity.
Product Description
This combo reader accepts both magnetic stripe cards and low-frequency 125 kHz RFID tags. It decodes magstripe data instantly and captures proximity ID credentials in real time. Designed for access control, loyalty programs, parking systems, and membership platforms, the device drops into existing infrastructures with minimal integration effort.
Connection options include USB or keyboard wedge output, enabling plug-and-play on PCs, kiosks, and embedded terminals. Its firmware handles noisy environments and reduces read errors. A durable housing and clear feedback indicators support continuous daily use.
Key Features
-
Dual reading: magnetic stripe + 125 kHz RFID proximity
-
Fast swipe and tag detection (<0.2s)
-
USB interface for direct host connection
-
Keyboard wedge and serial emulation modes
-
Simple integration with access control and loyalty systems
-
LED and buzzer feedback on successful reads
-
Durable ABS shell for high-traffic areas
-
Adjustable read sensitivity for varied tag distance
-
No batteries required (powered via host)
-
Compatible with legacy and modern credential formats
Specifications
-
Magnetic Stripe: ISO 7811, tracks 1/2/3 support
-
RFID Frequency: 125 kHz low-frequency proximity
-
Tag Types: EM4100, EM4200, compatible 125kHz tags
-
Interface: USB HID / Keyboard Wedge / TTL Serial (configurable)
-
Read Range (RFID): Up to 7 cm depending on tag and environment
-
Swipe Speed: 3–60 inches per second (magstripe)
-
Feedback: LED indicators, beep tone
-
Power: USB bus-powered
-
Dimensions: 12 x 7 x 2.5 cm
-
Weight: ~150g
-
Operating Temp: 0°C to 50°C
-
Compliance: RoHS, CE (region dependent)
Supported OS / Application / Industries
Operating Systems
-
Windows
-
Linux
-
macOS (via HID input)
Applications
-
Access control and door entry
-
Membership and loyalty point validation
-
Time & attendance systems
-
Parking and gated community access
-
Event credential checking
-
Legacy system modernization
Industries
-
Commercial buildings
-
Gyms and fitness clubs
-
Hospitality
-
Education campuses
-
Residential complexes
-
Retail loyalty programs
Benefits & Compatibility
-
Combines two credential types in one footprint, reducing hardware clutter.
-
Backwards-compatible with existing magstripe cards and 125kHz proximity tags.
-
Easy to deploy with standard USB connectivity; no extra power supply needed.
-
Integrates with NEOTECH access platforms and loyalty point card systems for layered identity.
-
Works alongside the HF NFC RFID Card Reader and portable RFID barcode scanner for mixed-environment credential handling.
Purpose of Use
Use this reader to unify access and ID workflows where facilities use both magnetic stripe and proximity credentials. It reduces kiosk complexity, enables hybrid loyalty/membership programs, and modernizes legacy entry systems without replacing all cards.
How to Use
-
Connect via USB to host system.
-
Configure mode (keyboard wedge, serial, HID) if needed.
-
Swipe magnetic stripe card or present 125kHz RFID tag.
-
Observe LED/beep confirmation.
-
Data appears in the target application instantly.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty
12-month limited NEOTECH warranty covering defects and read failures under normal use.
FAQs
Q: Will it work with old swipe cards and new RFID tags simultaneously?
A: Yes. It supports magstripe and 125kHz proximity credentials out of the box.
Q: Does it need drivers?
A: No for standard HID/keyboard wedge mode; serial mode may use virtual COM drivers.
Q: Can it feed into a POS or access panel?
A: Yes. It outputs in formats accepted by most control systems and software that accept keyboard input.
Performance, Quality, Durability & Reliability
Built for continuous read environments, the reader filters false triggers and tolerates variable swipe speeds. The housing resists impact and daily wear. NEOTECH calibrates each unit to maintain consistent read accuracy across mixed credential use.
