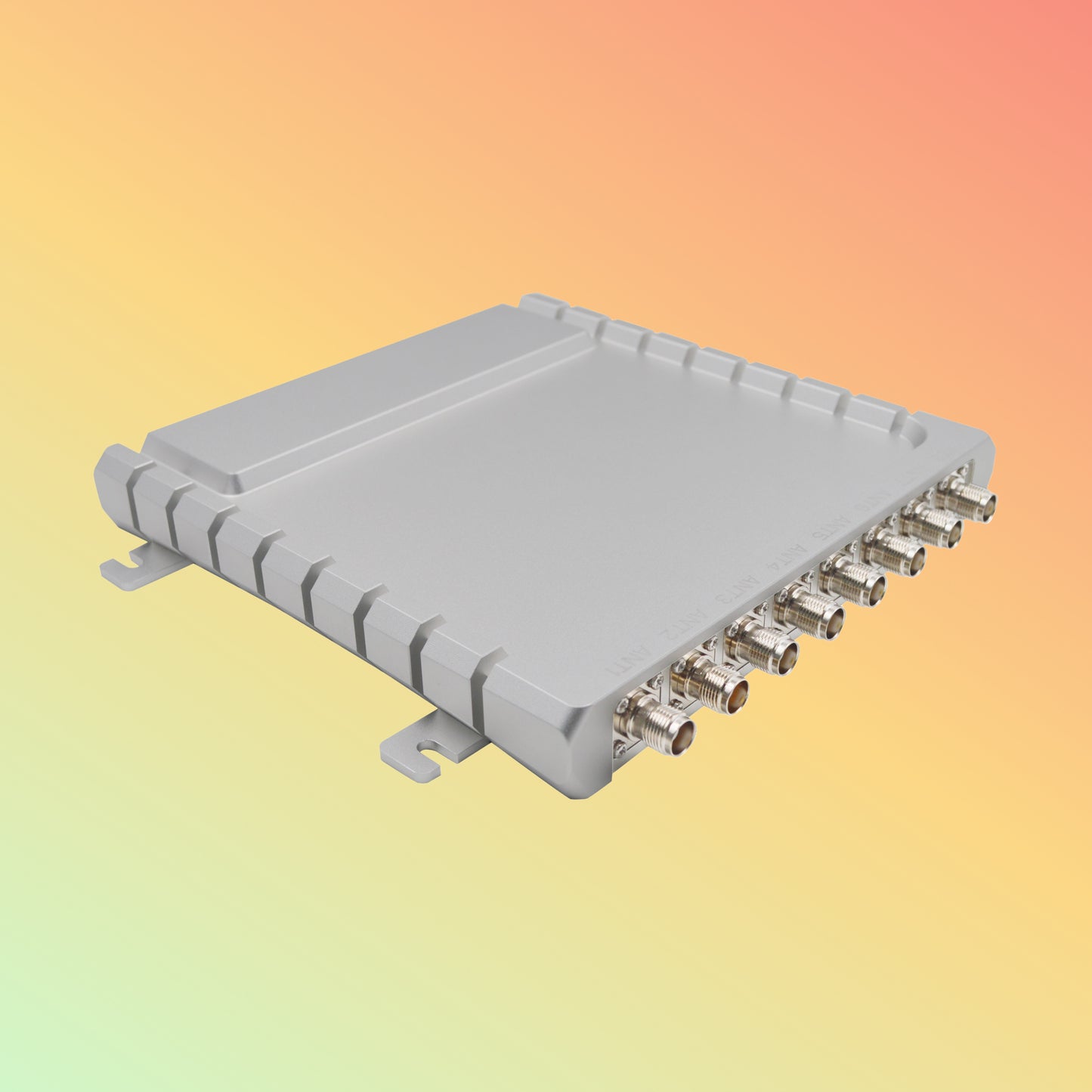

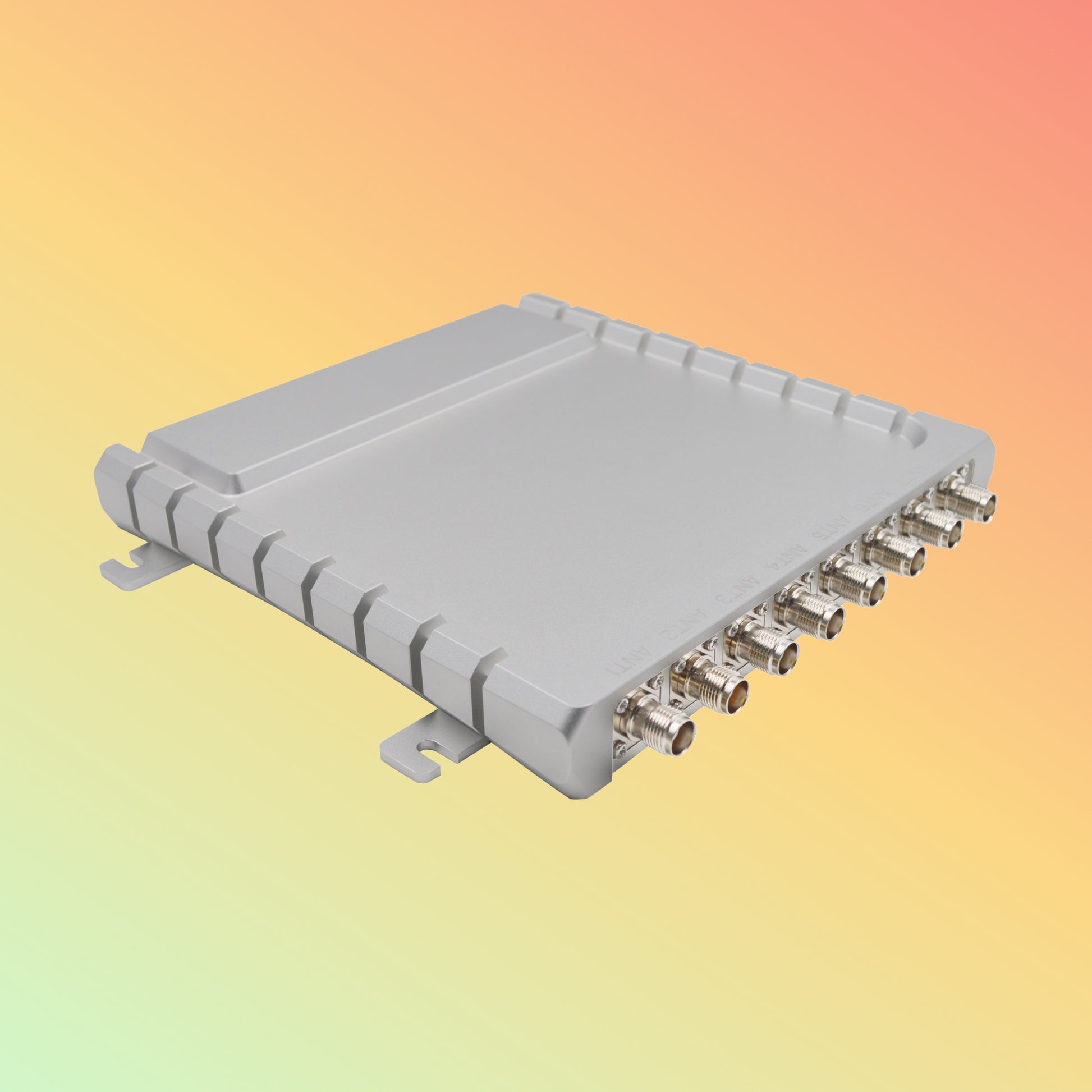

rfid 8-channel UHF RFID reader

Scale real-time tracking with the 8-channel UHF RFID reader. Multi-antenna reads, fast data sync, easy integration—buy now for UAE deployments.

Overview

The 8-Channel UHF RFID Reader delivers simultaneous multi-antenna reads for high-volume tagging zones. It boosts throughput and accuracy in access, inventory, and vehicle checkpoint use cases. Built rugged, it fits smart logistics, campus security, and industrial workflows.

Product Description

This integrated reader supports eight antenna ports to cover wide areas without blind spots. It operates across the global 860–960MHz UHF band and handles EPC Gen2 / ISO 18000-6C tags with anti-collision logic. Data streams in real time to host systems via Ethernet, serial, or optional wireless bridges. Deployment is flexible—mount it in gates, docks, ceilings, or entry lanes. Firmware control, remote diagnostics, and SDK/API access let you tailor it to access control, asset tracking, fleet entry, or event gating pipelines.

Key Features

• Eight antenna ports for broad area coverage

• UHF 860–960MHz global frequency support

• EPC Gen2 / ISO 18000-6C tag compatibility

• High-speed multi-tag anti-collision reading

• Real-time data output (Ethernet / RS232 / optional Wi-Fi)

• Remote configuration and firmware updates

• PoE and DC power options

• Built-in diagnostics and health monitoring

• Rugged, weather-resistant housing (IP65+)

• SDK/API for system integration

Specifications

• Frequency Range: 860–960 MHz

• Protocols: EPC Gen2 / ISO 18000-6C

• Antenna Ports: 8 independent ports

• Read Range: Typically 3–10 meters (environment dependent)

• Tag Throughput: High-density multi-tag support with anti-collision

• Interfaces: Ethernet (TCP/IP), RS232, optional Wi-Fi/USB bridge

• Power: PoE (IEEE 802.3af) or 12V DC

• Enclosure: IP65+ rated for indoor/outdoor use

• Operating Temperature: -20°C to 60°C

• Management: Web UI, remote access, logging

• Integration: REST/sockets, SDKs for Windows/Linux/embedded systems

Supported OS / Application / Industries

• System Compatibility: Works with backend platforms on Windows, Linux, Android, iOS via middleware

• Applications: Warehouse inventory, vehicle gate control, facility access, event attendee flow, asset lifecycle tracking, smart campus validation

• Industries: Logistics & Distribution, Manufacturing, Transportation, Education & Campus Security, Retail, Government, Smart Cities

Benefits & Compatibility

• Covers wide zones with fewer devices using multi-antenna support

• Cuts manual checks with fast, concurrent reads

• Seamless integration into existing RFID ecosystems

• Scales across sites with centralized management

• Operates reliably in harsh or outdoor environments

• Compatible with standard UHF EPC Gen2 tags and enterprise software

Purpose of Use

• Gate and dock checkpoint automation

• High-volume inventory reconciliation

• Fleet entry/exit validation

• Controlled area access monitoring

• Event crowd flow tracking

• Asset audit and tagging across large footprints

How to Use

1. Mount reader in desired location.

2. Connect antennas to the eight ports.

3. Power via PoE or DC and link to network.

4. Configure reader through web UI or provided tools.

5. Deploy EPC Gen2 tags on items, vehicles, or badges.

6. Reader captures IDs; system logs or triggers workflows.

Packaging / Weight / Dimensions

• Packaging: Protective carton with mounting kit, network/power accessories, quick-start guide

• Weight: Approx. 700–900g (model dependent)

• Dimensions: Typical compact housing (~180mm x 140mm x 60mm)

• Accessories: Mount brackets, optional weather seals, antenna cables

Warranty & FAQs

• Warranty: 1-year limited warranty on hardware

FAQs

• Can it drive multiple antennas at once?
  Yes. Eight independent antenna ports allow broad zone coverage.

• Is it suitable for outdoor gates?
  Yes. IP65+ rating protects against dust and rain.

• How do I pull data into my system?
  Use REST/API outputs, socket feeds, or middleware connectors.

• Does it support PoE?
  Most models support PoE for simplified cabling.

Performance, Quality, Durability & Reliability

Designed for continuous enterprise operation, the reader delivers consistent capture even in dense tag environments. Robust RF components, live diagnostics, and firmware resilience minimize downtime. Multi-antenna coordination reduces blind spots and improves read certainty in busy workflows.

Best Price Guarantee

NEOTECH provides clear, direct pricing with no hidden fees. Volume purchases qualify for tiered discounts. We guarantee competitive rates for 8-channel UHF RFID reader deployments across the UAE.

Shop Today & Receive Your Delivery Across the UAE

Local stock and fast dispatch to Dubai, Abu Dhabi, Sharjah, Ajman, and all emirates. Standard orders ship within 1–2 business days. Priority and bulk fulfillment available.

Request for Customer Reviews and Testimonials

Deployed the 8-Channel UHF RFID Reader? Tell us how it improved your throughput. Submit a review to earn repeat-order incentives and help others choose wisely.

After Sales Support

From system integration to tuning antenna zones, our support team is accessible via email, phone, or live chat. We help with firmware updates, network configuration, and performance diagnostics.

Get in Touch

Need help designing a multi-reader layout or integrating with your backend? Contact NEOTECH’s RFID systems experts for tailored advice and fast response.

Stock Availability

Stock levels refresh daily. For urgent rollouts, verify availability before checkout. Large-scale or custom configuration orders may need 10–15 business days lead time.

Disclaimer

Specifications are subject to change without notice. Images are illustrative. Confirm compatibility, deployment environment, and pricing with NEOTECH sales before ordering.
