Speed up access and tracking with the UHF 860–960MHz mid-range integrated RFID reader. Reliable reads, easy integration, UAE-wide delivery—buy now.
Overview

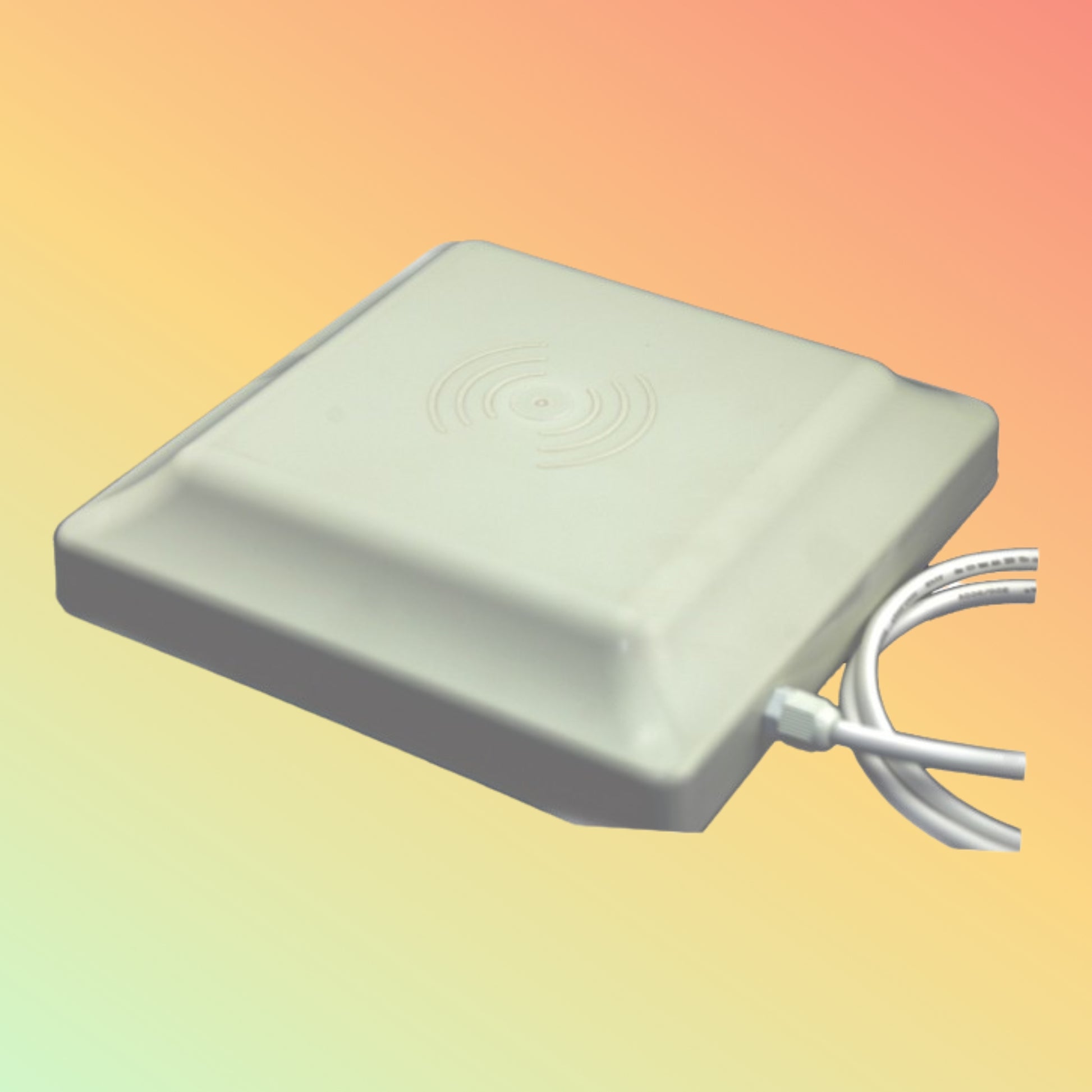

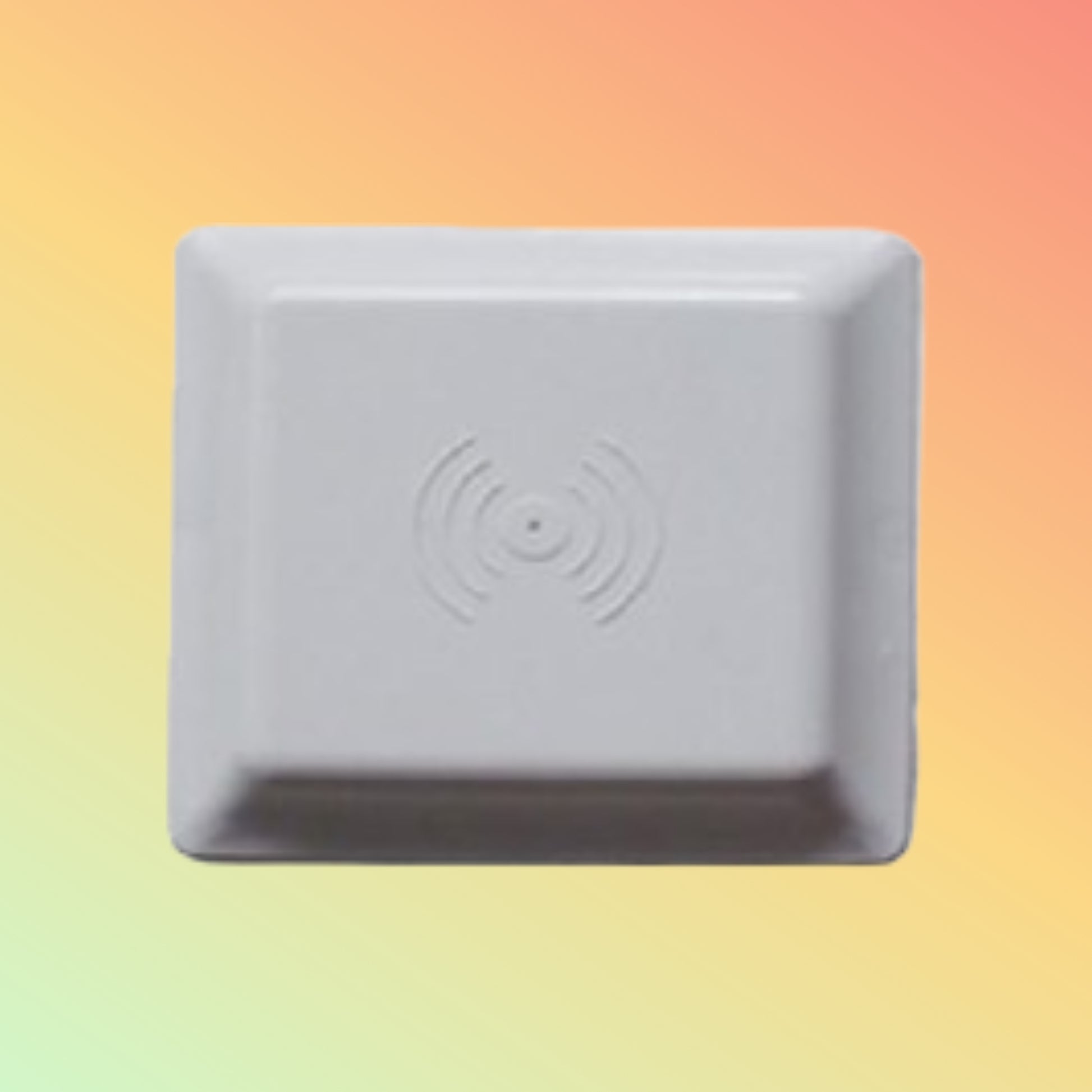

The UHF Mid-Range RFID Integrated Reader (860–960MHz) is a versatile reader that balances range and precision. It’s built to deliver consistent tag detection in warehouses, access points, inventory zones, and event checkpoints, with minimal setup and seamless system integration.
Product Description
This all-in-one integrated reader combines antenna, RF front-end, and decoding logic into a compact unit optimized for mid-range UHF applications. It reads EPC Gen2 / ISO 18000-6C tags from several meters away, handling multiple tags simultaneously with anti-collision. Designed for permanent install or portable deployment, it supports real-time data forwarding to host systems and syncs with access, inventory, or tracking software.
Ruggedized for indoor/outdoor use, the reader offers stable performance in dense tag environments and integrates over standard interfaces for fast commissioning. Ideal for smart logistics, vehicle entry, asset verification, and controlled access corridors.
Key Features
-
UHF frequency coverage: 860–960MHz (global compatibility)
-
EPC Gen2 / ISO 18000-6C tag support
-
Mid-range read distance (configurable, typically 3–8 meters)
-
Built-in antenna and RF module (integrated design)
-
Multi-tag anti-collision processing
-
Real-time data output via Ethernet / RS232 / optional Wi-Fi or USB
-
Durable housing for indoor/outdoor deployment
-
Easy firmware updates and remote management
-
Power over Ethernet (PoE) or standard DC input options
-
API/SDK support for integration
Specifications
-
Frequency Range: 860–960 MHz
-
Protocols: EPC Gen2 / ISO 18000-6C
-
Read Range: Approx. 3–8 meters (environment dependent)
-
Tag Throughput: High-speed multi-tag reads with anti-collision
-
Interfaces: Ethernet (TCP/IP), RS232, USB (model dependent), optional Wi-Fi
-
Power: PoE (IEEE 802.3af) or 12V DC input
-
Antenna: Integrated directional or circular (model-specific)
-
Enclosure: IP65 or higher (weather-resistant)
-
Operating Temperature: -20°C to 60°C
-
Mounting: Wall, ceiling, or bracket installation
-
Management: Web UI / remote configuration / firmware upgrade
-
Integration: SDKs, REST/Socket output, middleware compatibility
Supported OS / Application / Industries
-
System Compatibility: Works with backend platforms on Windows, Linux, Android, iOS (via middleware or companion apps)
-
Applications: Inventory tracking, access control, vehicle checkpoint validation, asset management, event gating, supply chain visibility
-
Industries: Logistics & Warehousing, Manufacturing, Transportation, Education & Campus Security, Retail, Events & Hospitality, Smart Cities
Benefits & Compatibility
-
Improves throughput with reliable mid-range reads
-
Reduces manual scanning and human error
-
Plug-and-play integration with existing RFID systems
-
Scales across zones with centralized management
-
Weatherproof design for harsh environments
-
Supports real-time decisioning via live data feeds
-
Compatible with standard UHF RFID tags and enterprise software
Purpose of Use
-
Automated gate and checkpoint validation
-
Smart inventory reconciliation
-
Controlled access to restricted zones
-
Vehicle entry and exit logging
-
Event attendee tracking
-
Asset lifecycle monitoring
How to Use
-
Mount the reader at the required location (wall, ceiling, gate).
-
Power via PoE or DC and connect to network.
-
Configure using web interface or supplied software.
-
Deploy UHF RFID tags on items, vehicles, or personnel.
-
Reader captures tag IDs and forwards to host system for action or logging.
Packaging / Weight / Dimensions
-
Packaging: Protective box with mounting bracket, power/network cables, quick-start guide
-
Weight: Varies by model (~500g–800g typical)
-
Dimensions: Compact housing (approx. 160mm x 120mm x 50mm, model-dependent)
-
Accessories: Mounting kit, antenna variant options, optional weather seals
Warranty & FAQs
FAQs
-
Can it handle many tags at once?
Yes. Built-in anti-collision supports high tag throughput.
-
Does it work outdoors?
Yes. Weather-resistant enclosure allows reliable outdoor use.
-
How do I integrate it with my system?
Use provided SDK, REST output, or standard TCP/IP socket feeds.
-
Can I power it over Ethernet?
Most models support PoE for simplified deployment.
Performance, Quality, Durability & Reliability
Engineered for continuous operation, the reader maintains consistent read rates in dense and noisy RF environments. Quality RF components minimize dropouts. Firmware includes diagnostics and self-recovery routines. Proven in live deployments for high uptime and accurate mid-range identification.
Best Price Guarantee
NEOTECH offers transparent, factory-direct pricing. Volume purchases unlock deeper discounts. We guarantee market-competitive rates across the UAE for RFID integrated reader solutions.
Shop Today & Receive Your Delivery Across the UAE
Fast shipping to Dubai, Abu Dhabi, Sharjah, Ajman, and beyond. Standard orders dispatch within 1–2 business days. Priority delivery and bulk fulfillment can be arranged on request.
Request for Customer Reviews and Testimonials
Using the UHF Mid-Range RFID Integrated Reader? Share your deployment insights. Submit a review to help others choose confidently and access loyalty benefits on next purchases.
After Sales Support
From setup to firmware tuning, our tech team is available via email, phone, or live chat. We assist with integration, network configuration, and performance optimization.
Get in Touch
Need help selecting the right reader model or integrating into your workflow? Contact our RFID systems experts for fast, tailored guidance.
Stock Availability
Inventory updates daily. For urgent rollouts, confirm stock before checkout. Large or customized deployments may require 10–15 business days lead time.
Disclaimer
Specifications may change without notice. Images are illustrative. Confirm compatibility, deployment environment, and pricing with NEOTECH sales before ordering.
