Overview

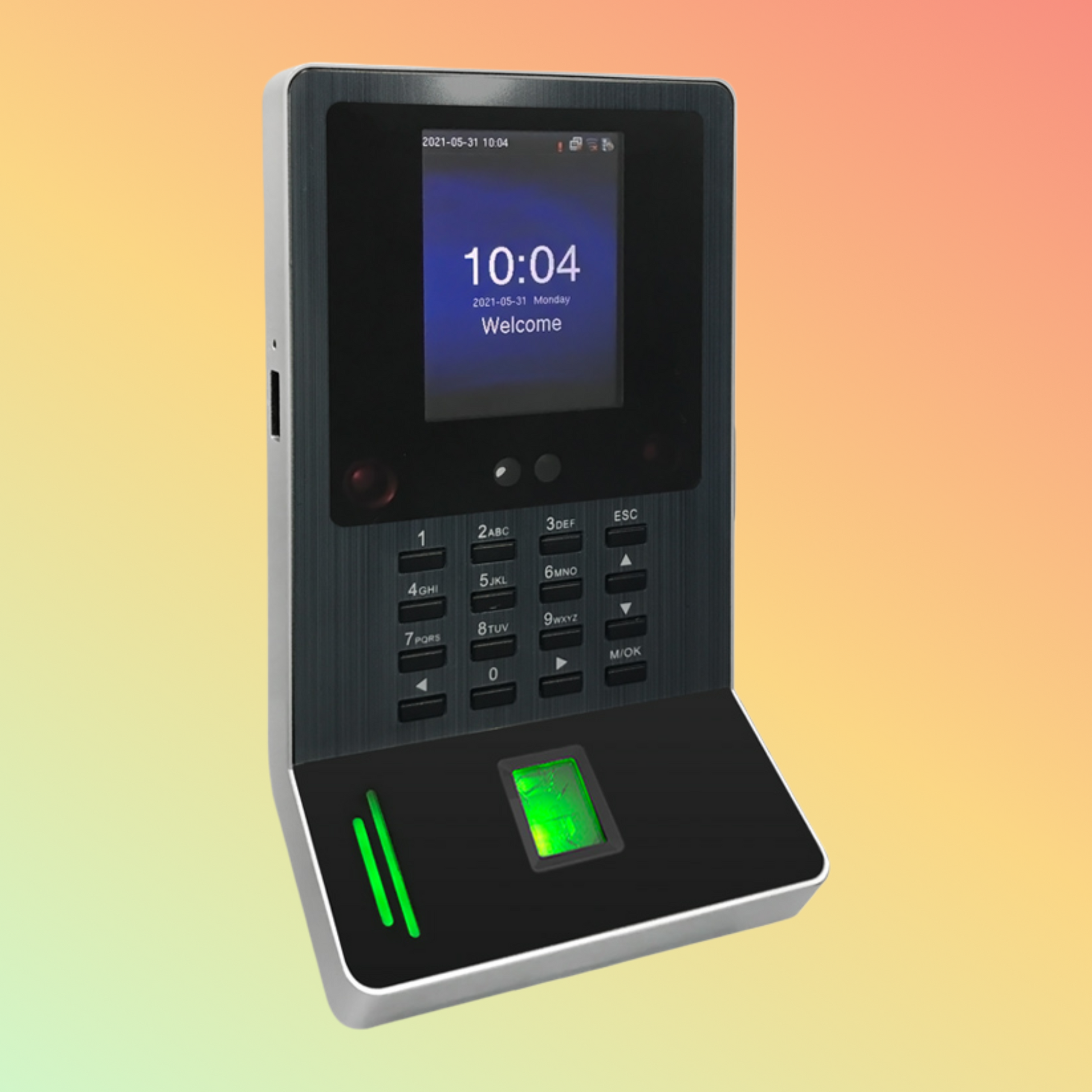

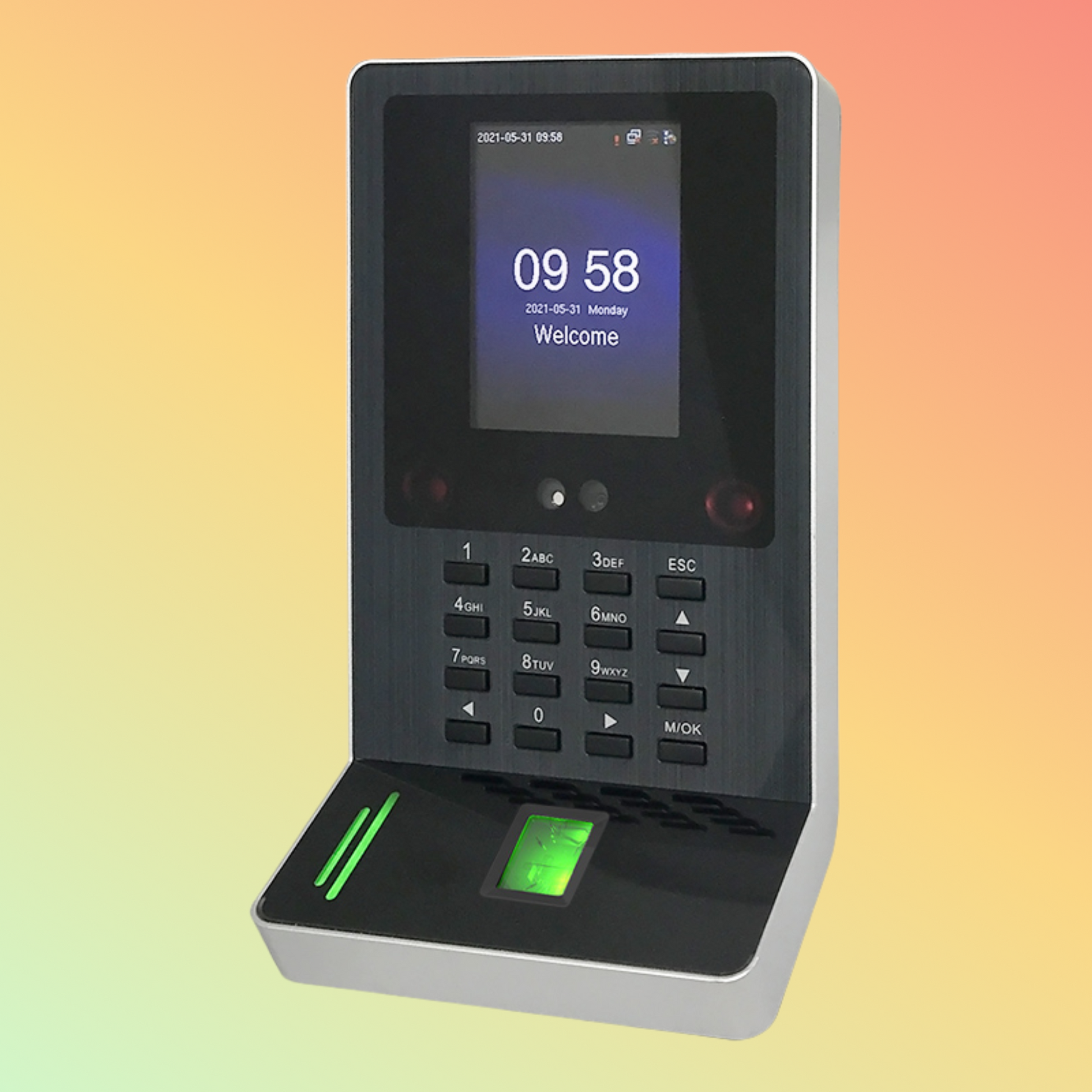

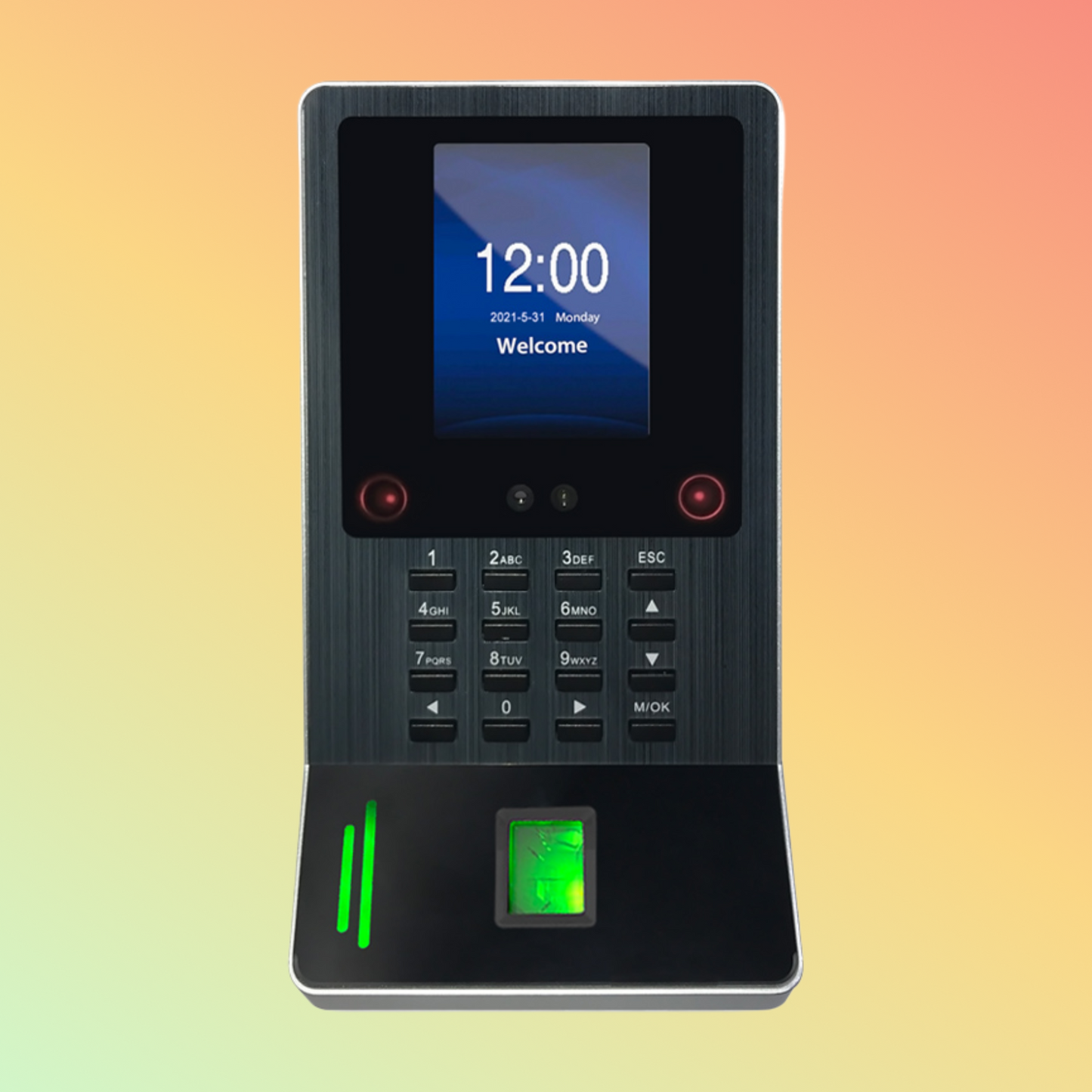

The Granding FA220 is a hybrid biometric terminal that unifies fingerprint, facial recognition, and RFID card capture for time attendance and door control. It delivers sub‑second authentication and scales from single‑door installs to multi‑site deployments.
Product Description
FA220 runs on a hardened Linux core for stability. A dual‑camera system and capacitive fingerprint sensor perform liveness‑checked scans in under 0.5 seconds. Staff can also tap RFID cards or enter PINs. Logs sync over TCP/IP or export via USB/RS‑485. No extra servers needed.
Key Features
-
Multi‑mode biometrics: face, fingerprint, card, PIN
-
Auto‑liveness check to block spoof attacks
-
< 0.5 sec verification per user
-
Stores 3,000 face, 5,000 fingerprint, 2,000 card templates
-
200,000 transaction log capacity
-
4″ TFT color touchscreen with intuitive UI
-
Ethernet (TCP/IP), RS‑485, Wiegand, USB interfaces
-
Offline cache with auto‑sync on reconnect
-
Multi‑language menus and reports
Specifications
-
Model: FA220
-
Face Capacity: 3,000 templates
-
Fingerprint Capacity: 5,000 templates
-
Card Capacity: 2,000 IDs
-
Log Capacity: 200,000 events
-
Display: 4″ TFT color touchscreen
-
Verification Modes: Face, fingerprint, RFID, PIN
-
Connectivity: Ethernet, RS‑485, Wiegand 26/34, USB
-
Power Input: DC 12 V/2 A
-
Operating Temp: 0 °C–45 °C
-
Humidity: 20%–80% RH
-
Dimensions: 200 × 140 × 45 mm
-
Weight: 0.7 kg
Supported OS / Application / Industries
OS Compatibility: Linux core; web admin via any modern browser
Applications:
-
Workforce time & attendance
-
Door and gate access control
-
Visitor identity verification
-
On‑demand auto‑report generation
Industries: Corporate · Healthcare · Education · Manufacturing · Logistics
Benefits & Compatibility
-
Hybrid biometrics eliminate buddy‑punching
-
Web interface simplifies remote management
-
Offline logs prevent data loss during outages
-
Integrates with most payroll and security platforms
-
Scalable from one door to enterprise networks
Purpose of Use
Deploy FA220 to enforce security policies, streamline payroll, and automate audit trails—without complex server setups or custom software.
How to Use
-
Mount terminal and connect power/network.
-
Enroll users’ faces, fingerprints, cards, or PINs via touchscreen.
-
Staff authenticate for entry or time logging.
-
Monitor live status on web console or export logs via USB.
Packaging / Weight / Dimensions
-
Includes: FA220 unit, DC 12 V adapter, mounting bracket, quick‑start guide
-
Dimensions: 200 × 140 × 45 mm
-
Weight: 0.7 kg
Warranty & FAQs
Warranty: 12‑month NEOTECH warranty
FAQs:
-
Does it require servers?
No, standalone with web admin.
-
What if network fails?
Logs store locally; auto‑sync resumes later.
-
Is liveness detection built‑in?
Yes, for both iris and face modules.
Performance, Quality, Durability & Reliability
Built with industrial‑grade optics and metal housing, FA220 delivers consistent performance in dust, humidity, and temperature extremes. Firmware is tuned for high‑volume verification.
Best Price Guarantee
NEOTECH UAE pledges the lowest price on the Granding FA220. Spot a lower quote? We’ll match and beat it.
Shop Today & Receive Your Delivery Across the UAE
Order now for 1–3 day delivery in Dubai, Abu Dhabi, Sharjah, and beyond. Bulk deployments? Contact our sales team for volume discounts.
Request for Customer Reviews and Testimonials
Deployed the FA220? Share your feedback and help peers choose the ideal biometric solution.
After Sales Support
Every purchase includes NEOTECH’s local after‑sales service: free firmware updates, technical assistance, and optional remote training.
Get in Touch
Need advice on multi‑biometric access systems? Contact our security experts for tailored guidance and rapid replies.
Stock Availability
Stock levels update daily. For urgent installs, confirm availability before checkout. Bulk requests may require 10–15 business days.
Disclaimer
Specifications may change without notice. Verify compatibility with your infrastructure before purchase.
