Secure entry with Granding IR5. Combines iris, face & RFID card recognition in one rugged terminal. Fast, reliable, standalone. Order now at NEOTECH UAE!
Overview

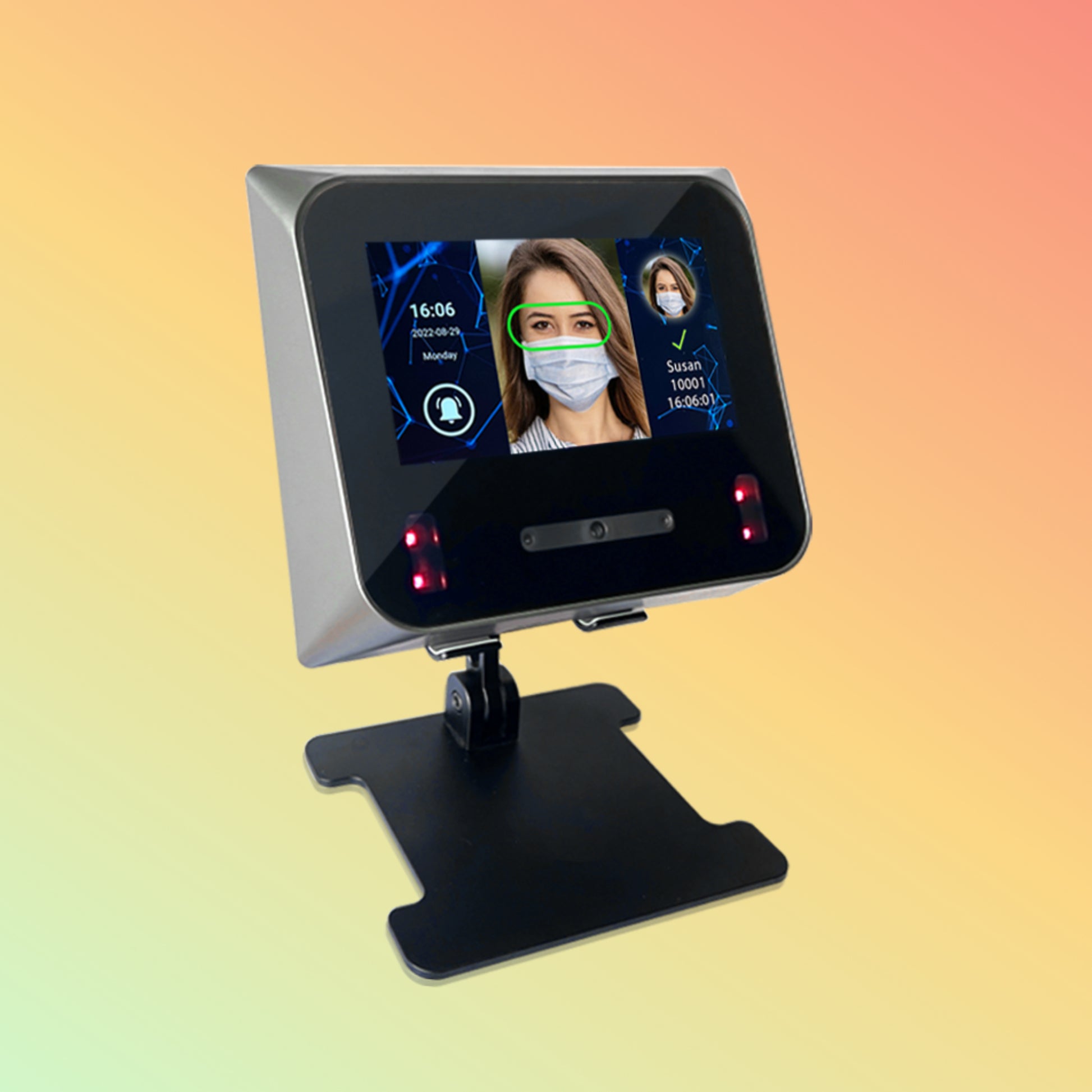

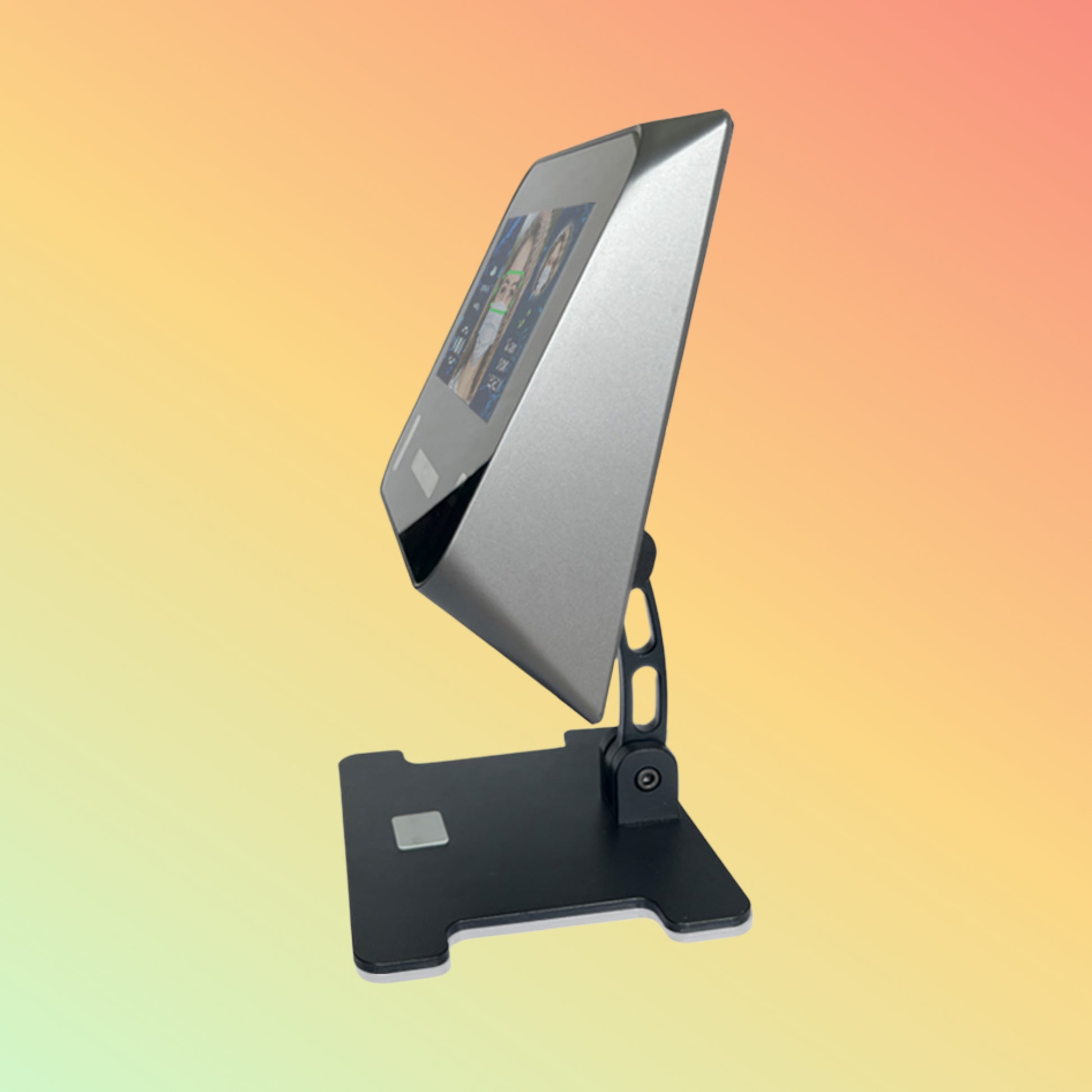

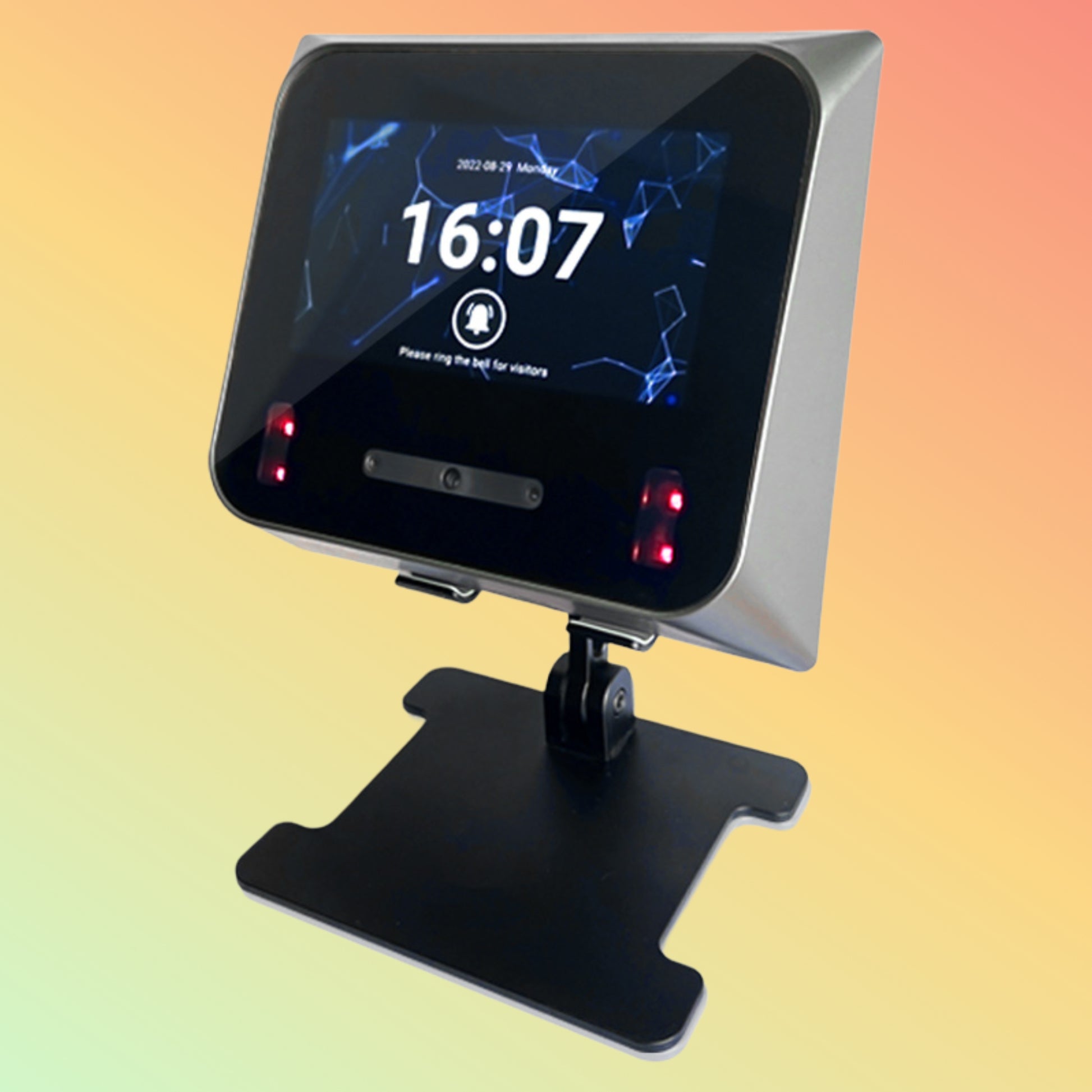

The Granding IR5 is an intelligent control terminal featuring iris, facial, and RFID card recognition. Built for high‑security sites, it delivers sub‑second, touch‑free authentication in a single, standalone device.
Product Description
Granding IR5 integrates an auto‑tilt visible‑light camera for face, near‑infrared optics for iris, and a multi‑frequency RFID reader. The 5″ color touchscreen guides users through quick enrollment and verification. All logs store locally; export via USB or sync over TCP/IP.
Key Features
-
Dual‑biometric: iris & face recognition in < 0.5 sec
-
RFID card reader (EM, HID, Mifare, proximity)
-
Auto‑tilt camera adjusts 1.2 m–2.1 m user height
-
5″ TFT color touchscreen with menu
-
Stores 3,000 iris, 5,000 face & 10,000 card templates
-
200,000 transaction log capacity
-
Ethernet (TCP/IP), Wiegand 26/34, RS‑485, USB interfaces
-
Built‑in liveness check to prevent spoofing
-
IP65‑rated for dust & water resistance
-
Wall‑mountable, fan‑less industrial design
Specifications
-
Model: IR5
-
Iris Capacity: 3,000 templates
-
Face Capacity: 5,000 templates
-
Card Capacity: 10,000 IDs
-
Log Storage: 200,000 events
-
Display: 5″ TFT color touchscreen
-
Verification Modes: Iris, face, RFID, PIN
-
Connectivity: Ethernet, Wiegand, RS‑485, USB 2.0
-
Power Input: DC 12 V/2 A
-
Operating Temp: –20 °C to 60 °C
-
Humidity: 10%–90% RH (non‑condensing)
-
Dimensions: 230 × 140 × 60 mm
-
Weight: 0.85 kg
Supported OS / Application / Industries
OS Compatibility: No PC software required; web admin via any browser
Applications:
-
High‑security access control
-
Time & attendance logging
-
Visitor identity verification
-
Secure facility entry
Industries: Finance · Government · Healthcare · Data centers · Corporate HQs
Benefits & Compatibility
-
Eliminates buddy‑punching and fake‑eye attacks
-
Auto‑tilt ensures ergonomic scans for all heights
-
Rugged IP65 build suits indoor / outdoor use
-
Integrates with most security panels via Wiegand/RS‑485
-
Exports logs for audit, payroll, or compliance
Purpose of Use
Deploy the IR5 to enforce strict access policies, automate attendance, and block spoofing attempts—without servers or complex wiring.
How to Use
-
Mount IR5 at the entry point and power on.
-
Enroll users’ iris, face, and/or RFID credentials via touchscreen.
-
User approaches; auto‑tilt positions camera and verifies.
-
System logs entry and unlocks the door.
-
Export logs via USB or retrieve in real time over TCP/IP.
Packaging / Weight / Dimensions
-
Includes: IR5 terminal, power adapter, mounting bracket, quick‑start guide
-
Dimensions: 230 × 140 × 60 mm
-
Weight: 0.85 kg
Warranty & FAQs
Warranty: 12‑month NEOTECH warranty
FAQs:
-
Does it work offline?
Yes; logs cache locally until export.
-
Can I add PIN fallback?
Yes; supports up to 100 PIN codes.
-
Is it vandal‑resistant?
Yes; IP65 and industrial housing.
Performance, Quality, Durability & Reliability
Engineered with premium IR optics and hardened PCBA, IR5 performs reliably in dust, rain, and extreme temperatures. Fan‑less design ensures silent, maintenance‑free operation.
Best Price Guarantee
NEOTECH guarantees the lowest UAE price on the Granding IR5. Found a better deal? We’ll match and beat it—no exceptions.
Shop Today & Receive Your Delivery Across the UAE
Order now for 1–3 day delivery in Dubai, Abu Dhabi, Sharjah, and beyond. Bulk orders qualify for volume discounts.
Request for Customer Reviews and Testimonials
Have you deployed the IR5? Share your field experience and tips—drop a review or testimonial to guide others.
After Sales Support
All purchases include NEOTECH’s local after‑sales service—firmware updates, technical assistance, and installation support.
Get in Touch
Need advice on Kyocera toner? Contact our print experts for personalized recommendations and fast replies.
Stock Availability
Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.
Disclaimer
Specifications may change without notice. Verify compatibility with your infrastructure before purchase.
