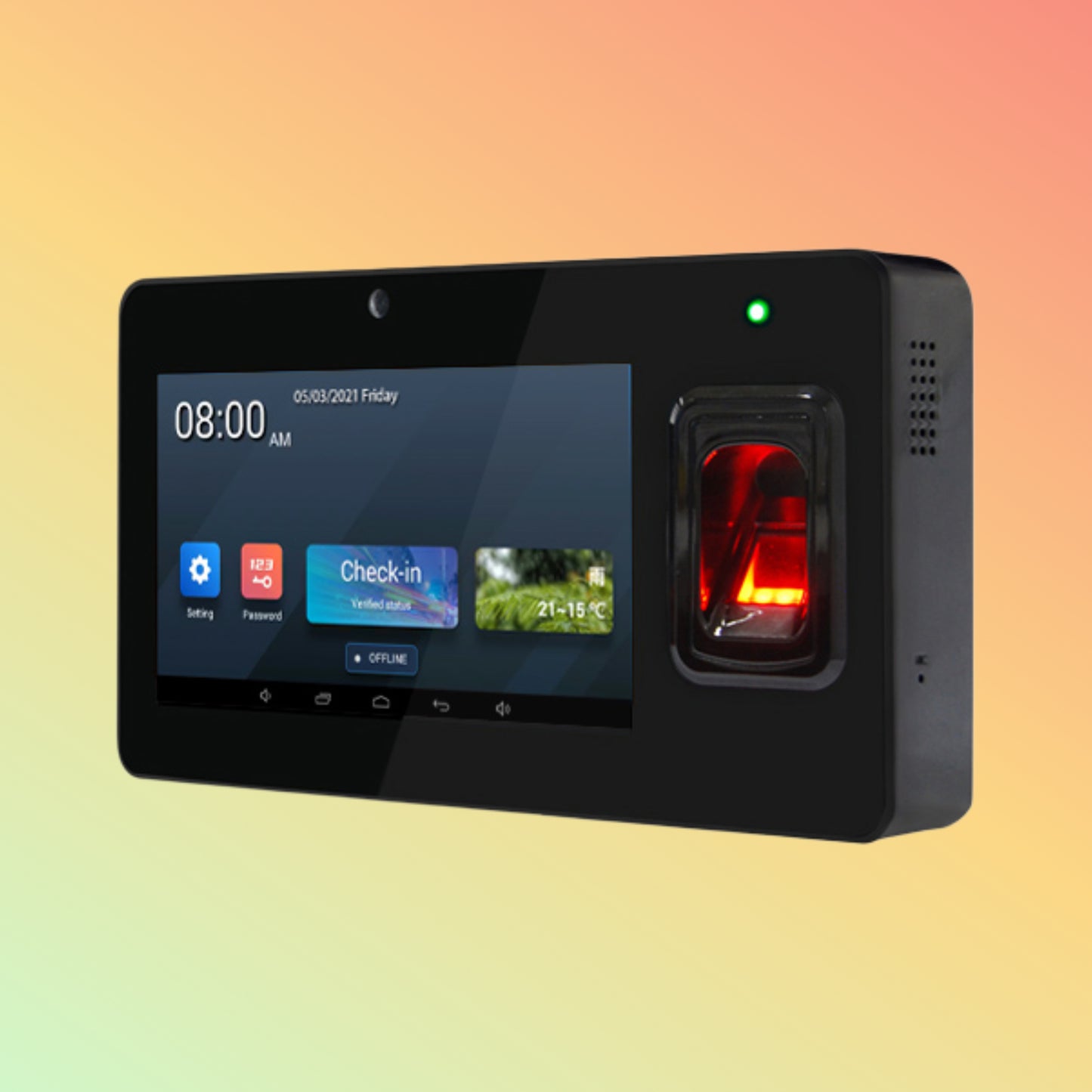

Granding GT168 Android Fingerprint Attendance & Access System

Secure your site with GT168 fingerprint attendance & access control. Fast scans, battery backup, real-time logs. Order now in the UAE!

Overview

The Granding GT168 is a dual-function terminal that logs time attendance and controls door access via fingerprint. It blends high-speed scans with reliable power backup, ensuring seamless operation at busy entry points.

Product Description

Powered by Android 7.1, the GT168 integrates a capacitive fingerprint sensor and a color 2.8″ display. It verifies identities in under 0.5 seconds. An internal battery maintains up to 6 hours of offline use. Connectivity options include Ethernet, RS-485 and optional Wi-Fi. With built-in relays, it unlocks doors directly—no extra modules required.

Key Features

• Capacitive fingerprint sensor for sub-0.5s recognition

• 2.8″ TFT color screen with intuitive UI

• Built-in lithium battery supports 6h offline logging

• Ethernet & RS-485 for secure, wired integration

• Optional Wi-Fi/Bluetooth for flexible installs

• 1 relay output & 3 inputs for door and alarm control

• Supports 3,000 templates & 100,000 logs on board

• Auto wake on finger-approach for hands-free use

• Multi-language prompts and on-screen guidance

• Tamper alert and secure data encryption

Specifications

• OS: Android 7.1 embedded

• Sensor: 500 DPI capacitive fingerprint, <0.5s read

• Display: 2.8″ 320×240 TFT

• Storage: 3,000 templates; 100,000 transaction logs

• Battery: 3.7 V/2,600 mAh Li-ion, 6h runtime

• Comm: Ethernet 10/100 Mbps; RS-485; USB-Host; Wi-Fi/Bluetooth (opt.)

• I/O: 1× relay output, 3× digital inputs, door sensor, exit button

• Power: 12 VDC, 1 A adapter

• Env: 0 °C–45 °C, 20–80% RH

• Dims: 170 × 120 × 45 mm

• Weight: 380 g (with battery)

Supported OS / Application / Industries

OS & Middleware: Integrates with Windows, Linux via SDK or TCP/IP.
Applications: Time & attendance, door access, visitor management.
Industries: Offices, factories, schools, healthcare, logistics, retail.

Benefits & Compatibility

• Dual function reduces hardware footprint and cost.

• Battery backup keeps clocks ticking during outages.

• Direct door relay cuts installation time.

• Scalable via Centralized Access Management Platform.

• Integrates with Attendance Software and RFID/NFC Credentials.

• Secure AES-encrypted data and tamper alerts protect records.

Purpose of Use

Ideal for HR and security teams to enforce attendance policies and manage door access from a single device. Deploy at main entrances, break rooms, or staff gates.

How to Use

1. Mount at eye level near entry.

2. Power on and connect Ethernet or Wi-Fi.

3. Enroll fingerprints via touchscreen menus.

4. Check in/out by placing finger on sensor or scanning RFID (optional).

5. Unlock doors automatically when access is valid.

6. Sync logs in real time to your backend.

Packaging / Weight / Dimensions

• Packaging: Protective export box with foam liner

• Included: GT168 terminal, battery, power adapter, mounting kit, quick-start guide

• Dimensions: 170 × 120 × 45 mm

• Weight: 380 g (with battery)

Warranty & FAQs

Warranty: 1-year limited hardware warranty; extended plans available.
FAQs:

• Q: How fast is the fingerprint read?
  A: Under 0.5 seconds per scan.

• Q: Does it work if network fails?
  A: Yes—stores logs locally and syncs when reconnected.

• Q: Can it unlock electric locks?
  A: Yes—built-in relay supports standard 12 VDC locks.

• Q: Is RFID supported?
  A: Optional module supports EM or HID Prox cards.

Performance, Quality, Durability & Reliability

Engineered for continuous operation, GT168 endures 100,000+ scans daily. Its metal-reinforced housing and industrial battery ensure uptime in demanding environments. Firmware updates via network keep security tight.

Best Price Guarantee

NEOTECH matches or beats any qualified UAE quote on the GT168. Keep your access rollout on budget with our price-beat promise.

Shop Today & Receive Your Delivery Across the UAE

Order the Granding GT168 now for priority dispatch from our UAE warehouse. Enterprise orders get pre-configuration and expedited shipping.

Request for Customer Reviews and Testimonials

Installed GT168 at your site? Share your review to guide peers and refine NEOTECH solutions.

After Sales Support

Our support team is on call via email, phone, or live chat for setup, troubleshooting, and firmware updates. We’ve got your back post-purchase.

Get in Touch

Need integration advice, site survey, or volume pricing? Contact NEOTECH’s biometric access specialists for fast, tailored quotes.

Stock Availability

✔ In Stock – Ready to ship from UAE warehouse
⏳ Limited units; confirm availability for large deployments before ordering.

Disclaimer

Specifications subject to change without notice. Images are illustrative. Confirm final specs and pricing with NEOTECH sales before purchase.
