Control entry with FB400 Flap Barrier Turnstile—bi-directional flow, fast opening, durable design. Order yours in the UAE today!
Overview

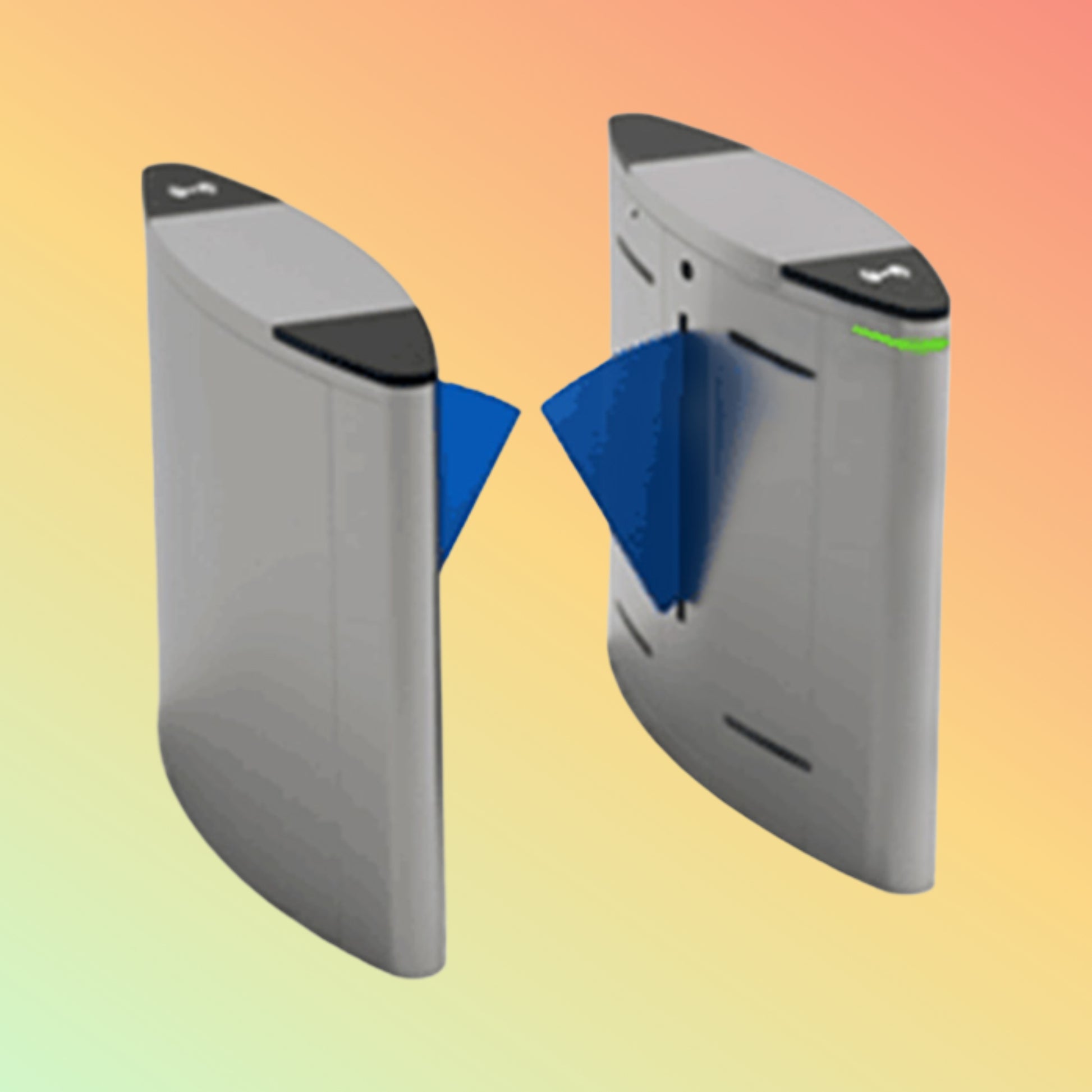

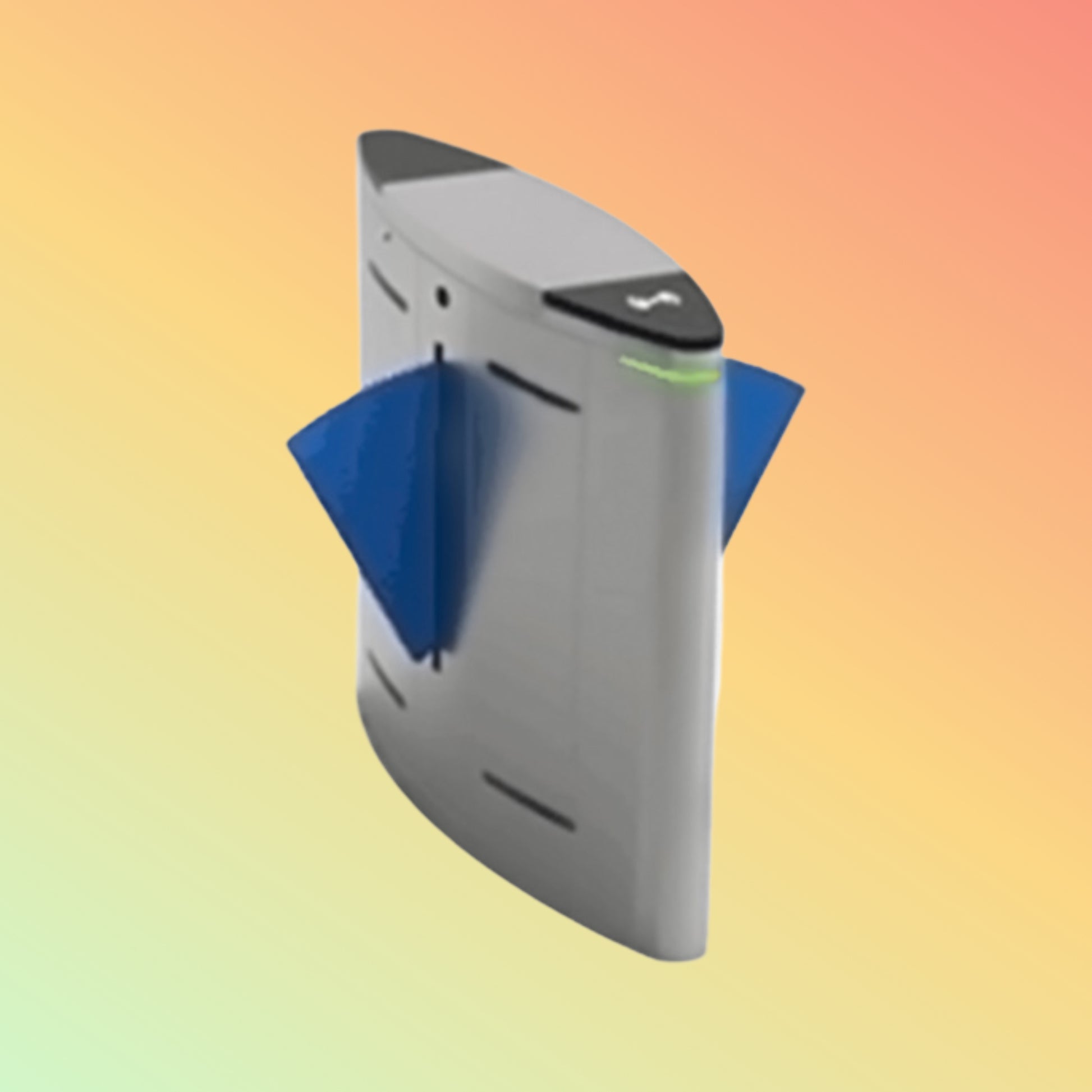

The FB400 is a motorized flap barrier turnstile that manages high-traffic entry points. It offers swift bi-directional passage and reliable obstacle detection. Ideal for offices, metro stations, and event venues.
Product Description
FB400 features two 10 mm tempered-glass flaps. Its brushless motor drives smooth, silent operation. Integrated sensors halt closing on obstruction. The chassis is stainless steel for strength and corrosion resistance. Connect to your access controller via dry-contact or RS-485.
Key Features
-
Bi-Directional Flow: Entry and exit lanes in one unit
-
Fast Response: Flap opens in ≤ 0.2 s on valid input
-
Safety Sensors: Stops on obstacle detection to prevent injury
-
Durable Build: 304 SS housing; outdoor IP54 rating
-
Low Noise: Brushless DC motor for silent operation
-
Multiple Inputs: Dry-contact, RS-485, WEIGAND support
-
LED Indicators: Passage status and direction arrows
-
Fail-Safe/Fast: Automatic open on power loss or fire alarm
Specifications
| Parameter |
Details |
| Dimensions |
1200 × 280 × 980 mm (L×W×H) |
| Flap Length |
300 mm |
| Opening Time |
≤ 0.2 s |
| Current Draw |
2 A (peak), 0.5 A (static) |
| Voltage |
AC 220 V ±10% / 50 Hz |
| Throughput |
30–45 persons/min |
| Operating Temp. |
–20 °C to +60 °C |
| Ingress Rating |
IP54 |
| Net Weight |
≈ 70 kg |
Supported OS / Application / Industries
-
Integration: Works with Windows/Linux access platforms
-
Use Cases: Corporate lobbies, transit gates, gym entrances
-
Industries: Transportation, commercial real estate, hospitality, healthcare
Benefits & Compatibility
-
Seamless Control: Integrate with GL-AC05 IP66 Reader or G2 TTLock Gateway
-
High Throughput: Manages peak crowds without delays
-
Enhanced Safety: Auto-reverse when obstructed
-

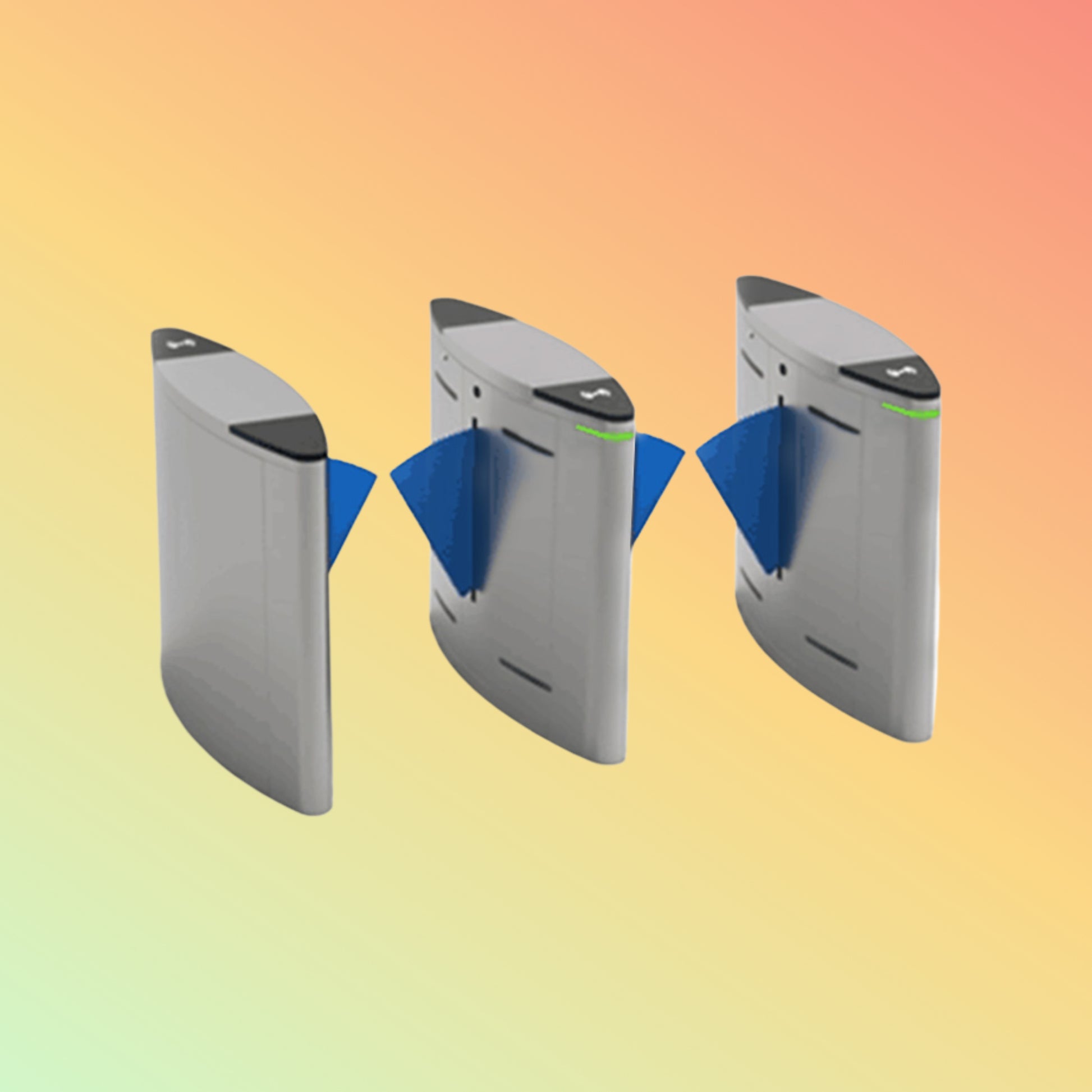

Scalable: Add multiple lanes for broader entrances
-
Energy Efficient: Low standby power consumption
Purpose of Use
Use the FB400 to secure and streamline busy entry points. It enforces authorized access and speeds up flow without the need for manual gates.
How to Use
-
Mount the unit on reinforced floor anchors.
-
Wire power (AC 220 V) and connect to your access control board.
-
Configure input type: WEIGAND or dry-contact.
-
Set opening time and fail-safe mode via DIP switches.
-
Test passage with valid credential and adjust sensor height.
Packaging / Weight / Dimensions
-
Includes: Turnstile unit, mounting kit, control board, manual
-
Carton Size: 1280 × 380 × 1080 mm
-
Gross Weight: ≈ 85 kg
Warranty & FAQs
Warranty: 2 years on motor and electronics
FAQs:
-
Can it work outdoors? → Yes, IP54 protects against dust and splash.
-
What if power fails? → Flaps open automatically for safety.
-
Which readers connect? → Any WEIGAND or dry-contact access reader.
-
How many can I link? → Control up to 16 lanes via RS-485.
Performance, Quality, Durability & Reliability
Tested for 10 million cycles. The stainless-steel chassis resists corrosion. The brushless motor runs quietly for years without maintenance.
Best Price Guarantee
NEOTECH offers the lowest UAE market price on FB400 turnstiles. Contact us for bulk-order and integration discounts.
Shop Today & Receive Your Delivery Across the UAE
Order by 4 PM for same-day dispatch in Dubai, Abu Dhabi, Sharjah, and beyond. Express freight available.
Request for Customer Reviews and Testimonials
Installed FB400 in your facility? Share your review to guide peers on efficient access control.
After Sales Support
From installation to troubleshooting, our tech team is on call via email, phone, or live chat. We’ve got your back post-purchase.
Get in Touch
Need a site survey or custom lane design? Contact our access experts for fast, professional guidance.
Stock Availability
Stocks update daily. For urgent deployment, confirm stock before ordering. Bulk requests may need 7–10 business days.
Disclaimer
All details are for general info and may change without notice. Images are illustrative. Verify specs and pricing with our sales team before ordering.
