Secure high-traffic entry with FB300 Flap Barrier Turnstile—fast bi-directional flow, robust design, obstacle detection. Order now at NEOTECH UAE!
Overview

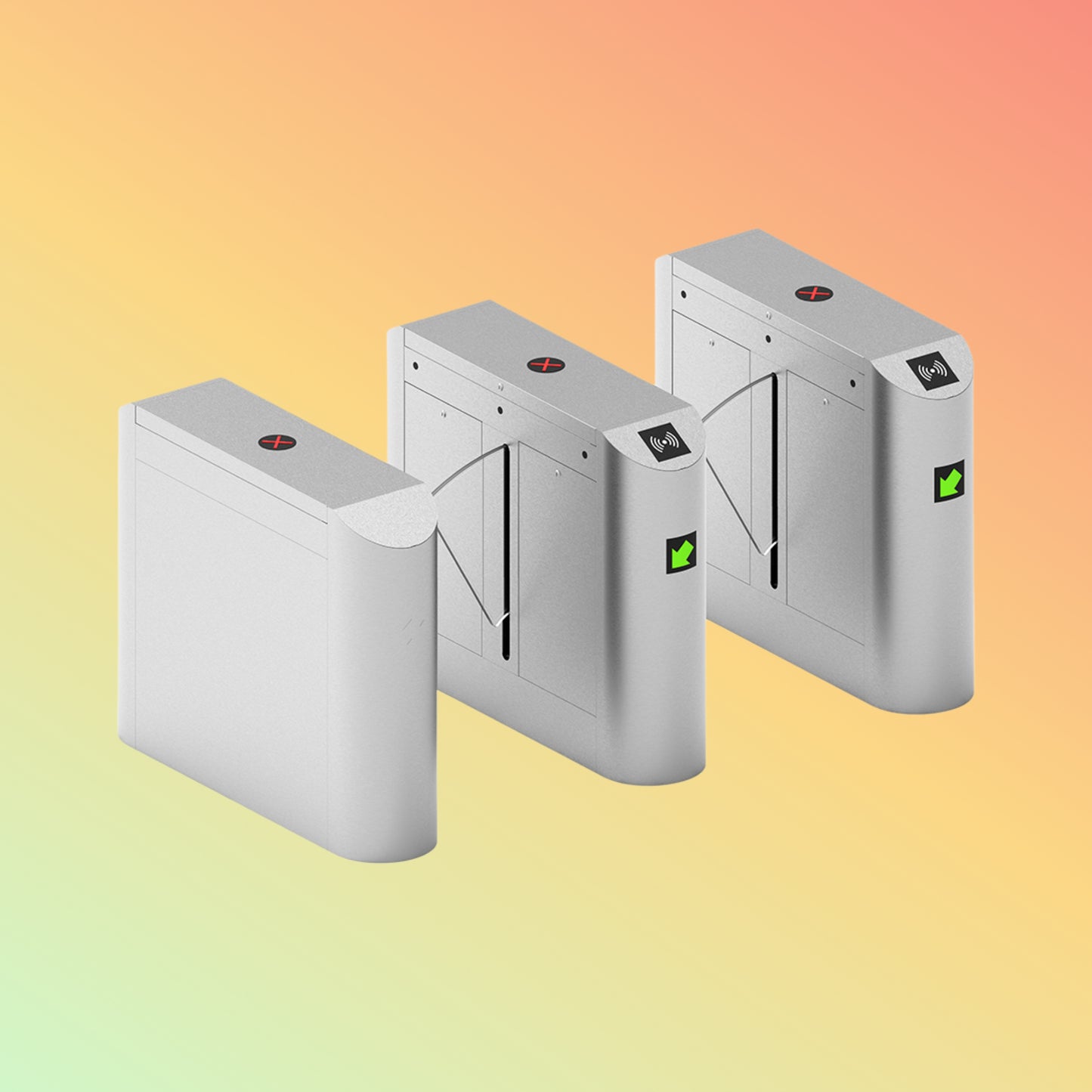

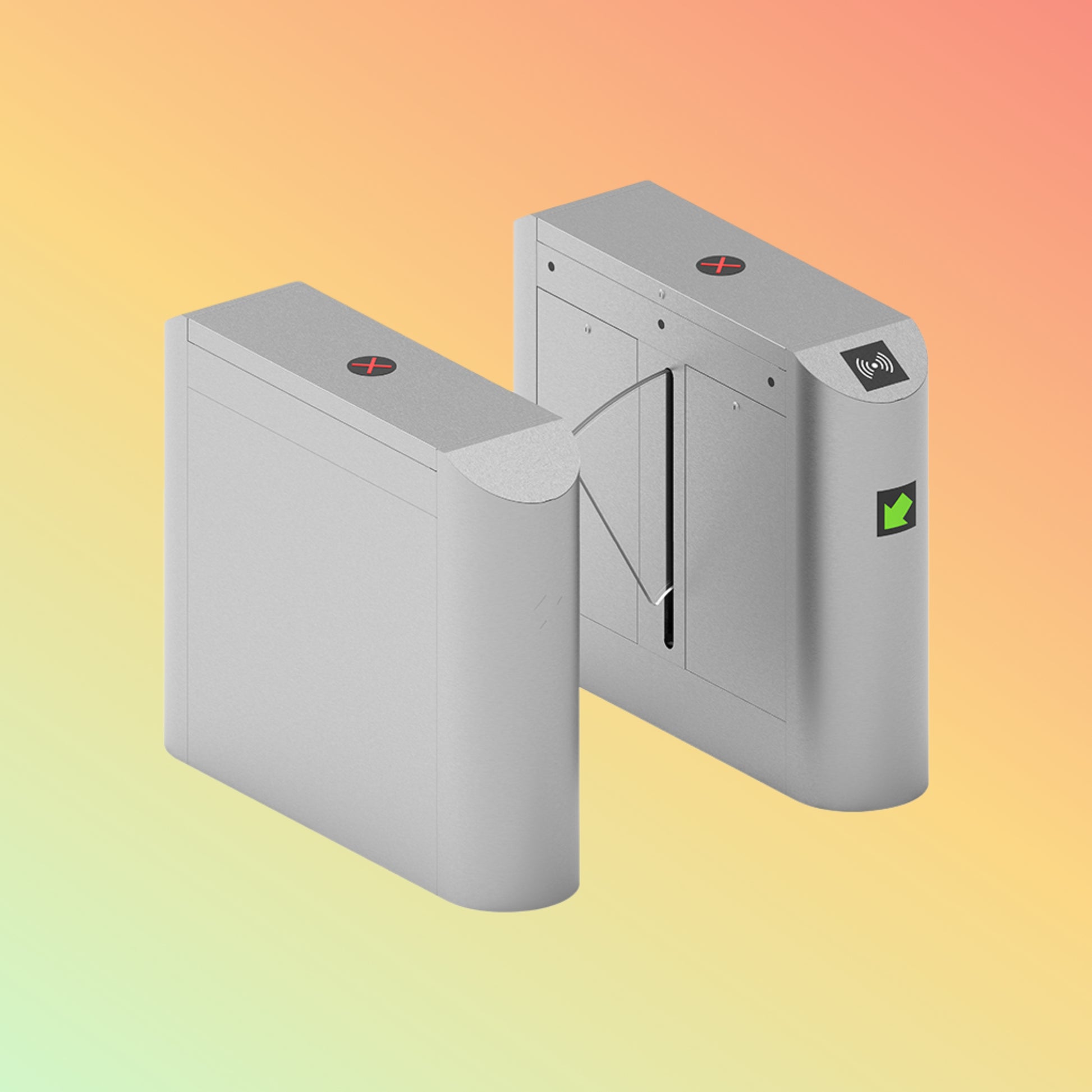

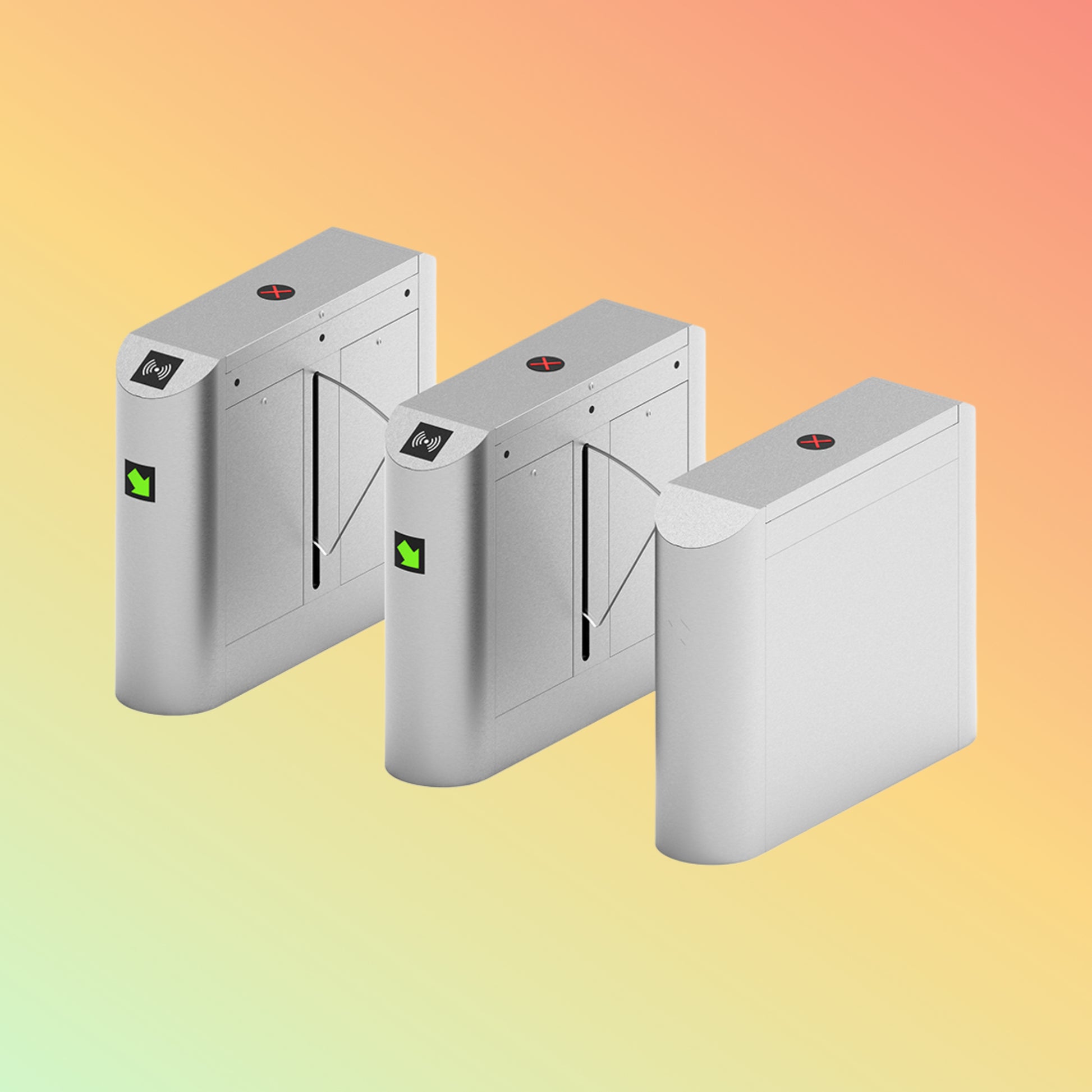

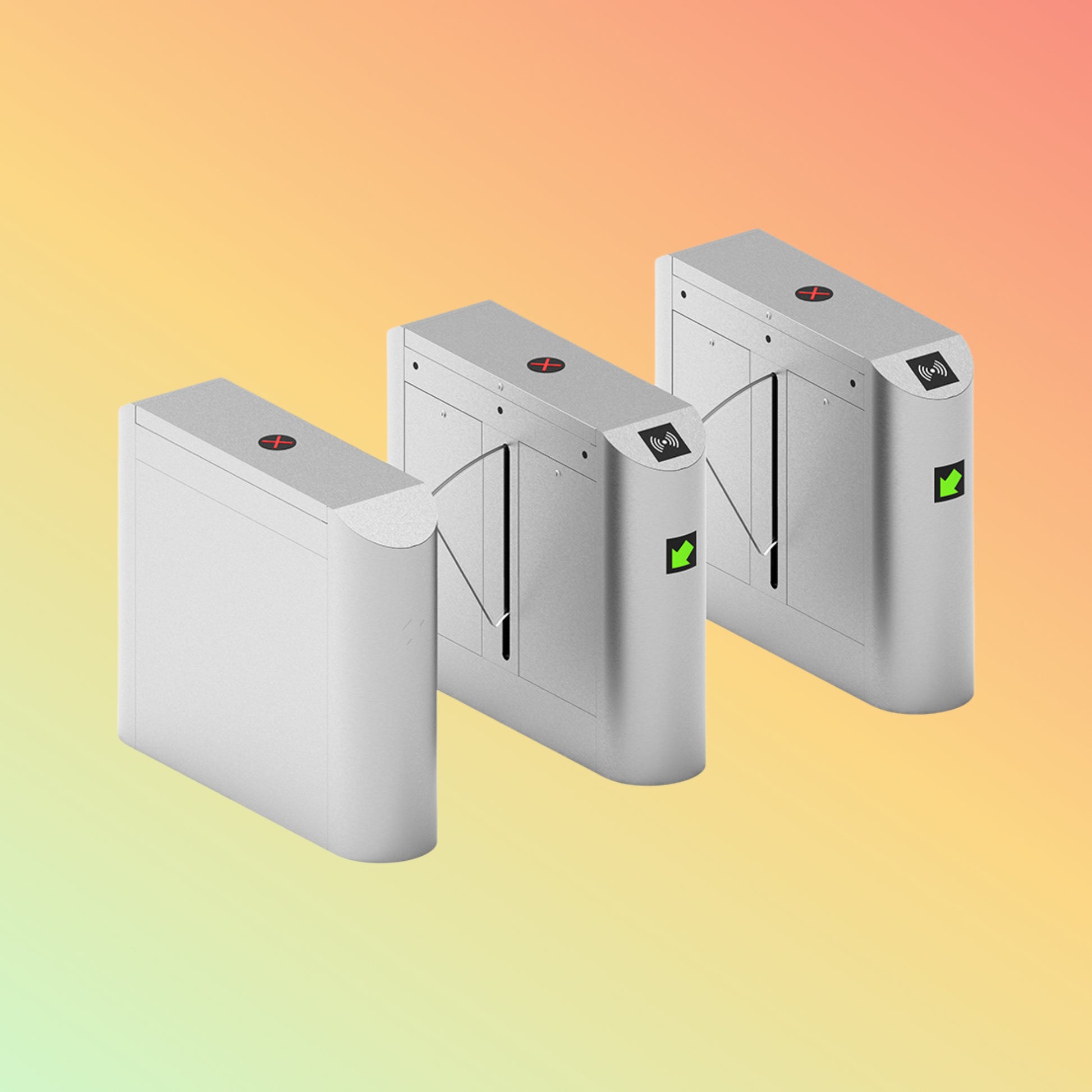

The Granding FB300 is a motorized flap barrier turnstile built for medium-to-high traffic environments. It offers swift, bi-directional passage, precise obstacle sensing, and a corrosion-resistant housing for reliable, long-term operation.
Product Description
FB300 features 10 mm tempered-glass flaps driven by a quiet, brushless DC motor. Its integrated sensors halt closing on obstruction to protect users. The stainless-steel cabinet meets IP54 for indoor or covered outdoor use. Connect via dry-contact, RS-485, or WEIGAND to your access control system for seamless integration.
Key Features
-
Bi-Directional Flow: Manages both entry and exit lanes in one unit
-
Fast Response: Flaps open in ≤ 0.25 s upon valid input
-
Safety First: Auto-reverse on obstacle detection to prevent accidents
-
Durable Build: 304 stainless-steel housing with IP54 protection
-
Silent Operation: Brushless motor for low noise and minimal maintenance
-
Flexible Integration: Dry-contact, RS-485, and WEIGAND support
-
LED Indicators: Clear status arrows guide users through passage
-
Fail-Safe Mode: Flaps open automatically on power loss or fire alarm
Specifications
| Parameter |
Details |
| Dimensions (L×W×H) |
1 200 × 280 × 980 mm |
| Flap Length |
300 mm |
| Opening Time |
≤ 0.25 s |
| Throughput |
30 – 40 persons/min |
| Power |
AC 220 V ±10%, 50 Hz |
| Current Draw |
2 A (peak), 0.5 A (standby) |
| Operating Temp. |
–20 °C to +60 °C |
| Ingress Rating |
IP54 |
| Net Weight |
≈ 65 kg |
Supported OS / Application / Industries
-
Integration: Windows/Linux access platforms, custom VMS via RS-485
-
Use Cases: Office lobbies, metro stations, event venues, corporate campuses
-
Industries: Transportation, commercial real estate, hospitality, education
Benefits & Compatibility
-
Seamless Integration: Works with GL-AC05 IP66 Access Controller for outdoor entry
-
High Reliability: Industrial-grade chassis and components reduce downtime
-
Scalable Deployment: Add lanes easily for wider entrances or multiple points
-
Enhanced Safety: Obstacle detection and fail-safe mode protect users and equipment
Purpose of Use
Deploy FB300 to control and monitor unauthorized access while maintaining smooth flow in high-traffic areas. It enforces credentials at each passage for improved security and audit trails.
How to Use
-
Mount on floor anchors with the supplied kit.
-
Wire power (AC 220 V) and connect to your access control board.
-
Select Input type: WEIGAND, RS-485, or dry-contact.
-
Adjust Settings via DIP switches for opening time and fail-safe mode.
-
Test valid credential entry and sensor response before full operation.
Packaging / Weight / Dimensions
-
Includes: Turnstile unit, control board, mounting hardware, quick-start guide
-
Carton Size: 1 280 × 350 × 1 050 mm
-
Gross Weight: ≈ 75 kg
Warranty & FAQs
Warranty: 2 years on motor and electronics
FAQs:
-
Is it suitable for outdoors? → Yes, IP54-rated for dust and splashes.
-
What happens on power loss? → Flaps open automatically for safe egress.
-
Which readers are supported? → Any WEIGAND or dry-contact reader via RS-485.
-
How many can I network? → Up to 16 lanes via RS-485 bus.
Performance, Quality, Durability & Reliability
Tested for over 10 million cycles, FB300’s brushless motor and stainless-steel housing ensure silent, maintenance-free operation in demanding environments.
