Streamline entry with FB200 Flap Barrier Turnstile—fast bi-directional flow, safety sensors, corrosion-proof design. Order yours today at NEOTECH UAE!
Overview

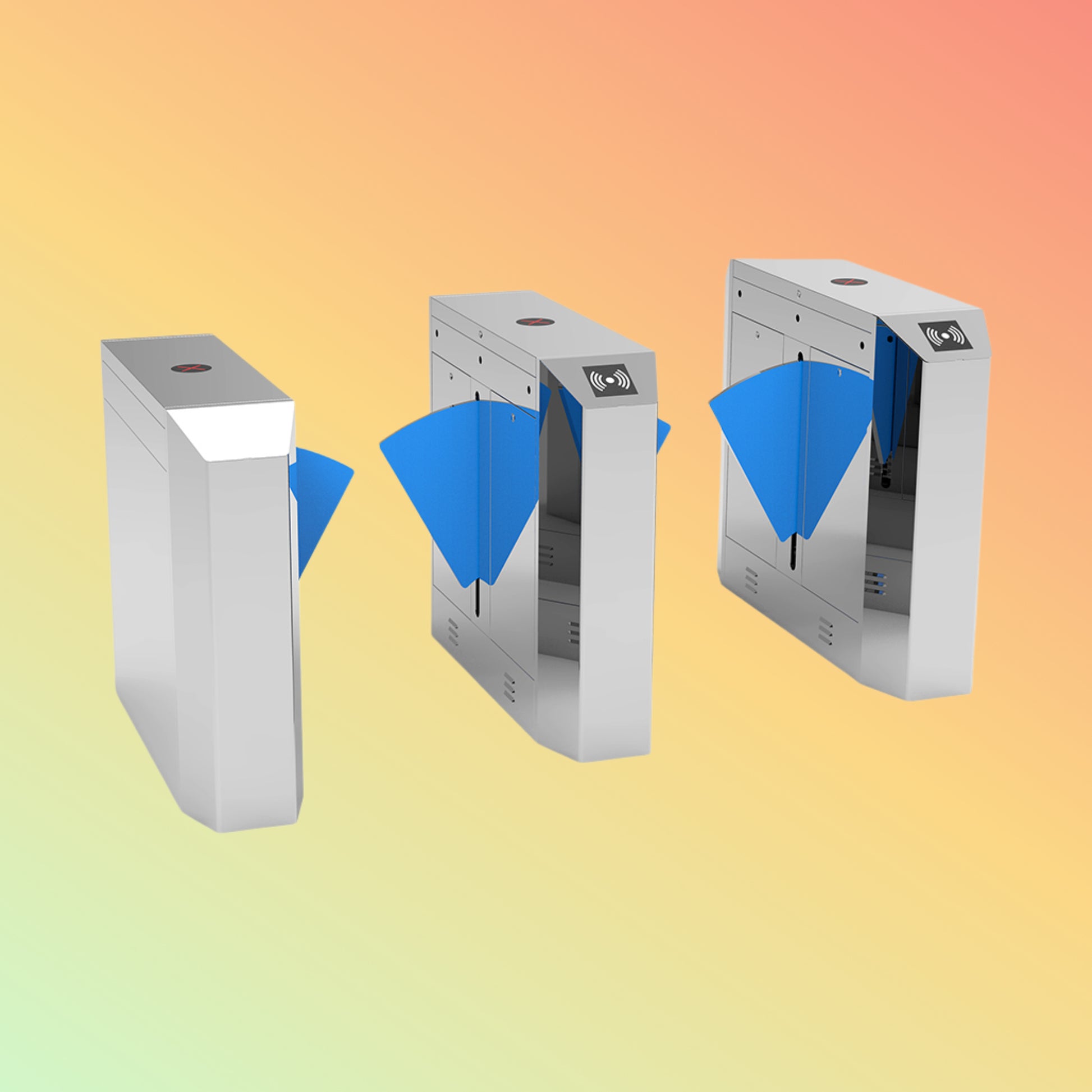

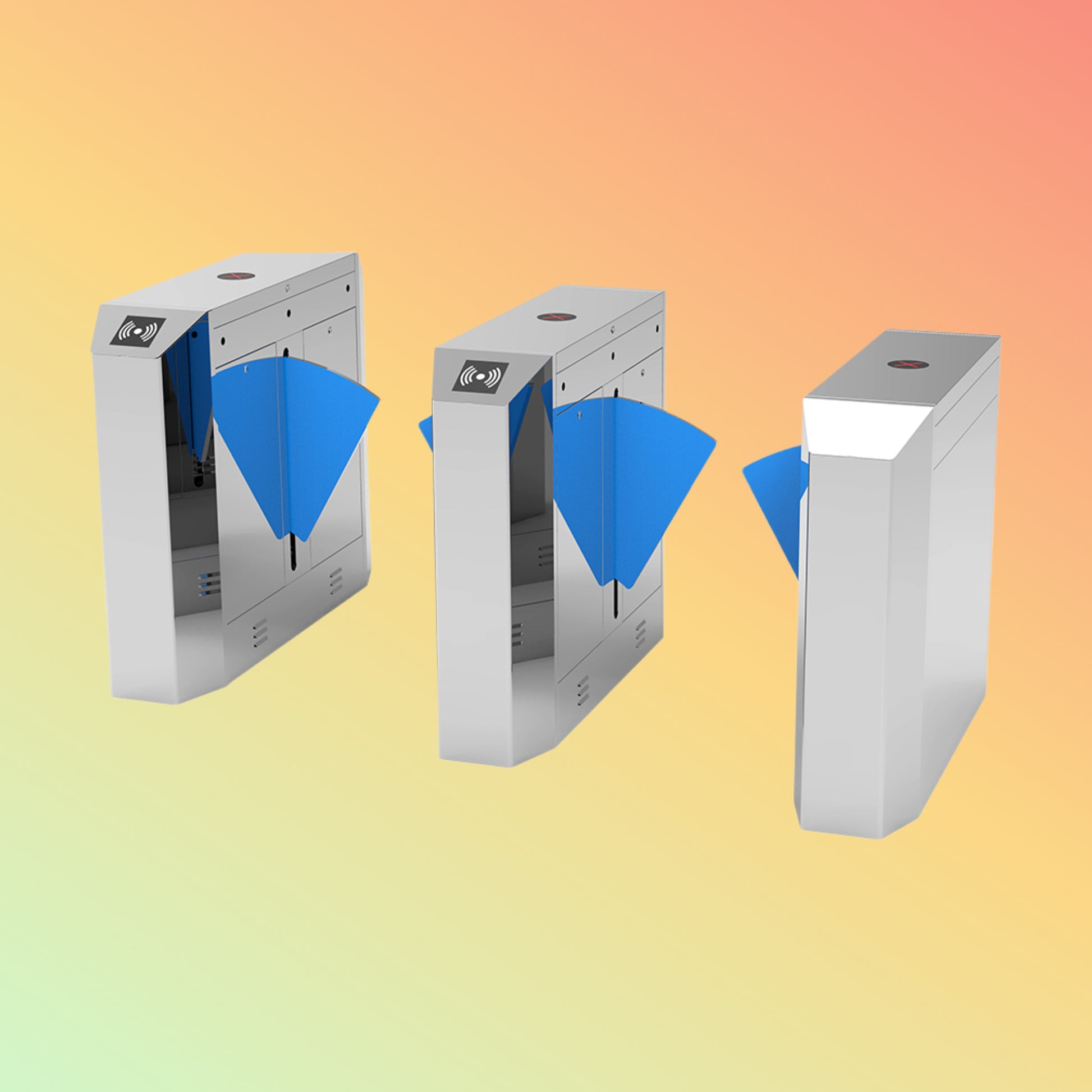

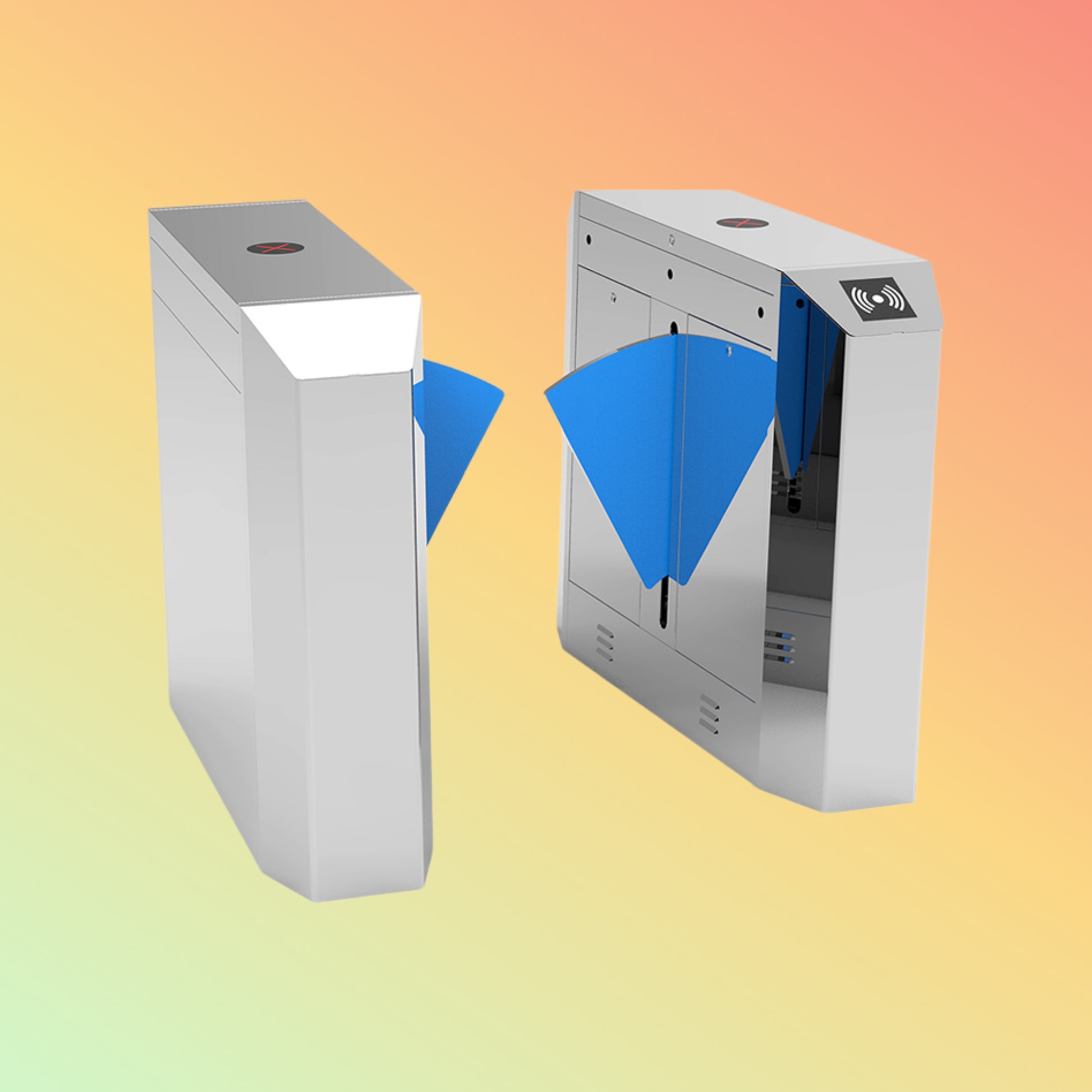

The Granding FB200 is a motorized flap barrier turnstile built for medium-traffic entry points. Its sleek stainless-steel cabinet and noise-free motor deliver reliable, safe passage on both entry and exit lanes.
Product Description
FB200 features 10 mm tempered-glass flaps powered by a brushless DC motor. Built-in sensors detect obstacles and auto-reverse to prevent pinches. It houses IP54-rated corrosion protection and connects via WEIGAND, RS-485, or dry-contact inputs for seamless integration with your access control system.
Key Features
-
Bi-Directional Flow for entry and exit in one unit
-
Fast Response: Flaps open in ≤ 0.3 s upon valid credential
-
Safety Sensors: Auto-reverse on obstruction
-
Silent Operation: Brushless DC motor, low maintenance
-
Rugged Housing: 304 SS cabinet, IP54 protection
-
Multiple Interfaces: WEIGAND, RS-485, dry-contact
-
LED Indicators: Passage status and direction arrows
-
Fail-Safe Mode: Flaps open on power loss or fire alarm
Specifications
| Parameter |
Details |
| Dimensions (L×W×H) |
1200 × 280 × 980 mm |
| Flap Length |
300 mm |
| Opening Time |
≤ 0.3 s |
| Throughput |
30–40 persons/min |
| Power Supply |
AC 220 V ±10%, 50 Hz |
| Current Draw |
2 A (peak), 0.5 A (standby) |
| Operating Temp. |
–20 °C to +60 °C |
| Ingress Protection |
IP54 |
| Net Weight |
≈ 65 kg |
Supported Integration / Application / Industries
-
Access Control: WEIGAND, RS-485, dry-contact
-
Use Cases: Office lobbies, gym entrances, event venues
-
Industries: Transportation hubs, corporate campuses, hospitality
Benefits & Compatibility
-
Integrates with GL-AC05 IP66 Access Reader for outdoor gates
-
Scales across multiple lanes via RS-485 bus
-
Boosts throughput without manual monitoring
-
Silent, low-maintenance motor reduces downtime
-
Corrosion-proof cabinet for indoor or covered outdoor use
Purpose of Use
Deploy FB200 to enforce secure, trackable access in medium-traffic areas. It ensures only authorized users pass while maintaining smooth flow.
How to Use
-
Anchor the unit to a reinforced floor plate.
-
Wire power (AC 220 V) and connect to your control board.
-
Configure input type via DIP switches: WEIGAND, RS-485, or dry-contact.
-
Adjust opening time, sensor sensitivity, and fail-safe mode.
-
Test passage with credential and obstacle detection.
Packaging / Weight / Dimensions
-
Includes: FB200 turnstile, control board, mounting kit, manual
-
Carton Size: 1280 × 380 × 1080 mm
-
Gross Weight: ≈ 75 kg
Warranty & FAQs
Warranty: 2 years on motor and electronics
FAQs:
-
Outdoor use? → Yes, IP54 protects against dust and splashes.
-
Power failure? → Flaps open automatically for safe egress.
-
Supported readers? → Any WEIGAND or dry-contact device.
-
Multi-lane link? → Up to 16 lanes via RS-485.
Performance, Quality, Durability & Reliability
Tested to 10 million cycles, the FB200’s brushless motor and 304 SS housing ensure years of silent, reliable operation in high-traffic settings.
Best Price Guarantee
NEOTECH offers the most competitive UAE pricing on the FB200 turnstile. Contact us for bulk and integration discounts.
Shop Today & Receive Your Delivery Across the UAE
Order before 4 PM for same-day dispatch to Dubai, Abu Dhabi, Sharjah, and all Emirates. Express shipping available.
Request for Customer Reviews and Testimonials
Installed FB200 in your space? Share your feedback to help peers select the right turnstile solution!
After Sales Support
From setup to troubleshooting, our tech team is on call via email, phone or live chat. We’ve got your back post-purchase.
Get in Touch
Need advice on Kyocera toner? Contact our print experts for personalized recommendations and fast replies.
Stock Availability
Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.
Disclaimer
All details are for general info and may change without notice. Images are illustrative. Verify specs and pricing with our sales team before ordering.
