Overview

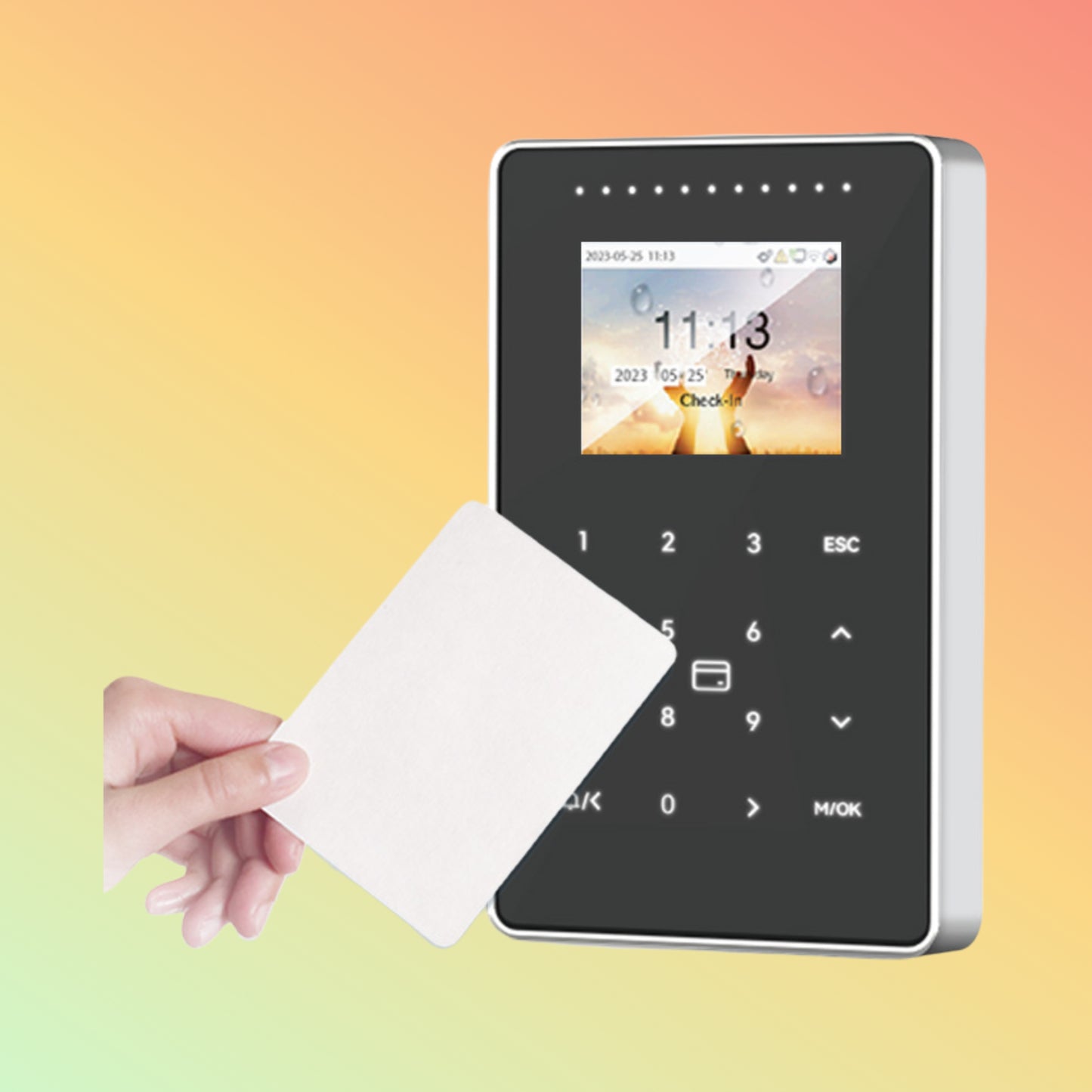

The Granding SC800 Card Access Terminal combines RFID, Mifare, and proximity card technology in a compact, wall‑mountable unit. It offers fast card reads, offline data storage, and simple user management. Perfect for offices, warehouses, and controlled zones.
Product Description
The SC800 is a standalone access control device that supports EM, HID, Mifare, and proximity cards. Staff tap or swipe to gain entry. Data logs store up to 50,000 events and export via USB. You can manage users and schedules directly on the device or with optional NEOTECH software.
Key Features
-
Multi‑tech card reader: EM, HID, Mifare, prox
-
Reads in under 0.2 seconds
-
50,000 event log capacity
-
Offline mode with local user database
-
USB data export and firmware update
-
125 kHz & 13.56 MHz frequency support
-
IP65‑rated durable housing
-
9–24 V DC wide voltage input
Specifications
-
Model: SC800
-
Card Types: EM, HID, Mifare, Proximity
-
Read Range: 2–10 cm (card‑dependent)
-
Log Capacity: 50,000 events
-
Display: 2‑line LCD with backlight
-
Interface: Wiegand 26/34, RS‑485, USB
-
Power Input: 9–24 V DC, 200 mA
-
Operating Temp: –20 °C to 60 °C
-
Humidity: 10%–90% RH (non‑condensing)
-
Dimensions: 120 × 90 × 22 mm
-
Weight: 0.18 kg
Supported OS / Application / Industries
OS Compatibility: Windows, Linux (via Wiegand)
Applications:
-
Door and gate access control
-
Time attendance integration
-
Visitor management
-
Alarm system arming/disarming
Industries:
Corporate · Healthcare · Education · Hospitality · Logistics
Benefits & Compatibility
-
Works offline when network is down
-
Integrates with most panels via Wiegand
-
Low‑power design saves energy
-
Quick installation and minimal training
-
Scales from single door to multi‑site setups
Purpose of Use
Use the SC800 to control entry, track visitor flows, and secure sensitive areas without hiring IT staff or running cables.
How to Use
-
Mount on wall near entry point.
-
Connect power and Wiegand/RS‑485 lines.
-
Enroll cards via admin menu.
-
Staff tap or wave card to unlock.
-
Export logs by plugging in a USB drive.
Packaging / Weight / Dimensions
-
Includes: SC800 terminal, mounting kit, quick‑start guide
-
Dimensions: 120 × 90 × 22 mm
-
Weight: 0.18 kg
-
Package Weight: 0.25 kg
Warranty & FAQs
Warranty: 12‑month NEOTECH warranty
FAQs:
-
Q: Can it work without mains?
A: Yes, with optional battery backup.
-
Q: Does it need software?
A: No. USB export works standalone.
-
Q: How many cards can it store?
A: Up to 2,000 card IDs.
Performance, Quality, Durability & Reliability
Designed for continuous use in harsh environments, the IP65‑rated SC800 runs stable firmware on a metal‑backed PCB. It withstands dust, rain, and temperature extremes.
