Unlock doors with Granding GL-AC08 WiFi/BLE Touch Keypad Controller. Fast, keyless access and real-time app alerts. Order now at NEOTECH UAE!
Overview

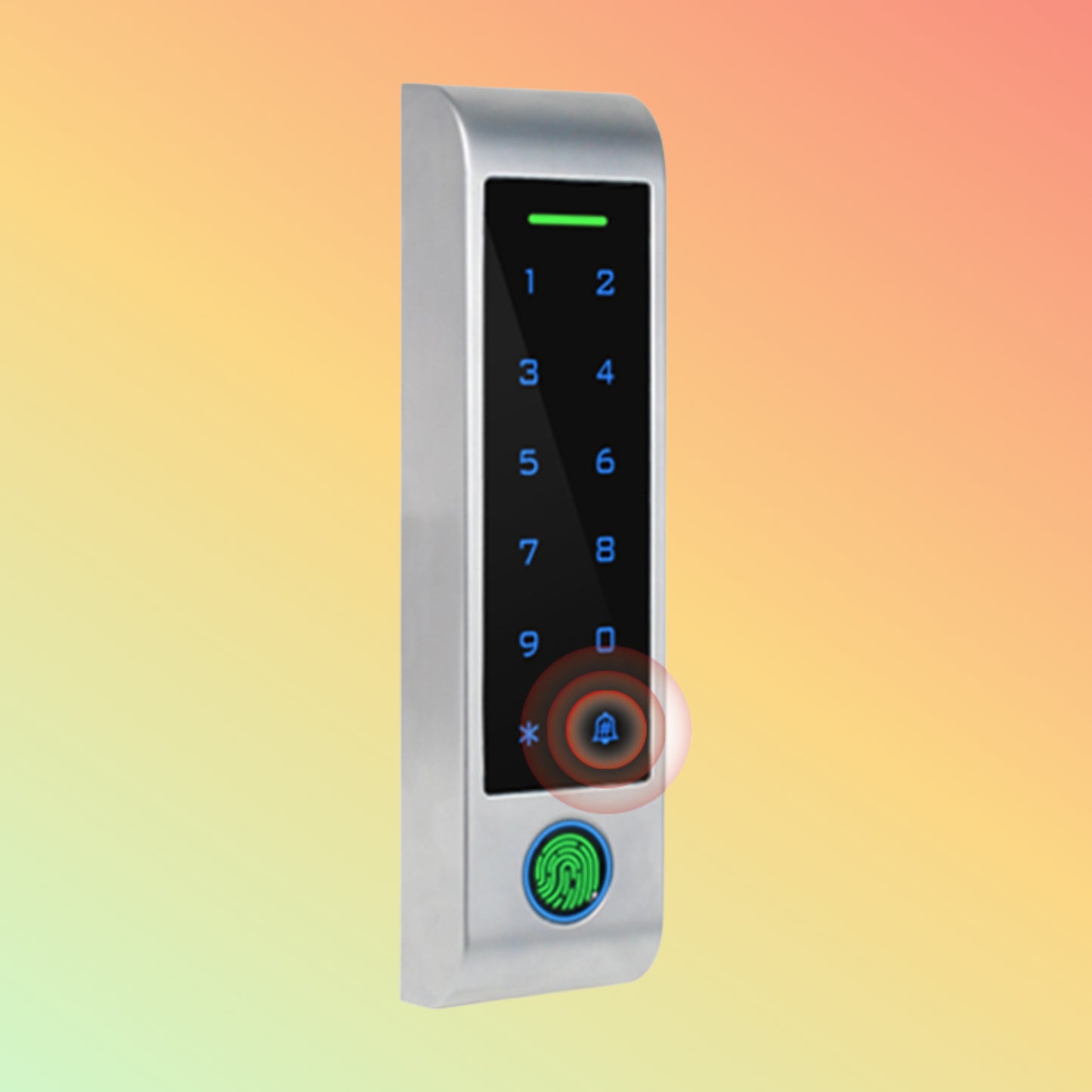

The Granding GL-AC08 is a touch-key access controller that supports Wi-Fi and Bluetooth Low Energy (BLE). It offers fast, keyless entry and remote management. The sleek glass panel fits any door frame. It boosts security and simplifies access control.
Product Description
GL-AC08 uses a capacitive touch keypad with backlit keys for PIN entry. It pairs via BLE or Wi-Fi to the Tuya Smart or Smart Life app. You can add or revoke users in seconds. Built-in relay output integrates with electric locks or turnstiles. IP65-rated housing resists dust and rain. Power it via PoE or 12 V DC. This device is ideal for offices, gyms, and residential buildings.
Key Features
-
Touch Keypad with anti-peep PIN scramble
-
Dual Connectivity: BLE 4.2 & Wi-Fi 2.4 GHz
-
App Control: Tuya Smart/Smart Life for remote unlock & logs
-
Relay Output: 1 A @ 30 V DC for lock or alarm
-
Multi-User: Up to 1 000 PINs and BLE tokens
-
Auto-Lock: Configurable delay after exit
-

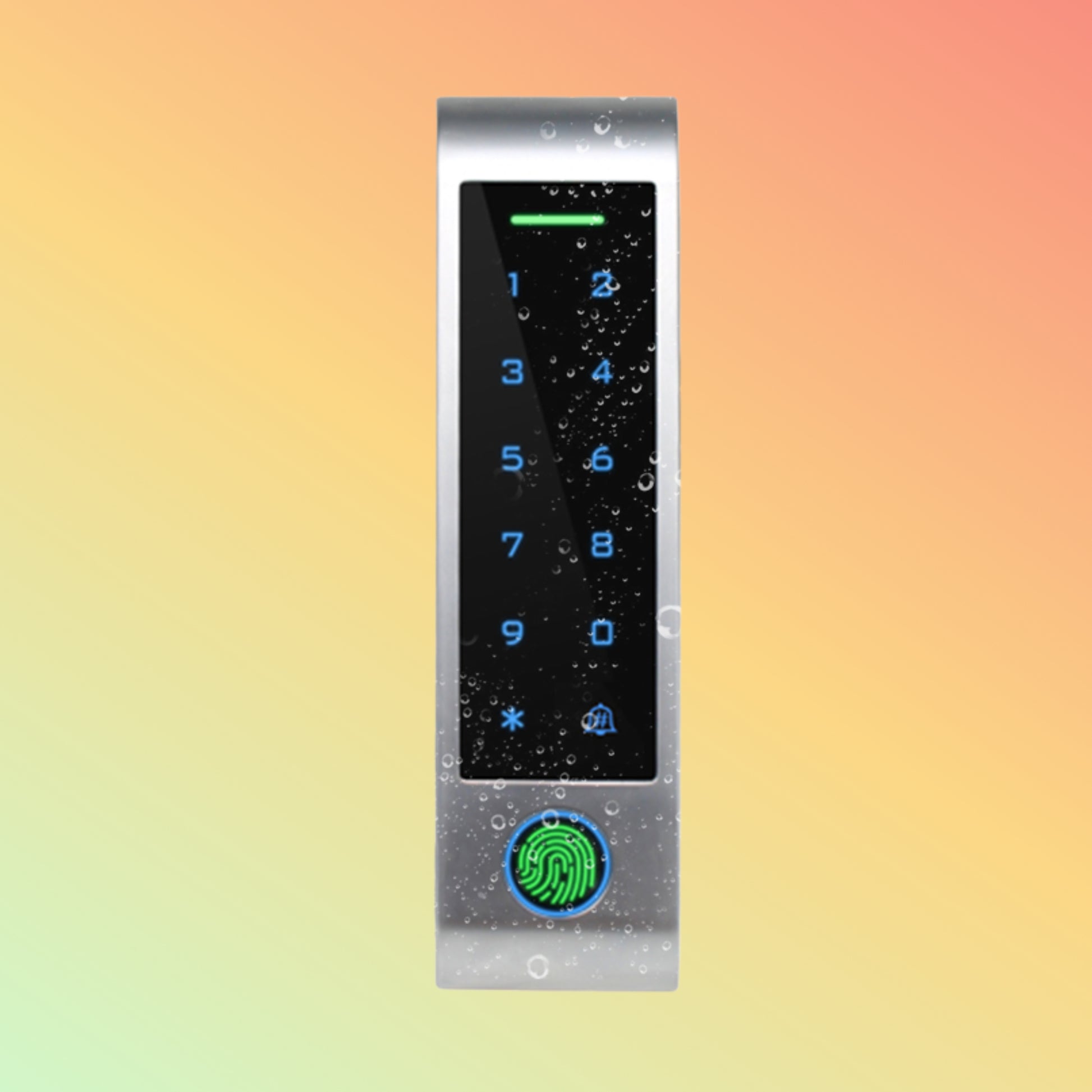

Weatherproof: IP65-rated metal & glass body
-
Power Options: PoE (802.3af) or 12 V DC
Specifications
| Parameter |
Details |
| Keypad |
Capacitive backlit touch |
| Connectivity |
Wi-Fi 802.11 b/g/n (2.4 GHz), BLE 4.2 |
| Users |
1 000 PINs, 1 000 BLE tokens |
| Relay |
1 A @ 30 V DC |
| Power |
PoE (802.3af) or 12 V DC |
| Operating Temp |
–20 °C to +60 °C |
| Ingress Protection |
IP65 |
| Dimensions |
120 × 60 × 20 mm |
| Weight |
180 g |
Supported OS / Application / Industries
-
Apps: Tuya Smart, Smart Life (iOS & Android)
-
Integrations: MQTT, Home Assistant via Tuya bridge
-
Use Cases: Office access, apartment entry, gym turnstiles
-
Industries: Commercial real estate, hospitality, fitness, residential
Benefits & Compatibility
Purpose of Use
Use GL-AC08 to secure entry points and manage access without keys. Issue PINs or BLE tokens to staff, tenants, or guests. Track entries and exits in real time.
How to Use
-
Mount unit at door frame with included bracket.
-
Connect via PoE or 12 V DC power.
-
Pair in Tuya Smart app; set up Wi-Fi credentials.
-
Enroll PINs or BLE tokens in-app or via keypad.
-
Configure auto-lock delay and relay actions.
Packaging / Weight / Dimensions
-
Includes: Access controller, mounting bracket, screws, quick-start guide
-
Package Size: 140 × 90 × 30 mm
-
Gross Weight: 300 g
-
Packaging: Foam-lined export carton
Warranty & FAQs
Warranty: 2 years on electronics and housing
FAQs:
-
Can it run offline? → PIN entry works without network.
-
Does it support external reader? → Yes, Wiegand in/out option available.
-
Is BLE secure? → Uses AES-128 encryption.
-
Can I trigger alarm? → Relay can drive alarm sirens.
Performance, Quality, Durability & Reliability
Built with industrial-grade components and tested to IP65 and –20 °C/+60 °C extremes. PoE port meets IEEE 802.3af. Capacitive glass resists scratches and tampering.
