Secure doors effortlessly with GL-AC05 Touch Access Controller – Tuya/TTLock Wi-Fi & BLE, IP66 rated. Order now for seamless entry at NEOTECH UAE!
Overview

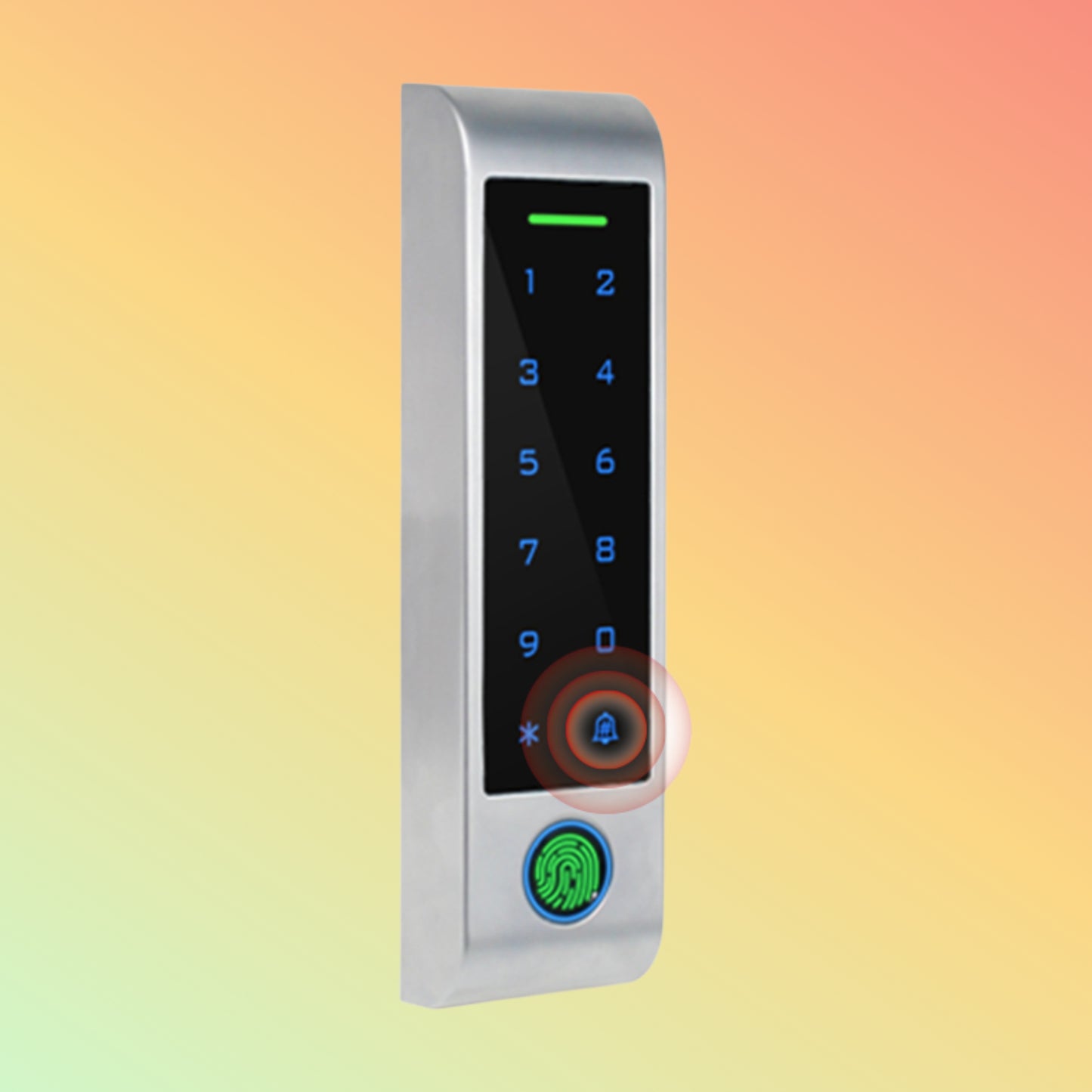

The Granding GL-AC05 delivers instant, keyless access via touch-key PIN or BLE/Wi-Fi app control. Rated IP66, it withstands rain, dust and UV. Ideal for offices, villas and light-commercial sites.
Product Description
GL-AC05 features a sleek glass-panel keypad with anti-peep scramble. Pair it to the Tuya Smart or TTLock app over Bluetooth Low Energy or 2.4 GHz Wi-Fi. Manage up to 1,000 PINs and virtual keys in real time. Built-in relay triggers any electric lock or barrier. PoE support cuts wiring. This reader integrates into any network for smooth, scalable deployment.
Key Features
-
Capacitive Touch Keypad with randomized digits
-
Dual Connectivity: BLE 4.2 & Wi-Fi 2.4 GHz
-
App Control: Tuya Smart & TTLock remote unlock, logs, user management
-
High Capacity: 1,000 PIN codes; 1,000 BLE tokens
-
Relay Output: 3 A @ 30 V DC for lock or alarm integration
-
IP66-Rated Housing: Dust-tight, heavy rain proven
-
Power Options: PoE (IEEE 802.3af) or 12 V DC
-
Auto-Lock: Configurable door-release delay
Specifications
| Parameter |
Details |
| Keypad |
Capacitive glass panel, backlit |
| Connectivity |
BLE 4.2; Wi-Fi IEEE 802.11 b/g/n |
| User Capacity |
1,000 PINs; 1,000 BLE tokens |
| Relay Output |
3 A @ 30 V DC |
| Power |
PoE (802.3af) or 12 V DC |
| Operating Temp |
–20 °C to +60 °C |
| Ingress Protection |
IP66 |
| Dimensions |
120 × 60 × 20 mm |
| Weight |
180 g |
Supported OS / Application / Industries
-
Apps: Tuya Smart, Smart Life, TTLock (iOS & Android)
-
Integrations: Home Assistant, MQTT via Tuya bridge
-
Use Cases: Office entry, villa gate, apartment lobby
-
Industries: Corporate, residential, hospitality, education
Benefits & Compatibility
-
Centralized Control: Manage GL-AC05 alongside GL-AC08 Touch Keypad Controller
-
Scalable Mesh: Expand network with GL-ZW BS Zigbee Gateway
-
Reduced Cabling: PoE support delivers power & data on one line
-
Real-Time Audit: App logs every entry for compliance
-
Weather-Proof: Perfect for outdoor gates and entrances
Purpose of Use
Deploy GL-AC05 at perimeter doors, staff entrances and communal areas to enforce secure, trackable access. It replaces keys and old card systems with modern, friction-free entry.
How to Use
-
Mount the unit at desired height using included bracket.
-
Power via PoE or 12 V DC.
-
Pair in the Tuya/TTLock app by scanning the QR code.
-
Enroll PINs or BLE tokens in-app or via keypad.
-
Configure auto-lock delay and relay actions in settings.
Packaging / Weight / Dimensions
-
Includes: GL-AC05 reader, mounting bracket, screws, quick-start guide
-
Box Size: 140 × 90 × 30 mm
-
Gross Weight: 300 g
Warranty & FAQs
Warranty: 2 years on electronics and housing
FAQs:
-
Does it work offline? → PIN entry works without network.
-
Can I connect an external reader? → Yes, Wiegand IN/OUT option available.
-
How secure is BLE? → Uses AES-128 encryption.
-
Can it drive alarms? → Relay output can trigger sirens or strobes.
Performance, Quality, Durability & Reliability
Built with industrial-grade PCB and glass-reinforced nylon. Tested to IP66, –20 °C/+60 °C, and 10,000-cycle keypad life. PoE port meets IEEE 802.3af standards.
