Secure entry with the IP67‑rated Granding D8‑RE RFID reader. Fast reads, offline logs, rugged design. Shop now at NEOTECH UAE.
Overview

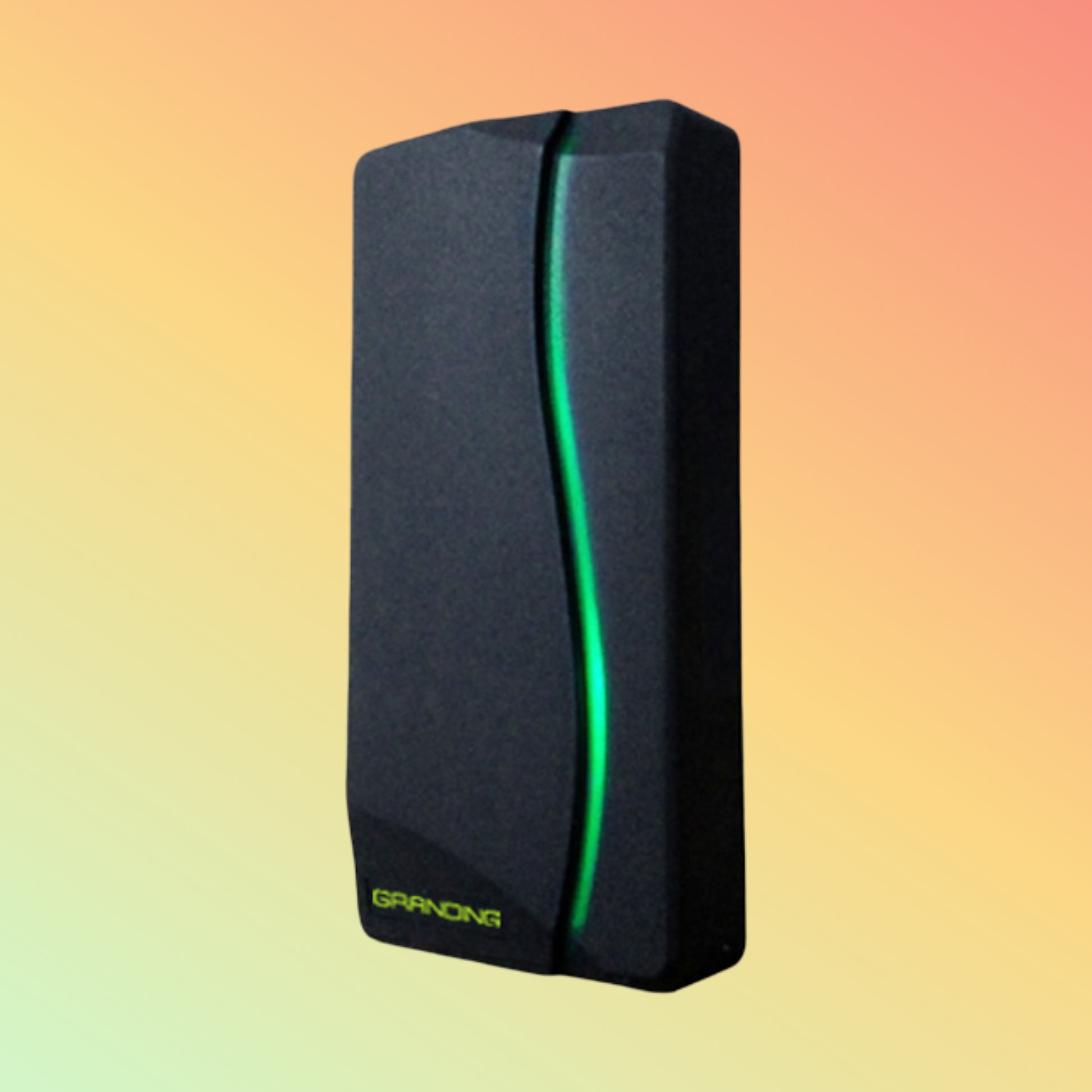

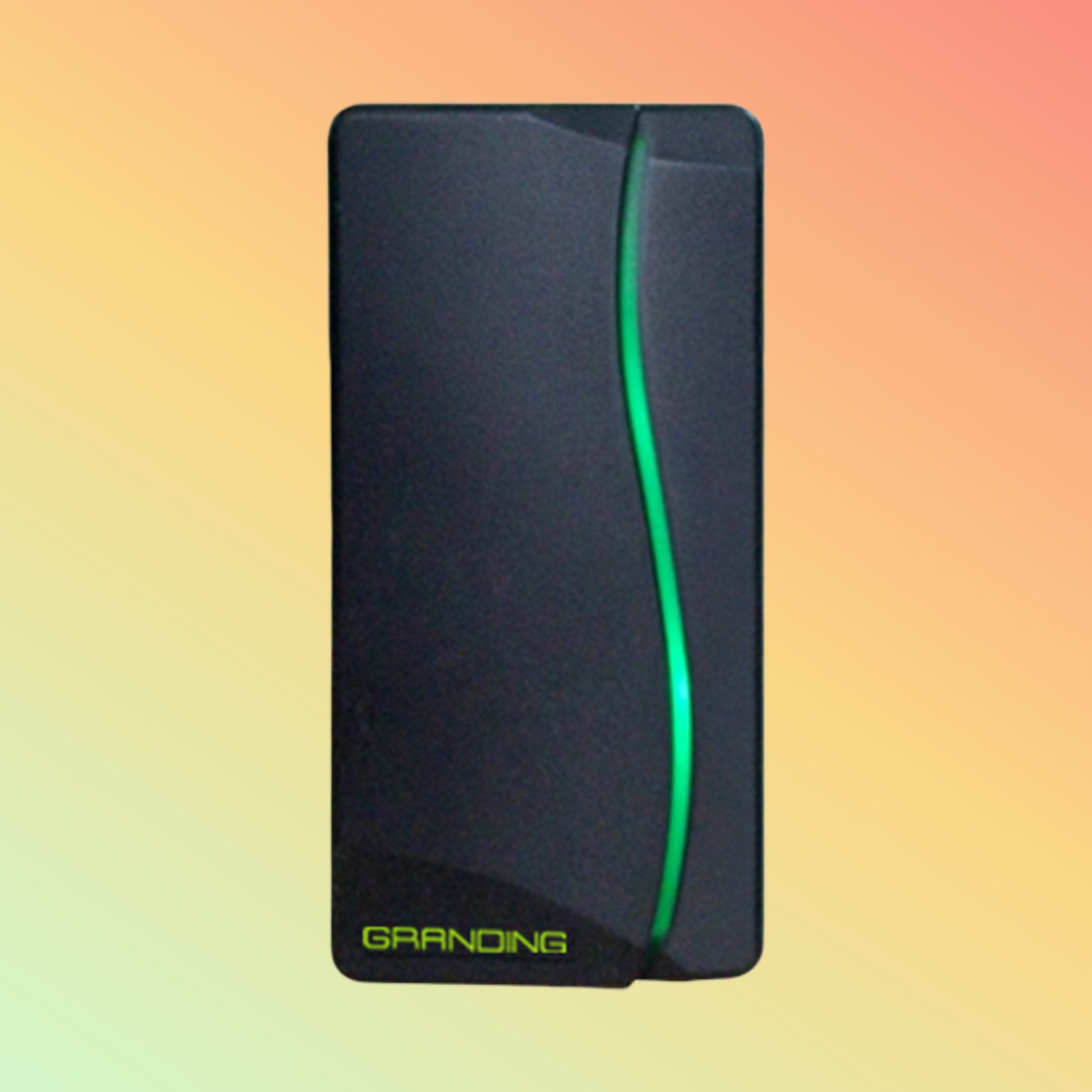

The Granding D8‑RE is a standalone, waterproof RFID access control reader rated IP67. It combines durability with high‑speed card reads to secure doors in any environment—indoors or out.
Product Description
Built for harsh conditions, the D8‑RE supports EM, HID, Mifare, and proximity cards. Staff tap to gain entry. All events store locally. Export logs via USB or TCP/IP. No server or PC required.
Key Features
-
IP67‑rated waterproof and dustproof housing
-
Multi‑frequency card support: 125 kHz & 13.56 MHz
-
Fast read time: < 0.2 sec per card
-
20,000 card ID capacity & 100,000 event logs
-
Offline mode with local database cache
-
USB 2.0 export & firmware upgrade port
-
Wiegand 26/34 and RS‑485 interfaces
-
Wide voltage input: 9–24 V DC
-
Compact, wall‑mount design
Specifications
-
Model: D8‑RE
-
Card Types: EM, HID, Mifare Classic/Plus, Proximity
-
User Capacity: 20,000 cards
-
Log Capacity: 100,000 events
-
Read Range: 2–10 cm (card‑dependent)
-
Display: 2‑line backlit LCD
-
Interfaces: Wiegand 26/34, RS‑485, USB 2.0
-
Power Input: 9–24 V DC, 200 mA
-
Operating Temp: –20 °C to 60 °C
-
Humidity: 10%–90% RH (non‑condensing)
-
Dimensions: 120 × 90 × 25 mm
-
Weight: 0.25 kg
Supported OS / Application / Industries
OS Compatibility: No PC software needed; exports via USB to Windows/Mac/Linux
Applications:
Benefits & Compatibility
-
True plug‑and‑play—no network setup
-
Rugged IP67 case for rain, dust, and freezes
-
Local cache prevents data loss during outages
-
Exports to CSV for payroll or audit
-
Integrates with standard security panels
Purpose of Use
Deploy the Granding D8‑RE to secure perimeter doors, gates, and outdoor entry points—without extra servers or complex wiring.
How to Use
-
Mount the reader near your entry point.
-
Connect power and Wiegand/RS‑485 lines.
-
Enroll card IDs via the device menu.
-
Staff tap card to unlock.
-
Export logs via USB or sync over TCP/IP.
Packaging / Weight / Dimensions
-
Includes: D8‑RE reader, mounting bracket, screws, quick‑start guide
-
Dimensions: 120 × 90 × 25 mm
-
Weight: 0.25 kg
Warranty & FAQs
Warranty: 12‑month NEOTECH warranty
FAQs:
-
Is it fully waterproof?
Yes; IP67 protects against immersion and dust.
-
Does it need software?
No; all configuration is on‑device.
-
Can it run without power?
It stores events locally until power returns.
Performance, Quality, Durability & Reliability
Engineered with marine‑grade seals and a metal‑backed PCB, the D8‑RE withstands rain, dust, and extreme temperatures while delivering consistent, high‑speed card reads.
Best Price Guarantee
NEOTECH guarantees the lowest UAE price on the Granding D8‑RE. Found it cheaper? We’ll match and beat it.
Shop Today & Receive Your Delivery Across the UAE
Order now for fast 1–3 day delivery across Dubai, Abu Dhabi, Sharjah, and beyond. Bulk orders qualify for volume discounts.
Request for Customer Reviews and Testimonials
Have you installed the D8‑RE? Share your feedback to help others choose the right outdoor access reader.
After Sales Support
All purchases include NEOTECH’s local after‑sales service—firmware updates, technical assistance, and optional installation help.
Get in Touch
Need advice on Kyocera toner? Contact our print experts for personalized recommendations and fast replies.
Stock Availability
Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.
Disclaimer
Specifications may change without notice. Verify compatibility with your access panel before purchase.
