Overview

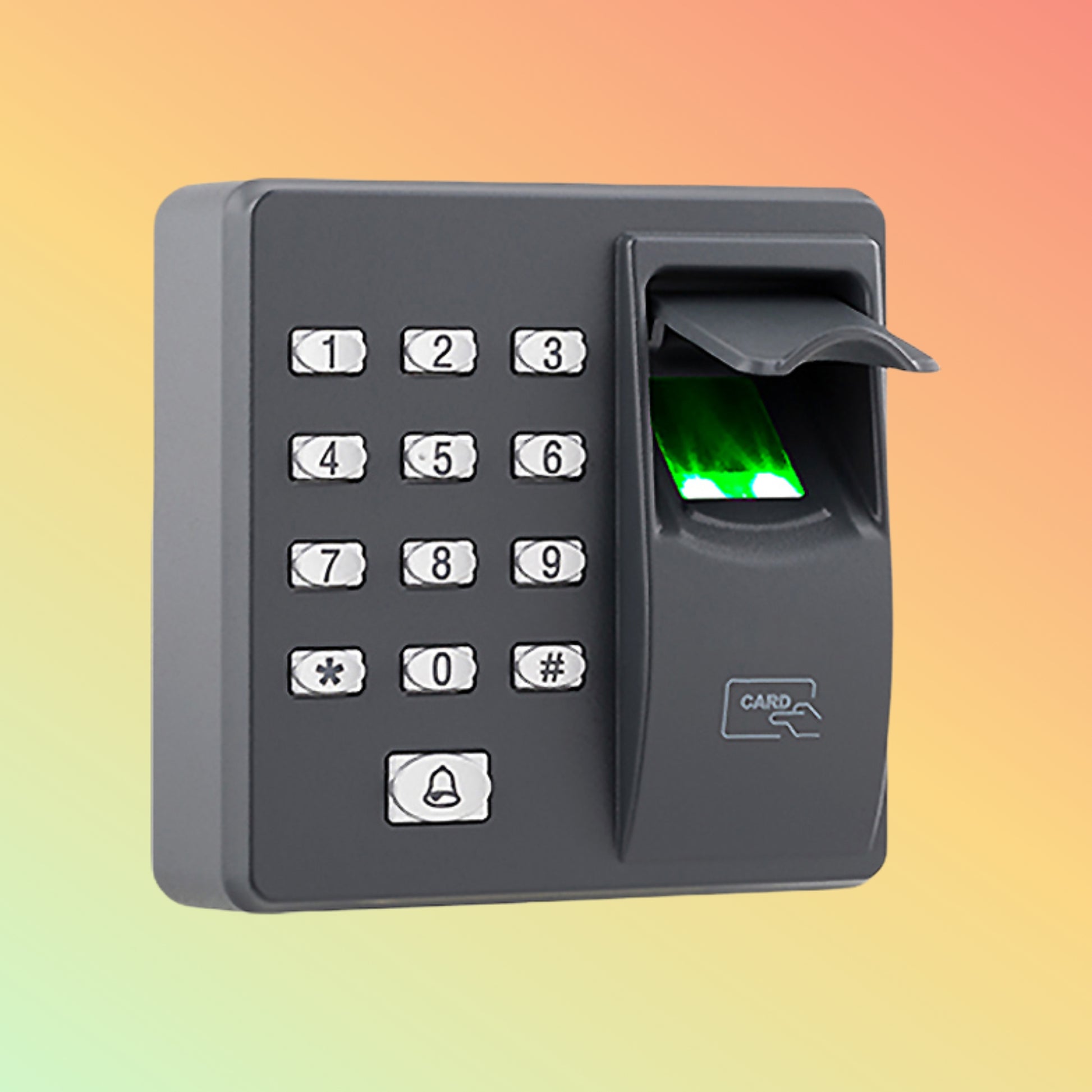

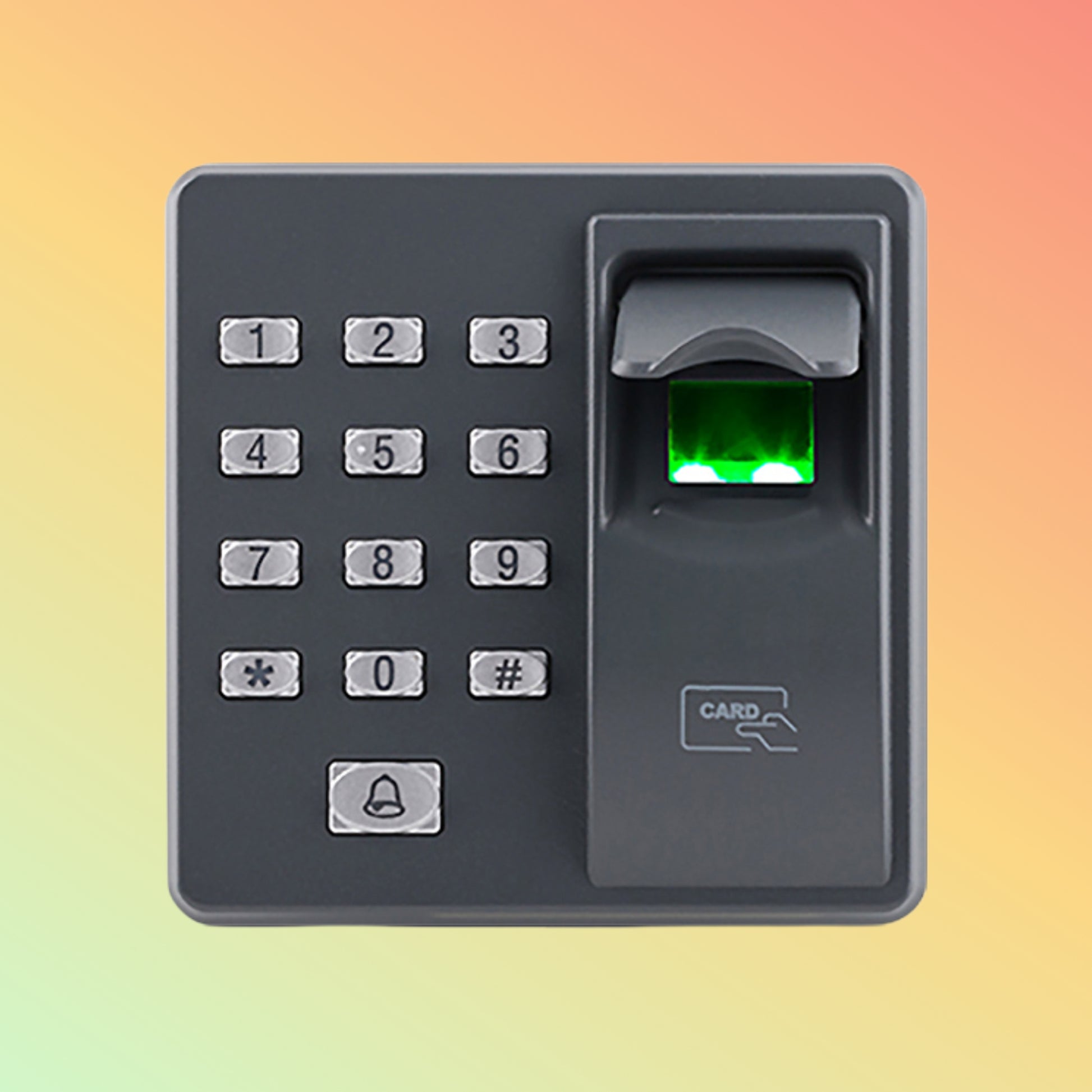

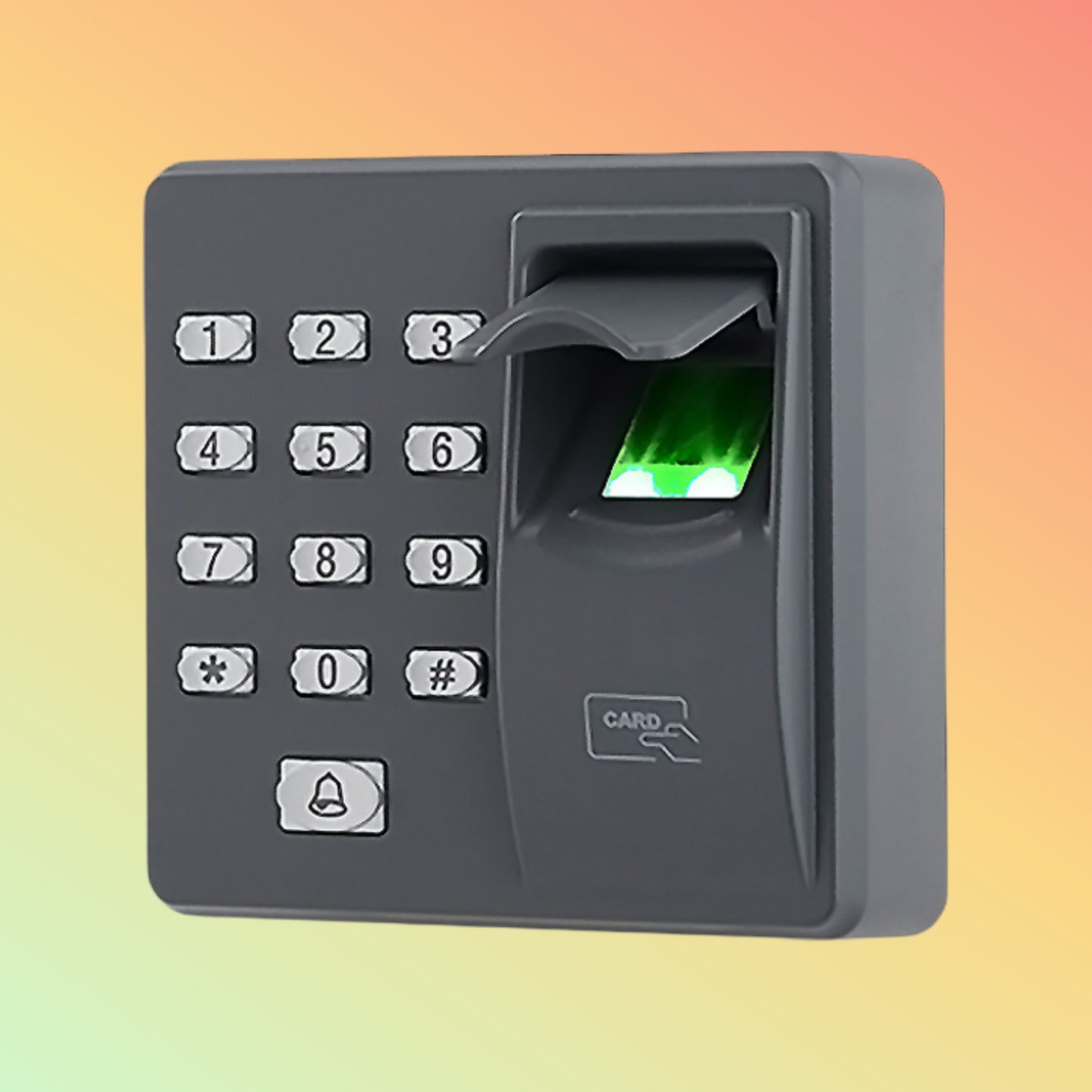

The Granding F01 is a standalone access control terminal combining high‑speed fingerprint verification and multi‑frequency RFID card reading. Its compact, wall‑mount design and intuitive menu make deployment effortless—no network or PC required.
Product Description
Granding F01 uses an industrial‑grade optical sensor plus EM/HID/Mifare compatibility to authenticate users in under 0.8 seconds. It logs up to 80,000 transactions locally and exports data via USB or TCP/IP for seamless integration with your payroll or security platform. Built‑in bell scheduling and alert functions keep your operation in sync.
Key Features
-
< 0.8 sec fingerprint matching
-
Supports up to 1,000 fingerprint templates
-
Reads EM, HID, Mifare & proximity cards
-
Stores 80,000 transaction logs
-
USB 2.0 export & TCP/IP sync
-
2.4″ TFT color display with icon‑driven menu
-
Built‑in bell/alarm scheduler
-
PIN‑code fallback (up to 100 codes)
-
Wall‑mountable, low‑power design
Specifications
-
Model: F01
-
Fingerprint Capacity: 1,000 templates
-
Card Capacity: 5,000 IDs (EM/HID/Mifare/prox)
-
Log Storage: 80,000 events
-
Display: 2.4″ TFT color LCD
-
Verification Modes: Fingerprint, RFID, PIN
-
Data Transfer: USB 2.0, TCP/IP
-
Power Input: DC 5 V/1 A
-
Operating Temp: 0 °C–45 °C
-
Humidity: 20%–80% RH
-
Dimensions: 190 × 140 × 35 mm
-
Weight: 0.42 kg
Supported OS / Applications / Industries
OS Compatibility: Exports via USB to Windows, macOS, Linux
Applications:
Benefits & Compatibility
-
True plug‑and‑play—no server needed
-
Eliminates buddy‑punching and lost keys
-
USB/TCP‑IP export simplifies data flow
-
Integrates with standard security panels
-
Minimal training for admins and users
Purpose of Use
Deploy Granding F01 to enforce access policies, accurately track attendance, and automate reports—without complex IT overhead.
How to Use
-
Mount at entry point and power on.
-
Navigate the menu to enroll fingerprints, cards, or PINs.
-
Staff authenticate via fingerprint scan or card tap.
-
Schedule bell/alarm events as needed.
-
Insert USB drive or sync over TCP/IP to export logs.
Packaging / Weight / Dimensions
-
Includes: F01 terminal, power adapter, mounting bracket, quick‑start guide
-
Dimensions: 190 × 140 × 35 mm
-
Weight: 0.42 kg
Warranty & FAQs
Warranty: 12‑month NEOTECH warranty
FAQs:
-
Does it require a network?
No—fully standalone operation.
-
Is software needed?
No—USB CSV or TCP/IP export handles data.
-
Can I add PIN fallback?
Yes, supports up to 100 PINs.
Performance, Quality, Durability & Reliability
Built with industrial‑grade components and robust firmware, F01 delivers consistent performance in dusty or humid environments. Its metal‑reinforced chassis ensures long‑term reliability.
Best Price Guarantee
NEOTECH UAE guarantees the lowest price on the Granding F01. Found a better quote? We’ll match and beat it—no questions asked.
Shop Today & Receive Your Delivery Across the UAE
Order now for swift 1–3 day delivery across Dubai, Abu Dhabi, Sharjah, and beyond. Bulk orders qualify for volume discounts.
Request for Customer Reviews and Testimonials
Tried Granding F01? Share your feedback—drop a review or testimonial to help others choose the ideal solution.
After Sales Support
All purchases include NEOTECH’s local after‑sales service: firmware updates, technical assistance, and optional setup help.
Get in Touch
Need advice on Kyocera toner? Contact our print experts for personalized recommendations and fast replies.
Stock Availability
Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.
Disclaimer
Specifications may change without prior notice. Verify compatibility with your infrastructure before purchase.
