Overview

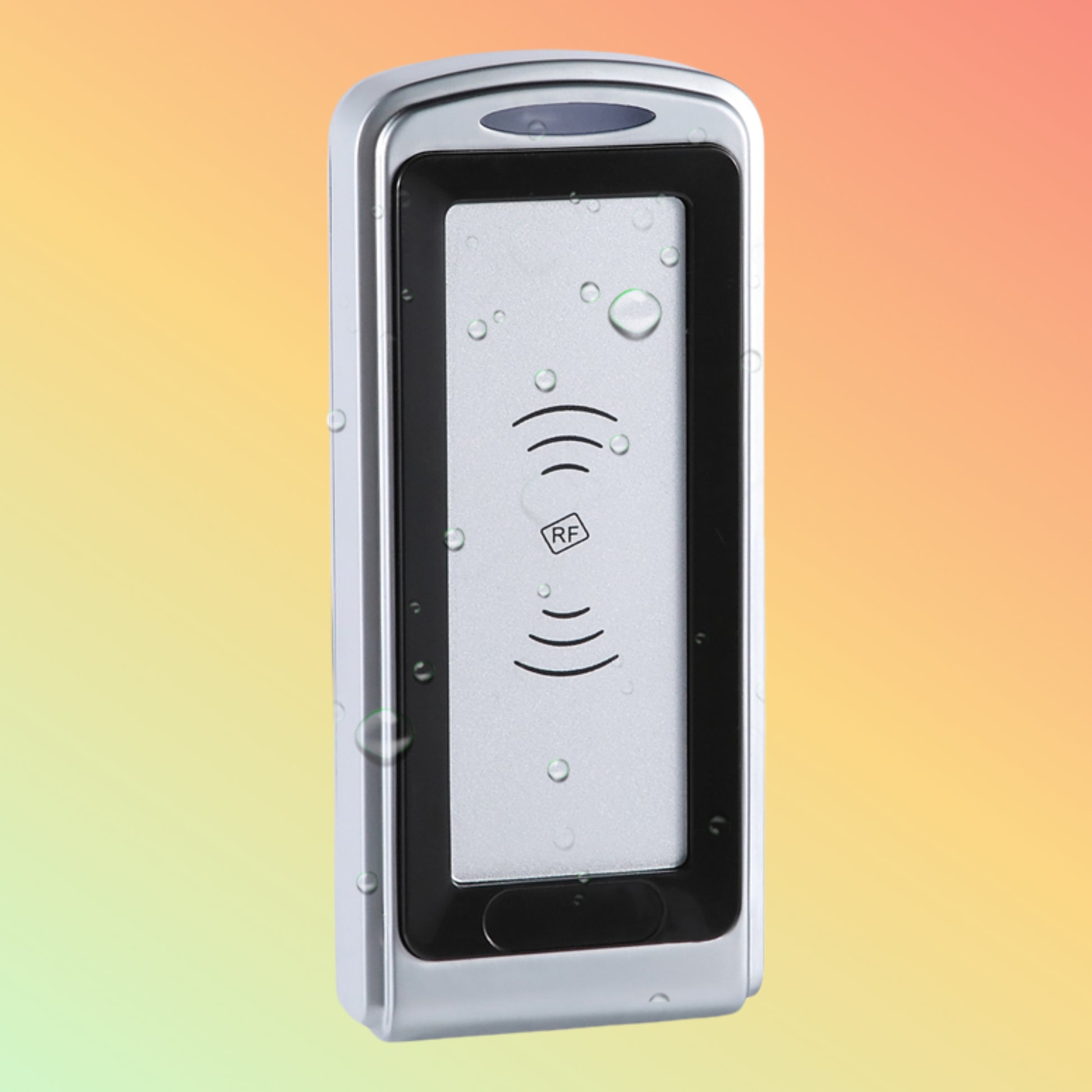

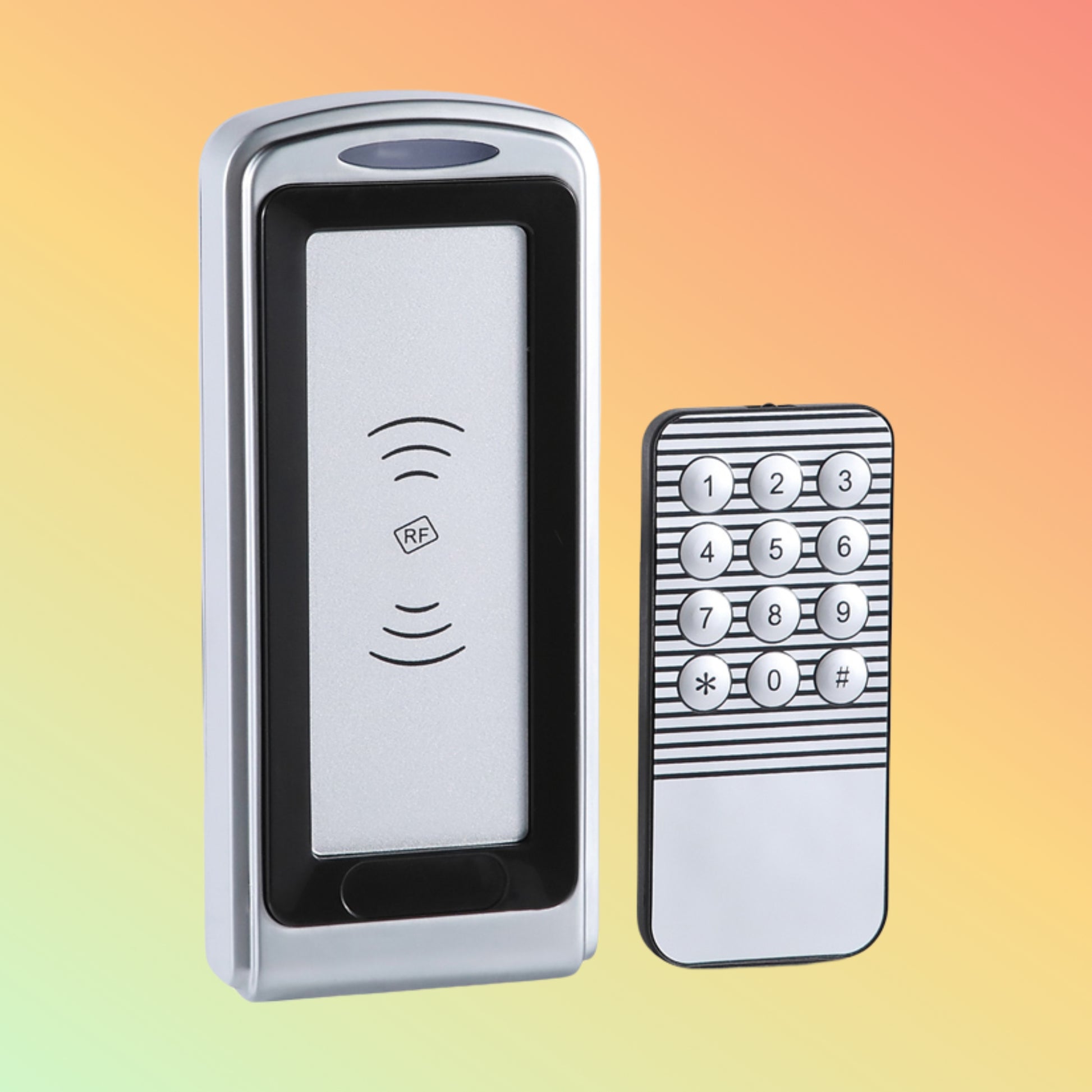

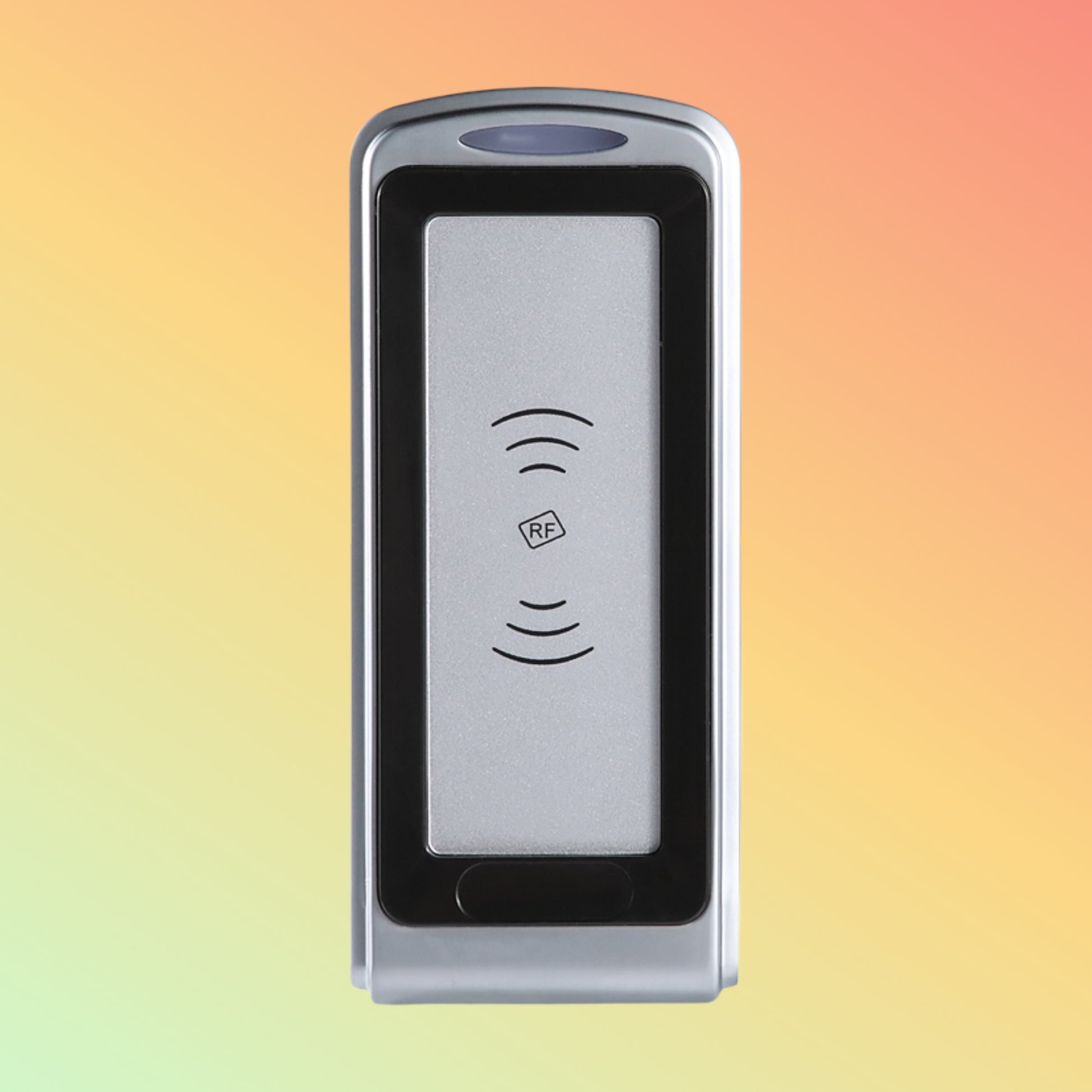

The Granding U2 is a rugged, standalone RFID access control reader with an IP65 rating. It reads 125 kHz EM and 13.56 MHz MIFARE cards and supports offline operation for up to 2,000 users.
Product Description
Built into a UV‑resistant, die‑cast housing, the U2 resists dust, water spray, and vandalism. Its backlit LED indicators and buzzer confirm each read. The reader outputs Wiegand 26/34 to any standard access panel and stores up to 10,000 event logs offline—ideal for gates, doors, and remote sites.
Key Features
-
Dual-frequency support: 125 kHz EM & 13.56 MHz MIFARE
-
IP65 waterproof rating for indoor/outdoor use
-
Offline user capacity: 2,000 cards & PINs
-
Event log: 10,000 transaction records
-
Wiegand 26/34 output for panel integration
-
UV‑resistant die‑cast housing for vandal resistance
-
LED & buzzer feedback for read confirmation
-
12 V DC or PoE power via optional injector
Specifications
| Specification |
Detail |
| RFID Frequencies |
125 kHz EM; 13.56 MHz MIFARE |
| User Capacity |
2,000 cards & PINs |
| Event Log |
10,000 entries |
| Output |
Wiegand 26/34 |
| Power |
12 V DC or PoE (via injector) |
| Current Draw |
120 mA standby; 180 mA reading |
| Operating Temp |
–20 °C to +60 °C |
| Ingress Protection |
IP65 |
| Housing |
Die‑cast aluminum, UV‑resistant |
| Dimensions |
110 × 80 × 25 mm |
| Weight |
360 g |
Supported OS / Application / Industries
Benefits & Compatibility
-
True all‑weather operation: IP65 sealing survives rain and dust
-
Offline reliability: Continues to grant access if network fails
-
Legacy & modern cards: Dual‑frequency support covers both
-
Audit-ready: Download logs for compliance or reporting
-
Panel-agnostic: Standard Wiegand output for easy integration
-
Compatible with the Zebra RFD40 UHF RFID Sled Reader for handheld scanning
Purpose of Use
-
Secure entrances and exits
-
Automate barrier and gate access
-
Record crew attendance in remote locations
-
Offer PIN fallback when cards are unavailable
How to Use
-
Mount the U2 reader at the entry point.
-
Wire 12 V DC (or PoE injector) and Wiegand to your panel.
-
Enroll cards or set PINs via the master card procedure.
-
Present an RFID card or enter PIN to unlock.
-
Download event logs via your access panel software.
Packaging / Weight / Dimensions
-
Includes: U2 reader, mounting screws, quick‑start guide
-
Dimensions: 110 × 80 × 25 mm
-
Weight: 360 g
-
Packaging: Recyclable, protective box
Warranty & FAQs
Performance, Quality, Durability & Reliability
The U2 features industrial‑grade components and a hardened housing. It delivers consistent reads in temperature extremes and high‑traffic scenarios. Its event log ensures you never lose critical access data.
Best Price Guarantee
NEOTECH guarantees the lowest UAE prices on Granding U2 readers. All units are 100% genuine. Volume discounts available.
Shop Today & Receive Your Delivery Across the UAE
Fast dispatch from our Dubai warehouse. Same‑day shipping on in‑stock items.
Request for Customer Reviews and Testimonials
Using the U2 at your facility? ⭐⭐⭐⭐⭐
Share your feedback to help others choose the right access solution.
After Sales Support
NEOTECH provides:
-
Installation advice & wiring diagrams
-
Firmware updates & configuration support
-
Warranty service & replacements
-
24/7 technical assistance
Get in Touch
Need advice on waterproof access readers? Contact our security experts for personalized recommendations and fast replies.
Stock Availability
Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.
Disclaimer
Specifications and pricing may change without notice. Performance varies by installation and environmental conditions.
