Bridge Zigbee 3.0 & Bluetooth 5.0 devices to Wi-Fi via Tuya—secure, scalable, and cloud-enabled. Order the GL-ZW BS Gateway at NEOTECH UAE today!
Overview

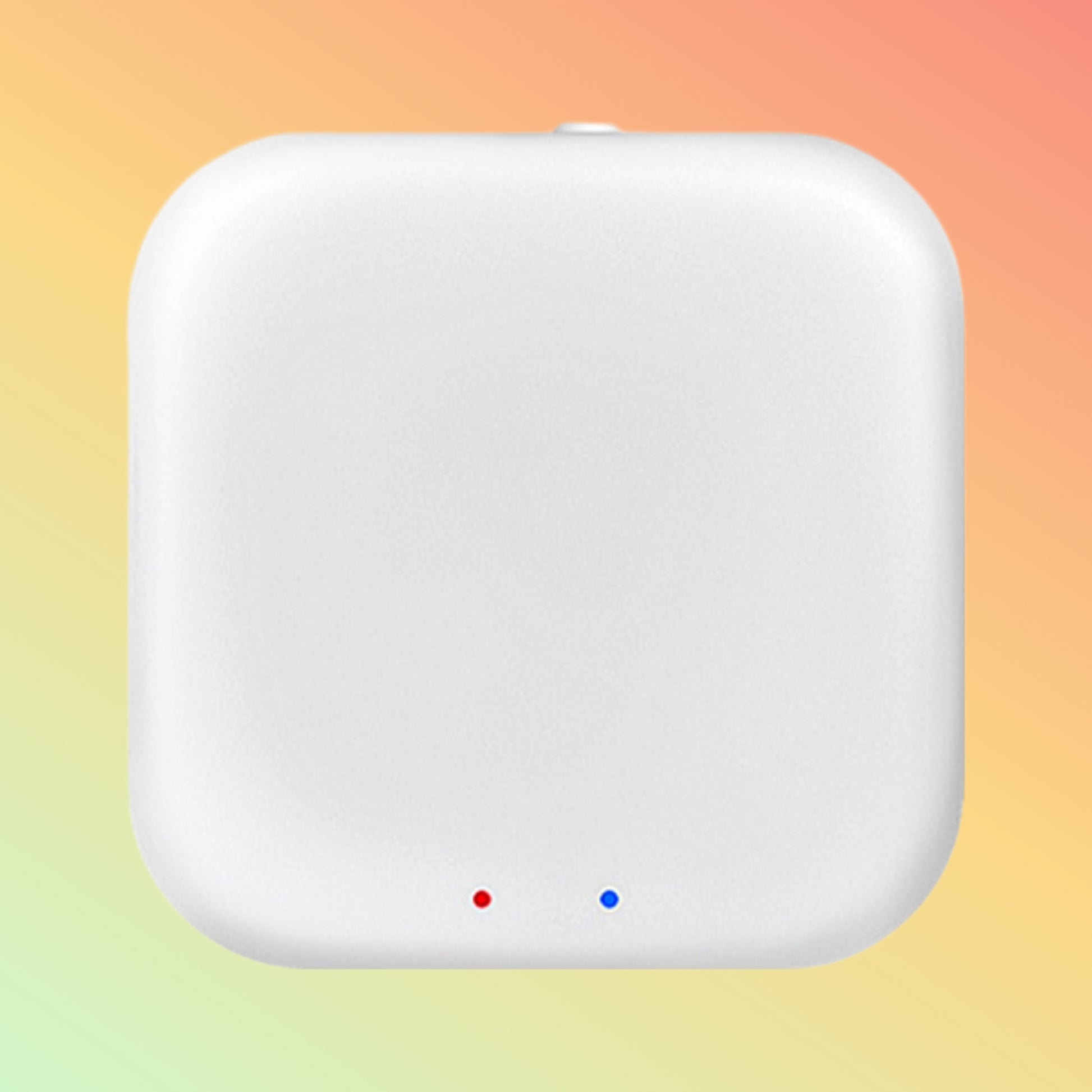

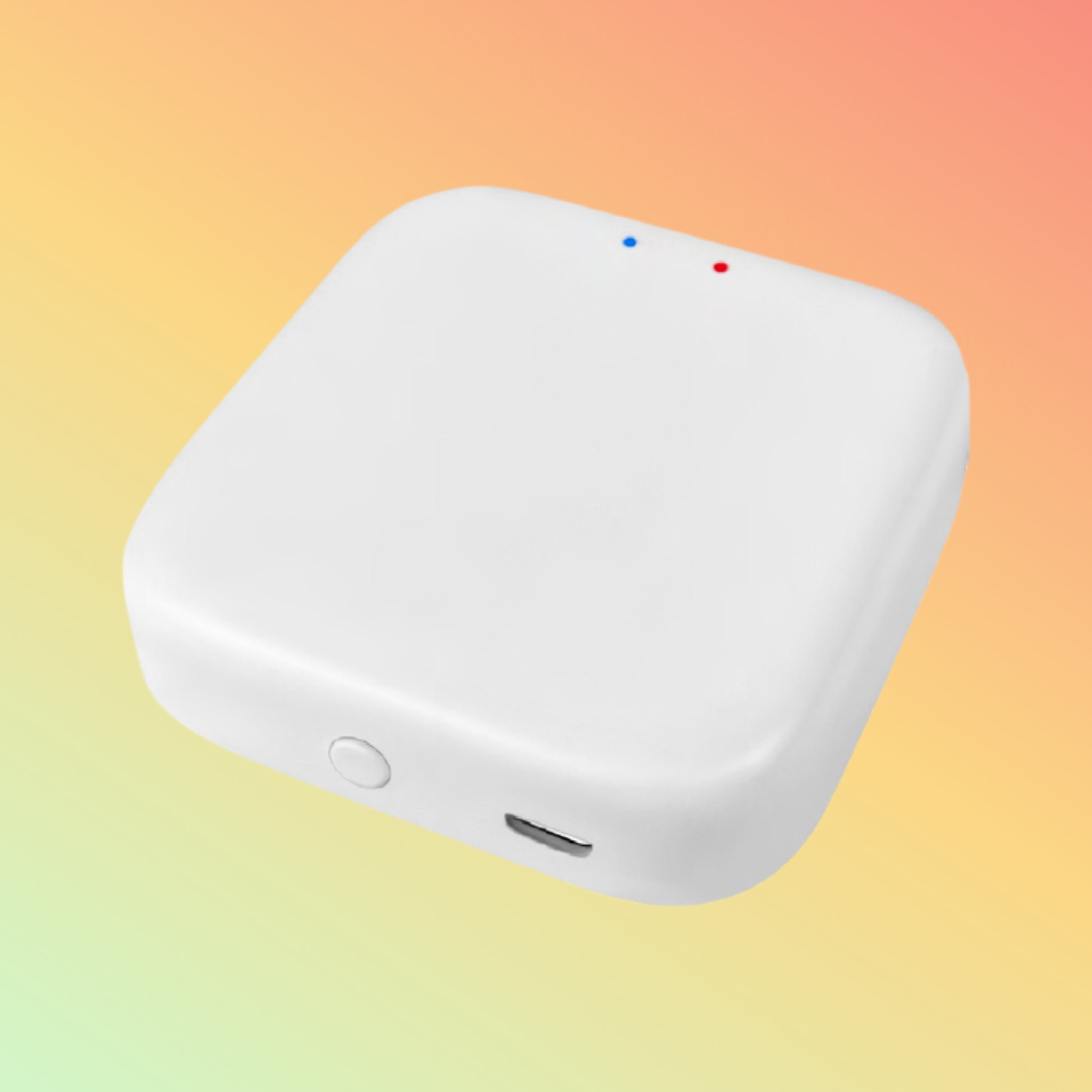

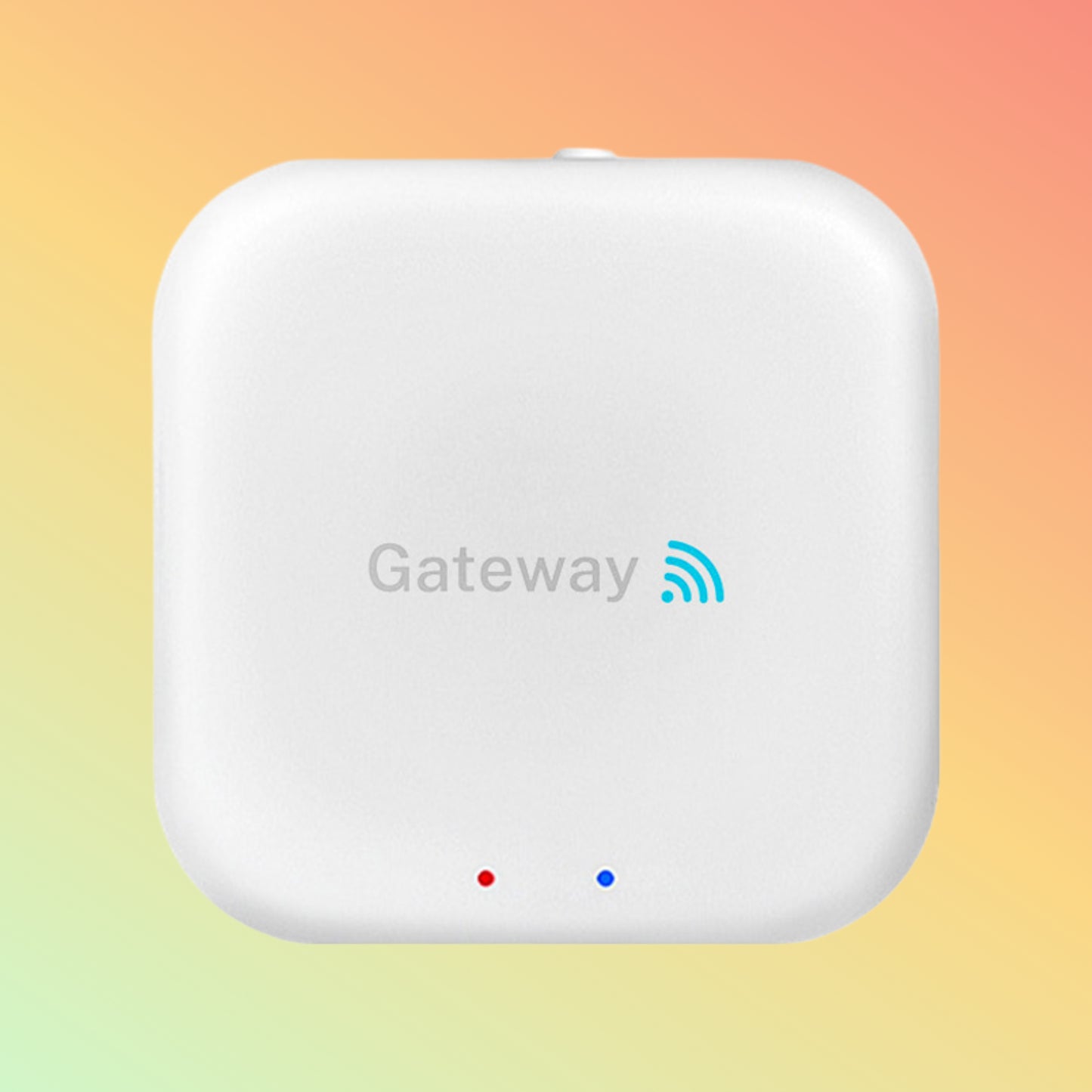

The Granding GL-ZW BS Gateway unifies your Zigbee 3.0 and Bluetooth 5.0 mesh networks onto a single Wi-Fi backbone. Powered by the Tuya IoT platform, it lets you control up to 128 Zigbee and 64 BLE endpoints through the Tuya Smart or Smart Life app, voice assistants, or your own MQTT/Home Assistant integrations.
Product Description
Designed for both residential and commercial deployments, the GL-ZW BS offers:
-
Tuya Cloud Integration: Fast device onboarding, OTA updates, and secure remote access.
-
Multi-Protocol Support: IEEE 802.15.4 Zigbee 3.0 + Bluetooth 5.0 bridged to 2.4 GHz Wi-Fi.
-
Enterprise-Grade Security: AES-128 encryption, automatic channel selection, and fail-safe mesh healing.
-
Flexible Mounting: DIN-rail or wall-mount options, compact 100 × 70 × 25 mm footprint.
Whether you’re automating lights, locks, sensors, or HVAC, this gateway scales effortlessly without rewiring or firmware hacking.
Key Features
-
Bridges Zigbee 3.0 & Bluetooth 5.0 to 2.4 GHz Wi-Fi
-
Tuya IoT platform: seamless app control & voice-assistant integration
-
Supports up to 128 Zigbee nodes & 64 Bluetooth peripherals
-
AES-128 encrypted, self-healing mesh networks
-
OTA firmware upgrades via Tuya Cloud
-
Voice commands via Alexa & Google Assistant
-
DIN-rail and wall mounting hardware included
-
Low power: ≤ 5 W (5 V⎓1 A USB input)
Specifications
| Parameter |
Details |
| Protocols |
Zigbee 3.0 (IEEE 802.15.4), BLE 5.0 |
| Wi-Fi |
IEEE 802.11 b/g/n @ 2.4 GHz |
| Max Zigbee Devices |
128 |
| Max Bluetooth Devices |
64 |
| Encryption |
AES-128 CCM |
| Power Input |
5 V DC, 1 A via Micro-USB |
| Power Consumption |
≤ 5 W |
| Operating Temp |
–10 °C to +55 °C |
| Dimensions |
100 × 70 × 25 mm |
| Mounting |
DIN-rail & wall-mount brackets |
| Indicators |
Power, Wi-Fi, Zigbee, Bluetooth, Error |
Supported OS / Applications / Industries
-
Apps: Tuya Smart, Smart Life (iOS, Android)
-
Integrations: Home Assistant, HomeKit via Tuya bridge, MQTT
-
Use Cases: Smart lighting, access control, environmental sensors, asset tracking
-
Industries: Residential, hospitality, retail, manufacturing, smart offices
Benefits & Compatibility
-
Centralized Control: One gateway for all Zigbee & BLE endpoints
-
Rapid Deployment: Auto-discovery & one-tap pairing
-
Scalable Mesh: Add devices without network reconfiguration
-
Interoperable: Works with NEOTECH Wi-Fi plugs and Granding Smart Sensors
-
Enterprise Reliability: Self-healing mesh and secure cloud failover
Purpose of Use
Deploy the GL-ZW BS to unify multi-vendor Zigbee and Bluetooth devices under a single Wi-Fi-enabled hub. Perfect for integrators, property managers, and tech-savvy homeowners seeking a robust, future-proof IoT backbone.
How to Use
-
Power Up: Connect to 5 V⎓1 A USB supply.
-
Enter Pairing Mode: Hold the “Pair” button for 5 s until LEDs flash.
-
App Setup: In Tuya Smart/Smart Life, tap “+” → “Gateway” → enter Wi-Fi credentials.
-
Device Pairing: Bring Zigbee/BLE devices within 1 m; confirm discovery in-app.
-
Automation: Build scenes, schedules, and voice routines in the app or via API.
Packaging / Weight / Dimensions
-
Includes: Gateway unit, DIN-rail bracket, wall-mount screws, quick-start guide
-
Net Weight: 120 g
-
Package Size: 150 × 100 × 40 mm
Warranty & FAQs
Warranty: 1 year limited hardware warranty
FAQs:
-
Dual-band Wi-Fi? → Only 2.4 GHz supported.
-
Matter support? → Coming via OTA firmware.
-
Local control? → LAN mode available for low-latency scenes.
-
Scene limits? → Unlimited scenes in Tuya platform.
Performance, Quality, Durability & Reliability
Built on an industrial PCB with surge protection, the GL-ZW BS endures 24/7 operations. NEOTECH’s QA includes thermal cycling, EMI shielding, and lifecycle stress tests to guarantee uptime and secure communications.
