Elevate your smart lock system with G2 TTLock Wired Wi-Fi Gateway—reliable connection, seamless app control. Order now from NEOTECH UAE!
Overview

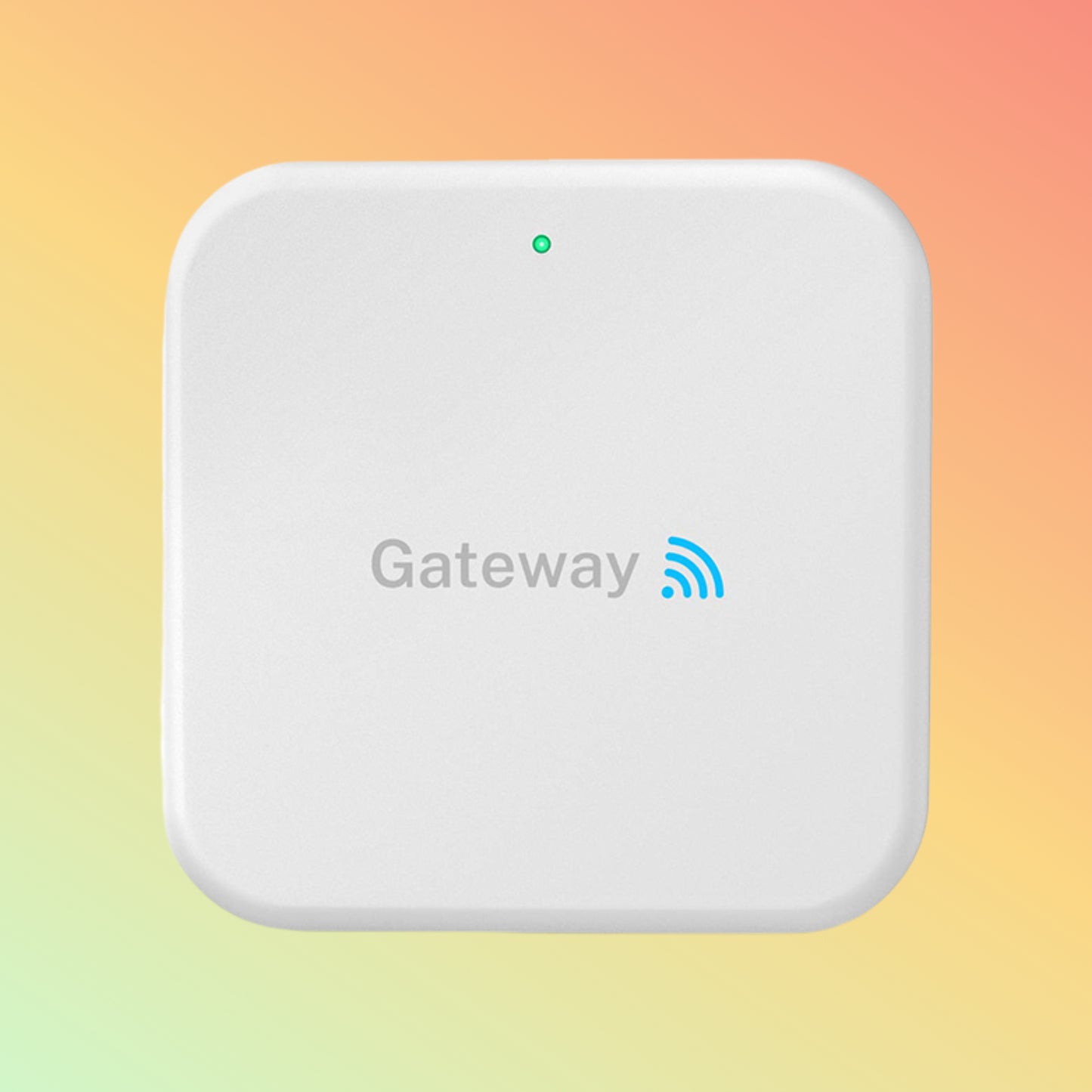

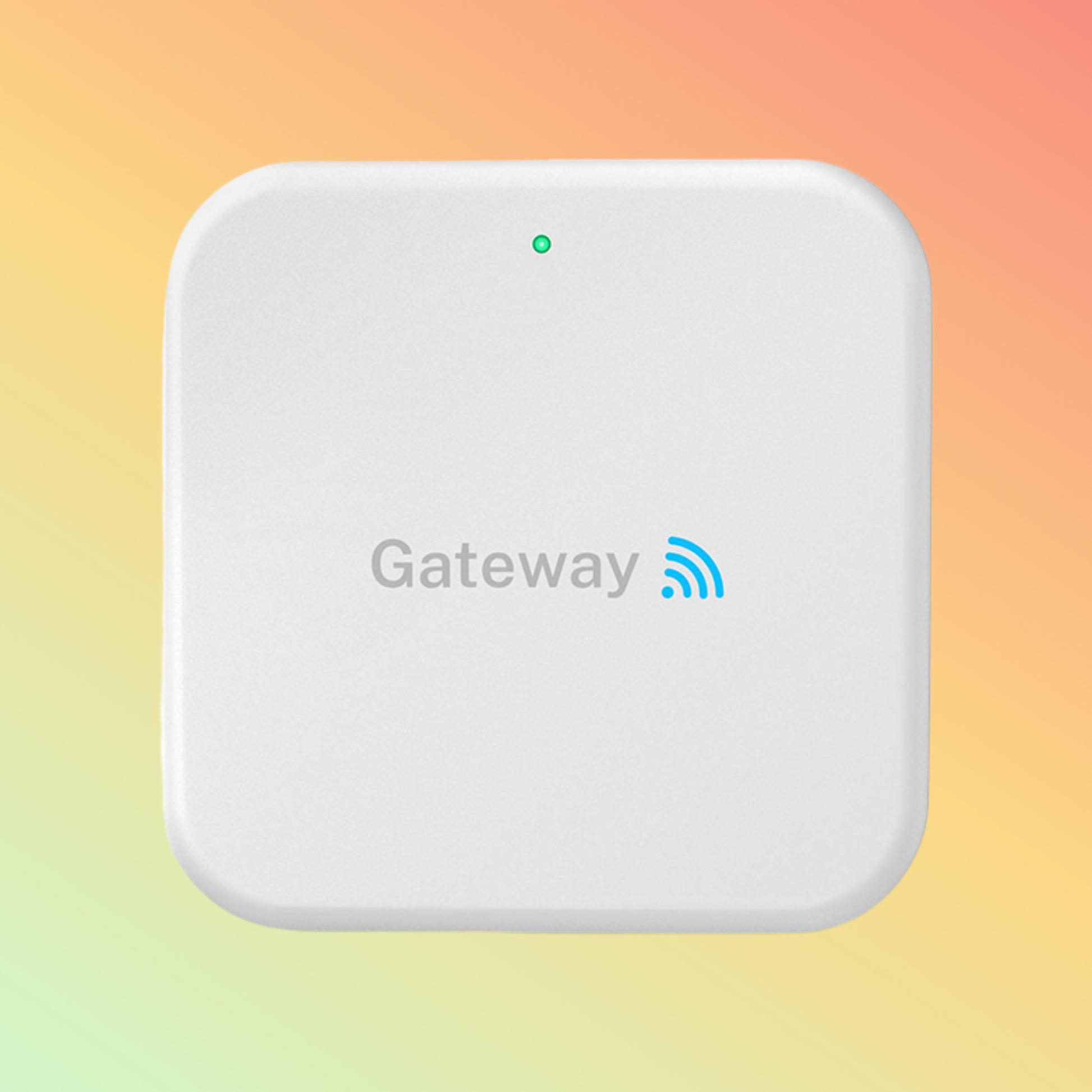

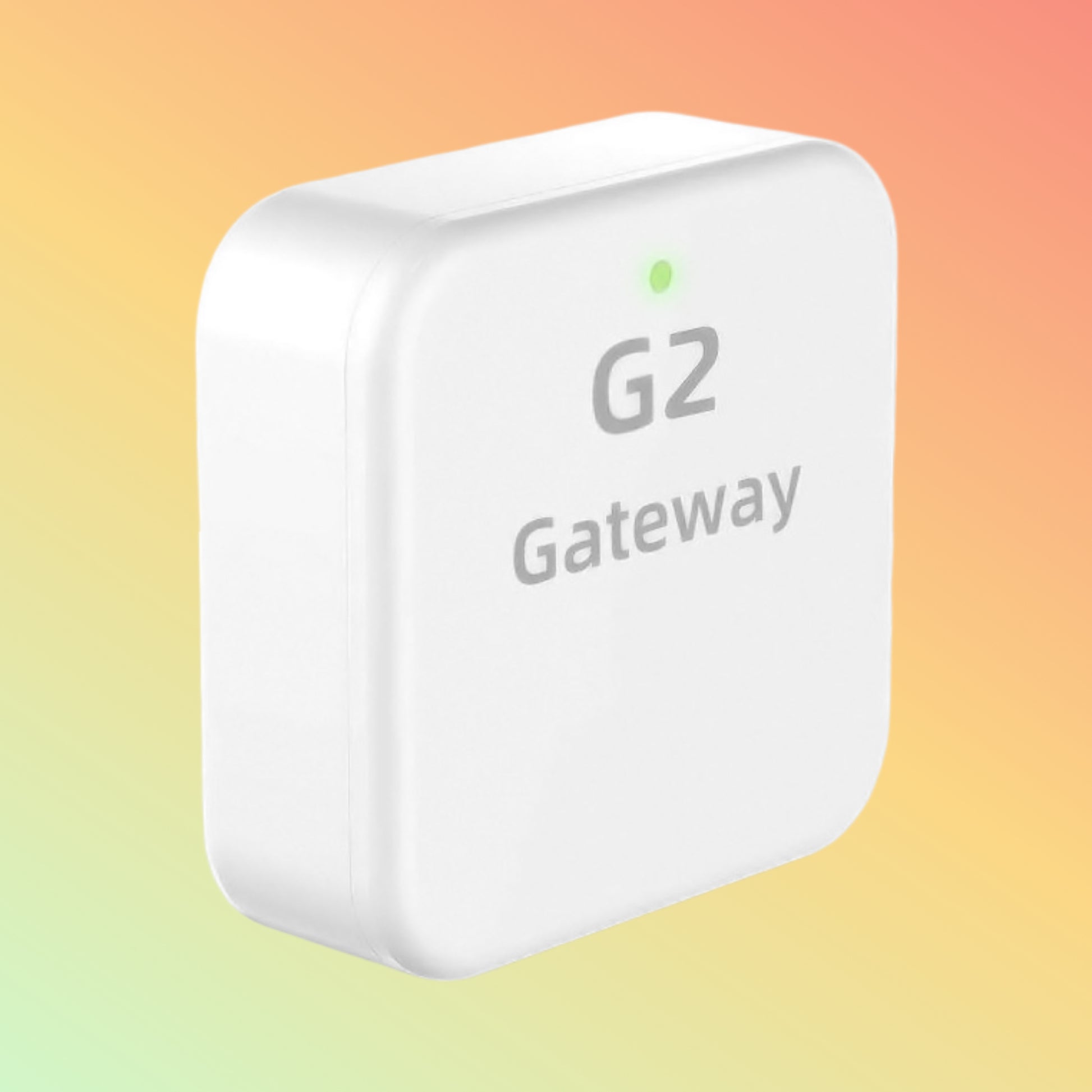

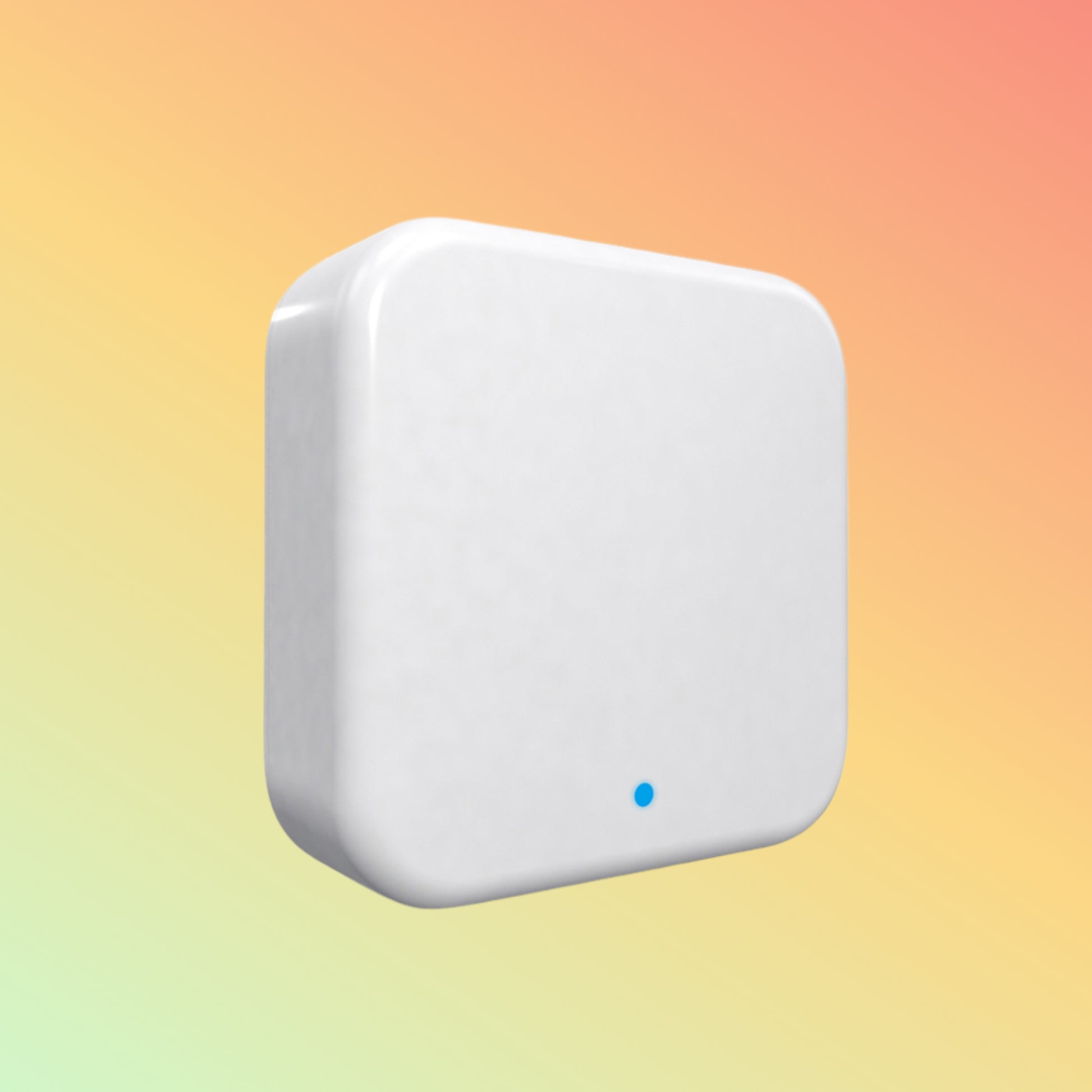

The Granding G2 is a wired Wi-Fi gateway engineered for TTLock-enabled smart locks. It delivers a rock-solid network backbone that connects multiple locks to the cloud. Enjoy instant remote unlocks, real-time status updates, and hassle-free firmware upgrades.
Product Description
G2 plugs into your LAN via Ethernet and bridges TTLock BLE devices to your Wi-Fi network. Once installed, it auto-discovers nearby smart locks and establishes secure, AES-128 encrypted tunnels to the TTLock app. No more spotty Bluetooth links—G2 ensures every lock remains online for push notifications, access logs, and user management.
Key Features
-
Wired Ethernet (10/100 Mbps) for stable network connection
-
Wi-Fi Bridge: 2.4 GHz support for TTLock BLE devices
-
Auto-Discovery of TTLock smart locks within range
-
Cloud Sync: real-time status, event logs, and remote unlock
-
AES-128 Encryption secures all communications
-
OTA Firmware Updates via TTLock platform
-
Compact Design mounts on DIN-rail or wall bracket
-
Power Options: PoE (802.3af) or 12 V DC
Specifications
| Parameter |
Details |
| Ethernet Port |
1 × RJ-45 10/100 Mbps |
| Wi-Fi |
IEEE 802.11 b/g/n (2.4 GHz) |
| BLE |
Bluetooth 4.2 for lock discovery |
| Encryption |
AES-128 CCM |
| Power Input |
PoE (802.3af) or 12 V DC/1 A |
| LED Indicators |
Power, LAN, Wi-Fi, BLE, Error |
| Mounting |
DIN-rail & wall bracket included |
| Operating Temp |
–20 °C to +60 °C |
| Dimensions |
100 × 60 × 25 mm |
| Weight |
150 g |
Supported OS / Application / Industries
-
Control App: TTLock (iOS, Android)
-
Integrations: Home Assistant, MQTT via TTLock API
-
Applications: Multi-door access, hotel rooms, office suites
-
Industries: Hospitality, corporate real estate, rental properties
Benefits & Compatibility
-
Reliable Connectivity: Eliminates Bluetooth dropouts
-
Scalable Network: Supports dozens of TTLock BLE devices
-
Centralized Management: Single pane for e-keys, codes & logs
-
Easy Integration: Works alongside our GL-ZW BS Zigbee & Bluetooth Gateway
-
Future-Ready: OTA updates unlock new features
Purpose of Use
Deploy G2 to ensure every TTLock smart lock in your facility stays online. Ideal for apartment blocks, office floors, and hotel corridors where stable, remote control is critical.
How to Use
-
Mount G2 on a DIN-rail or wall using included bracket.
-
Connect Ethernet cable to your network switch.
-
Power via PoE injector or 12 V DC adapter.
-
Launch the TTLock app and scan G2’s QR code.
-
Auto-Discover connected TTLock smart locks nearby.
-
Manage users, schedules, and firmware from the app.
Packaging / Weight / Dimensions
-
Includes: G2 Gateway, DIN-rail bracket, wall-mount screws, quick-start guide
-
Package Size: 140 × 90 × 40 mm
-
Gross Weight: 250 g
Warranty & FAQs
Warranty: 2 years on hardware and firmware support
FAQs:
-
Can I power via PoE only? Yes—PoE is fully supported.
-
Does it auto-pair new locks? It discovers BLE locks within range automatically.
-
How many locks can it handle? Up to 50 TTLock BLE devices per gateway.
-
Is local LAN mode supported? Yes—LAN commands work without internet.
Performance, Quality, Durability & Reliability
Designed with an industrial-grade PCB and housed in a fire-retardant enclosure. GL-AC03 operates 24/7 in HVAC closets or corridors. Passes EMI, vibration, and surge tests for uninterrupted operation.
Best Price Guarantee
NEOTECH offers the lowest UAE price on the G2 Wired Wi-Fi Gateway. Ask about bulk and system integration discounts.
Shop Today & Receive Your Delivery Across the UAE
Order before 4 PM GST for same-day dispatch to Dubai, Abu Dhabi, Sharjah, and all Emirates. Express B2B shipping available.
Request for Customer Reviews and Testimonials
Integrated G2 in your access network? Share your feedback to help others choose the best gateway solution!
After Sales Support
From setup to troubleshooting, our tech team is on call via email, phone or live chat. We’ve got your back post-purchase.
Get in Touch
Need help with network design or deployment? Contact our IoT experts for personalized recommendations and fast replies.
Stock Availability
Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.
Disclaimer
All details are for general info and may change without notice. Images are illustrative. Verify specs and pricing with our sales team before ordering.
