Power your network with the Granding PE162-200-C: 16×10/100 Mbps PoE ports, sturdy metal chassis, plug-and-play. Bulk orders across UAE—shop now!
Overview

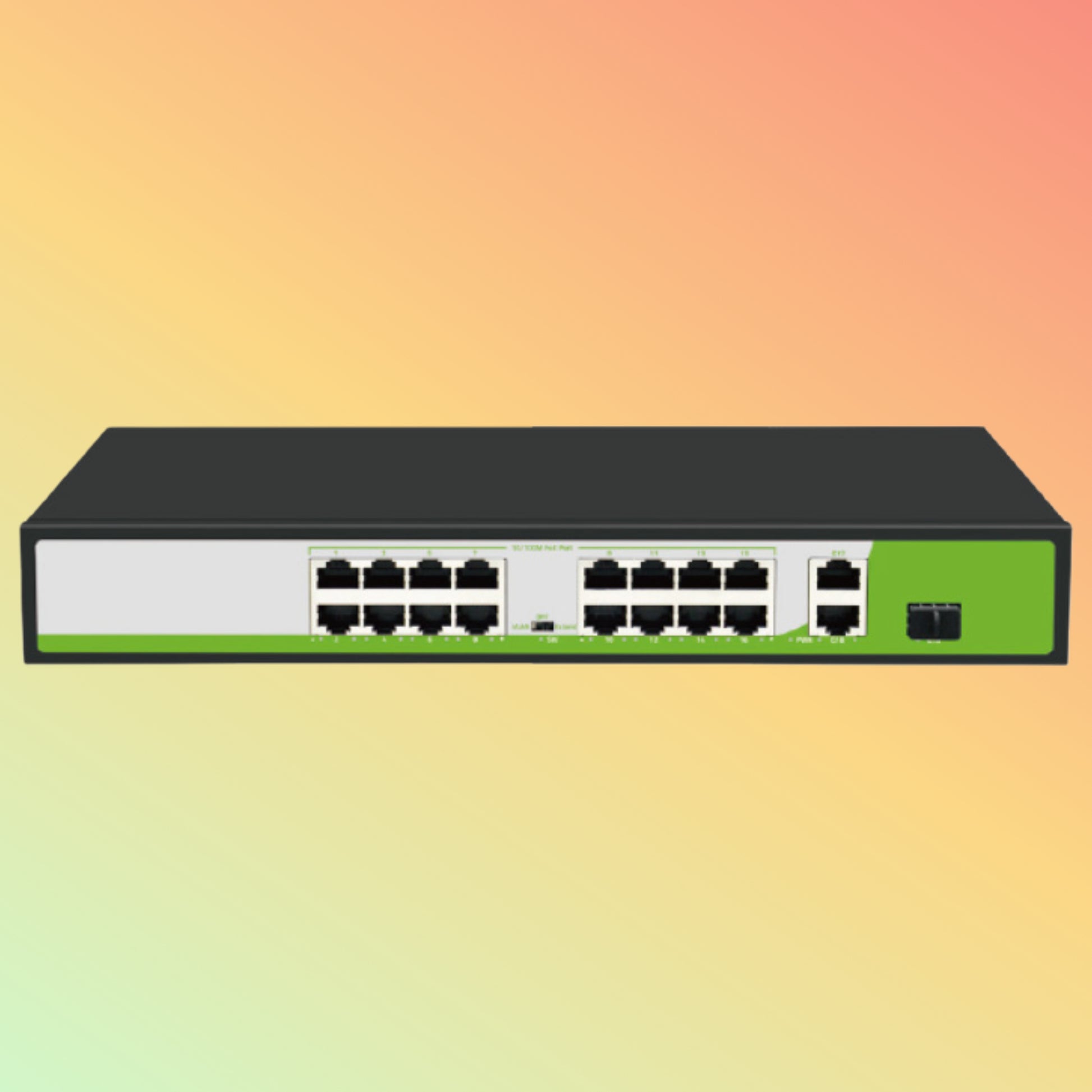

The Granding PE162-200-C is a gig-ready, cost-effective 16-port 10/100 Mbps PoE switch designed for SMB and enterprise edge deployments. It delivers up to 30 W per port, auto-senses power needs, and fits seamlessly into IP camera, VoIP phone, and wireless AP setups—no separate injectors required.
Product Description
Built on a hardened steel chassis with fan-less design, the PE162-200-C offers silent, reliable operation in offices, retail outlets, and branch sites. Each port supports IEEE 802.3af/at, supplying power and data over a single cable. Smart PoE scheduling and power-budget management prevent overloads and downtime. Layer 2 features—VLAN, QoS, IGMP snooping—optimize traffic and secure your network.
Key Features
-
16× 10/100 Mbps RJ45 PoE ports (IEEE 802.3af/at)
-
Total PoE budget: 240 W (up to 30 W per port)
-
Fan-less, metal enclosure for silent, durable operation
-
Auto-MDI/MDIX on all ports—plug-and-play simplicity
-
Layer 2 switching: VLAN, QoS, IGMP snooping, port mirroring
-
Web GUI & CLI management for easy setup and monitoring
-
Surge protection on PoE lines to safeguard devices
-
Compact 1U form factor fits standard rack or desktop
-
Low power consumption for green deployments
-
Wide operating temp.: –10 °C to 55 °C
Specifications
-
Data Rates: 10/100 Mbps half/full-duplex
-
Ports: 16× PoE RJ45, 2× Mini-GBIC SFP uplinks
-
PoE Standard: IEEE 802.3af/at, Class 1-4
-
Power Budget: 240 W total
-
Switching Capacity: 7.2 Gbps
-
MAC Table: 4 K entries
-
Packet Buffer: 512 KB
-
MTBF: > 100 000 hours
-
Dimensions: 440×200×44 mm (1U)
-
Weight: 2.1 kg
-
Power Input: AC 100–240 V, 50/60 Hz
-
Certifications: CE, FCC, RoHS
Supported OS / Application / Industries
Management Platforms: Windows, macOS, Linux via web browser or CLI.
Applications: IP surveillance, VoIP telephony, Wi-Fi access backhaul, PoE-powered IOT.
Industries: SMB offices, retail, hospitality, education, healthcare, manufacturing.
Benefits & Compatibility
-
Single-cable power & data slashes install time and cabling costs
-
Layer 2 features ensure traffic prioritization for voice/video
-
High PoE budget powers cameras, phones, and APs simultaneously
-
Plug-and-play design ideal for fast rollouts and branch sites
-
Rack-mountable in 19″ cabinets or sit-alone on desktops
-
Integrates with NEOTECH PoE cameras, wireless APs, and VoIP phones
Purpose of Use
Ideal for powering and connecting edge devices—IP cameras in retail aisles, VoIP handsets in call centers, and APs in conference rooms—while maintaining secure, segmented LAN traffic.
How to Use
-
Rack or place the switch in your comms closet or desktop spot.
-
Connect AC power and uplink to core network or router.
-
Plug PoE-enabled devices into any of the 16 RJ45 ports.
-
Access the web GUI via browser (default IP) or CLI over Telnet/SSH.
-
Configure VLANs, QoS, and PoE schedule to suit your topology.
-
Monitor port status, PoE power draw, and traffic metrics centrally.
Packaging / Weight / Dimensions
-
Packaging: Recyclable corrugated box with protective inserts
-
Included: Switch, rack-ears, power cable, quick-start guide
-
Dimensions: 440×200×44 mm
-
Weight: 2.1 kg
Warranty & FAQs
Warranty: 3-year limited hardware warranty.
FAQs:
-
Q: Can I mix 802.3af and at devices?
A: Yes; auto-negotiation assigns max allowed per port.
-
Q: What if I exceed power budget?
A: Ports shut off lowest-priority PoE class to protect budget.
-
Q: Does it support PoE scheduling?
A: Yes—configure on/off times via the web GUI.
-
Q: Can I upgrade firmware?
A: Remotely via web interface or USB.
Performance, Quality, Durability & Reliability
Designed for non-stop 24/7 operation, the fan-less metal design disperses heat effectively. MTBF exceeds 100 000 hours. Integrated surge protection safeguards both switch and powered devices from spikes.
Best Price Guarantee
NEOTECH matches or beats any qualified UAE quote on the Granding PE162-200-C. Secure your PoE switch at the lowest rate.
Shop Today & Receive Your Delivery Across the UAE
Order now for fast dispatch from NEOTECH’s UAE warehouse. Bulk and project orders receive priority fulfillment and pre-configuration options.
Request for Customer Reviews and Testimonials
Deploying the PE162-200-C? Share your experience and help fellow network engineers make informed choices.
After Sales Support
Our network specialists are on call via email, phone, or live chat for setup guidance, firmware updates, and troubleshooting.
Get in Touch
Need a network audit, site survey, or volume pricing? Contact NEOTECH’s PoE network experts for tailored solutions and rapid quotes.
Stock Availability
✔ In Stock – Ready to ship from UAE warehouse
⏳ Limited units; confirm availability for large deployments before ordering.
Disclaimer
Specifications subject to change without notice. Images illustrative. Confirm final specs and pricing with NEOTECH sales prior to purchase.
