Overview

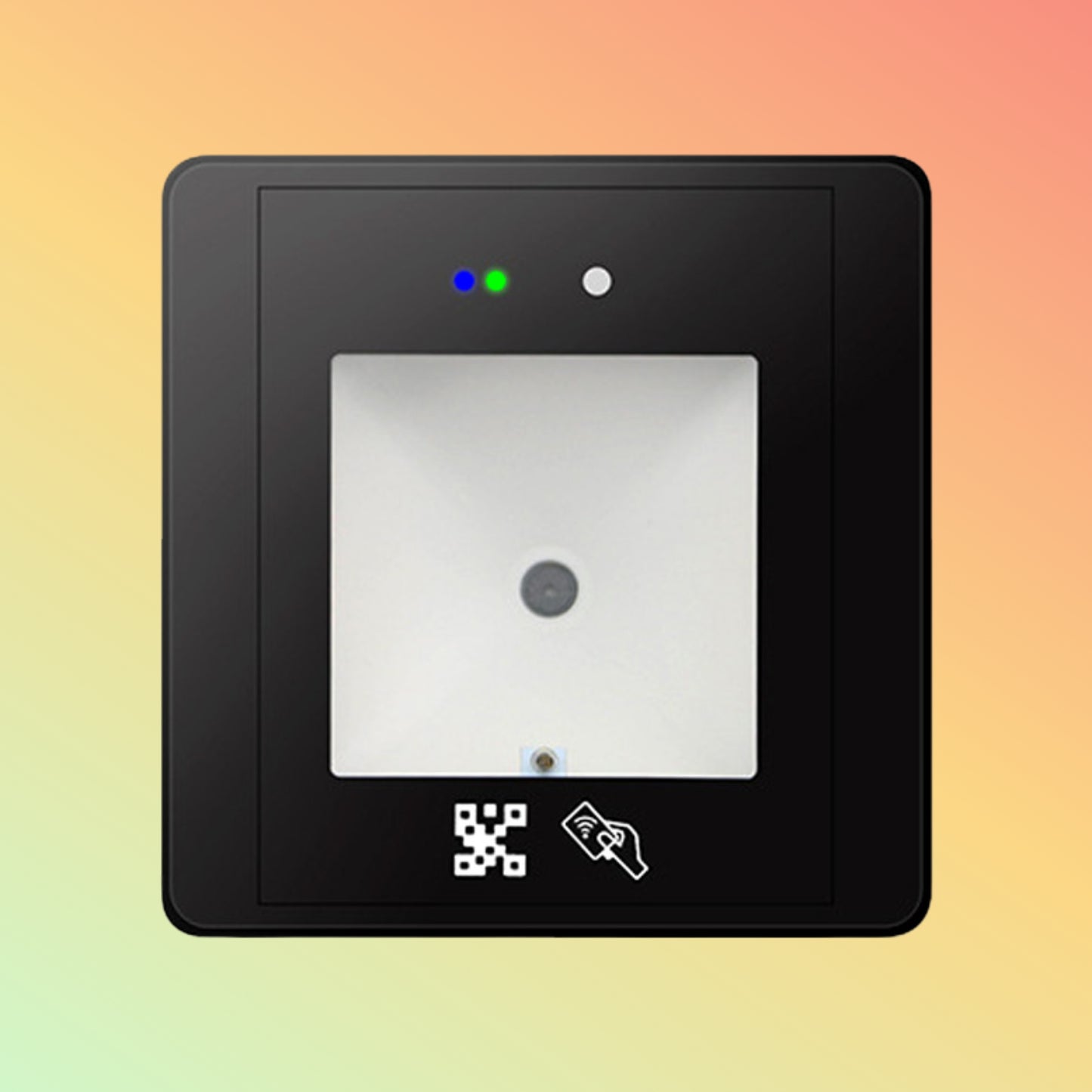

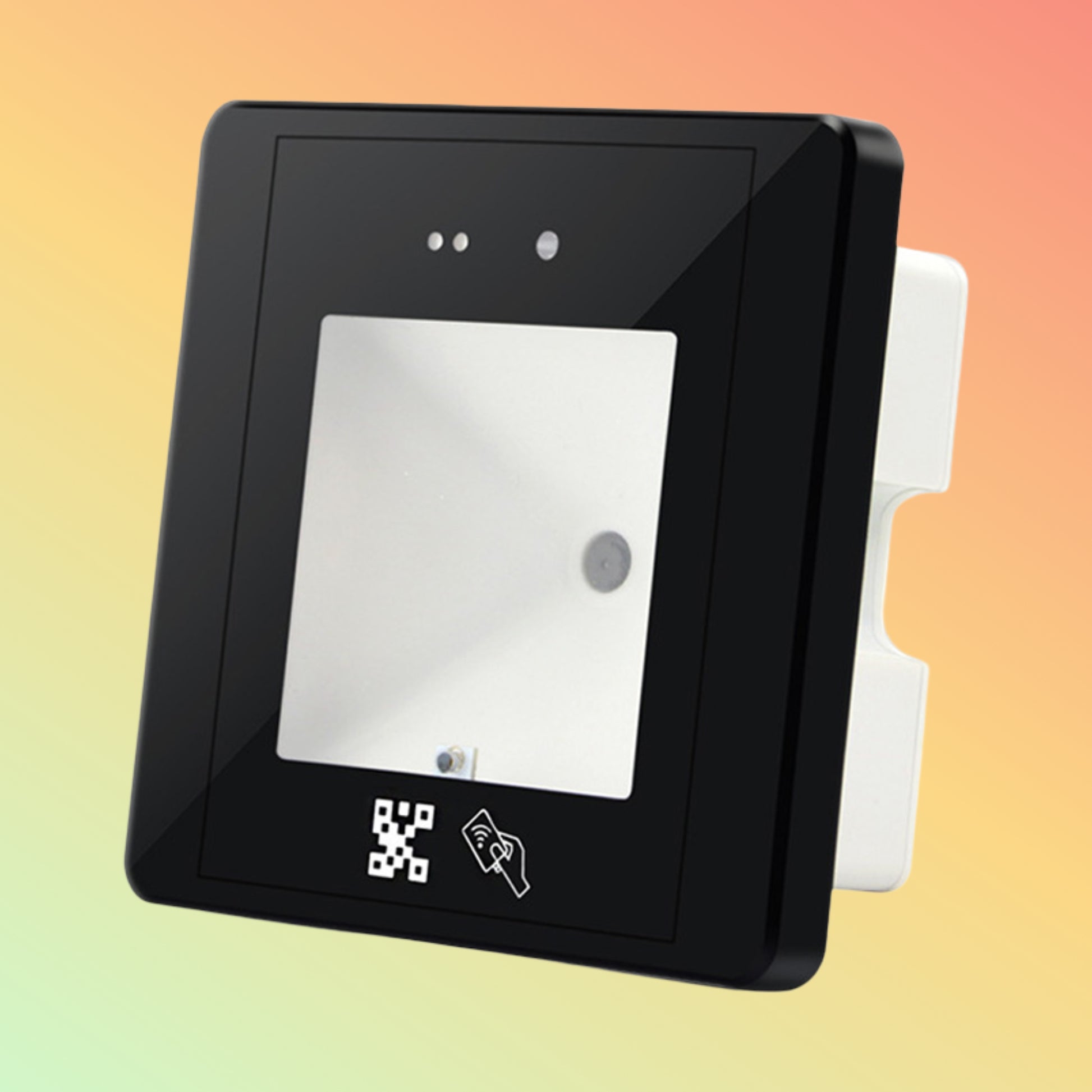

The Granding QR200 reader offers dual-mode QR code and RFID card access. It outputs via Wiegand 26/34, RS485, RS232 or USB. Built for indoor and outdoor use, it streamlines secure entry in high-traffic areas.
Product Description
This all-in-one access reader decodes QR codes, 1D barcodes and RFID cards. Its rugged IP65 housing resists dust and water. A high-resolution imager and fast MCU deliver reads in under 200 ms. Choose from multiple interfaces to suit existing controllers. Firmware updates and advanced anti-tamper alerts keep systems secure.
Key Features
-
Dual-mode: QR code, 1D barcode & RFID card reads
-
Wiegand 26/34 output for standard access panels
-
RS485 & RS232 serial links for legacy systems
-
USB port for PC integration and configuration
-
IP65-rated, UV-stable housing for indoor/outdoor use
-
Built-in tamper switch and door status input
-
LED and buzzer feedback for user guidance
-
Remote firmware update via USB or serial
-
Fast scan-to-output latency (< 200 ms)
-
Multi-protocol support: ASCII, TTL, Wiegand
Specifications
-
Read Range: QR up to 20 cm; RFID up to 10 cm (card dependent)
-
Interfaces: Wiegand 26/34, RS485, RS232, USB 2.0
-
Power: 12 VDC/300 mA
-
Operating Temp.: −20 °C to +60 °C
-
Ingress Protection: IP65
-
Dimensions: 120 × 68 × 18 mm
-
Weight: 200 g
-
Certifications: CE, FCC, RoHS
Supported OS / Application / Industries
Integration Platforms: Works with Windows, Linux, embedded controllers.
Applications: Door access, time attendance, parking gates, turnstiles.
Industries: Security, real estate, hospitality, education, healthcare.
Benefits & Compatibility
-
Speeds up access with fast scan and decode
-
Fits legacy and modern systems with multi-interface outputs
-
Cuts installation time: one device, multiple protocols
-
Scales with NEOTECH’s Centralized Access Management Platform
-
Pairs easily with RFID/NFC Cards and mobile credentials
Purpose of Use
Use the QR200 at entry points to grant or deny access via mobile codes or RFID badges. Ideal for offices, gated communities, and secure zones.
How to Use
-
Mount at 1.2 m height near entry.
-

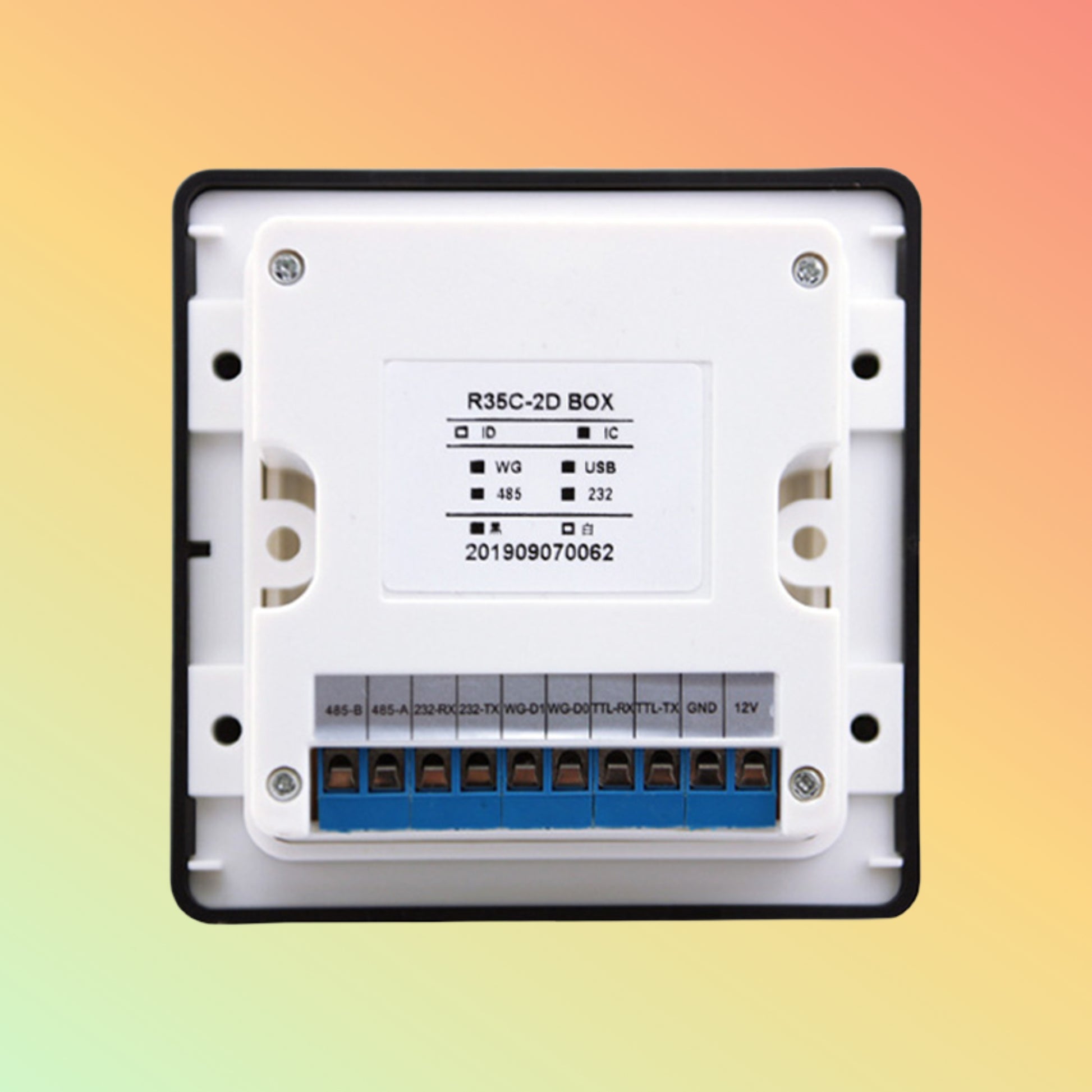

Wire 12 VDC and chosen interface (Wiegand/RS).
-
Configure code format and output via USB tool.
-
Enroll QR patterns or card IDs in your access system.
-
Test scans, adjust angle and lighting as needed.
Packaging / Weight / Dimensions
-
Packaging: Foam-lined box with accessories
-
Included: QR200 reader, mounting screws, backbox template, quick-start guide
-
Dimensions: 120 × 68 × 18 mm
-
Weight: 200 g
Warranty & FAQs
Warranty: 1-year limited hardware warranty; extended plans available.
FAQs:
-
Q: Can it read printed QR codes?
A: Yes; high-res imager handles low-contrast prints.
-
Q: How to switch output mode?
A: Use dip switches or USB config tool.
-
Q: Is USB for power or data?
A: Data/config only; power via 12 VDC.
-
Q: Outdoor installation?
A: Yes; IP65-rated housing protects electronics.
Performance, Quality, Durability & Reliability
Tested to IP65 standards and rated for 1 m drop. The metal-reinforced PCB resists vibration and moisture. Continuous-read mode supports peak traffic without lag.
Best Price Guarantee
NEOTECH matches or beats any qualified UAE quote on the QR200. Keep your rollout within budget with our price-beat promise.
Shop Today & Receive Your Delivery Across the UAE
Order the Granding QR200 now for fast dispatch from our UAE warehouse. Bulk or turnkey integration kits available.
Request for Customer Reviews and Testimonials
Installed the QR200? Share your review to help peers and improve NEOTECH’s solutions.
After Sales Support
From setup to troubleshooting, our tech team is on call via email, phone or live chat. We’ve got your back post-purchase.
Get in Touch
Need custom integration or site survey? Contact NEOTECH’s access specialists for fast, tailored advice.
Stock Availability
✔ In Stock – Ships from UAE warehouse
⏳ Limited units; confirm availability for large fleets before ordering.
Disclaimer
Specifications subject to change without notice. Images are illustrative. Confirm specs and pricing with NEOTECH sales before purchase.
