Scan codes instantly with the Granding QR100. Multi-interface support for Wiegand, RS485, USB & TCP/IP. Reliable, rugged access control. Order in UAE today!
Overview

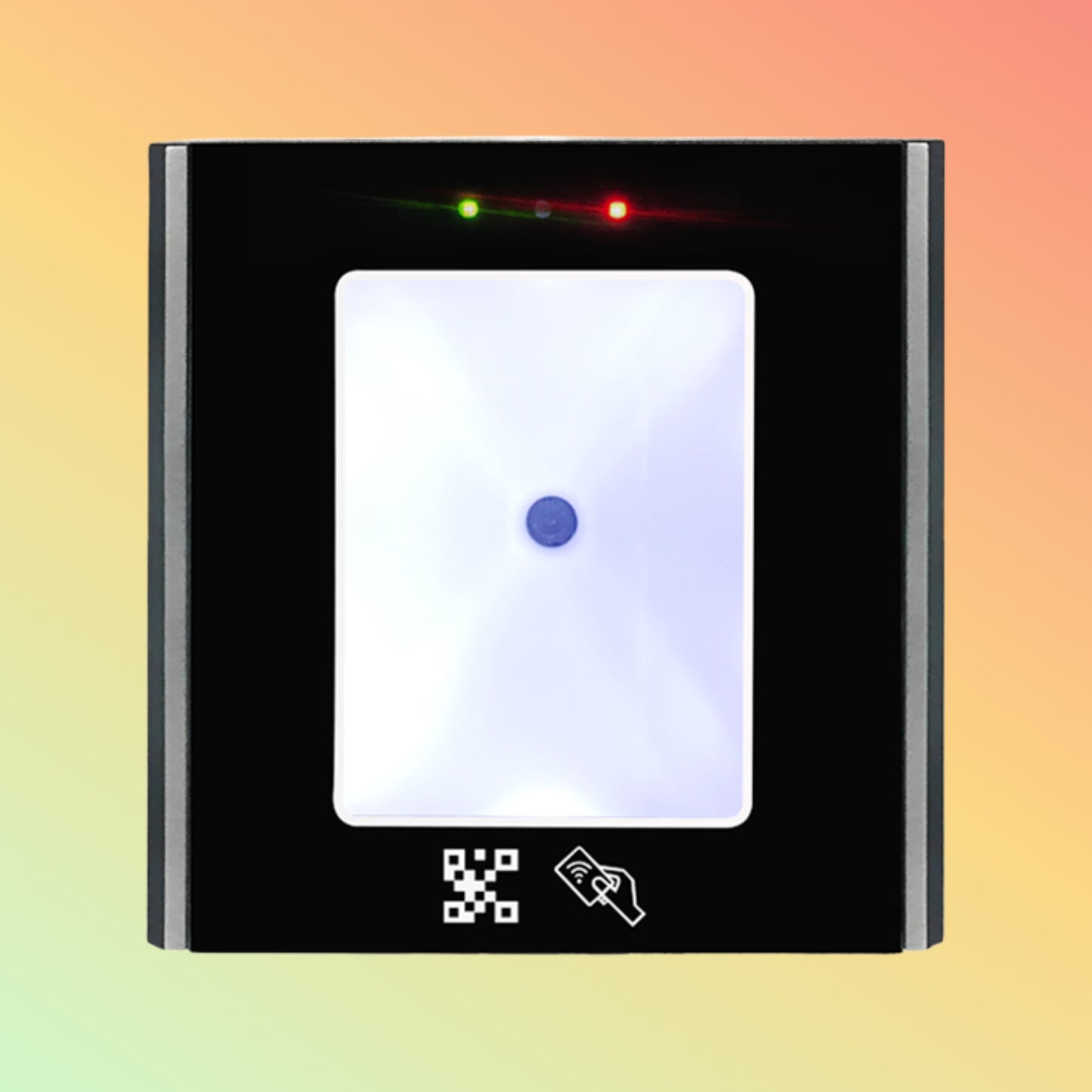

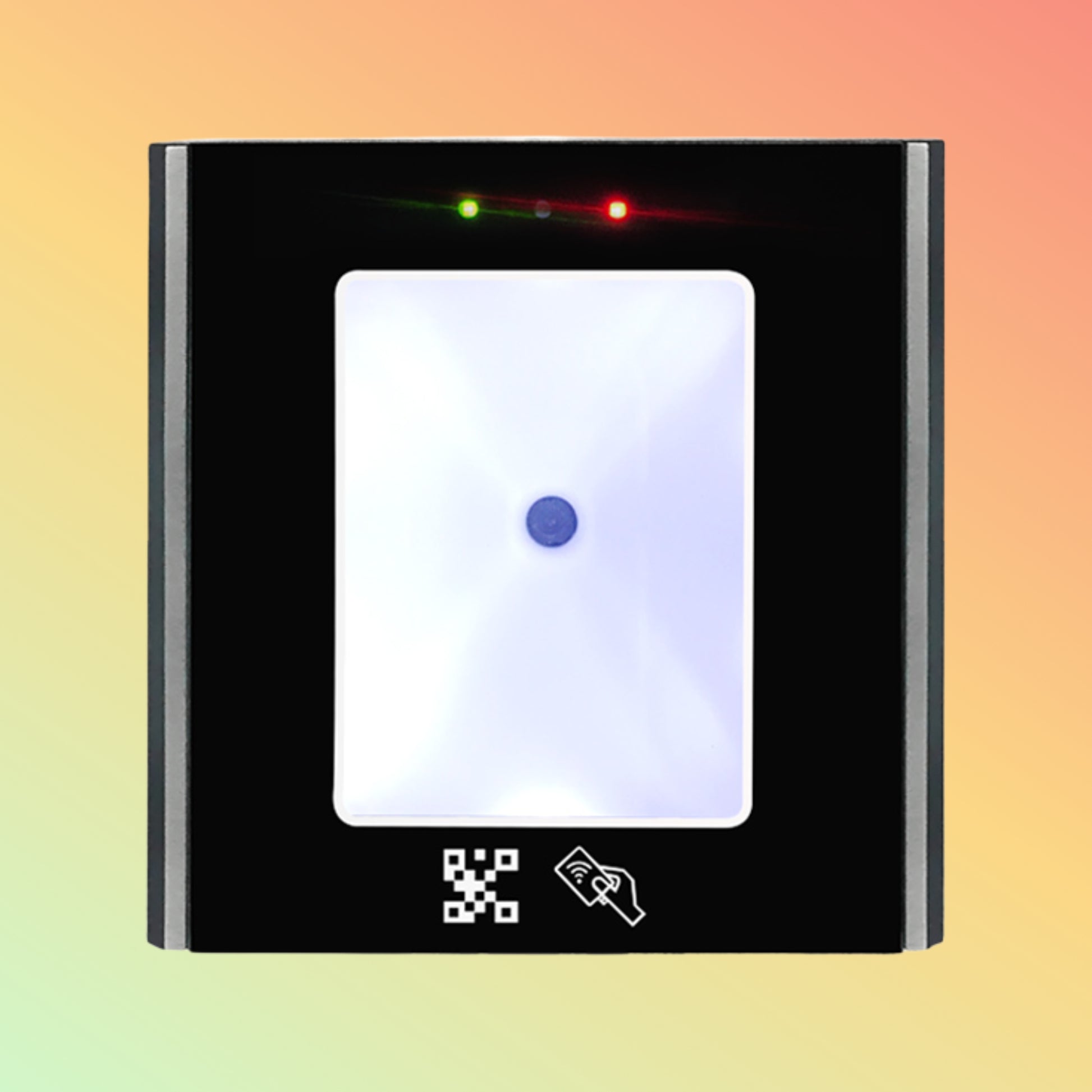

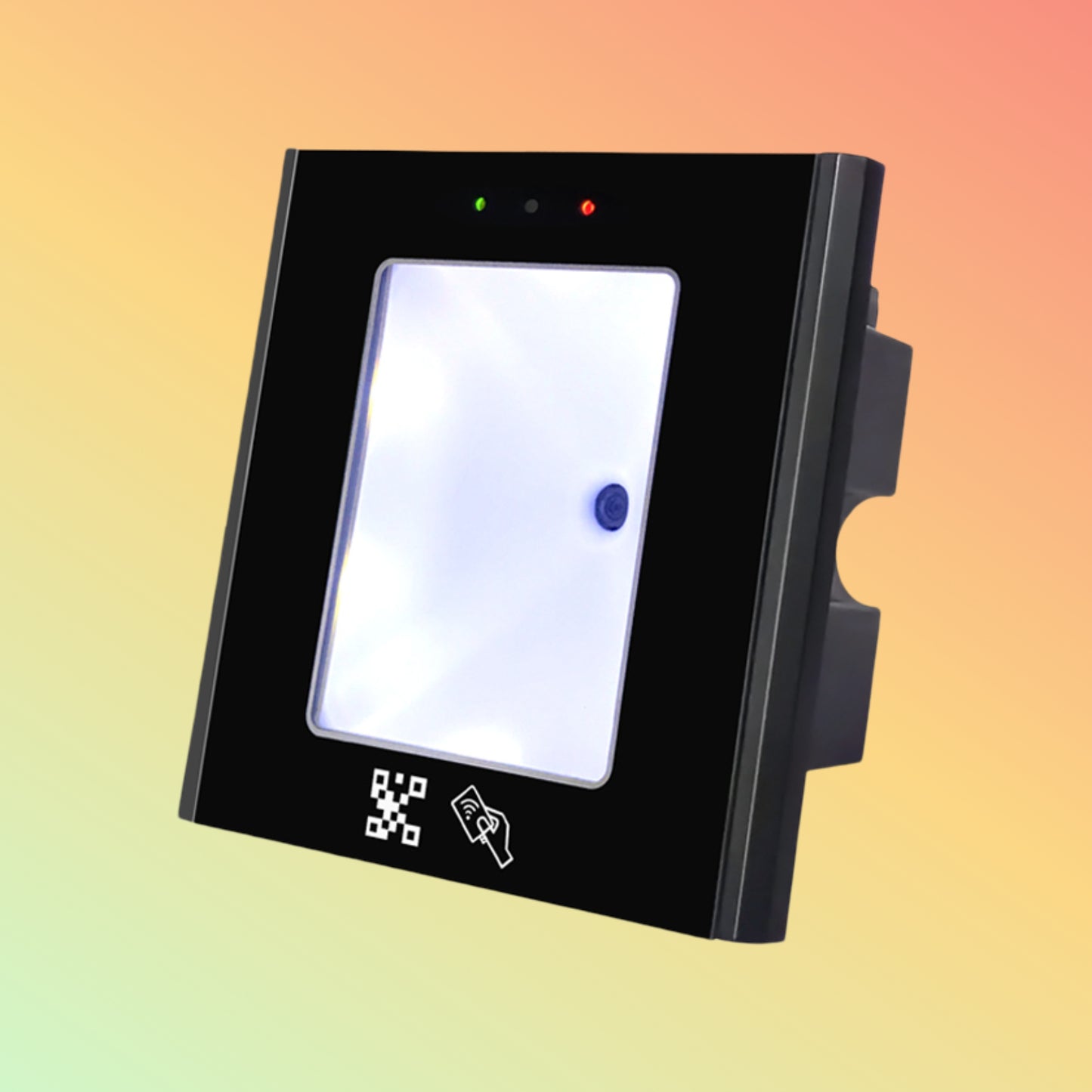

The Granding QR100 is a versatile QR code access reader designed for seamless integration. It decodes QR, 1D barcodes and streams data over Wiegand, RS485, USB or TCP/IP. Built for high-traffic entry points, it combines speed, reliability and enterprise security.
Product Description
The QR100 pairs a high-resolution imaging engine with a robust MCU. It reads codes in under 200 ms and outputs credentials to legacy Wiegand panels or modern TCP/IP controllers. Its IP65-rated housing and tamper alerts ensure uptime in indoor or outdoor zones. Configure via USB or network and deploy at scale with minimal fuss.
Key Features
-
2D imager for QR codes, Code 128, EAN/UPC
-
Multi-interface: Wiegand 26/34, RS485, USB, TCP/IP
-
IP65 dust- and water-resistant enclosure
-
Fast decode latency (< 200 ms)
-
Built-in tamper switch and door-sense input
-
LED and buzzer feedback for user guidance
-
PoE or 12 VDC power support
-
Remote firmware upgrade via network or USB
-
Anti-vandal design with stainless trim
-
Compact footprint for tight spaces
Specifications
-
Scan Range: QR up to 20 cm; 1D up to 15 cm (code-dependent)
-
Interfaces: Wiegand 26/34, RS485, USB 2.0, RJ45 TCP/IP
-
Power: PoE (802.3af) or 12 VDC, 300 mA
-
Ingress: IP65, IK07 impact rating
-
Operating Temp: –20 °C to +60 °C
-
Mounting: Surface or flush with backbox
-
Dimensions: 120 × 68 × 18 mm
-
Weight: 200 g
Supported OS / Application / Industries
Integration Platforms: Windows, Linux, embedded controllers (via SDK).
Applications: Door access, turnstiles, time-attendance, parking barriers.
Industries: Security, hospitality, education, healthcare, corporate estates.
Benefits & Compatibility
-
Reduces hardware count with one reader, many outputs
-
Streamlines rollouts via PoE and TCP/IP provisioning
-
Defends entry points with tamper alerts and rugged design
-
Integrates with NEOTECH’s Access Management Platform
-
Works seamlessly alongside RFID/NFC Credentials
Purpose of Use

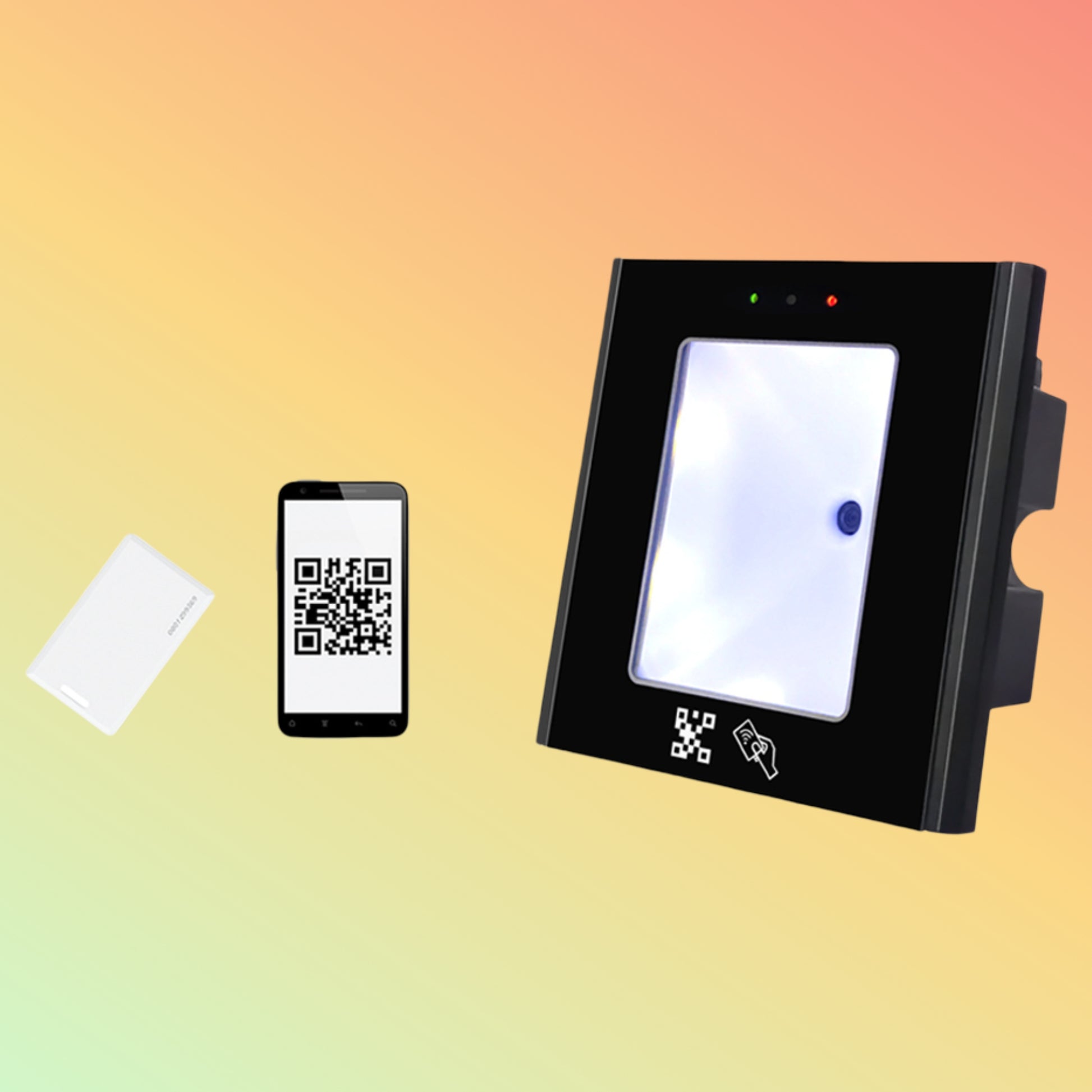

Use the QR100 to grant secure entry via printed or mobile QR codes and legacy RFID badges. Ideal for busy lobbies, gatehouses and time-clock stations.
How to Use
-
Mount at user height with included bracket.
-
Wire PoE or 12 VDC and chosen data interface.
-
Configure output mode and code types via USB tool or web UI.
-
Enroll codes or sync with your credential database.
-
Test scans; adjust illumination and orientation.
Packaging / Weight / Dimensions
-
Packaging: Foam-lined export box
-
Included: QR100 reader, screws, backbox template, quick-start guide
-
Dimensions: 120 × 68 × 18 mm
-
Weight: 200 g
Warranty & FAQs
Warranty: 1-year limited hardware warranty.
FAQs:
-
Can it read poor-print QR codes? Yes—advanced imaging handles low contrast.
-
Switch between interfaces? Use dip switches or USB config.
-
Outdoor use? Yes—IP65 housing handles rain and dust.
-
Power via USB? Data only; power via PoE or 12 VDC.
Performance, Quality, Durability & Reliability
Tested to IP65 and IK07 for impact. The stainless-trimmed housing resists vandalism. Continuous-read mode supports peak traffic with sub-200 ms latency.
Best Price Guarantee
NEOTECH matches or beats any qualified UAE quote on the QR100. Keep costs low with our price-beat promise.
Shop Today & Receive Your Delivery Across the UAE
Order the Granding QR100 now for fast dispatch from our UAE warehouse. Bulk and turnkey integration packages available.
Request for Customer Reviews and Testimonials
Installed the QR100? Share your review to help peers and refine NEOTECH solutions.
After Sales Support
Our support team is on call via email, phone or live chat for setup, configuration and troubleshooting.
Get in Touch
Need custom integration or a site survey? Contact NEOTECH access control specialists for expert guidance.
Stock Availability
✔ In Stock – Ships from UAE warehouse
⏳ Limited units; confirm availability for large fleet orders.
Disclaimer
Specifications subject to change without notice. Images are illustrative. Confirm specs and pricing with NEOTECH sales before purchase.
